NSN 5365-01-138-7810 MS24391J16, AS5169, AS5169J16
Product Details | MACHINE THREAD PLUG
5365-01-138-7810 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: MS24391J16, AS5169, AS5169J16, 5365-01-138-7810, 01-138-7810, 5365011387810, 011387810
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 SEP 1982 | 01-138-7810 | 03801 ( PLUG, MACHINE THREAD ) |

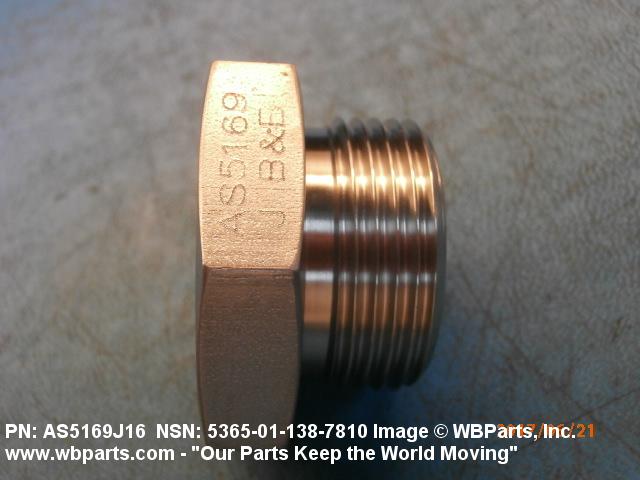

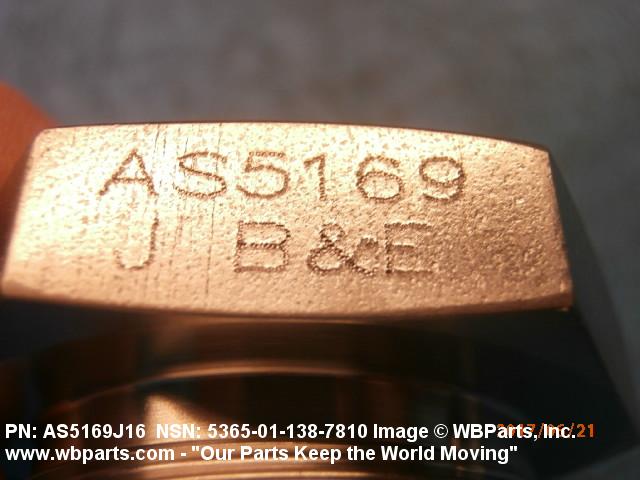

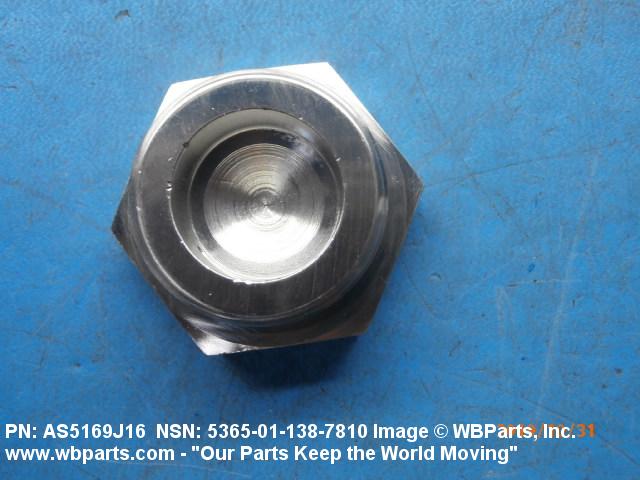

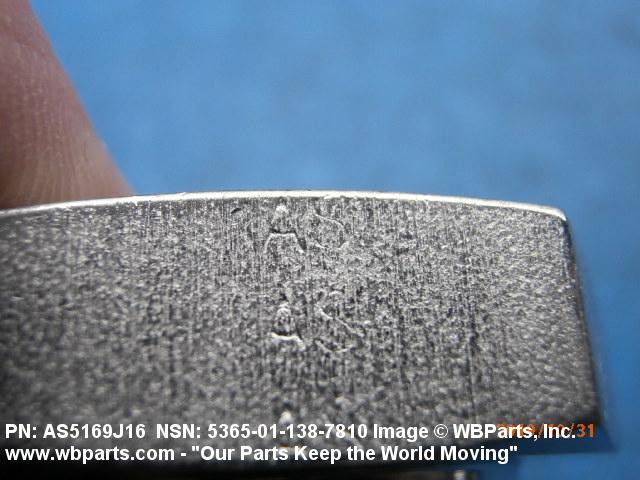

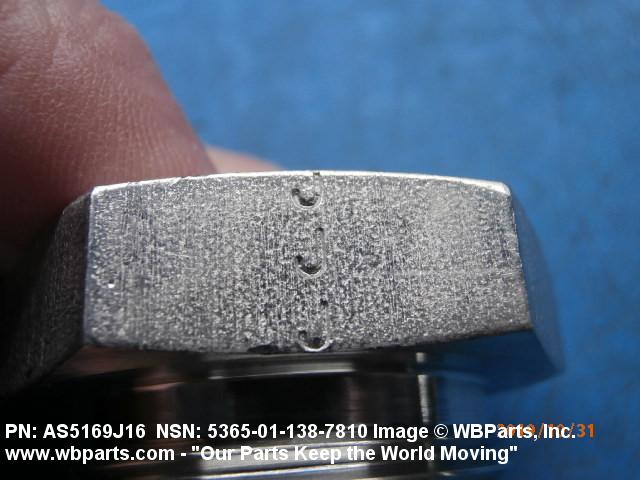

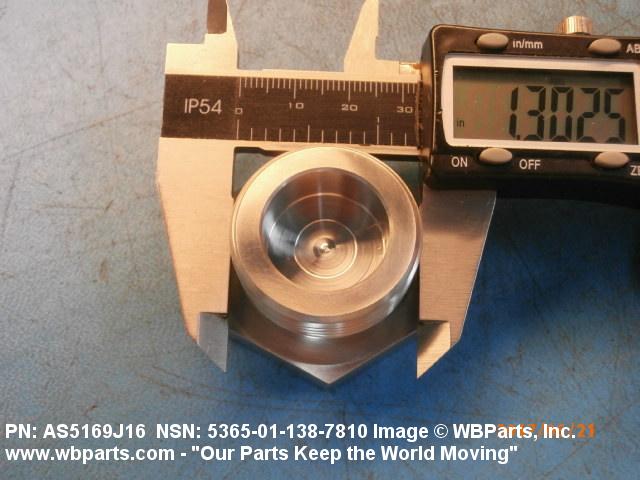

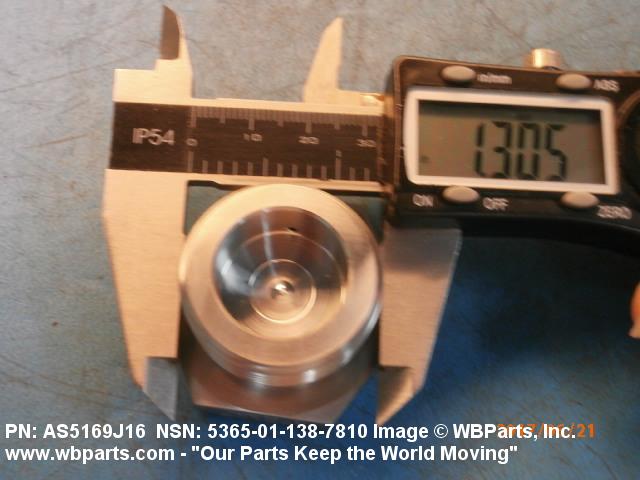

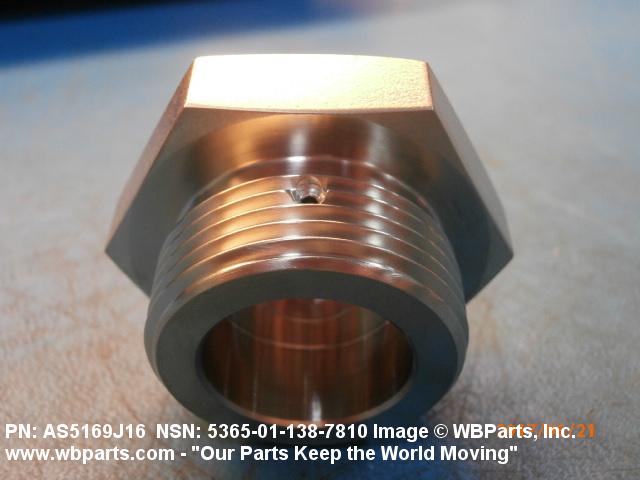

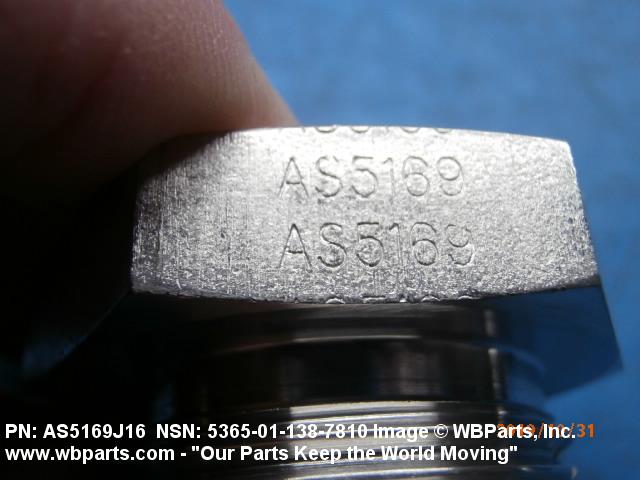

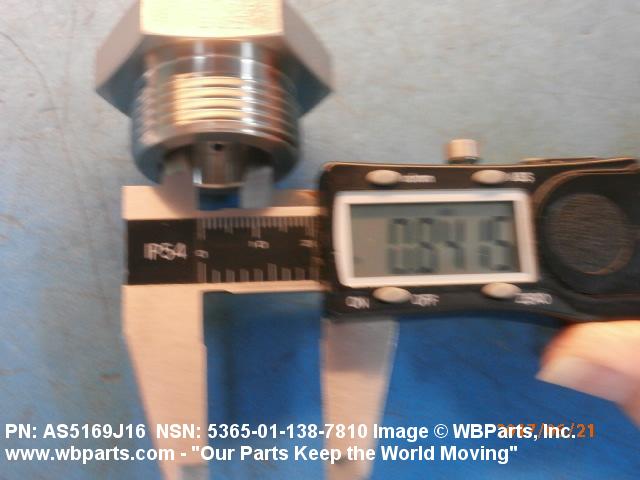

Drawings & Photos | NSN 5365-01-138-7810
Demand History | NSN 5365-01-138-7810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-138-7810 | 2025-11-308 | 15 | United States |
| 5365-01-138-7810 | 2025-11-308 | 45 | United States |
| 5365-01-138-7810 | 2025-09-246 | 10 | United States |
| 5365-01-138-7810 | 2025-09-246 | 25 | United States |
| 5365-01-138-7810 | 2024-02-38 | 15 | United States |
| 5365-01-138-7810 | 2021-05-138 | 15 | United States |
| 5365-01-138-7810 | 2021-01-26 | 20 | United States |
| 5365-01-138-7810 | 2019-10-288 | 15 | United States |
| 5365-01-138-7810 | 2019-10-288 | 23 | United States |
| 5365-01-138-7810 | 2018-10-302 | 6 | United States |
| 5365-01-138-7810 | 2018-02-46 | 5 | US |
| 5365-01-138-7810 | 2017-06-167 | 11 | United States |
| 5365-01-138-7810 | 2017-05-122 | 11 | United States |
| 5365-01-138-7810 | 2017-03-69 | 9 | United States |
| MS24391J16 | 2017-02-54 | 16 | United States |
| 5365-01-138-7810 | 2015-11-312 | 37 | DIBBS |
| 5365-01-138-7810 | 2015-09-266 | 19 | DIBBS |
| 5365-01-138-7810 | 2010-03-68 | 22 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-138-7810
Related Products | NSN 5365-01-138-7810
Technical Data | NSN 5365-01-138-7810
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C35A PLUG, MACHINE, W/BLEEDER HOLE |

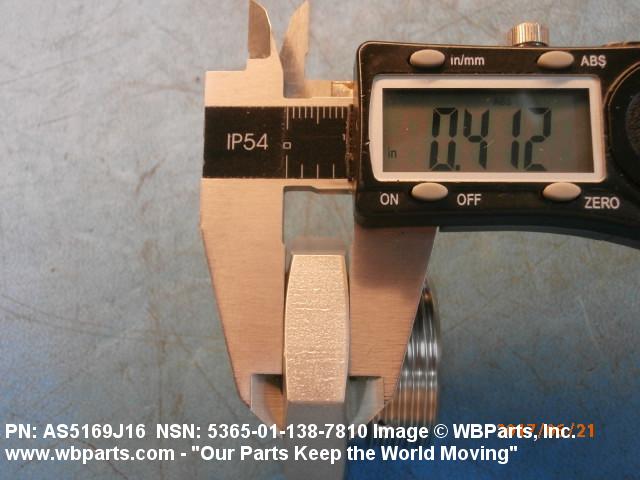

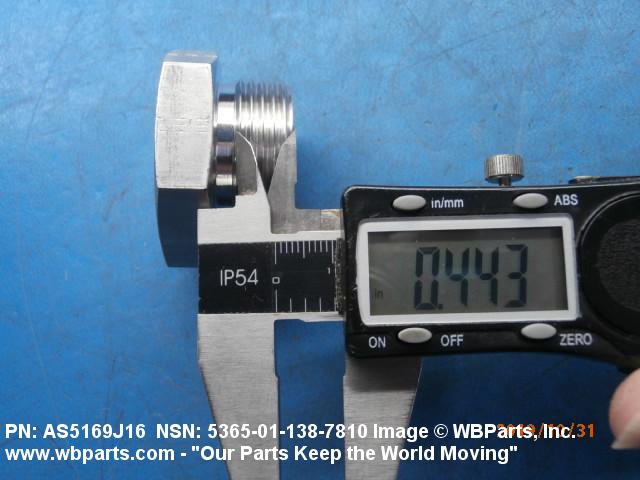

| HEAD HEIGHT | 0.437 INCHES NOMINAL |

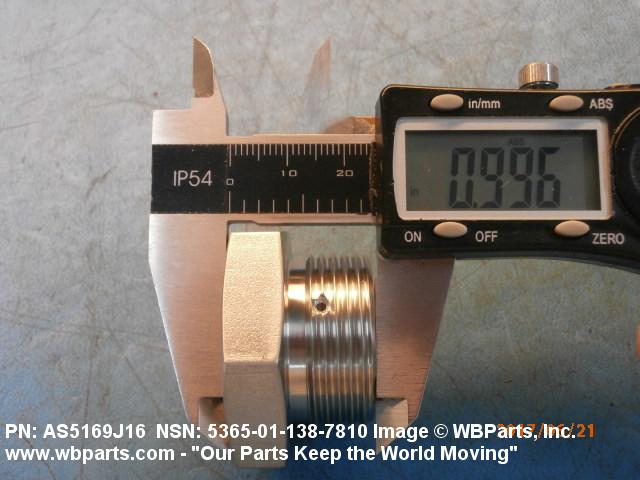

| OVERALL LENGTH | 1.093 INCHES NOMINAL |

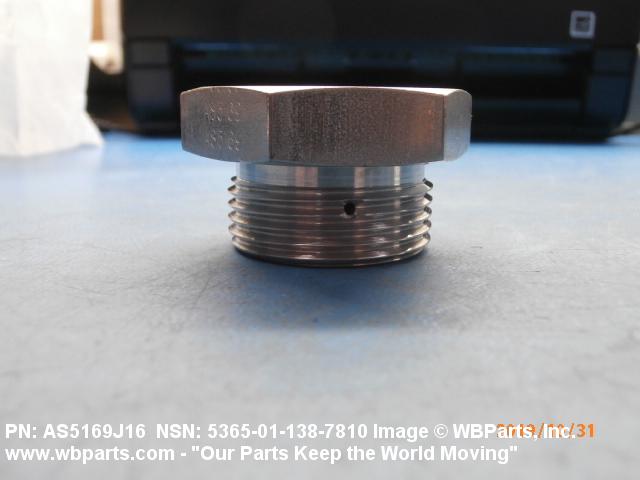

| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.312 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

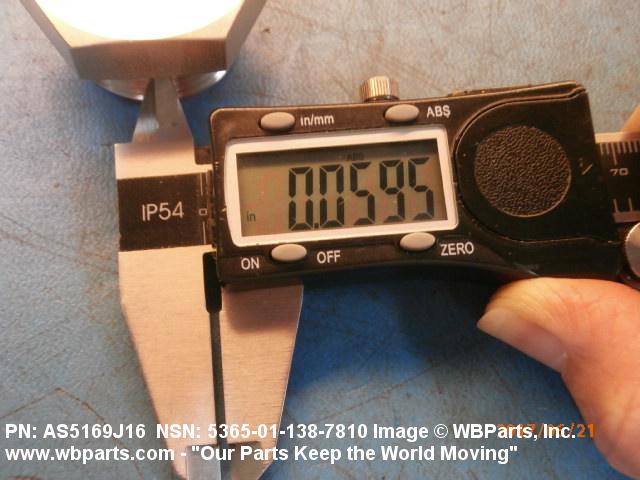

| BLEEDER HOLE DIAMETER | 0.062 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |
| NOMINAL THREAD SIZE | 1.312 INCHES EXTERNAL |

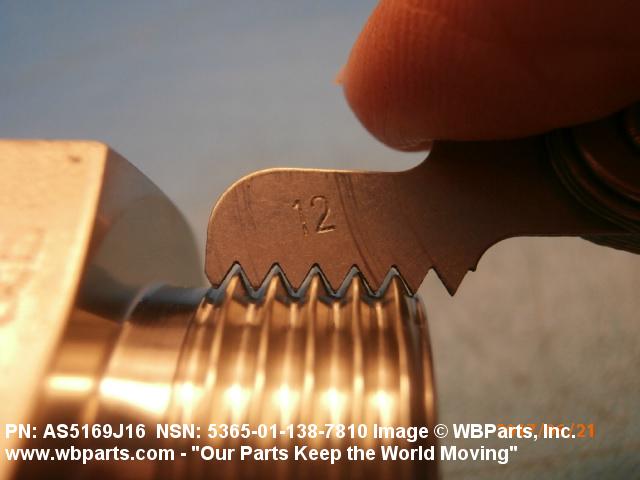

| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |

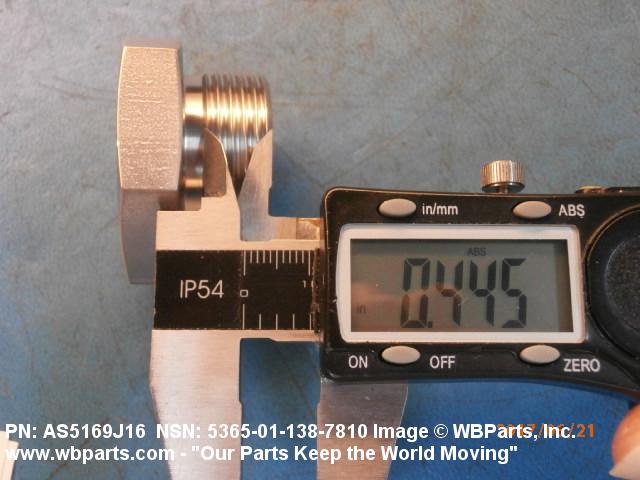

| THREAD LENGTH | 0.435 INCHES MINIMUM AND 0.500 INCHES MAXIMUM EXTERNAL |

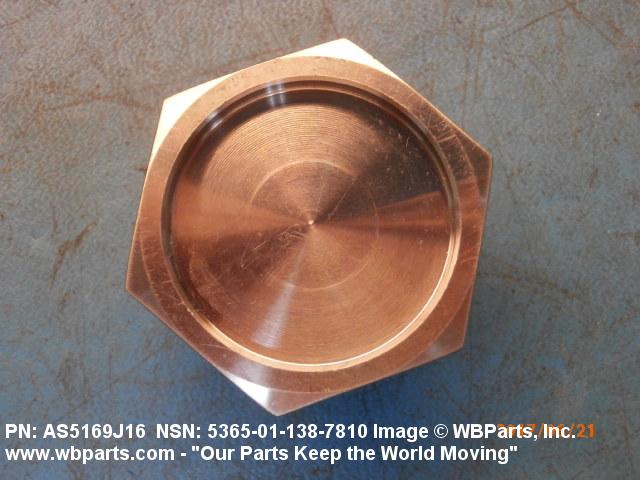

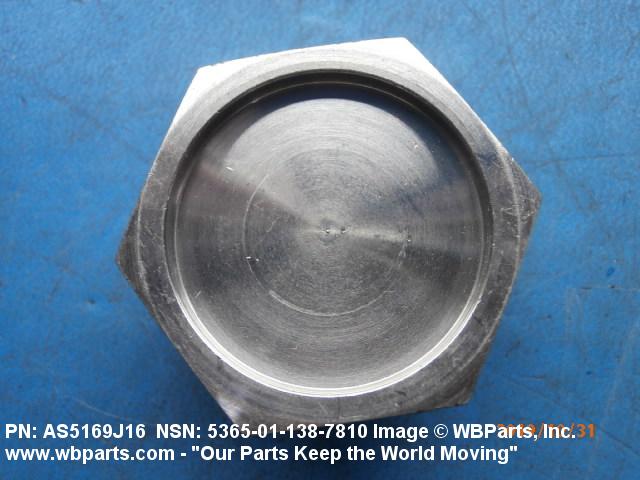

| HEAD TYPE | CORED |
| HEAD CORE DIAMETER | 1.375 INCHES NOMINAL |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 0.843 INCHES NOMINAL |

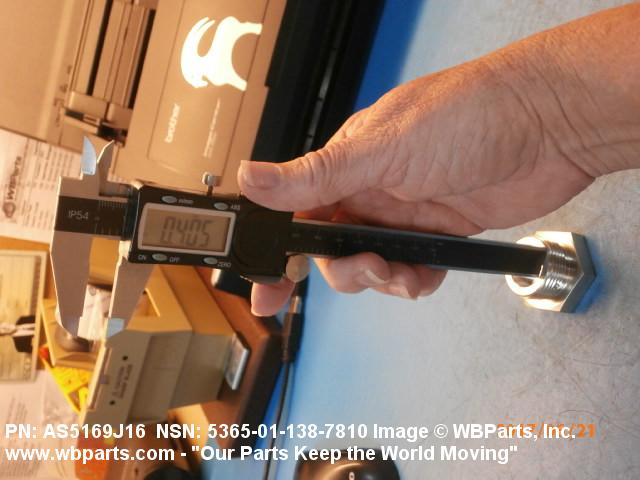

| CORE DEPTH | 0.406 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5365-01-138-7810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-138-7810
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
