NSN 5365-01-444-7355 A02D12901, A02D1290-1, 01-444-7355
Product Details | MACHINE THREAD PLUG
5365-01-444-7355 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: A02D12901, A02D1290-1, 5365-01-444-7355, 01-444-7355, 5365014447355, 014447355
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1997 | 01-444-7355 | 03801 ( PLUG, MACHINE THREAD ) |

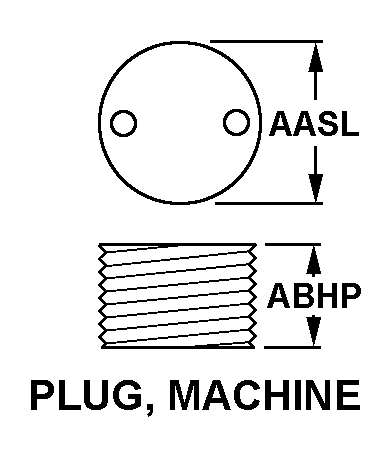

Drawings & Photos | NSN 5365-01-444-7355
Cross Reference | NSN 5365-01-444-7355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A02D1290-1 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-444-7355
Technical Data | NSN 5365-01-444-7355
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25897 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C52 PLUG, MACHINE |
| HEAD DIAMETER | 2.610 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5365-01-444-7355
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
