Product Details | COURSE INDICATOR
5826-00-505-3096 An indicator that displays the angular value, measured clockwise, between true north and a line connecting the points of origin and destination over which an aircraft, ship or ground vehicle travels.20712800040Aircraft Bombing Fire Control Components58260036Radio Navigation Equipment, Airborne58400032Radar Equipment, Except Airborne6320000066050024Navigational Instruments66100018Flight Instruments69300026Operation Training Devices
Part Alternates: ID387ARN, 72041A4D1, 7204-1A4D1, 12430721, 1243072-1, 5826-00-505-3096, 00-505-3096, 5826005053096, 005053096
Communication, Detection, and Coherent Radiation Equipment | Radio Navigation Equipment, Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 JAN 1963 | 00-505-3096 | 19647 ( INDICATOR, COURSE ) |

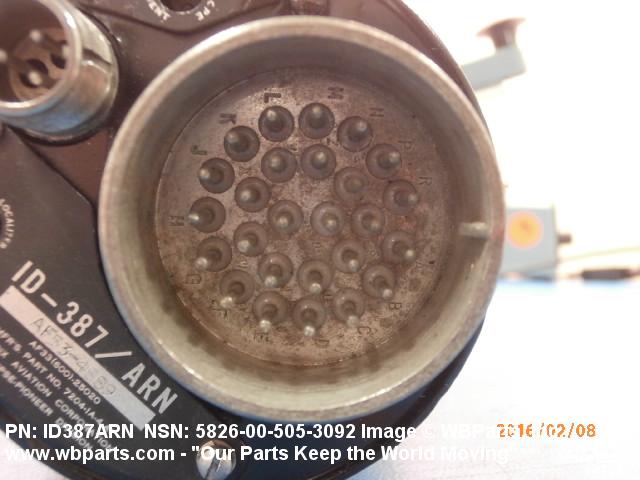

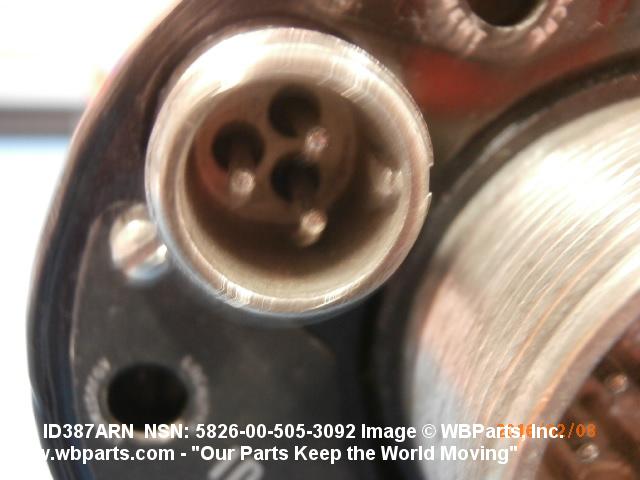

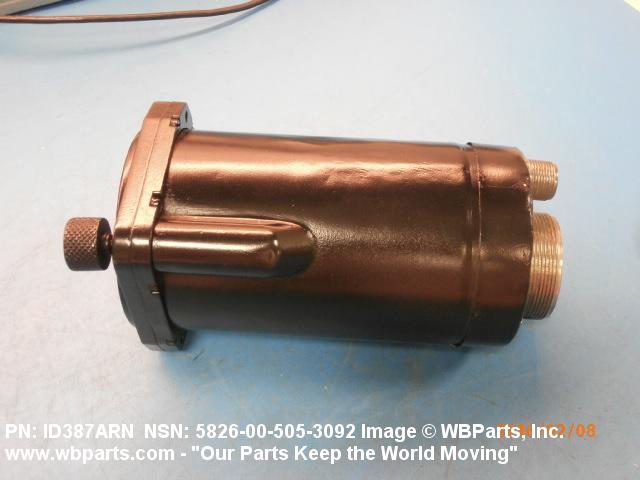

Drawings & Photos | NSN 5826-00-505-3096
Demand History | NSN 5826-00-505-3096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ID387ARN | 2016-02-02 | 1 | United States |
| ID387ARN | 2016-02-02 | 2 | United States |
| ID387ARN | 2016-01-13 | 3 | US |
| ID387ARN | 2015-08-06 | 1 | United States |
| ID387ARN | 2014-07-18 | 2 | United States |
| 72041A4D1 | 2013-04-17 | 3 | United States |
| ID387ARN | 2013-04-17 | 3 | United States |
| ID387ARN | 2013-04-17 | 3 | United States |
| 5826-00-505-3096 | 2011-01-15 | 1 | France |
Cross Reference | NSN 5826-00-505-3096
| Part Number | Cage Code | Manufacturer |
|---|---|---|

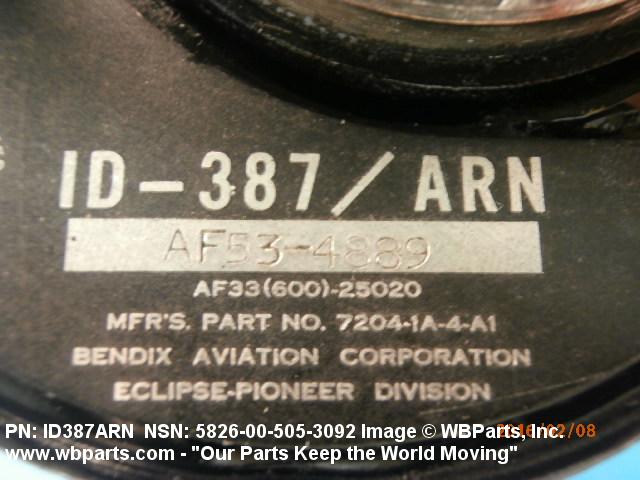

| 1243072-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 7204-1A4D1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 7204-1A4D1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 7204-1A4D1 | 96774 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| ID387ARN | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5826-00-505-3096
5826-00-505-3097, 5826-00-505-3102, 5826-00-505-3140, 5826-00-505-3141, 5826-00-505-3164
Technical Data | NSN 5826-00-505-3096
| Characteristic | Specifications |
|---|---|
| PRESENTATION TYPE | SYNCHRO MOTOR |
| AC VOLTAGE RATING | 26.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |

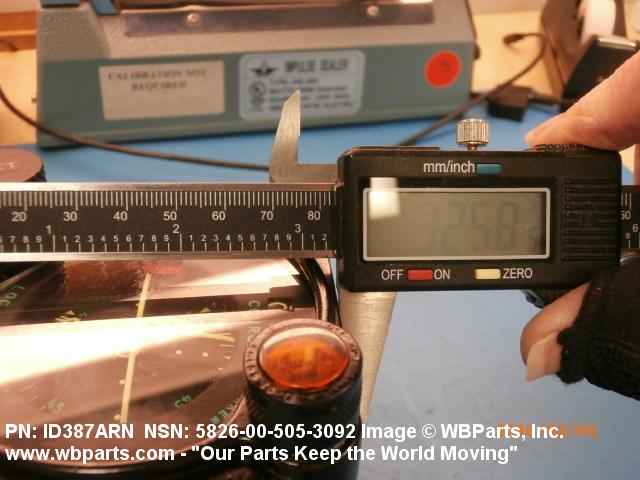

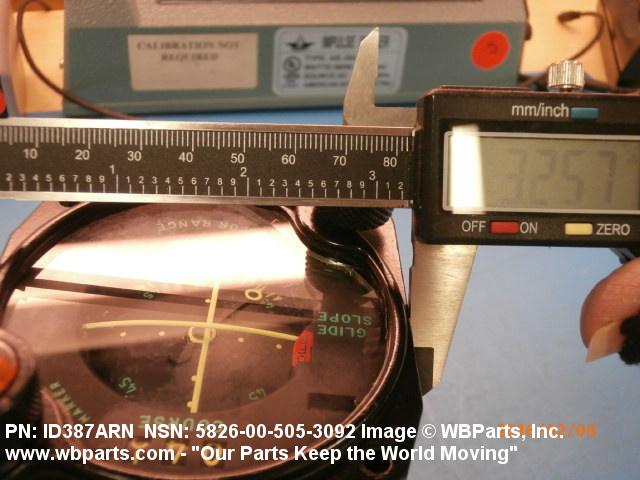

| LENGTH | 3.250 INCHES NOMINAL |
| WIDTH | 3.250 INCHES NOMINAL |
| HEIGHT | 7.188 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | ID387/ARN TYPE |
| III FSC APPLICATION DATA | AIRBORNE RADIO EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5826-00-505-3096
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
