Product Details | COURSE INDICATOR
6605-00-879-3309 An indicator that displays the angular value, measured clockwise, between true north and a line connecting the points of origin and destination over which an aircraft, ship or ground vehicle travels.20712800040Aircraft Bombing Fire Control Components58260036Radio Navigation Equipment, Airborne58400032Radar Equipment, Except Airborne6320000066050024Navigational Instruments66100018Flight Instruments69300026Operation Training Devices
Part Alternates: 1878158, 18781582A, 1878158-2A, 6605-00-879-3309, 00-879-3309, 6605008793309, 008793309
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-879-3309 | 19647 ( INDICATOR, COURSE ) |

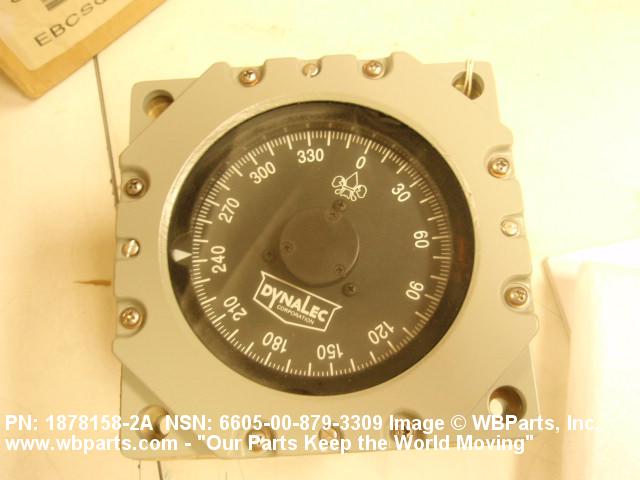

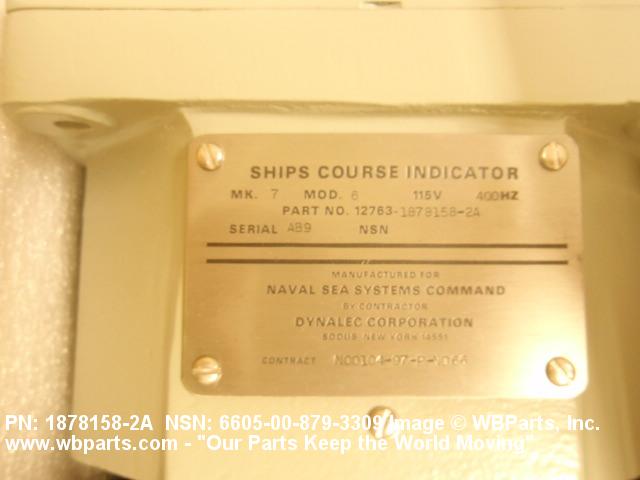

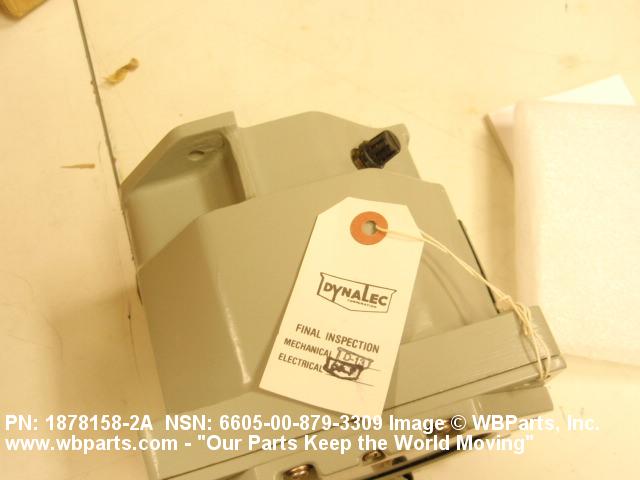

Drawings & Photos | NSN 6605-00-879-3309
Demand History | NSN 6605-00-879-3309
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6605-00-879-3309 | 2020-06-11 | 1 | US |
| 1878158-2A | 2012-12-01 | 8 | |
| 6605-00-879-3309 | 2012-11-29 | 8 | NECO |
| 1878158-2A | 2012-10-06 | 4 | |
| 6605-00-879-3309 | 2012-10-05 | 4 | NECO |
| 1878158-2A | 2012-02-17 | 4 | |
| 6605-00-879-3309 | 2012-02-16 | 4 | NECO |
| 1878158-2A | 2011-12-02 | 1 | |
| 6605-00-879-3309 | 2011-12-01 | 1 | NECO |
Cross Reference | NSN 6605-00-879-3309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1878158 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 1878158 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 1878158-2A | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 1878158-2A | 64846 | GYRO SYSTEMS CO INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6605-00-879-3309
Related Products | NSN 6605-00-879-3309
6605-00-879-3310, 6605-00-879-3760, 6605-00-879-4195, 6605-00-879-4198, 6605-00-879-4216
Technical Data | NSN 6605-00-879-3309
| Characteristic | Specifications |
|---|---|
| ACCURACY RATING | 360.0 DEGREE ANGULAR CALIBRATION RANGE SINGLE INDICATOR SINGLE SCALE |
| SCALE RANGE | 0.0 TO 360.0 DEGREES SINGLE INDICATOR SINGLE SCALE |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| DIAMETER | 4.000 INCHES NOMINAL |
| SPECIAL FEATURES | W/DIMMER;O/A DIMENSIONS:6.000 IN.NOM LENGTH;6.000 IN.NOM HEIGHT;6.000 IN.NOM WIDTH;MOUNTING METHOD:PANEL AND BULKHEAD;SCALE CALIBRATION:DEG;POINTER QTY:1;POINTER MARKING:DEG;DIAL ILLUMINATION:PROVIDED;LIGHT SOURCE LOCATION:EDGE;COLOR:RED;QTY:1;ILL UMINATION COLOR GENERATION METHOD:WHITE SOURCE W/RED FILTER |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY FREQUENCY RATING;W/ISOLATION MOUNTS |
| MANUFACTURERS CODE | 03956 |
| DESIGN CONTROL REFERENCE | 1878158 |
Restrictions/Controls & Freight Information | NSN 6605-00-879-3309
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6605-00-879-3309
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
