NSN 5840-00-894-3033 4400B1342, 00-894-3033, 008943033
Product Details | DELAY LINE
5840-00-894-3033 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 4400B1342, 5840-00-894-3033, 00-894-3033, 5840008943033, 008943033
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-894-3033 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5840-00-894-3033
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5840-00-894-3033
Technical Data | NSN 5840-00-894-3033
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 0.000 NANOSECONDS MINIMUM SINGLE SECTION 100.000 NANOSECONDS MAXIMUM SINGLE SECTION |
| OPERATING TEMP RANGE | 0.0 TO 75.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 1.000 KILOHMS |
| OUTPUT IMPEDANCE RATING | 1.000 KILOHMS |
| ATTENUATION IN DECIBELS | 26.000 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | 15.000 MEGAHERTZ NOMINAL |
| FREQUENCY BANDWIDTH | NOT RATED |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| ADJUSTMENT DEVICE QUANTITY | 1 |
| SHAFT STYLE | 3 ROUND, SLOTTED |
| SLOT DEPTH | 0.063 INCHES NOMINAL |
| SLOT WIDTH | 0.047 INCHES NOMINAL |
| SHAFT DIAMETER | 0.124 INCHES NOMINAL |
| SHAFT LENGTH | 0.688 INCHES NOMINAL |

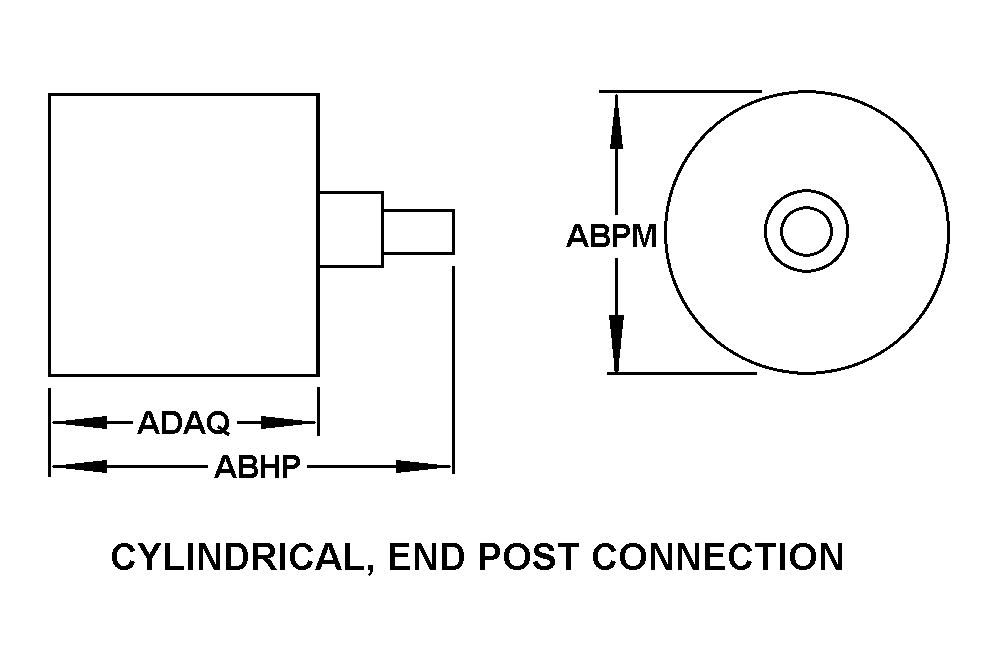

| BODY STYLE | 11 CYLINDRICAL, END POST CONNECTION |
| OVERALL LENGTH | 3.162 INCHES NOMINAL |
| BODY DIAMETER | 1.000 INCHES NOMINAL |
| BODY LENGTH | 2.475 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY CASE |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625, TYPE 1 CASE |
| TERMINAL TYPE AND QUANTITY | 4 TURRET |
| MOUNTING FACILITY | THREADED BUSHING |
| MOUNTING FACILITY QUANTITY | 1 |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-32 UNEF |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | 0.0078 TO 0.0079 INCHES |
| III FSC APPLICATION DATA | RADAR NONAIRBORNE EXCEPT FIRE CONTROL AND GUIDED MISSILE |
| MANUFACTURERS CODE | 94117 |
| DESIGN CONTROL REFERENCE | 4400B1342 |
