Product Details | WIRE WOUND FIXED RESISTOR
5905-00-081-8816 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: IC9006A200J1500EATH, MILR26, RW47V152, 0910, 5905-00-081-8816, 00-081-8816, 5905000818816, 000818816
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-081-8816 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-00-081-8816
Demand History | NSN 5905-00-081-8816
Cross Reference | NSN 5905-00-081-8816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0910 | 44655 | HEICO OHMITE, L.L.C. DBA OHMITE MANUFACTURING |
| IC9006A200J1500EATH | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| MILR26 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RW47V152 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5905-00-081-8816
Related Products | NSN 5905-00-081-8816
5905-00-081-8817, 5905-00-081-8870, 5905-00-081-8874, 5905-00-081-8877, 5905-00-081-8903
Technical Data | NSN 5905-00-081-8816
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.500 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 210.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 350.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -260.0 TO 260.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 350.0 |
| INCLOSURE METHOD | ENCAPSULATED |

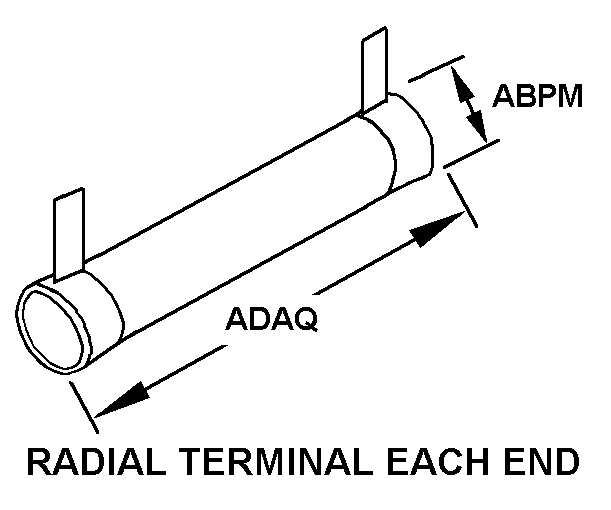

| STYLE DESIGNATOR | 20 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 1.312 INCHES NOMINAL |
| BODY LENGTH | 10.500 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
| TERMINAL LENGTH | 0.563 INCHES NOMINAL |
| TERMINAL WIDTH | 0.328 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MILR26/3 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR26 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RW47V152 |
