Product Details | WIRE WOUND FIXED RESISTOR
5905-00-235-6615 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: M100924, M10092-4, M100929, M10092-9, 0008101, 0-008101, 1290, 5905-00-235-6615, 00-235-6615, 5905002356615, 002356615
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-235-6615 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-00-235-6615
Cross Reference | NSN 5905-00-235-6615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0-008101 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 1290 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| M10092-4 | 17733 | DIEBOLD, INCORPORATED DIV GSA SECURITY CONTRACTS GROUP |
| M10092-9 | 17733 | DIEBOLD, INCORPORATED DIV GSA SECURITY CONTRACTS GROUP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-00-235-6615
5905-00-235-6616, 5905-00-235-6889, 5905-00-235-6899, 5905-00-235-6900, 5905-00-235-6957
Technical Data | NSN 5905-00-235-6615
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 425.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -1.000 TO 1.000 |
| POWER DISSIPATION RATING IN WATTS | 0.500 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 80.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 105.0 |
| INCLOSURE METHOD | ENCAPSULATED |

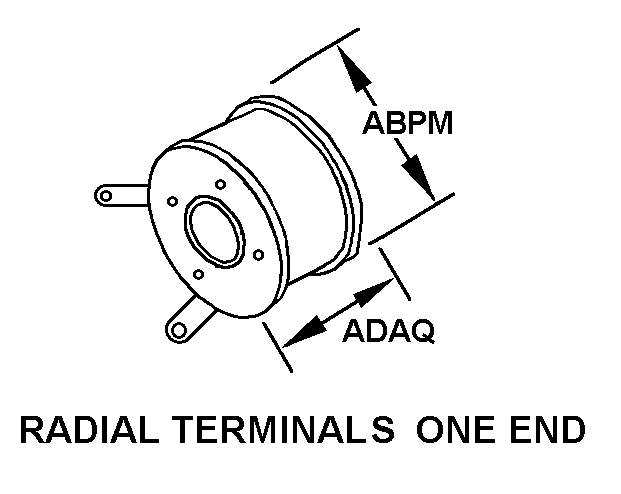

| STYLE DESIGNATOR | 50 RADIAL TERMINALS ONE END |
| BODY DIAMETER | ANY ACCEPTABLE |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
| TERMINAL LENGTH | 0.375 INCHES NOMINAL |
| TERMINAL WIDTH | 0.188 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-235-6615
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
