NSN 5905-00-279-5440 P320A377, 18138, 18D180

Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR


5905-00-279-5440 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.

Part Alternates: P320A377, 18138, 18D180, 5905-00-279-5440, 00-279-5440, 5905002795440, 002795440

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-279-5440

Drawings & Photos | NSN 5905-00-279-5440



Demand History | NSN 5905-00-279-5440


Part Number Request Date QTY Origin
18138 2020-03-09 3 FX

Cross Reference | NSN 5905-00-279-5440


Part Number Cage Code Manufacturer
18138 00798 MUTRON CORP
18D180 63743 WARD LEONARD ELECTRIC COMPANY INC.
P320A377 00798 MUTRON CORP

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5905-00-279-5440


Technical Data | NSN 5905-00-279-5440


Characteristic Specifications
ELECTRICAL RESISTANCE 180.000 OHMS
RESISTANCE TOLERANCE IN PERCENT -10.000 TO 10.000
POWER DISSIPATION RATING IN WATTS 18.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 40.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 340.0
INCLOSURE METHOD ENCAPSULATED

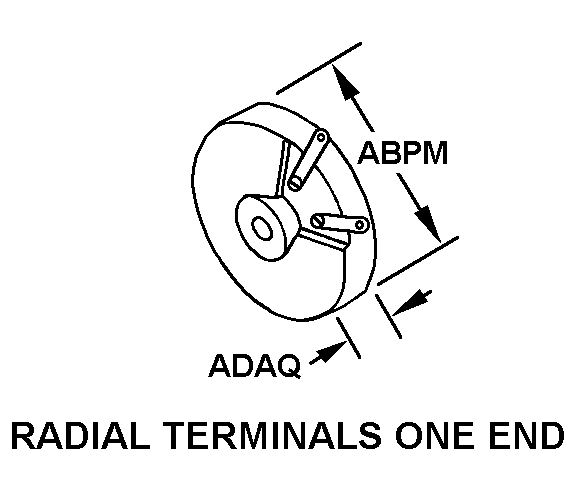

STYLE DESIGNATOR 73 RADIAL TERMINALS ONE END
BODY DIAMETER 1.375 INCHES NOMINAL
BODY LENGTH 0.375 INCHES NOMINAL
TERMINAL TYPE TAB, SOLDER LUG
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL LENGTH 0.375 INCHES NOMINAL
TERMINAL WIDTH 0.188 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5905-00-279-5440


Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062960 REOSTATS/PARTS NOI
Less than car load rating P 77.5
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
