Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-943-6835 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.
Part Alternates: 66133, 5905-00-943-6835, 00-943-6835, 5905009436835, 009436835
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 FEB 1966 | 00-943-6835 | 37404 ( RESISTOR, FIXED, WIRE WOUND, NONINDUCTIVE ) |
Drawings & Photos | NSN 5905-00-943-6835
Demand History | NSN 5905-00-943-6835
Cross Reference | NSN 5905-00-943-6835
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66133 | 00213 | STRUTHERS-DUNN LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-00-943-6835
5905-00-943-6837, 5905-00-943-6851, 5905-00-943-7345, 5905-00-943-7537, 5905-00-943-7538
Technical Data | NSN 5905-00-943-6835
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 111.000 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -0.050 TO 0.050 |
| POWER DISSIPATION RATING IN WATTS | 0.500 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |
| INCLOSURE METHOD | ENCAPSULATED |

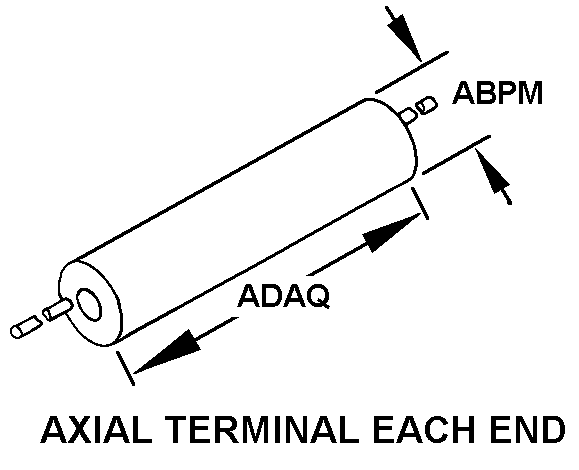

| STYLE DESIGNATOR | 57 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 0.437 INCHES NOMINAL |
| BODY LENGTH | 1.031 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| MANUFACTURERS CODE | 00213 |
| DESIGN CONTROL REFERENCE | 66133 |
Restrictions/Controls & Freight Information | NSN 5905-00-943-6835
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
