NSN 5905-00-825-2039 L603000010, 17642, 1764-2
Product Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-825-2039 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Part Alternates: L603000010, 17642, 1764-2, 200653, 200-653, 2041716, 5905-00-825-2039, 00-825-2039, 5905008252039, 008252039
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-825-2039 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
Drawings & Photos | NSN 5905-00-825-2039
Cross Reference | NSN 5905-00-825-2039
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-825-2039
Technical Data | NSN 5905-00-825-2039
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -2.0 TO 2.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO 0.50 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 50.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 110.0 SINGLE SECTION |
| FIXED TAP QUANTITY PER SECTION | 1 SINGLE SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN DEG OF EFFECTIVE ELECTRICAL ROTATION | 150.0 SINGLE SECTION |
| TAP LOCATION TOLERANCE PER SECTION | -2.0 TO 2.0 DEG ANGULAR ROTATION SINGLE SECTION |
| BODY STYLE | 5B CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 1.5420 INCHES MINIMUM AND 1.5620 INCHES MAXIMUM |
| PILOT LENGTH | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 1.250 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0730 INCHES NOMINAL |
| BODY DIAMETER | 1.744 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
| BODY LENGTH | 0.960 INCHES MINIMUM AND 1.080 INCHES MAXIMUM |
| MOUNTING LIP DIAMETER | 1.7750 INCHES MAXIMUM |
| MOUNTING LIP DEPTH | 0.0880 INCHES MINIMUM AND 0.0980 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |

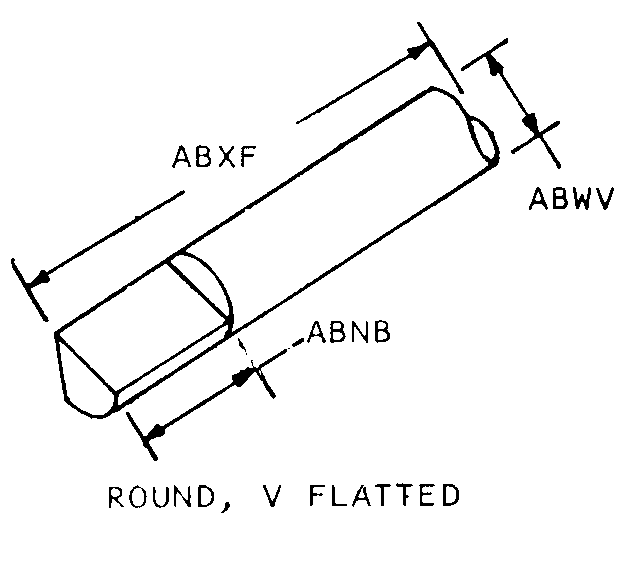

| SHAFT STYLE | 20C ROUND, V FLATTED |
| FIRST FLAT LENGTH | 0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.2494 INCHES MINIMUM AND 0.2497 INCHES MAXIMUM |
| SHAFT LENGTH | 1.437 INCHES MINIMUM AND 1.443 INCHES MAXIMUM |
| MOUNTING METHOD | CLAMP RING |
| TERMINAL TYPE AND QUANTITY | 4 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 2.397 INCHES MINIMUM AND 2.523 INCHES MAXIMUM |
| III OVERALL DIAMETER | 1.995 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5905-00-825-2039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-825-2039
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
