NSN 5905-00-884-1455 NX102U, 00-884-1455, 008841455
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-884-1455 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: NX102U, 5905-00-884-1455, 00-884-1455, 5905008841455, 008841455
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 NOV 1967 | 00-884-1455 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-884-1455
Cross Reference | NSN 5905-00-884-1455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NX102U | 01121 | ROCKWELL AUTOMATION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-884-1455
Technical Data | NSN 5905-00-884-1455
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.333 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 50.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 100.0 SINGLE SECTION |
| BODY STYLE | 26B RECTANGULAR W/MOUNTING HOLES/SLOTS |
| BODY LENGTH | 1.234 INCHES MINIMUM AND 1.266 INCHES MAXIMUM |
| BODY WIDTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| BODY HEIGHT | 0.343 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |

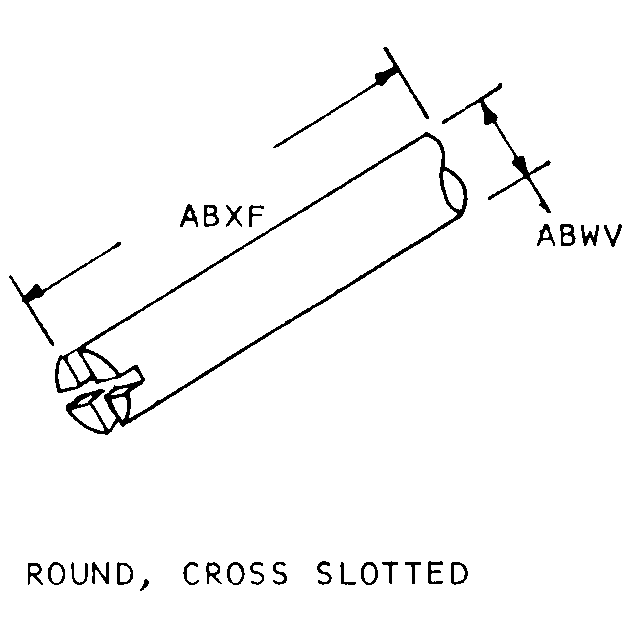

| SHAFT STYLE | 24C ROUND, CROSS SLOTTED |
| SHAFT DIAMETER | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| SHAFT LENGTH | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| MOUNTING METHOD | TERMINAL |
| FEATURES PROVIDED | NONMETALLIC SHAFT |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR, RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.700 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| TERMINAL LOCATION | LOWER ADJACENT SIDE SINGLE ROW |
| CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS | 0.100 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 1.312 INCHES NOMINAL |
| III OVERALL HEIGHT | 0.953 INCHES NOMINAL |
| III OVERALL WIDTH | 0.953 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-884-1455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
