NSN 5905-01-078-7656 MODELHMODIFIED, 12273267, 01-078-7656
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-078-7656 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: MODELHMODIFIED, 12273267, 5905-01-078-7656, 01-078-7656, 5905010787656, 010787656
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1979 | 01-078-7656 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |

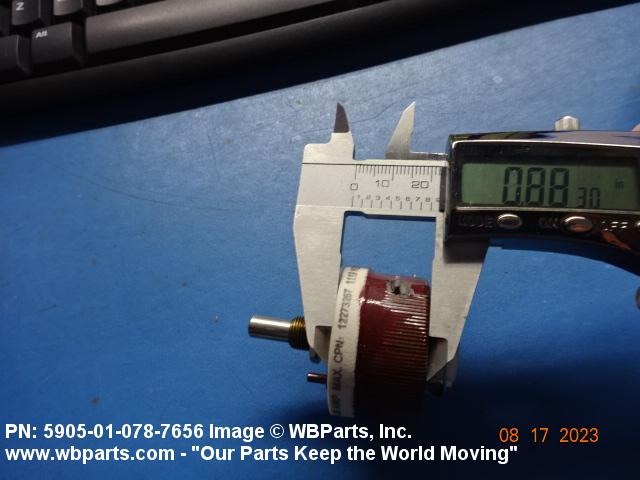

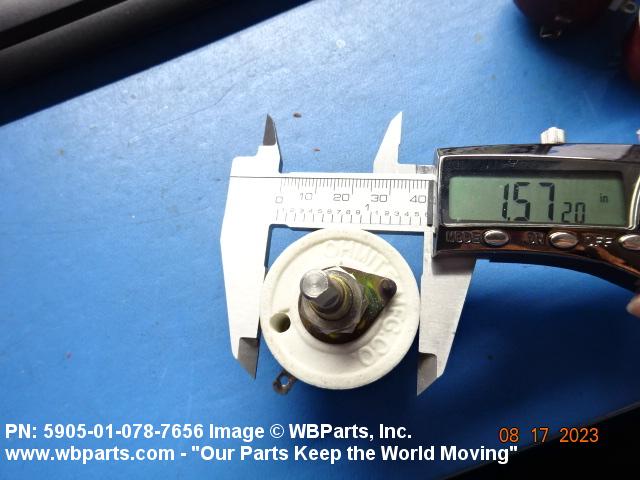

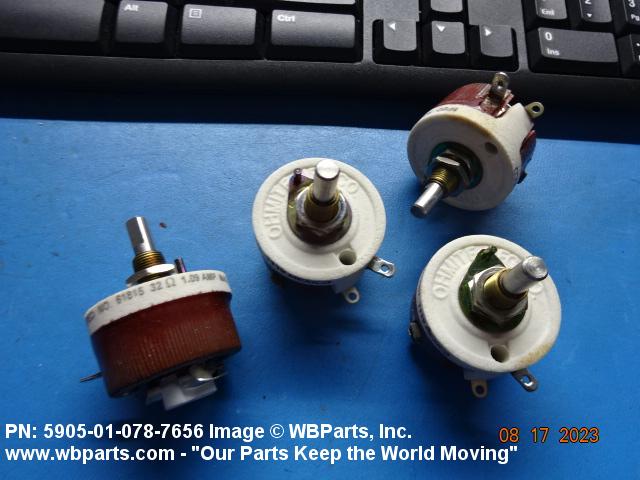

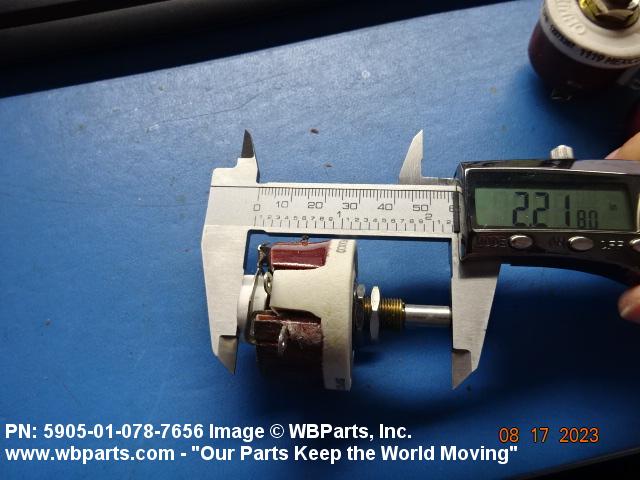

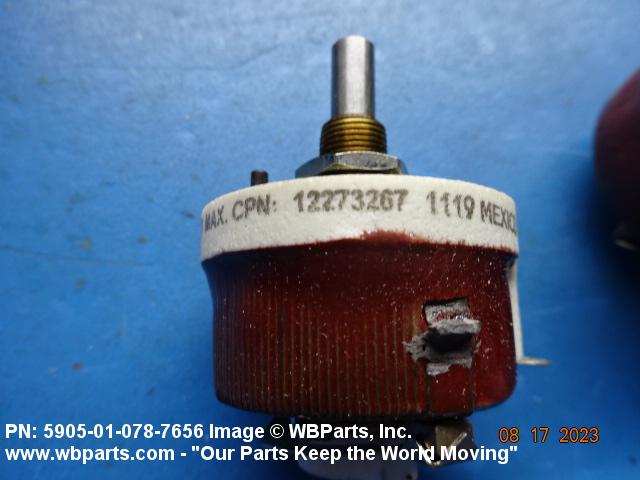

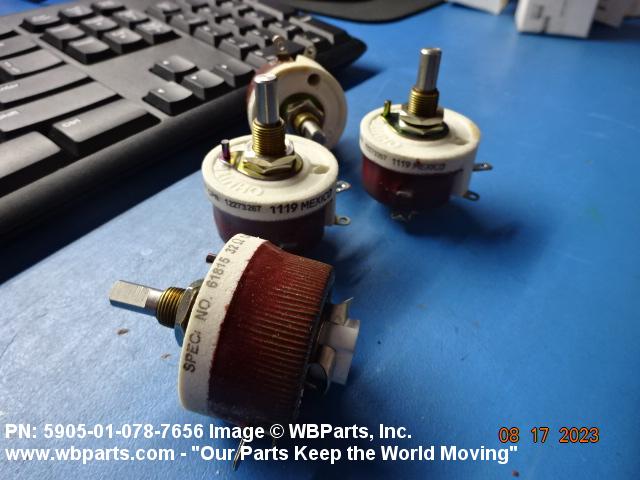

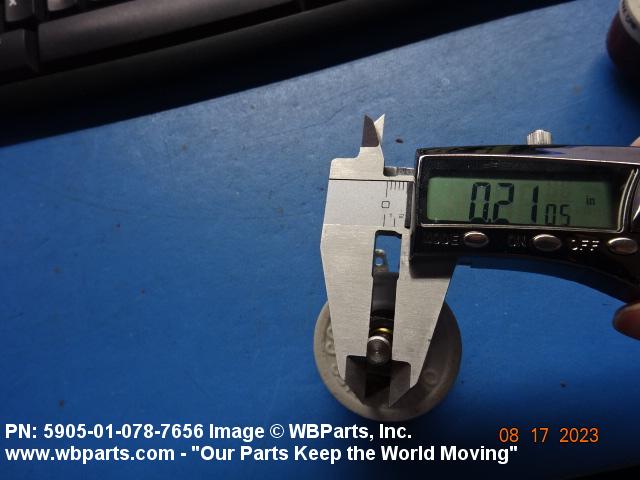

Drawings & Photos | NSN 5905-01-078-7656
Demand History | NSN 5905-01-078-7656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-078-7656 | 2023-07-199 | 600 | United States |
| 12273267 | 2023-06-156 | 65 | DIBBS |
| 12273267 | 2023-05-135 | 156 | DIBBS |
| 12273267 | 2023-05-124 | 156 | DIBBS |
| 12273267 | 2023-04-96 | 255 | DIBBS |
| 12273267 | 2023-02-39 | 95 | DIBBS |
| 12273267 | 2022-11-329 | 291 | DIBBS |
| 12273267 | 2022-11-317 | 291 | DIBBS |
| 12273267 | 2020-03-83 | 247 | DIBBS |
| 12273267 | 2020-03-72 | 247 | DIBBS |
| 5905-01-078-7656 | 2018-06-169 | 159 | DIBBS |
| 5905-01-078-7656 | 2018-06-158 | 159 | DIBBS |
| 5905-01-078-7656 | 2011-04-102 | 93 | DIBBS |
| 5905-01-078-7656 | 2011-03-88 | 297 | DIBBS |
| 5905-01-078-7656 | 2011-03-68 | 5 | DIBBS |
| 5905-01-078-7656 | 2011-01-27 | 11 | DIBBS |
| 5905-01-078-7656 | 2011-01-06 | 15 | DIBBS |
| 5905-01-078-7656 | 2010-01-06 | 7 | DIBBS |
| 5905-01-078-7656 | 2009-12-348 | 39 | DIBBS |
| 5905-01-078-7656 | 2009-03-61 | 48 | DIBBS |
| 5905-01-078-7656 | 2008-12-337 | 96 | DIBBS |
| 5905-01-078-7656 | 2008-11-316 | 48 | DIBBS |
| 5905-01-078-7656 | 2008-10-303 | 54 | DIBBS |
| 5905-01-078-7656 | 2008-10-283 | 37 | DIBBS |
| 5905-01-078-7656 | 2007-06-158 | 221 | DIBBS |
| 5905-01-078-7656 | 2007-03-86 | 96 | DIBBS |
| 5905-01-078-7656 | 2007-02-36 | 78 | DIBBS |
| 5905-01-078-7656 | 2006-07-200 | 38 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-078-7656
Related Products | NSN 5905-01-078-7656
Technical Data | NSN 5905-01-078-7656
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 32.0 OHMS SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.680 INCHES NOMINAL |
| BODY LENGTH | 1.410 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 2C ROUND, FLATTED |
| FIRST FLAT LENGTH | 0.340 INCHES NOMINAL |
| FLAT HEIGHT | 0.216 INCHES NOMINAL |
| CONTACT ARM ELECTRICAL OFF POSITION | FULLY CCW |
| MOUNTING METHOD | STANDARD BUSHING |
| TERMINAL TYPE AND QUANTITY | 2 EYELET |
| TERMINAL LOCATION | LOWER ADJACENT SIDE TWO ROWS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III END ITEM IDENTIFICATION | M1,M1A1 |
Restrictions/Controls & Freight Information | NSN 5905-01-078-7656
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-01-078-7656
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
