NSN 5905-01-133-1541 142C878H01, 888SP400K, 01-133-1541
Product Details | COMPOSITION FIXED RESISTOR
5905-01-133-1541 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: 142C878H01, 888SP400K, 5905-01-133-1541, 01-133-1541, 5905011331541, 011331541
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JUN 1982 | 01-133-1541 | 00126 ( RESISTOR, FIXED, COMPOSITION ) |

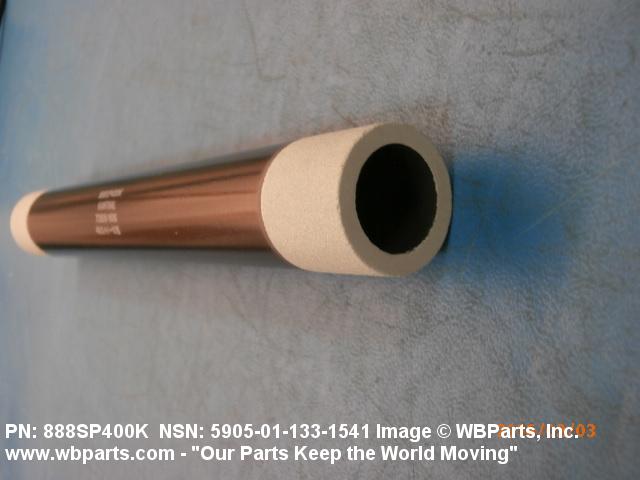

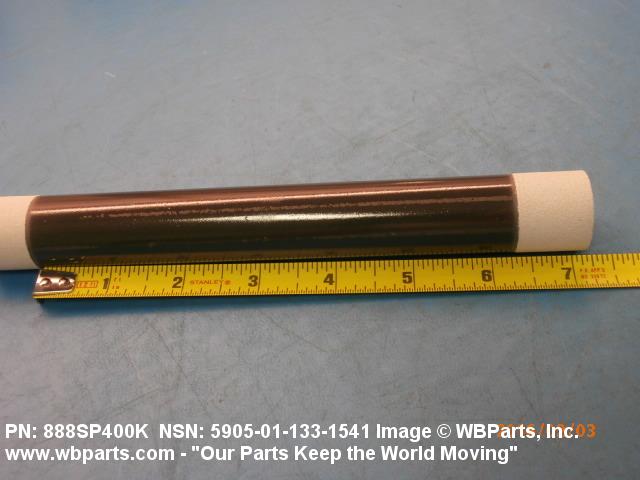

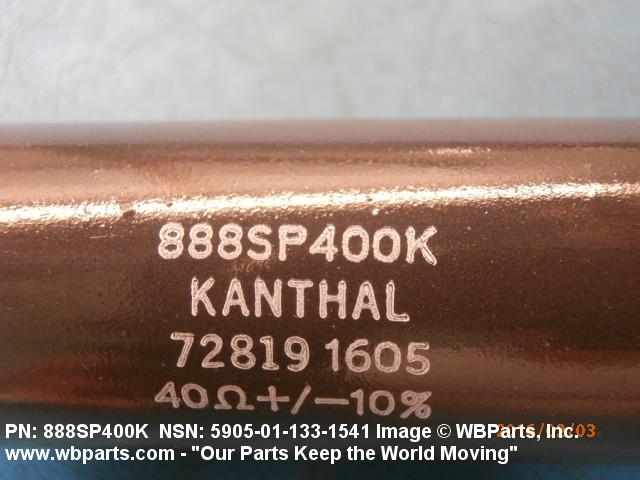

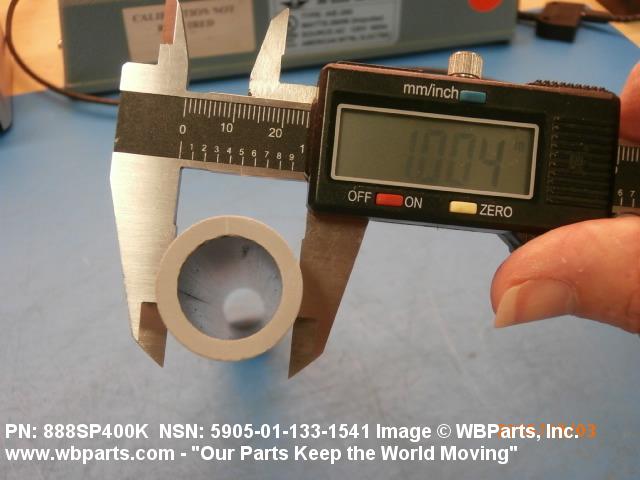

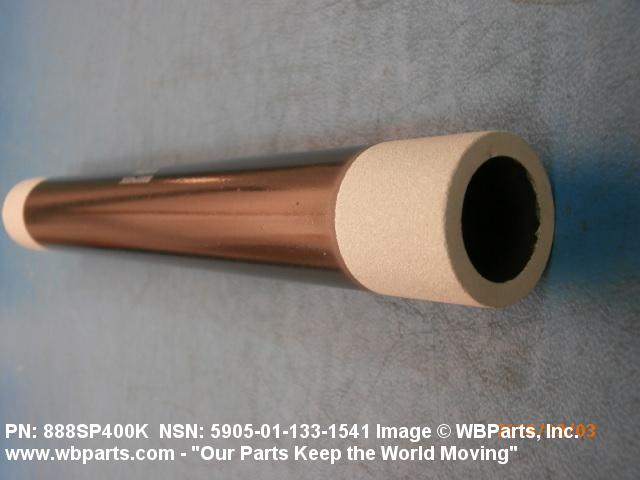

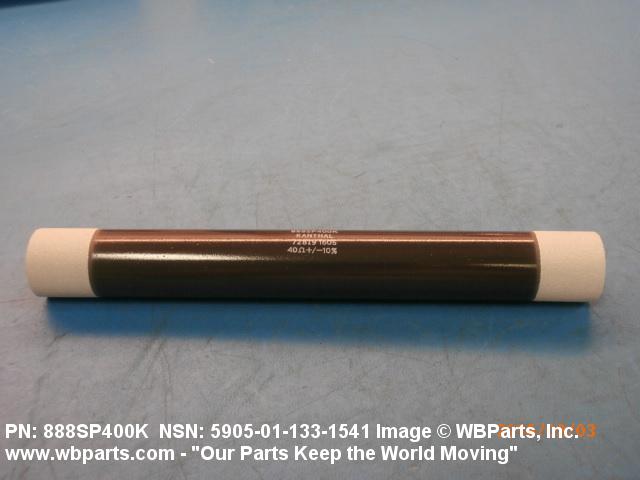

Drawings & Photos | NSN 5905-01-133-1541
Demand History | NSN 5905-01-133-1541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-133-1541 | 2025-07-191 | 19 | US |
| 142C878H01 | 2025-03-90 | 1 | Serbia |
| 142C878H01 | 2023-01-17 | 10 | United States |
| 5905-01-133-1541 | 2022-09-269 | 11 | US |
| 888SP400K | 2022-09-256 | 2 | PK |
| 5905-01-133-1541 | 2022-07-196 | 2 | AE |
| 5905-01-133-1541 | 2022-07-194 | 10 | Pakistan |
| 142C878H01 | 2022-07-192 | 11 | US |
| 5905-01-133-1541 | 2022-04-109 | 7 | US |
| 5905-01-133-1541 | 2020-07-202 | 4 | Serbia |
| 5905-01-133-1541 | 2018-05-142 | 1 | Pakistan |
| 5905-01-133-1541 | 2016-01-06 | 7 | Saudi Arabia |
| 142C878H01 | 2015-04-119 | 5 | United States |
| 5905-01-133-1541 | 2015-02-32 | 10 | PK |
| 5905-01-133-1541 | 2015-01-21 | 10 | Pakistan |
| 5905-01-133-1541 | 2013-10-274 | 50 | US |
| 142C878H01 | 2012-06-173 | 5 | United States |
| 142C878H01 | 2012-01-20 | 5 | United States |
| 888SP400K | 2011-10-286 | 15 | United States |
| 142C878H01 | 2011-09-250 | 25 | US |
| 888SP400K | 2011-01-25 | 20 | Saudi Arabia |
| 888SP400K | 2011-01-20 | 20 | Saudi Arabia |
| 888SP400K | 2011-01-10 | 5 | Saudi Arabia |
| 888SP400K | 2011-01-10 | 5 | Saudi Arabia |
| 142C878H01 | 2010-01-05 | 100 | PK |
| 5905-01-133-1541 | 2009-07-209 | 20 | United States |
| 5905-01-133-1541 | 2009-07-189 | 10 | PK |
| 142C878H01 | 2008-09-271 | 10 | PK |
| 142C878H01 | 2008-09-268 | 10 | United Arab Emirates |
| 888SP400K | 2007-10-296 | 13 | United Arab Emirates |
| 142C878H01 | 2007-10-293 | 10 | PK |
| 142C878H01 | 2007-04-102 | 1 | US |
| 142C878H01 | 2006-10-277 | 3 | United Arab Emirates |
| 142C878H01 | 2006-10-277 | 2 | United Arab Emirates |
| 5905-01-133-1541 | 2006-09-244 | 2 | United Arab Emirates |
| 142C878H01 | 2006-07-210 | 5 | Pakistan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-133-1541
Technical Data | NSN 5905-01-133-1541
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 40.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | 125.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 350.0 |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 29 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 1.000 INCHES NOMINAL |
| BODY LENGTH | 6.250 INCHES NOMINAL |
| TERMINAL TYPE | FERRULE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-01-133-1541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
