NSN 5905-01-211-6333 C335015, C33-5015, MIL-R-23285/3
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-211-6333 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: C335015, C33-5015, MIL-R-23285/3, MILR232853, RVC6NYD501C, 5905-01-211-6333, 01-211-6333, 5905012116333, 012116333
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28-JUN-85 | 01-211-6333 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |

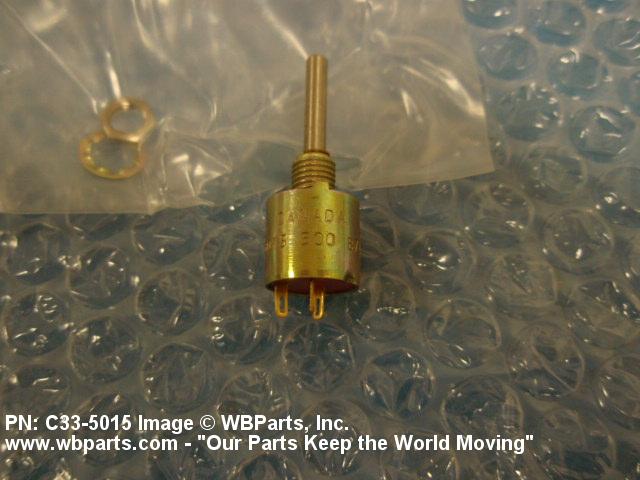

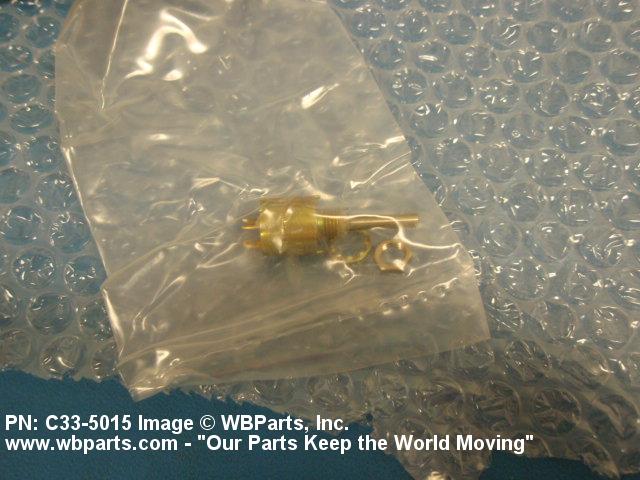

Drawings & Photos | NSN 5905-01-211-6333
Demand History | NSN 5905-01-211-6333
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-211-6333 | 2015-04-99 | 1 | United States |
Cross Reference | NSN 5905-01-211-6333
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C33-5015 | 03487 | ANDREA ELECTRONICS CORPORATION |
| MIL-R-23285/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR94-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RV6NAXSD501C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RV6NAYSD501C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RVC6NYD501C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-211-6333
Technical Data | NSN 5905-01-211-6333
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 500.000 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | C SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STOP TORQUE | 48.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 6.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -250.0 TO 250.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.25 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 125.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY LENGTH | 0.453 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.875 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 298.0 MAXIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 298.0 MAXIMUM |
| NONTURN DEVICE LOCATION | AT 4'30 OCLOCK OR AT 10'30 OCLOCK |
| NONTURN DEVICE RADIUS | 0.245 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.250 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-R-23285 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-23285/3 GOVERNMENT SPECIFICATION |
| III OVERALL LENGTH | 1.563 INCHES MAXIMUM |
| III OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-23285/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RVC6NYD501C |
Restrictions/Controls & Freight Information | NSN 5905-01-211-6333
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
