NSN 5905-01-236-4041 MIL-R-94/5, MILR945, RV4SAYSD203A
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-236-4041 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: MIL-R-94/5, MILR945, RV4SAYSD203A, 88227733, 88-22773-3, 302-5200759 ITEM #15, 3025200759ITEM15, 5905-01-236-4041, 01-236-4041, 5905012364041, 012364041
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUL 1986 | 01-236-4041 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |

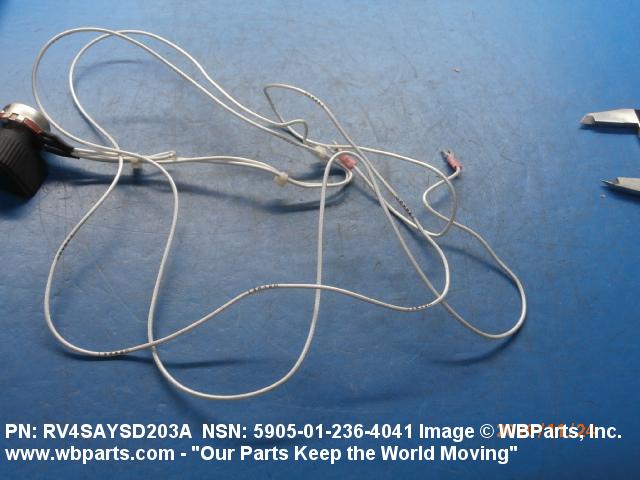

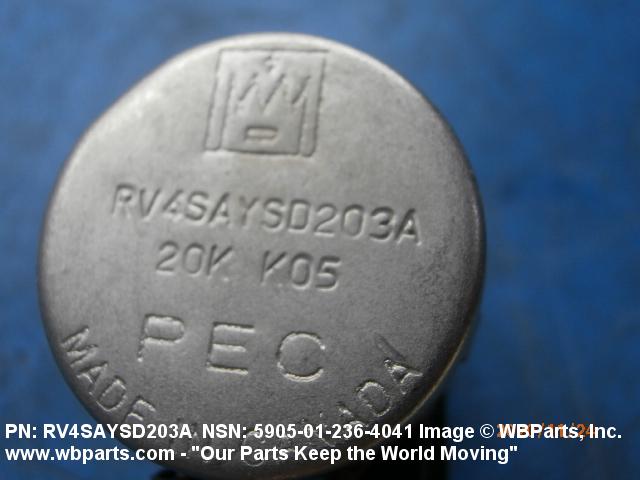

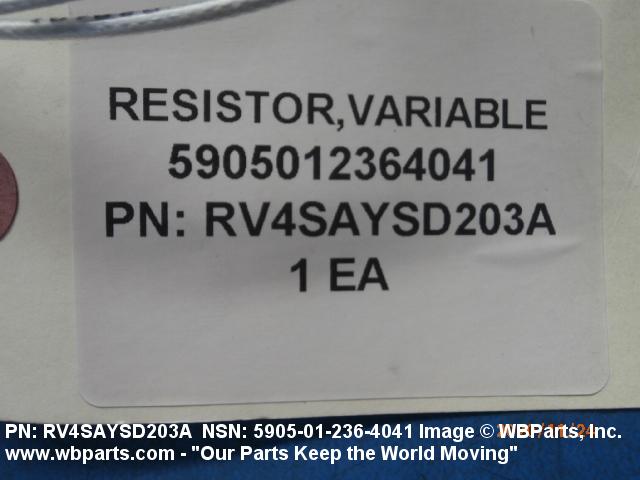

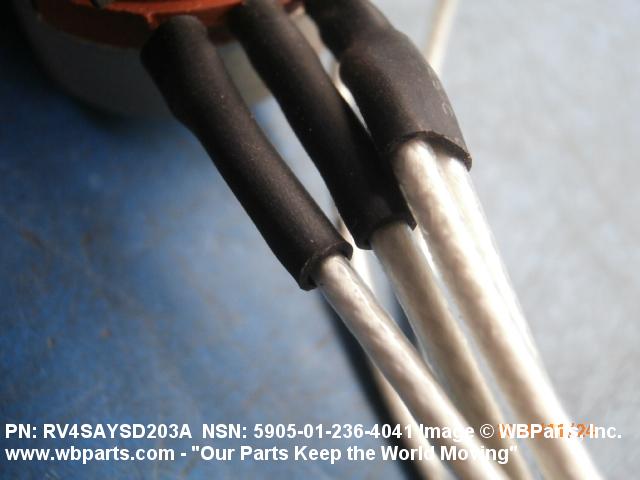

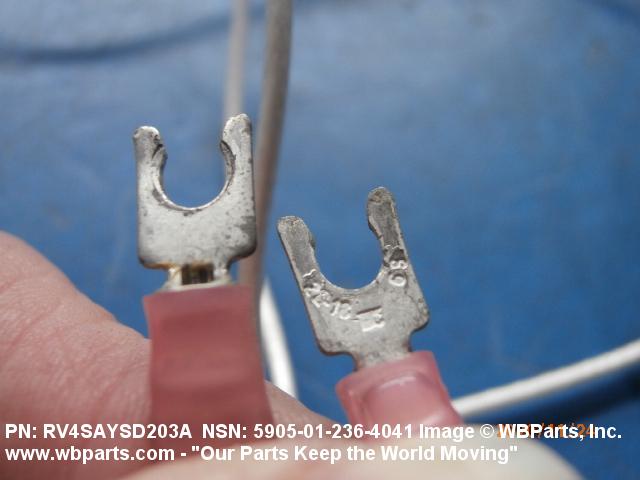

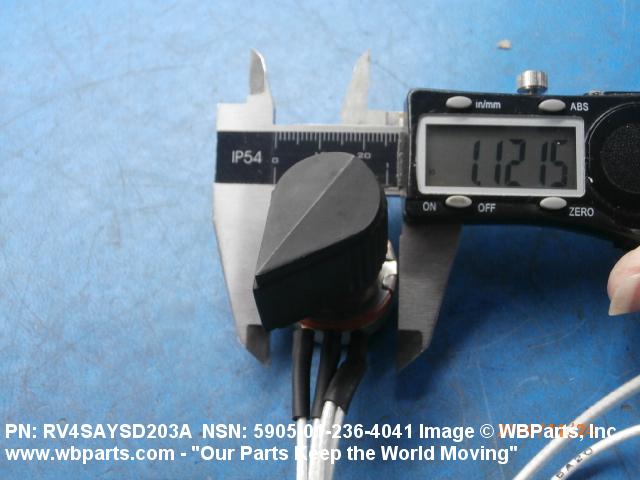

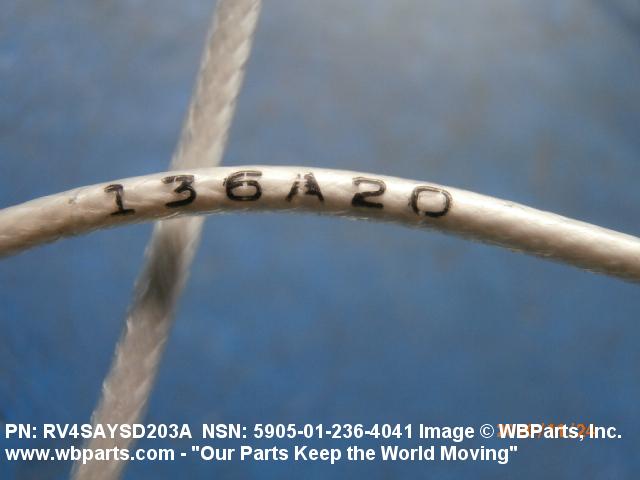

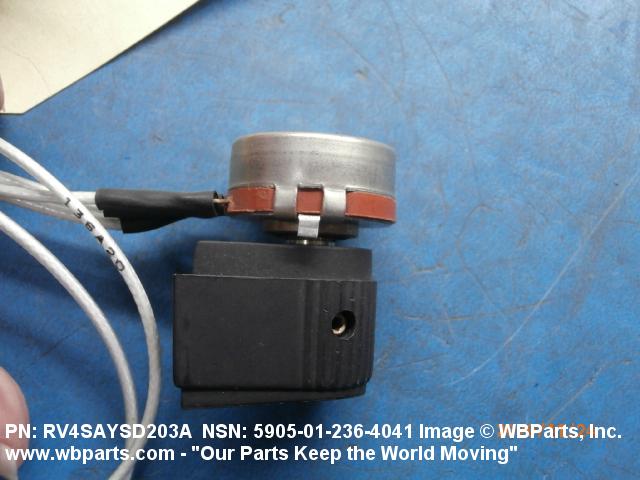

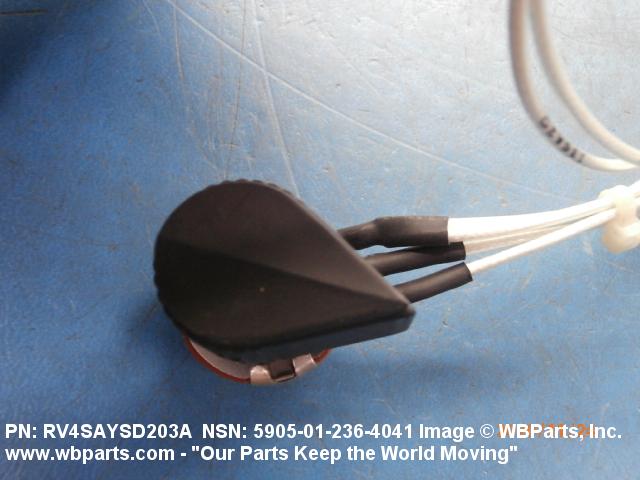

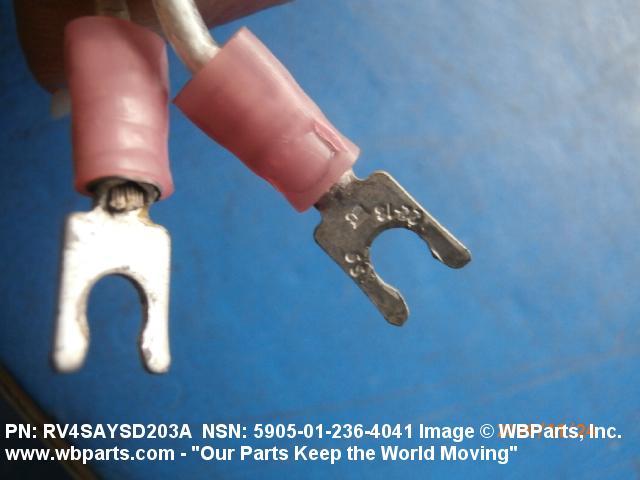

Drawings & Photos | NSN 5905-01-236-4041
Demand History | NSN 5905-01-236-4041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-236-4041 | 2025-11-311 | 78 | DIBBS |
| 5905-01-236-4041 | 2025-10-296 | 78 | DIBBS |
| 5905-01-236-4041 | 2024-03-71 | 95 | DIBBS |
| 5905-01-236-4041 | 2024-02-60 | 95 | DIBBS |
| 5905-01-236-4041 | 2023-08-240 | 1 | United States |
| 5905-01-236-4041 | 2023-08-240 | 5 | United States |
| 5905-01-236-4041 | 2022-07-194 | 5 | United States |
| 5905-01-236-4041 | 2022-03-76 | 100 | DIBBS |
| 5905-01-236-4041 | 2020-11-322 | 1 | United States |
| 5905-01-236-4041 | 2020-11-315 | 1 | United States |
| 88227733 | 2019-05-134 | 1 | US |
| 5905-01-236-4041 | 2018-08-232 | 271 | DIBBS |
| 5905-01-236-4041 | 2018-08-221 | 271 | DIBBS |
| 5905-01-236-4041 | 2015-12-354 | 251 | DIBBS |
| 5905-01-236-4041 | 2013-03-84 | 139 | DIBBS |
| 5905-01-236-4041 | 2013-02-44 | 62 | DIBBS |
| MILR945 | 2012-04-114 | 1 | US |
| 5905-01-236-4041 | 2012-03-91 | 91 | DIBBS |
| 5905-01-236-4041 | 2011-08-227 | 44 | DIBBS |
| 5905-01-236-4041 | 2010-12-361 | 77 | DIBBS |
| 5905-01-236-4041 | 2010-07-194 | 36 | DIBBS |
| 5905-01-236-4041 | 2009-12-362 | 27 | DIBBS |
| 5905-01-236-4041 | 2009-05-146 | 25 | DIBBS |
Cross Reference | NSN 5905-01-236-4041
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-236-4041
Related Products | NSN 5905-01-236-4041
Technical Data | NSN 5905-01-236-4041
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 20.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STOP TORQUE | 128.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 6.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.094 INCHES NOMINAL |
| BODY LENGTH | 0.609 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.875 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 309.0 MINIMUM AND 320.0 MAXIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 309.0 MINIMUM AND 320.0 MAXIMUM |
| NONTURN DEVICE LOCATION | AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | PANEL SEAL AND SHAFT SEAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-R-94 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-94/5 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | NAVY EQUIP |
| III OVERALL LENGTH | 1.484 INCHES NOMINAL |
| III OVERALL DIAMETER | 1.874 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-94/5 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RV4SAYSD203A |
Restrictions/Controls & Freight Information | NSN 5905-01-236-4041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-01-236-4041
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
