Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-467-2244 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 0700391, 07-00391 , 91A2AB28D15, 91A2A-B28-D15, 91A2A-B28-D-15, 5905-01-467-2244, 01-467-2244, 5905014672244, 014672244
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 1999 | 01-467-2244 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-467-2244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-467-2244
Technical Data | NSN 5905-01-467-2244
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| ELECTRICAL RESISTANCE PER SECTION | 15.0 OHMS ALL SECTIONS |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 ALL SECTIONS |

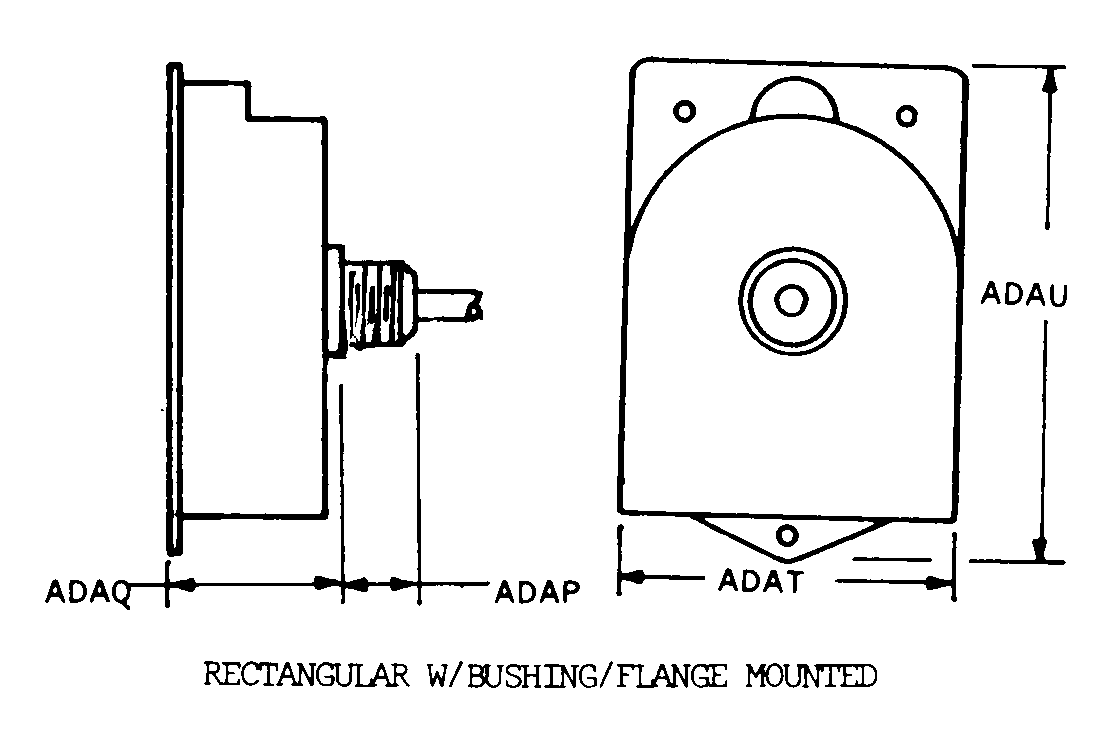

| BODY STYLE | 52B RECTANGULAR W/BUSHING/FLANGE MOUNTED |
