NSN 5905-01-476-0946 81A2AG40A15A15, 01-476-0946, 014760946
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-476-0946 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 81A2AG40A15A15, 5905-01-476-0946, 01-476-0946, 5905014760946, 014760946
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUN 2000 | 01-476-0946 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-476-0946
Demand History | NSN 5905-01-476-0946
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-476-0946 | 2011-07-212 | 4 | US |
Cross Reference | NSN 5905-01-476-0946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81A2AG40A15A15 | 32997 | BOURNS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-476-0946
Technical Data | NSN 5905-01-476-0946
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS ALL SECTIONS |
| BODY STYLE | 57B RECTANGULAR BUSHING MOUNTED |
| BODY WIDTH | 0.625 INCHES NOMINAL |
| BODY HEIGHT | 0.625 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

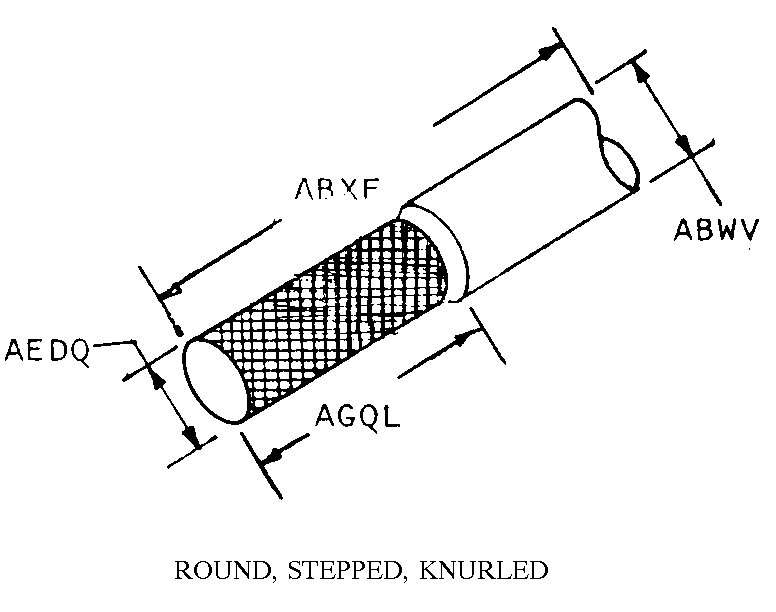

| SHAFT STYLE | 16C ROUND, STEPPED, KNURLED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 1.250 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.125 INCHES NOMINAL |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 240.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 PIN |
| III END ITEM IDENTIFICATION | HELICOPTER UH-TIGER, PLACARDS U. MARKINGS, EUROCOPTER DEUTSCHLAND GMBH |
Restrictions/Controls & Freight Information | NSN 5905-01-476-0946
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
