NSN 5910-00-105-4692 XTV700EW1, XTV-700-EW1, XTV707T060P0H

Product Details | ELECTROLYTIC FIXED CAPACITOR

5910-00-105-4692 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.

Part Alternates: XTV700EW1, XTV-700-EW1, XTV707T060P0H, 909C25712, 909C257-12, 10018939, 5910-00-105-4692, 00-105-4692, 5910001054692, 001054692

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JUL 1968	00-105-4692	00008 ( CAPACITOR, FIXED, ELECTROLYTIC )

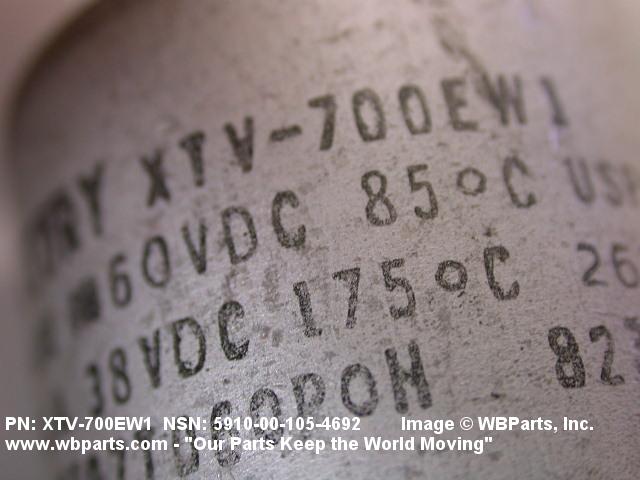

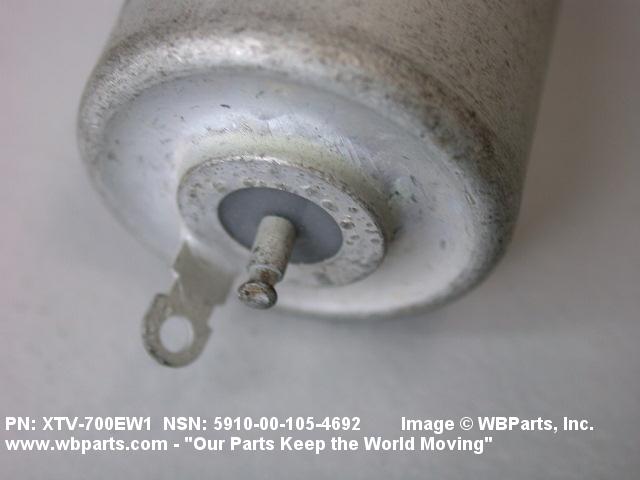

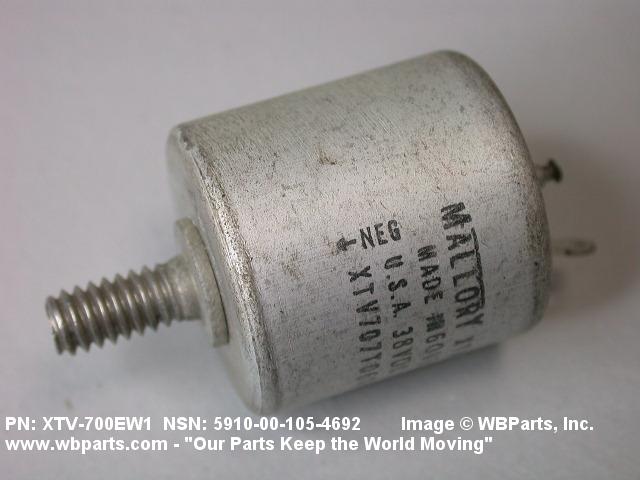

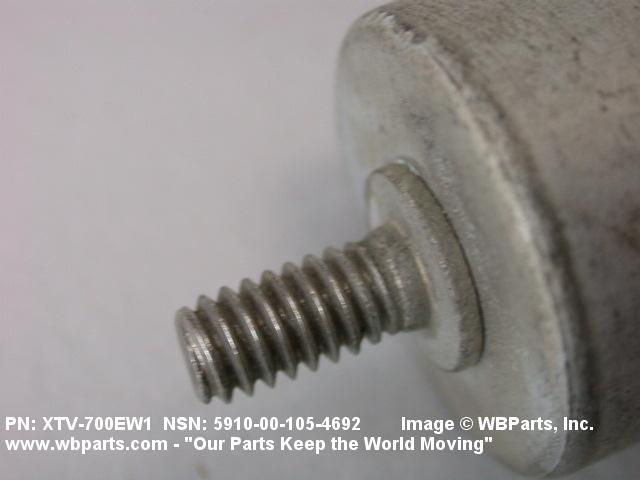

Drawings & Photos | NSN 5910-00-105-4692

Part Number	Request Date	QTY	Origin
5910-00-105-4692	2018-11-333	3	DIBBS
5910-00-105-4692	2013-05-121	26	DIBBS
5910-00-105-4692	2012-09-245	17	DIBBS
5910-00-105-4692	2010-03-68	10	United States
5910-00-105-4692	2007-07-186	1	United States

Cross Reference | NSN 5910-00-105-4692

Part Number	Cage Code	Manufacturer
10018939	18876	U S ARMY AVIATION AND MISSILE COMMAND
909C257-12	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
909C257-12	99167	HAMILTON SUNDSTRAND CORPORATION
XTV-700-EW1	37942	YOSEMITE INVESTMENT INC DBA NORTH AMERICAN CAPACITOR CO
XTV707T060P0H	05079	VISHAY SPRAGUE INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5910-00-105-4692

Compare

Related Products | NSN 5910-00-105-4692

5910-00-105-5357, 5910-00-105-5367, 5910-00-105-5410, 5910-00-105-5464, 5910-00-105-5469

Technical Data | NSN 5910-00-105-4692

Characteristic	Specifications
CAPACITANCE VALUE PER SECTION	700.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION	-15.00 TO 50.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION	60.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP	-55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
BODY STYLE	4B W/THD BUSHING MTG, TERMINAL(S) ON ONE END
BODY DIAMETER	1.109 INCHES MINIMUM AND 1.156 INCHES MAXIMUM
BODY LENGTH	1.000 INCHES MINIMUM AND 1.124 INCHES MAXIMUM
SCHEMATIC DIAGRAM DESIGNATOR	3C ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL
TERMINAL TYPE AND QUANTITY	1 SOLDER STUD AND 1 TAB, SOLDER LUG
TERMINAL LENGTH	0.344 INCHES MINIMUM AND 0.468 INCHES MAXIMUM
CASE MATERIAL	METAL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.250 INCHES
CAPACITIVE ELECTRODE MATERIAL	TANTALUM
POWER FACTOR AT REFERENCE TEMP IN PERCENT	60.0000
EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS	1.50
DC LEAKAGE AT REFERENCE TEMP	42.000 MICROAMPERES
ELECTRICAL POLARIZATION	POLARIZED
RELIABILITY INDICATOR	NOT ESTABLISHED
FEATURES PROVIDED	HERMETICALLY SEALED CASE
III ANODE TYPE	SOLID
(NON-CORE DATA) OVERALL LENGTH	1.844 INCHES MINIMUM AND 2.216 INCHES MAXIMUM
(NON-CORE DATA) OVERALL HEIGHT	1.109 INCHES MINIMUM AND 1.156 INCHES MAXIMUM
(NON-CORE DATA) OVERALL WIDTH	1.109 INCHES MINIMUM AND 1.156 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5910-00-105-4692

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061400	CONDENSERS/PARTS NOI/CAPACITORS
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5910-00-105-4692

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
