NSN 5910-00-236-8766 M2665520181, M26655-2-0181, M2665520208
Product Details | ELECTROLYTIC FIXED CAPACITOR

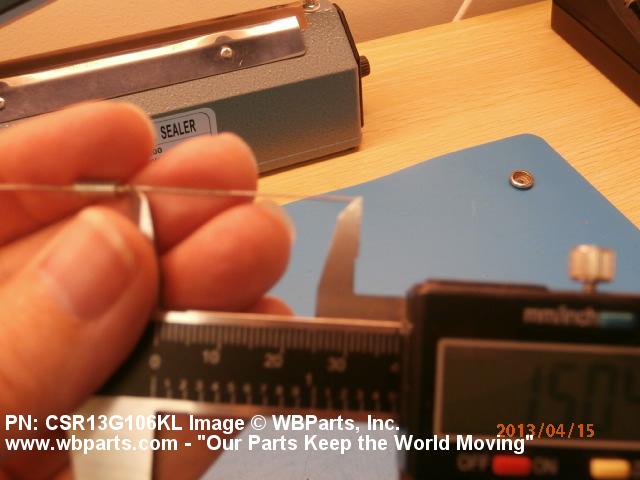

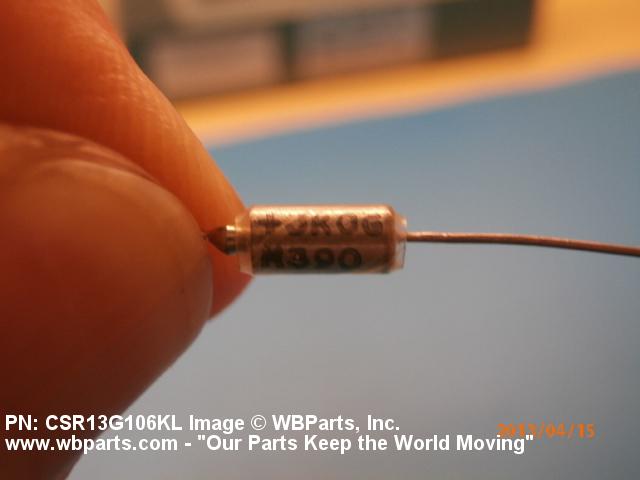

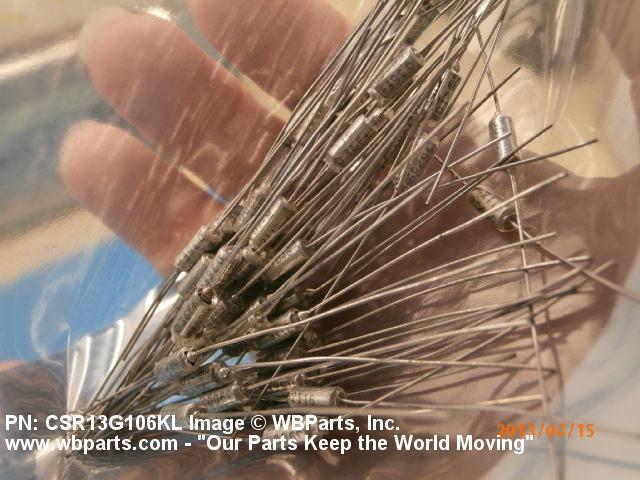

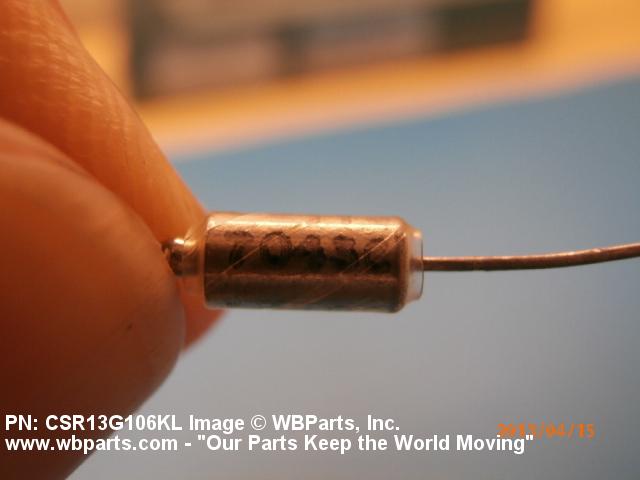

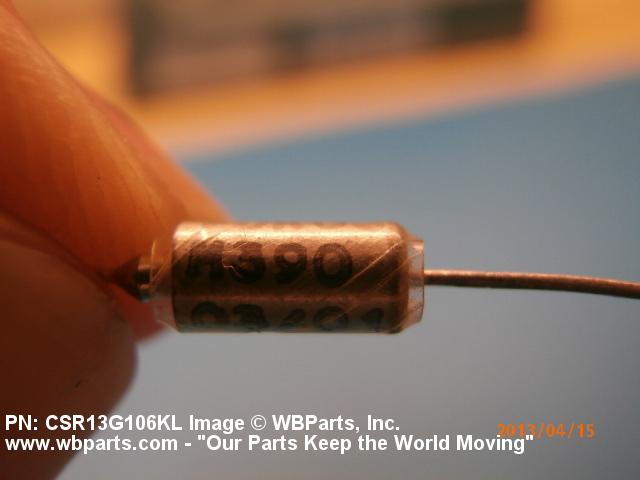

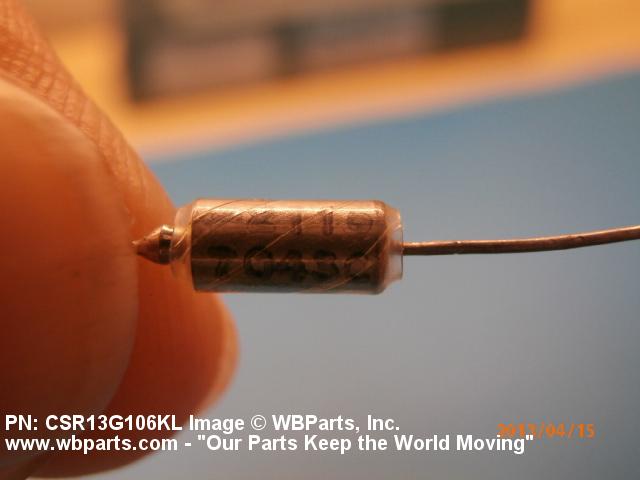

5910-00-236-8766 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
