NSN 5910-00-581-6610 05G002060137, 05G00206-0137, 05G002060139

Product Details | ELECTROLYTIC FIXED CAPACITOR

5910-00-581-6610 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.

Part Alternates: 05G002060137, 05G00206-0137, 05G002060139, 05G00206-0139, 05G00206137, 05G00206-137, 3112DC342T250, 3112GE342T250, 31883188GE342T250APA1 , 3188GE342T250AM, 3188GE342T250AP, 3188GE342T250APA1, 71C250DC342, 5910-00-581-6610, 00-581-6610, 5910005816610, 005816610

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 DEC 1974	00-581-6610	00008 ( CAPACITOR, FIXED, ELECTROLYTIC )

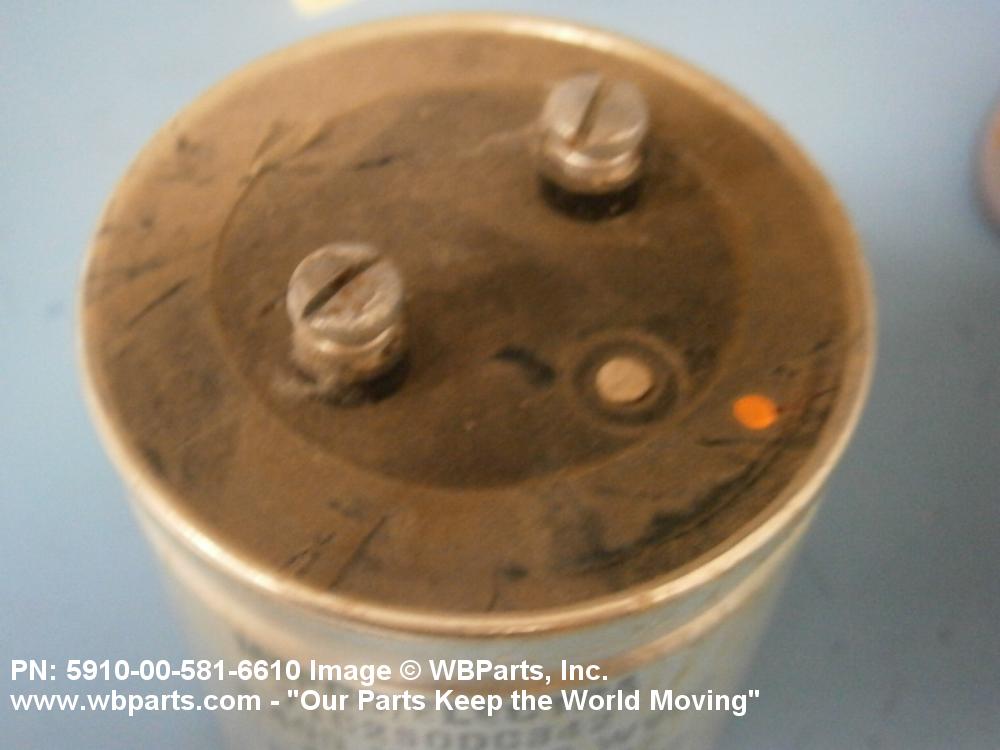

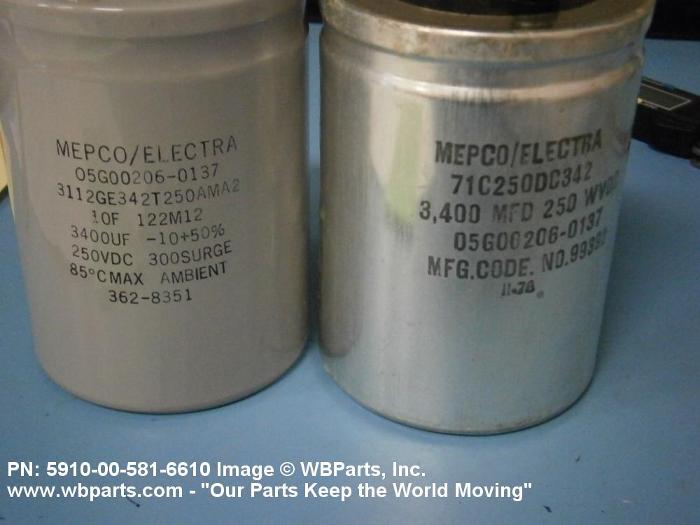

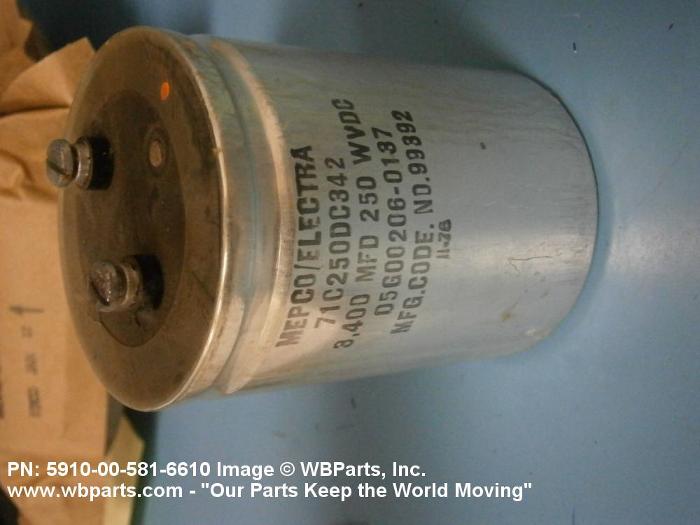

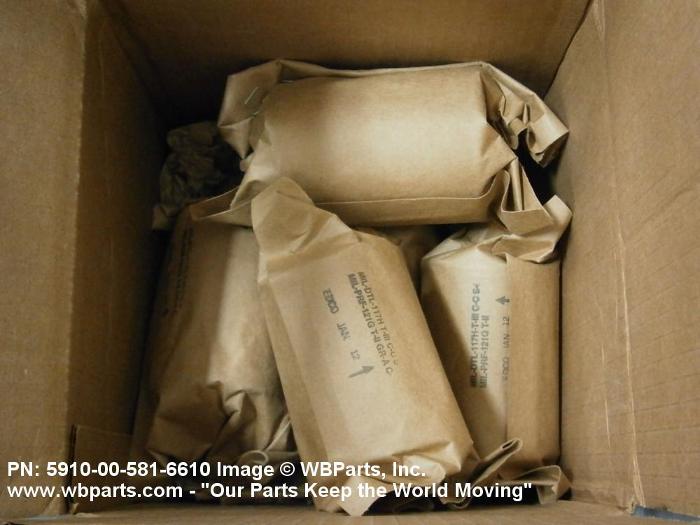

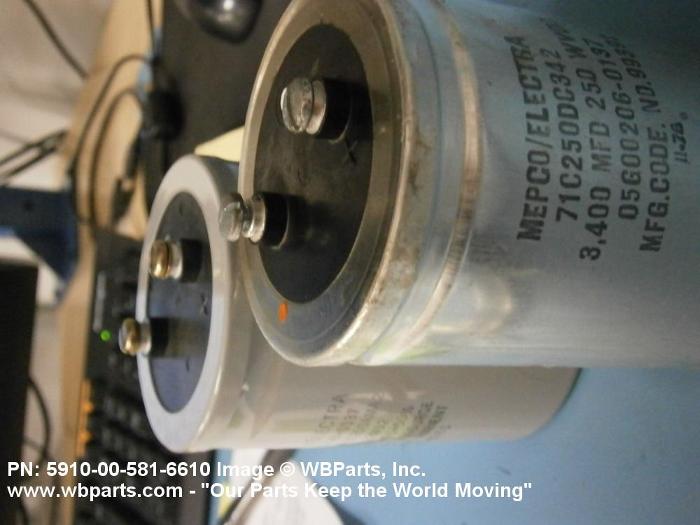

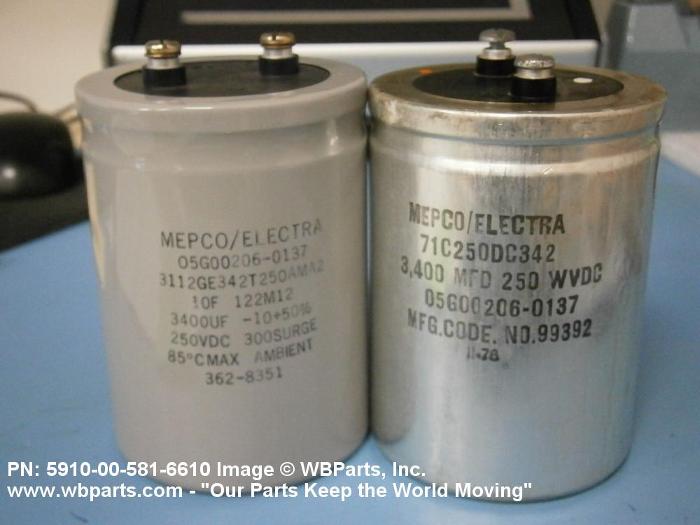

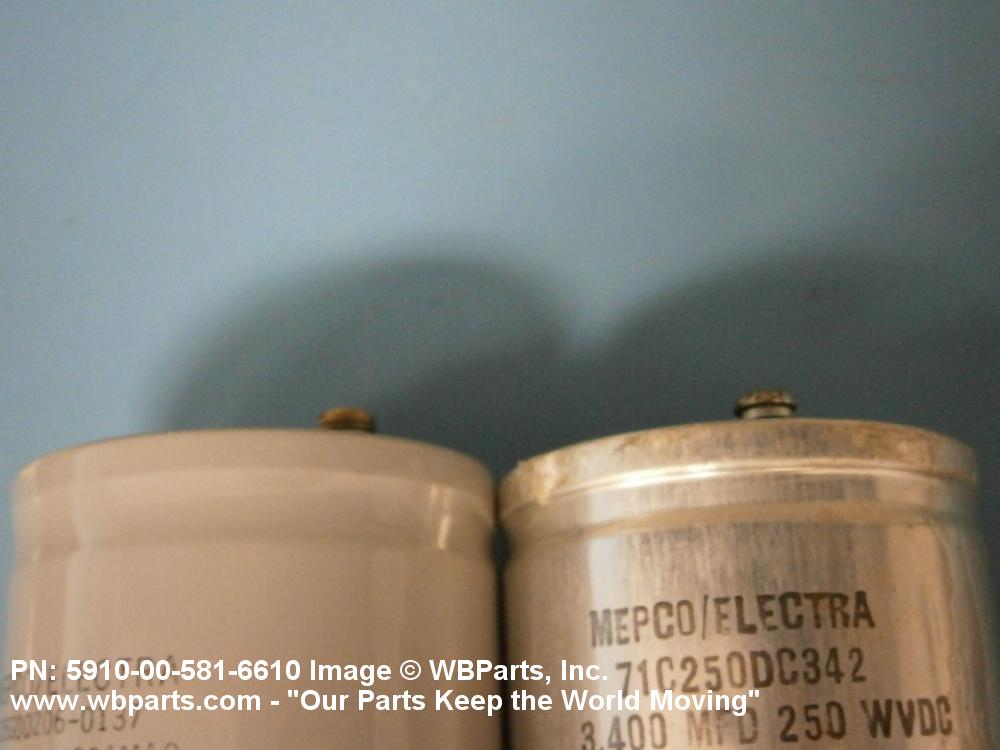

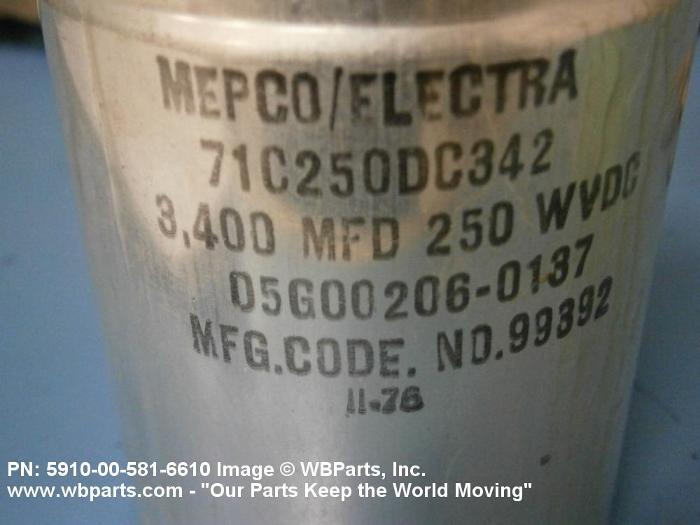

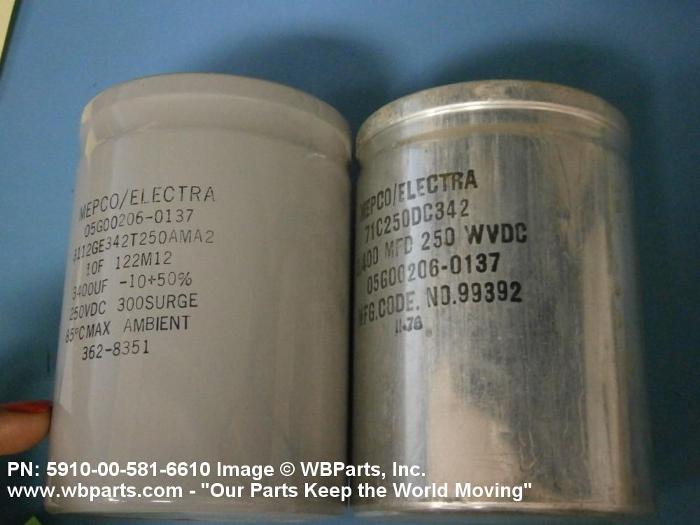

Drawings & Photos | NSN 5910-00-581-6610

Part Number	Request Date	QTY	Origin
5910-00-581-6610	2016-02-35	188	DIBBS
5910-00-581-6610	2015-11-307	60	DIBBS
5910-00-581-6610	2015-08-232	66	DIBBS
5910-00-581-6610	2013-10-275	73	DIBBS
5910-00-581-6610	2012-11-331	27	DIBBS
5910-00-581-6610	2012-05-131	5	us
5910-00-581-6610	2012-02-52	32	DIBBS
5910-00-581-6610	2011-04-115	26	DIBBS
5910-00-581-6610	2010-09-272	5	DIBBS
5910-00-581-6610	2010-07-188	5	DIBBS

Cross Reference | NSN 5910-00-581-6610

Part Number	Cage Code	Manufacturer
05G00206-0137	25230	MAGNETEK INC INDUSTRIAL CONTROLS GROUP DIV
05G00206-0139	00U45	HSI ELECTRIC INC.
05G00206-0139	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
05G00206-137	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
3112DC342T250	99392	MEPCO/ELECTRA INC ROXBORO DIV
3112GE342T250	99392	MEPCO/ELECTRA INC ROXBORO DIV
31883188GE342T250APA1	00853	CORNELL-DUBILIER MARKETING, INC.
3188GE342T250AM	56699	BC COMPONENTS
3188GE342T250AP	56699	BC COMPONENTS
3188GE342T250APA1	00853	CORNELL-DUBILIER MARKETING, INC.
71C250DC342	99392	MEPCO/ELECTRA INC ROXBORO DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5910-00-581-6610

Compare

Related Products | NSN 5910-00-581-6610

5910-00-581-6615, 5910-00-581-6974, 5910-00-581-7028, 5910-00-581-7084, 5910-00-581-7132

Technical Data | NSN 5910-00-581-6610

Characteristic	Specifications
CAPACITANCE VALUE PER SECTION	3400.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION	-10.00 TO 50.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION	250.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP	-40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
BODY STYLE	1B W/O MTG FACILITIES, TERMINAL(S) ON ONE END
BODY DIAMETER	2.008 INCHES NOMINAL

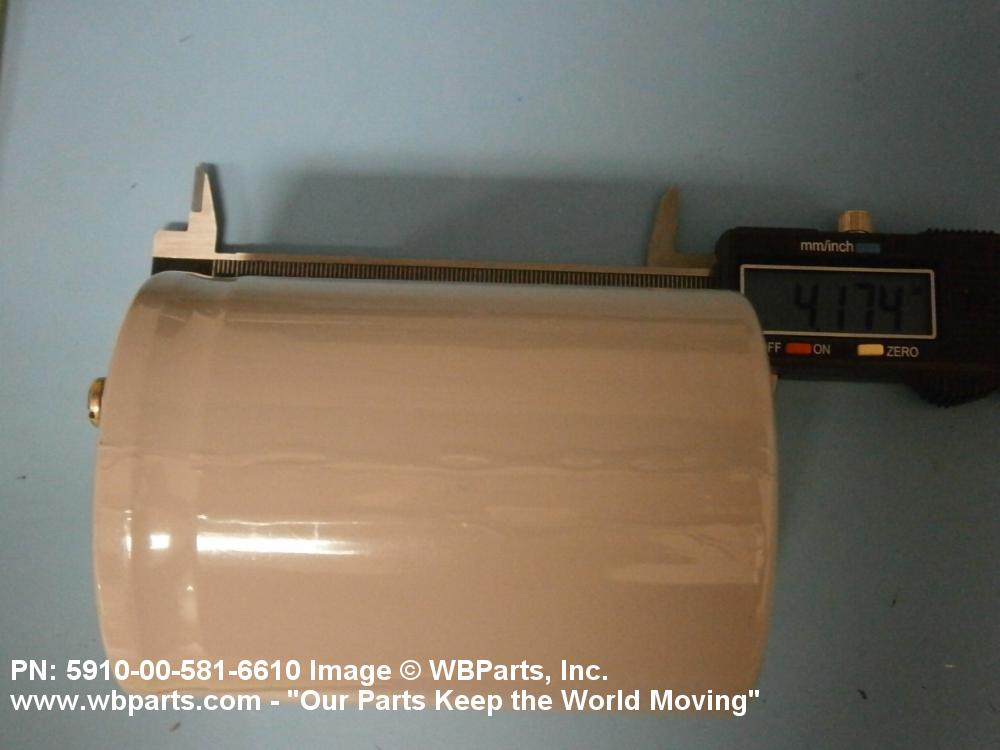

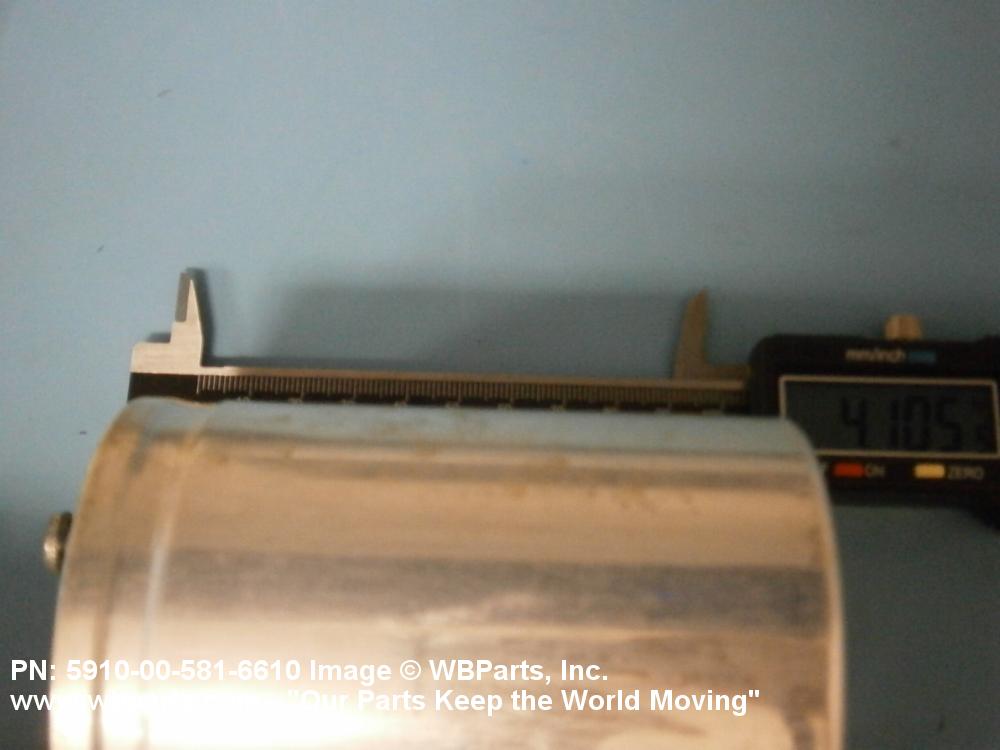

BODY LENGTH	4.133 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR	1C NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL TYPE AND QUANTITY	2 THREADED HOLE
TERMINAL LENGTH	0.281 INCHES NOMINAL
TERMINAL DIAMETER	0.190 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER	1.250 INCHES NOMINAL
CASE MATERIAL	METAL
CASE INSULATION MATERIAL	PLASTIC
CAPACITIVE ELECTRODE MATERIAL	ALUMINUM
EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS	0.08
ELECTRICAL POLARIZATION	POLARIZED
RELIABILITY INDICATOR	NOT ESTABLISHED

Restrictions/Controls & Freight Information | NSN 5910-00-581-6610

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061400	CONDENSERS/PARTS NOI/CAPACITORS
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5910-00-581-6610

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
