NSN 5910-00-649-7756 BN3175363, BN317-536-3, CV1082
Product Details | GLASS DIELECTRIC VARIABLE CAPACITOR
5910-00-649-7756 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: BN3175363, BN317-536-3, CV1082, CV108-2, SMC4525044, SMC452504-4, 682256, 9191825, 922-0416-00, 335C829H03, 564011, 564-011, 564014, 564-014, 00606296009897, 5910-00-649-7756, 00-649-7756, 5910006497756, 006497756, 922041600
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-649-7756 | 00532 ( CAPACITOR, VARIABLE, GLASS DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-649-7756
Cross Reference | NSN 5910-00-649-7756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00606296009897 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
| 335C829H03 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 335C829H03 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 564-011 | 52769 | SPRAGUE-GOODMAN ELECTRONICS, INC. |
| 564-011 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 564-014 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 682256 | 19644 | L R C ELECTRONICS INC |
| 9191825 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 922-0416-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| BN317-536-3 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| CV108-2 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
| SMC452504-4 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-649-7756
Related Products | NSN 5910-00-649-7756
Technical Data | NSN 5910-00-649-7756
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 0.7 TO 12.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 1000.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE RANGE IN PPM PER DEG CELSIUS | -75.0 TO 75.0 SINGLE SECTION |

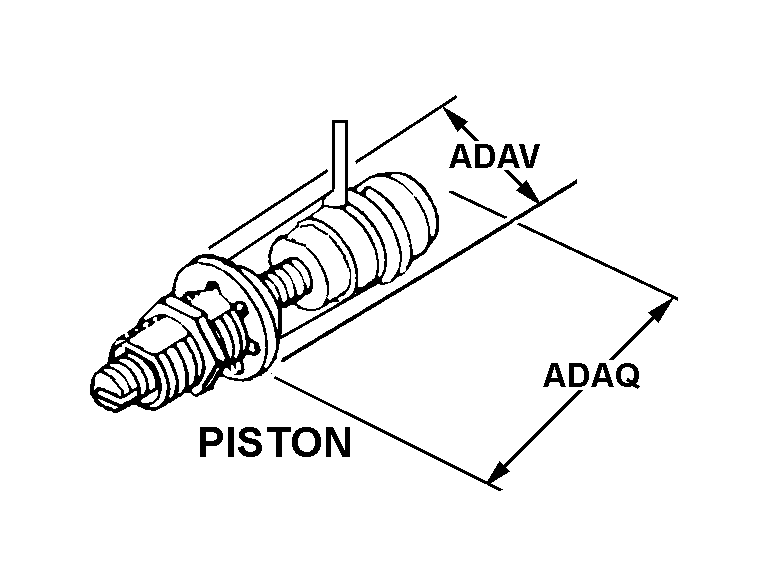

| BODY STYLE | 13 PISTON |
