Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-815-4647 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: N16C227363660, N16C22736-3660, CE53C400M, MILC62, 5910-00-815-4647, 00-815-4647, 5910008154647, 008154647
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-815-4647 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-815-4647
Cross Reference | NSN 5910-00-815-4647
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CE53C400M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CE53C400M | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| CE53C400M | 81530 | ACRO TRANSFORMER AND MFG CORP |
| MILC62 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| N16C22736-3660 | 99993 | DEPARTMENT OF THE NAVY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5910-00-815-4647
Related Products | NSN 5910-00-815-4647
5910-00-815-4662, 5910-00-815-4663, 5910-00-815-4984, 5910-00-815-5105, 5910-00-815-5106
Technical Data | NSN 5910-00-815-4647
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 3 |
| CAPACITANCE VALUE PER SECTION | 40.000 MICROFARADS 1ST SECTION 40.000 MICROFARADS 2ND SECTION 40.000 MICROFARADS 3RD SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 50.00 PERCENT 1ST SECTION -10.00 TO 50.00 PERCENT 2ND SECTION -10.00 TO 50.00 PERCENT 3RD SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 250.0 DC 1ST SECTION 250.0 DC 2ND SECTION 250.0 DC 3RD SECTION |
| NONDERATED OPERATING TEMP | -40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 1B W/O MTG FACILITIES, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 3.500 INCHES NOMINAL |

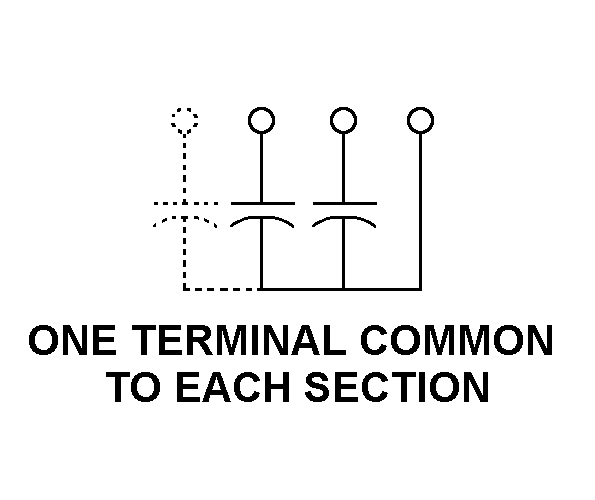

| SCHEMATIC DIAGRAM DESIGNATOR | 7C ONE TERMINAL COMMON TO EACH SECTION |
| TERMINAL TYPE AND QUANTITY | 4 STANDARD TUBE BASE |
| CASE MATERIAL | METAL |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 12.0000 |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | NICKEL |
| III ANODE TYPE | PLAIN FOIL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CE53C400M |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC62 |
