Product Details | GLASS DIELECTRIC VARIABLE CAPACITOR
5910-00-892-9996 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: MC626Y, JFDMC626Y, JFD-MC626Y, 11252840-4, 0166, 016-6, 11207018-6, 112492-009, 5910-00-892-9996, 00-892-9996, 5910008929996, 008929996, 112070186, 112528404, 112492009
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JAN 1967 | 00-892-9996 | 00532 ( CAPACITOR, VARIABLE, GLASS DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-892-9996
Cross Reference | NSN 5910-00-892-9996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 016-6 | 89449 | PHOENIX STEEL CORP |
| 11207018-6 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 112492-009 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 11252840-4 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| JFD-MC626Y | 52769 | SPRAGUE-GOODMAN ELECTRONICS, INC. |
| MC626Y | 51406 | MURATA ERIE NORTH AMERICA INC HEADQUARTERS AND GEORGIA OPNS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5910-00-892-9996
Related Products | NSN 5910-00-892-9996
5910-00-892-9999, 5910-00-893-0119, 5910-00-893-0196, 5910-00-893-0201, 5910-00-893-0233
Technical Data | NSN 5910-00-892-9996
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 1.0 TO 60.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 1000.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE RANGE IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |

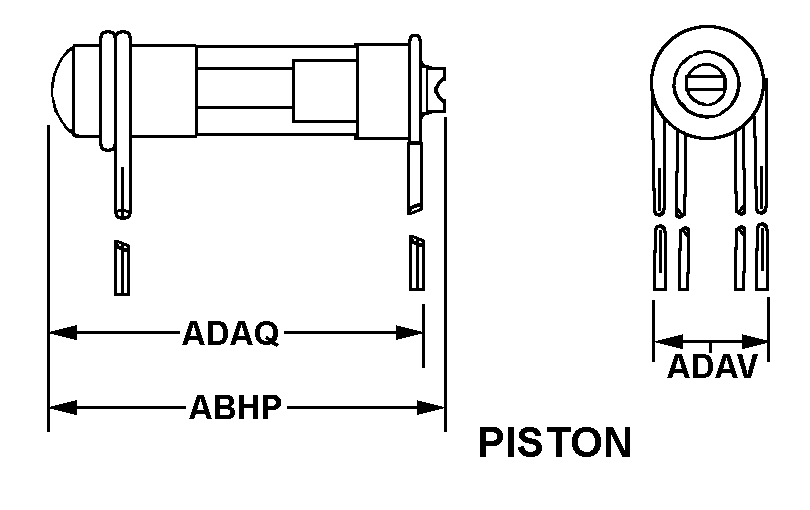

| BODY STYLE | 27 PISTON |
| OVERALL LENGTH | 1.575 INCHES NOMINAL |
| BODY LENGTH | 0.450 INCHES NOMINAL |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.121 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.125 INCHES NOMINAL SINGLE SHAFT |
| ADJUSTMENT DEVICE TORQUE | 1.000 INCH-OUNCES MINIMUM AND 8.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.703 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.235 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 1000.0 GIGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 500.0 |
Restrictions/Controls & Freight Information | NSN 5910-00-892-9996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
