Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-893-0444 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: BR10882, ECPB, 40B860RMP, 40B860-RMP, 40B860RMPV, 8PC10, 5910-00-893-0444, 00-893-0444, 5910008930444, 008930444
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-893-0444 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-893-0444
Cross Reference | NSN 5910-00-893-0444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40B860-RMP | 54904 | INDUSTRIAL/MIDWEC CAPACITOR CORP A CHARLES INDUSTRIES CO |
| 40B860-RMP | 74861 | CHARLES INDUSTRIES, LTD. DIV TELECOM/MARINE AND INDUSTRIAL |
| 40B860RMPV | 54904 | INDUSTRIAL/MIDWEC CAPACITOR CORP A CHARLES INDUSTRIES CO |
| 40B860RMPV | 74861 | CHARLES INDUSTRIES, LTD. DIV TELECOM/MARINE AND INDUSTRIAL |
| 8PC10 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| BR10882 | 14655 | CORNELL-DUBILIER ELECTRONICS |
| ECPB | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| ECPB | 14655 | CORNELL-DUBILIER ELECTRONICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5910-00-893-0444
Related Products | NSN 5910-00-893-0444
5910-00-893-0639, 5910-00-893-0873, 5910-00-893-0874, 5910-00-893-0875, 5910-00-893-0877
Technical Data | NSN 5910-00-893-0444
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 20.000 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 450.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |

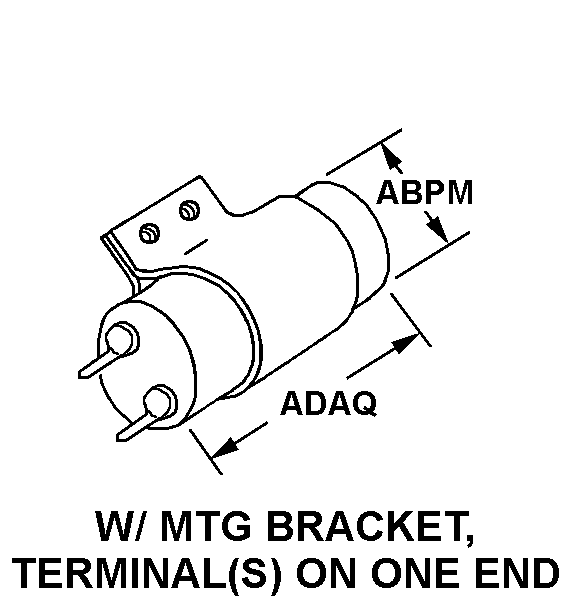

| BODY STYLE | 10B W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.000 INCHES NOMINAL |
| BODY LENGTH | 1.500 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| CASE MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III ANODE TYPE | PLAIN FOIL |
| MANUFACTURERS CODE | 28480 |
| DESIGN CONTROL REFERENCE | 8PC10 |
Restrictions/Controls & Freight Information | NSN 5910-00-893-0444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 9 | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-893-0444
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 9 | 60 months | Purchasing | QTY UOM |
1 EA : Each |
