NSN 5910-01-006-8146 1831467120, 183-1467-120, 602D528A1
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-01-006-8146 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: 1831467120, 183-1467-120, 602D528A1, 602D902G040BB2A, 5910-01-006-8146, 01-006-8146, 5910010068146, 010068146
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUL 1975 | 01-006-8146 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |

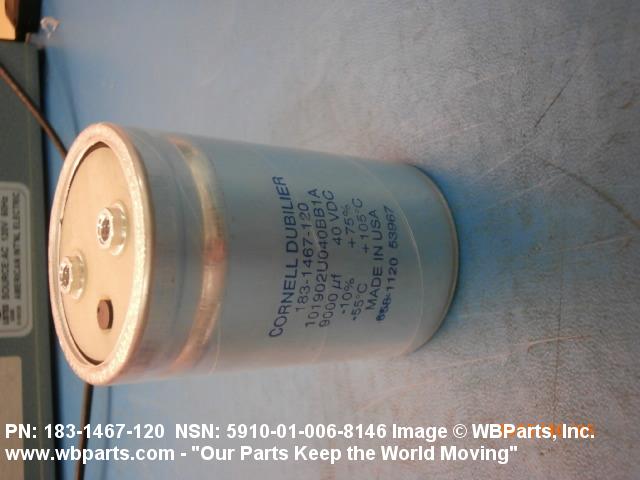

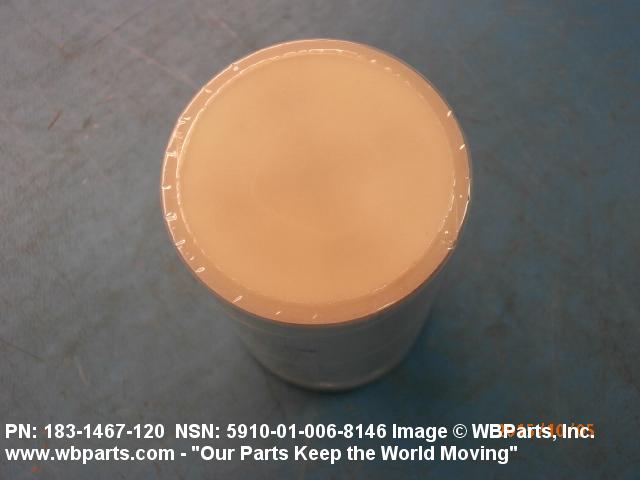

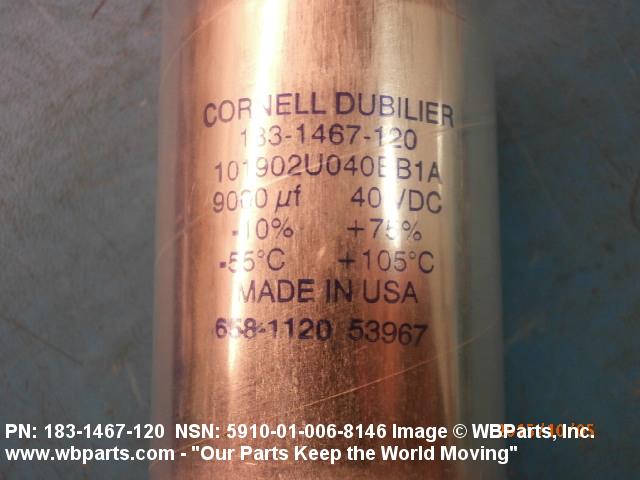

Drawings & Photos | NSN 5910-01-006-8146
Demand History | NSN 5910-01-006-8146
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-006-8146 | 2024-12-348 | 10 | Taiwan |
| 602D528A1 | 2022-12-361 | 3 | Taiwan |
| 5910-01-006-8146 | 2022-12-361 | 3 | Taiwan |
| 602D528A1 | 2022-09-266 | 1 | Taiwan |
| 602D528A1 | 2022-09-266 | 1 | Taiwan |
| 5910-01-006-8146 | 2015-09-254 | 4 | Iceland |
| 5910-01-006-8146 | 2014-10-276 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-006-8146
Related Products | NSN 5910-01-006-8146
Technical Data | NSN 5910-01-006-8146
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 9000.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 50.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 40.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 1B W/O MTG FACILITIES, TERMINAL(S) ON ONE END |

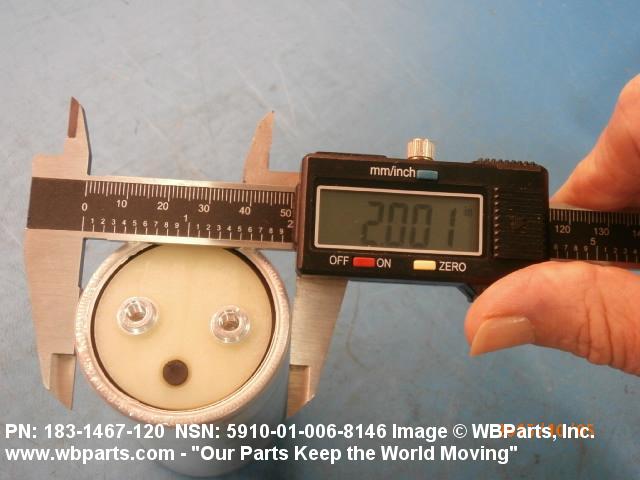

| BODY DIAMETER | 2.078 INCHES NOMINAL |

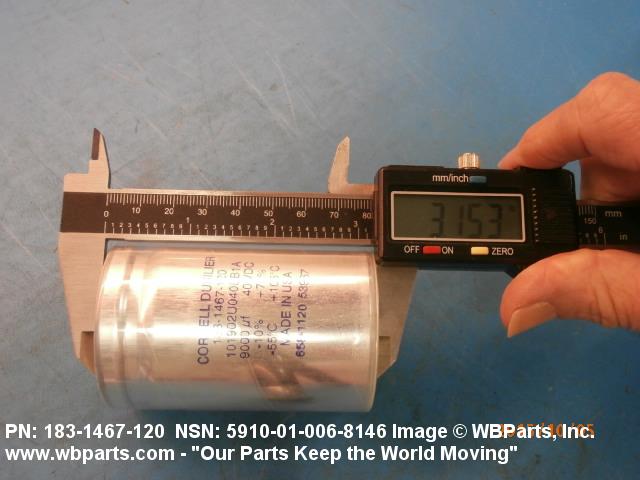

| BODY LENGTH | 3.250 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |

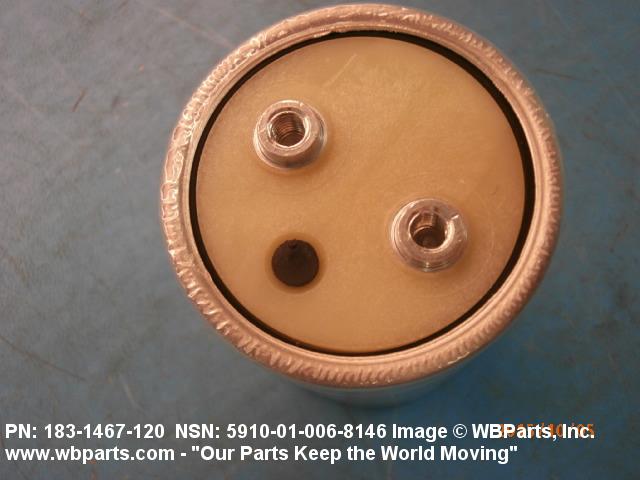

| TERMINAL TYPE AND QUANTITY | 2 THREADED HOLE |

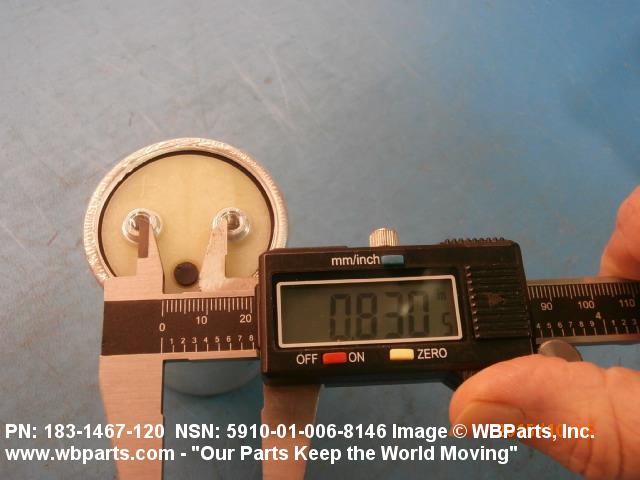

| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.813 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS | 0.045 |
| DC LEAKAGE AT REFERENCE TEMP | 900.000 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III ANODE TYPE | PLAIN FOIL |
| III IMPEDANCE AT MINIMUM OPERATING TEMP IN OHMS | 0.51 |
| (NON-CORE DATA) OVERALL LENGTH | 3.250 INCHES NOMINAL |
| III DC LEAKAGE AT MAXIMUM OPERATING TEMP | 5400.0 MICROAMPERES |
| (NON-CORE DATA) OVERALL HEIGHT | 2.078 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 2.078 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-01-006-8146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5910-01-006-8146
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
