NSN 5910-01-226-3433 M39006/04-2435, M39006/04-2716, M39006/04-2738
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-01-226-3433 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: M39006/04-2435, M39006/04-2716, M39006/04-2738, M39006042325, M39006-04-2325, M39006042435, M39006042716, M39006042738, CL33BN0R4MNE, CL33CK0R4MN3, MIL-C-39006/4, MILC390064, MILC39006-4, 1641130404, 1641130-404, 29F1590, 5910-01-226-3433, 01-226-3433, 5910012263433, 012263433
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15-FEB-86 | 01-226-3433 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |

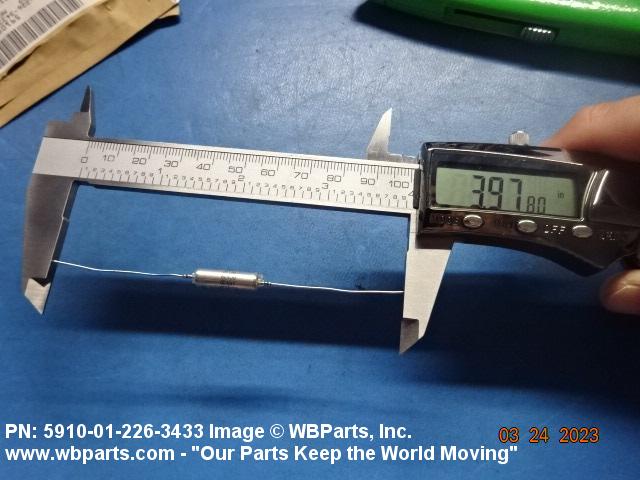

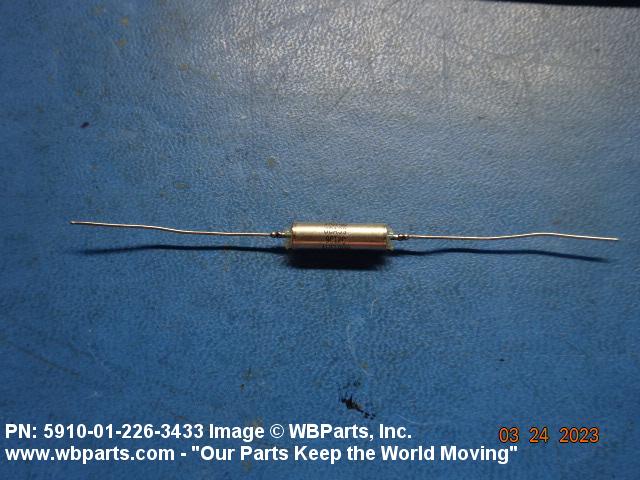

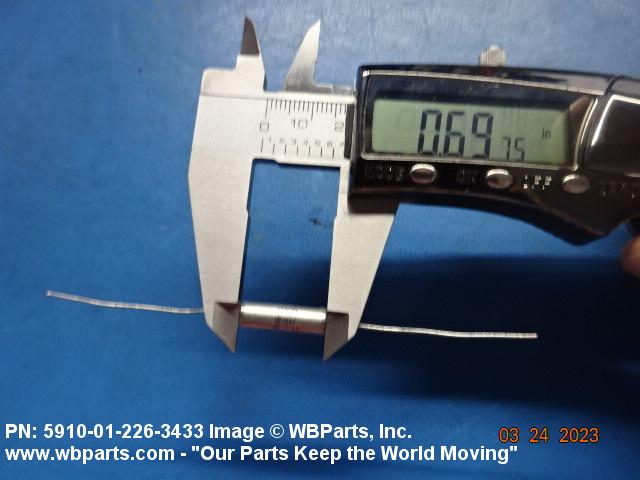

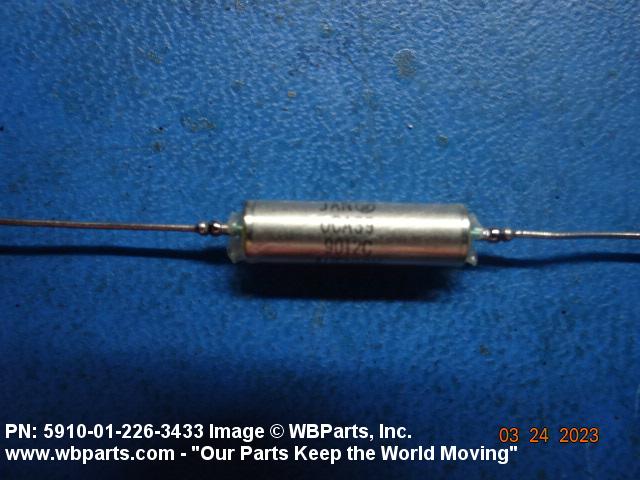

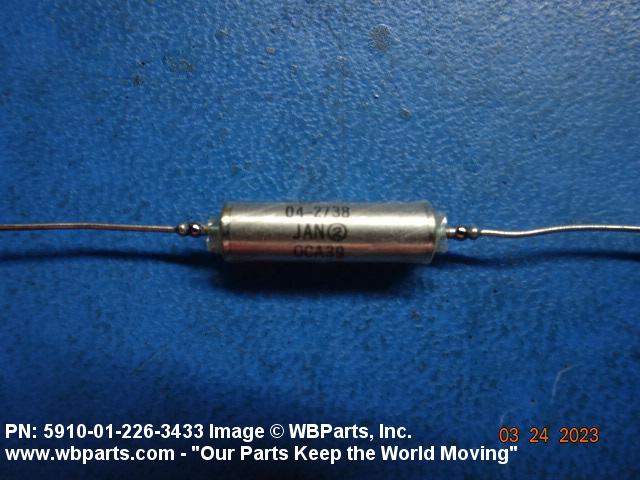

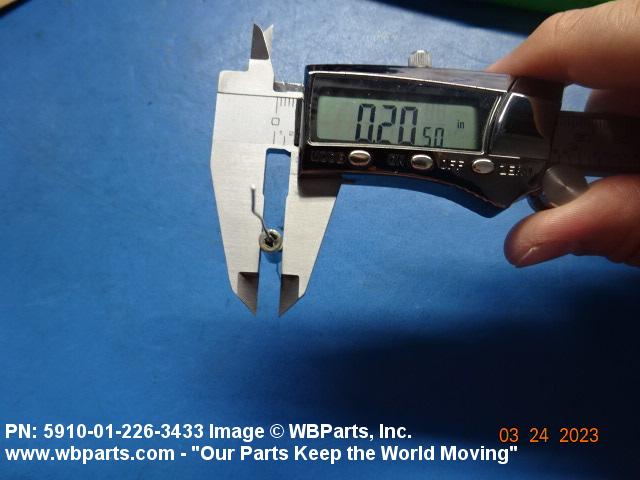

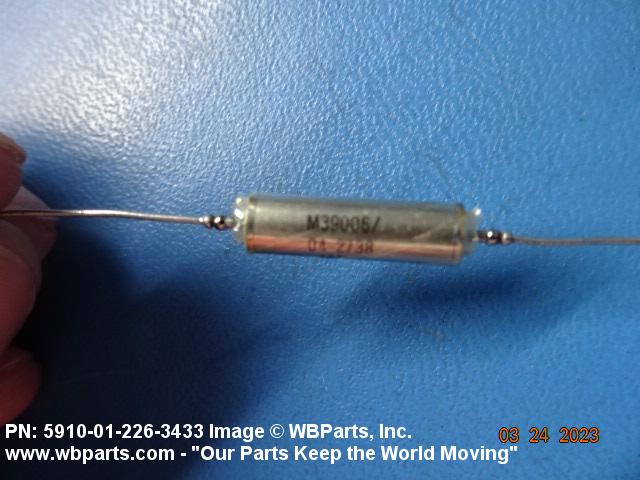

Drawings & Photos | NSN 5910-01-226-3433
Demand History | NSN 5910-01-226-3433
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-226-3433 | 2023-03-72 | 5 | United States |
| 5910-01-226-3433 | 2022-11-327 | 14 | United States |
| 5910-01-226-3433 | 2022-11-326 | 14 | United States |
| 5910-01-226-3433 | 2013-01-10 | 1 | DIBBS |
| 5910-01-226-3433 | 2012-09-254 | 200 | DIBBS |
| 5910-01-226-3433 | 2012-08-230 | 2 | US |
| 5910-01-226-3433 | 2012-06-167 | 10 | DIBBS |
| 5910-01-226-3433 | 2012-05-138 | 1 | DIBBS |
Cross Reference | NSN 5910-01-226-3433
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1641130-404 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 29F1590 | 06001 | GENERAL ELECTRIC CO ELECTRIC CAPACITOR PRODUCT SECTION |
| CL33BN0R4MNE | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| CL33BN0R4MNE | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CL33CK0R4MN3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39006-04-2325 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39006/04-2435 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39006/04-2716 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39006/04-2738 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-39006/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC3965-16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-226-3433
Related Products | NSN 5910-01-226-3433
Technical Data | NSN 5910-01-226-3433
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.400 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |
| BODY DIAMETER | 0.219 INCHES MAXIMUM |
| BODY LENGTH | 1.188 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 40.0000 |
| DC LEAKAGE AT REFERENCE TEMP | 1.000 MICROAMPERES |
| ELECTRICAL POLARIZATION | NONPOLARIZED |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.0100 |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-C-39006 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39006/4 GOVERNMENT SPECIFICATION |
| III MIL-STD-1276 WIRE LEAD TYPE DESIGNATOR | N-3 |
| III ANODE TYPE | PLAIN FOIL |
| III IMPEDANCE AT MINIMUM OPERATING TEMP IN OHMS | 5580.0 |
| (NON-CORE DATA) OVERALL LENGTH | 1.188 INCHES MAXIMUM |
| III DC LEAKAGE AT MAXIMUM OPERATING TEMP | 3.5 MICROAMPERES |
| (NON-CORE DATA) OVERALL HEIGHT | 0.219 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 0.219 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39006/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39006/04-2738 |
Restrictions/Controls & Freight Information | NSN 5910-01-226-3433
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
