NSN 5910-01-266-5443 UCSXF150012S, UCSXF-1500-12S, 01-266-5443
Product Details | GLASS DIELECTRIC VARIABLE CAPACITOR
5910-01-266-5443 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: UCSXF150012S, UCSXF-1500-12S, 5910-01-266-5443, 01-266-5443, 5910012665443, 012665443
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 OCT 1987 | 01-266-5443 | 00532 ( CAPACITOR, VARIABLE, GLASS DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-266-5443
Cross Reference | NSN 5910-01-266-5443
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UCSXF-1500-12S | 73905 | JENNINGS TECHNOLOGY COMPANY LLC DBA JENNINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-266-5443
Technical Data | NSN 5910-01-266-5443
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 20.0 TO 1500.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 1200.0 DC PEAK SINGLE SECTION |

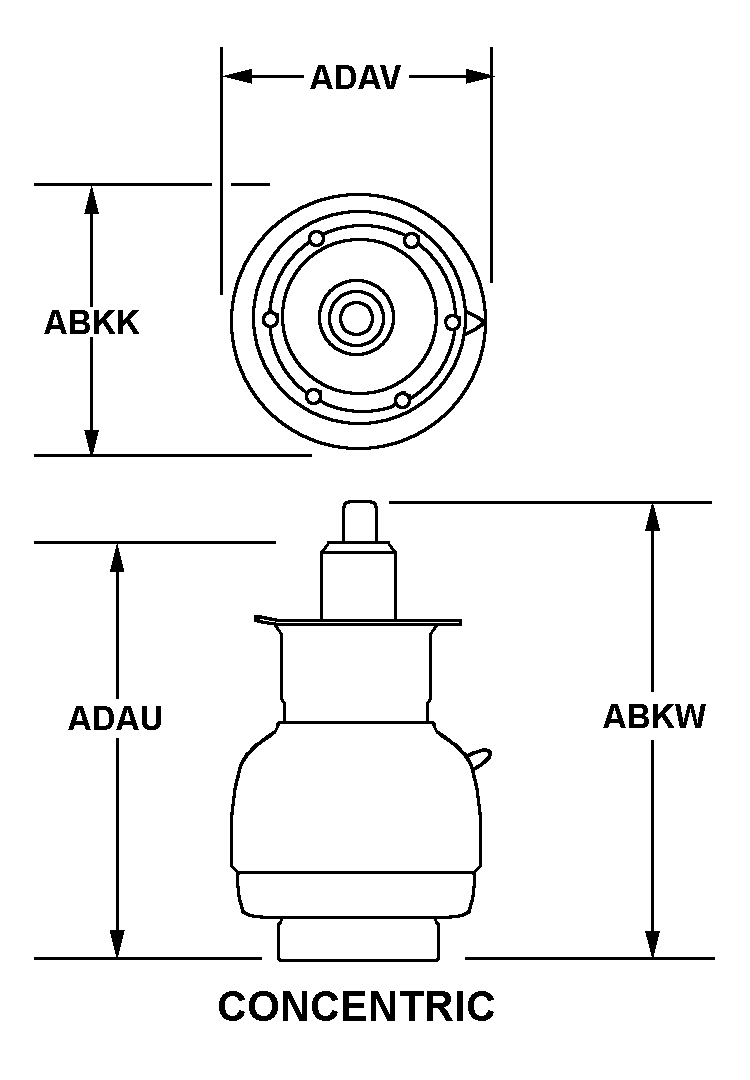

| BODY STYLE | 55 CONCENTRIC |
| FLANGE DIAMETER | 5.190 INCHES MAXIMUM |
| OVERALL HEIGHT | 9.940 INCHES NOMINAL |
| BODY HEIGHT | 9.190 INCHES NOMINAL |
| OVERALL DIAMETER | 3.120 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.750 INCHES NOMINAL SINGLE SHAFT |
Restrictions/Controls & Freight Information | NSN 5910-01-266-5443
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
