NSN 5910-01-299-0374 VPR282U025N2C, 01-299-0374, 012990374
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-01-299-0374 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: VPR282U025N2C, 5910-01-299-0374, 01-299-0374, 5910012990374, 012990374, 120104076
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1989 | 01-299-0374 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-01-299-0374
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-299-0374
Technical Data | NSN 5910-01-299-0374
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 2800.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 75.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 25.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |

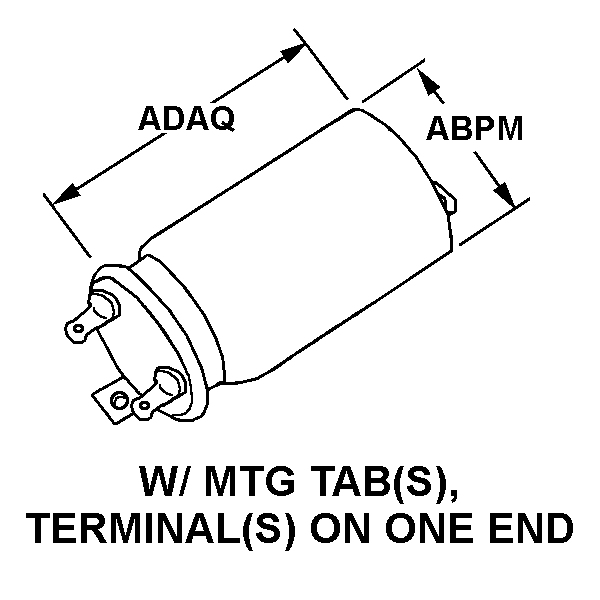

| BODY STYLE | 12B W/MTG TAB(S), TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.015 INCHES NOMINAL |
| BODY LENGTH | 2.140 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 3C ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
Restrictions/Controls & Freight Information | NSN 5910-01-299-0374
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
