NSN 5915-00-762-0531 14371, 6731111390, 673-1111-390

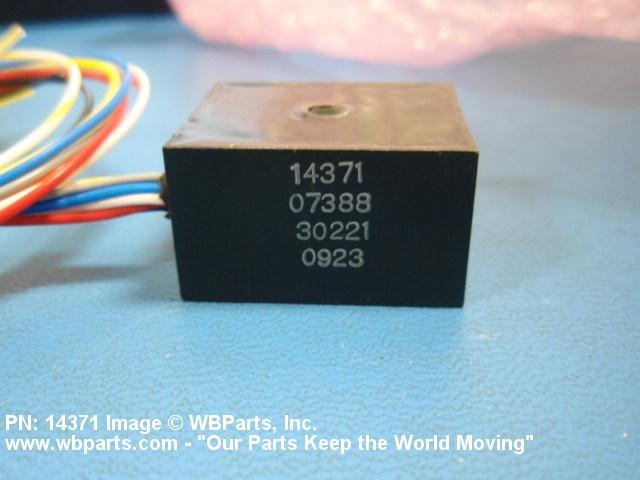

Product Details | BAND PASS FILTER
5915-00-762-0531 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: 14371, 6731111390, 673-1111-390, 5915-00-762-0531, 00-762-0531, 5915007620531, 007620531
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 APR 1972 | 00-762-0531 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-00-762-0531
Demand History | NSN 5915-00-762-0531
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14371 | 2024-02-58 | 1 | Canada |
| 14371 | 2011-12-353 | 3 | IN |
| 14371 | 2010-01-21 | 1 | MT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-762-0531
Related Products | NSN 5915-00-762-0531
Technical Data | NSN 5915-00-762-0531
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 9.5 KILOHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 10.5 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 9.431 KILOHERTZ BLANK AND 9.569 KILOHERTZ BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 600.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 600.0 OHMS BLANK |
| INPUT IMPEDANCE PER FUNCTION W/LOAD | 600.0 OHMS BLANK |
| OUTPUT IMPEDANCE PER FUNCTION W/SOURCE ACROSS INPUT | 600.0 OHMS BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 PIN INPUT 1 PIN OUTPUT 1 PIN GROUND |
| STYLE DESIGNATOR | 2 RECTANGULAR TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL HEIGHT | 1.203 INCHES MAXIMUM |
| BODY LENGTH | 5.250 INCHES MAXIMUM |
| BODY HEIGHT | 1.062 INCHES MAXIMUM |
| BODY WIDTH | 2.062 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 4.700 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION | 9.10 KILOHERTZ BLANK AND 9.431 KILOHERTZ BLANK AND 9.569 KILOHERTZ BLANK AND 9.901 KILOHERTZ BLANK |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 40.0 MAXIMUM BLANK AND 1.0 MINIMUM BLANK AND 1.0 MINIMUM BLANK AND 40.0 MAXIMUM BLANK |
| III MAXIMUM DIELECTRIC WITHSTANDING AC RMS VOLTAGE | 500.0 VOLTS AT SEA LEVEL |
| III OPERATING TEMP RANGE | -10.0 TO 60.0 DEG CELSIUS |
