NSN 5915-01-035-6198 F3043, F-3043, LA 1800 10SS

Product Details | LOW PASS FILTER

5915-01-035-6198 An item designed to pass all frequencies below a specified frequency. Excludes a single inductance, a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).

Part Alternates: F3043, F-3043, LA 1800 10SS, LA180010SS, 09600159, 0960-0159, 5915-01-035-6198, 01-035-6198, 5915010356198, 010356198

Electrical and Electronic Equipment Components | Filters and Networks

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 FEB 1977	01-035-6198	13911 ( FILTER, LOW PASS )

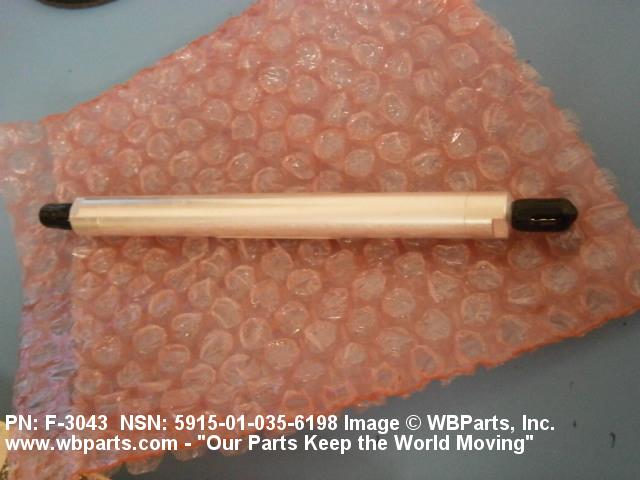

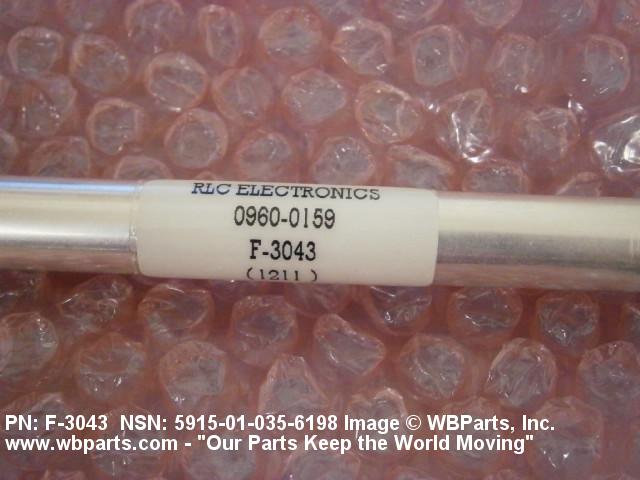

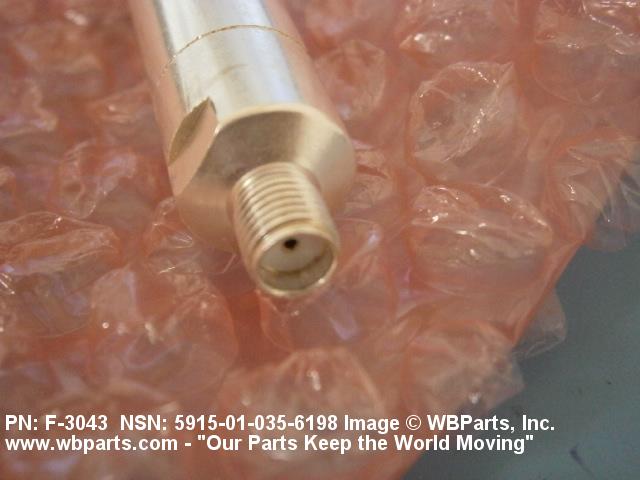

Drawings & Photos | NSN 5915-01-035-6198

Part Number	Request Date	QTY	Origin
0960-0159	2021-08-213	2	DIBBS
F-3043	2021-08-213	2	DIBBS
0960-0159	2020-06-155	2	DIBBS
F-3043	2020-06-155	2	DIBBS
0960-0159	2019-12-345	2	DIBBS
F-3043	2019-12-345	2	DIBBS
5915-01-035-6198	2018-07-212	2	DIBBS
5915-01-035-6198	2015-12-342	2	DIBBS
5915-01-035-6198	2015-05-149	2	MANUAL
5915-01-035-6198	2015-05-148	2	TR
5915-01-035-6198	2014-07-188	4	DIBBS
5915-01-035-6198	2013-08-234	2	DIBBS
09600159	2011-11-321	2	United States
5915-01-035-6198	2011-11-321	2	United States
5915-01-035-6198	2010-03-64	3	DIBBS
09600159	2009-12-335	2	United States
5915-01-035-6198	2009-07-211	4	DIBBS
5915-01-035-6198	2009-06-153	6	DIBBS
5915-01-035-6198	2008-02-36	5	DIBBS

Cross Reference | NSN 5915-01-035-6198

Part Number	Cage Code	Manufacturer
0960-0159	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
0960-0159	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
F-3043	12598	R L C ELECTRONICS, INC.
LA 1800 10SS	57032	DADEN-ANTHONY ASSOCIATES INC SUB OF TRAK MICROWAVE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5915-01-035-6198

Compare

Related Products | NSN 5915-01-035-6198

5915-01-035-6809, 5915-01-035-6810, 5915-01-035-6811, 5915-01-035-7448, 5915-01-035-7449

Technical Data | NSN 5915-01-035-6198

Characteristic	Specifications
REFERENCE FREQUENCY PER FUNCTION	900.0 MEGAHERTZ BLANK
INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS	1.5 BLANK
FREQUENCY BAND WIDTH PER FUNCTION	1.00 HERTZ BLANK AND 1.80 GIGAHERTZ BLANK
INPUT IMPEDANCE PER FUNCTION W/LOAD	50.0 OHMS BLANK
OUTPUT IMPEDANCE PER FUNCTION W/SOURCE ACROSS INPUT	50.0 OHMS BLANK
VOLTAGE STANDING WAVE RATIO PER FUNCTION	1.5 BLANK
INCLOSURE TYPE	ENCASED
FUNCTIONAL TERMINAL TYPE AND QUANTITY	1 CONNECTOR, RECEPTACLE INPUT 1 CONNECTOR, RECEPTACLE OUTPUT
STYLE DESIGNATOR	26 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES
OVERALL LENGTH	5.938 INCHES NOMINAL
BODY OUTSIDE DIAMETER	0.510 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	1 CLAMP
III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION	1.00 HERTZ BLANK AND 1.80 GIGAHERTZ BLANK AND 2.05 GIGAHERTZ BLANK AND 12.40 GIGAHERTZ BLANK
III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS	1.5 MAXIMUM BLANK AND 1.5 MAXIMUM BLANK AND 56.0 MINIMUM BLANK AND 56.0 MINIMUM BLANK
III PRINCIPAL CIRCUITRY TYPE PER FUNCTION	ELECTROMECHANICAL BLANK
III VIBRATION RESISTANCE RANGE IN HERTZ	10.0 TO 55.0
III OPERATING TEMP RANGE	0.0 TO 55.0 DEG CELSIUS
III BODY MATERIAL	METAL
