NSN 5915-01-158-4373 G1071771, G107177-1, 01-158-4373
Product Details | LOW PASS FILTER
5915-01-158-4373 An item designed to pass all frequencies below a specified frequency. Excludes a single inductance, a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: G1071771, G107177-1, 5915-01-158-4373, 01-158-4373, 5915011584373, 011584373
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUL 1983 | 01-158-4373 | 13911 ( FILTER, LOW PASS ) |
Drawings & Photos | NSN 5915-01-158-4373
Demand History | NSN 5915-01-158-4373
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5915-01-158-4373 | 2020-06-170 | 1 | United States |
| G107177-1 | 2020-05-126 | 1 | DIBBS |
| 5915-01-158-4373 | 2008-04-119 | 1 | DIBBS |
| 5915-01-158-4373 | 2008-04-94 | 3 | DIBBS |
| 5915-01-158-4373 | 2007-11-318 | 3 | DIBBS |
Cross Reference | NSN 5915-01-158-4373
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G107177-1 | 06351 | MICROWAVE ENGINEERING CORPORATION |
| G107177-1 | 23372 | LUCAS AEROSPACE COMMUNICATIONS AND ELECTRONICS INC |
| G107177-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G107177-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G107177-1 | 52476 | COLEMAN MICROWAVE CO. DIV COLEMAN MICROWAVE COMPANY |
| G107177-1 | 99313 | COMMUNICATIONS & POWER INDUSTRIES LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-158-4373
Related Products | NSN 5915-01-158-4373
Technical Data | NSN 5915-01-158-4373
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 4.7 GIGAHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 0.2 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 4.40 GIGAHERTZ BLANK AND 5.00 GIGAHERTZ BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| VOLTAGE STANDING WAVE RATIO PER FUNCTION | 1.2 BLANK |
| VOLTAGE STANDING WAVE RATIO FREQUENCY LIMITS PER FUNCTION | 4.4 GIGAHERTZ BLANK AND 5.0 GIGAHERTZ BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 RECTANGULAR FLANGE INPUT 1 RECTANGULAR FLANGE OUTPUT |

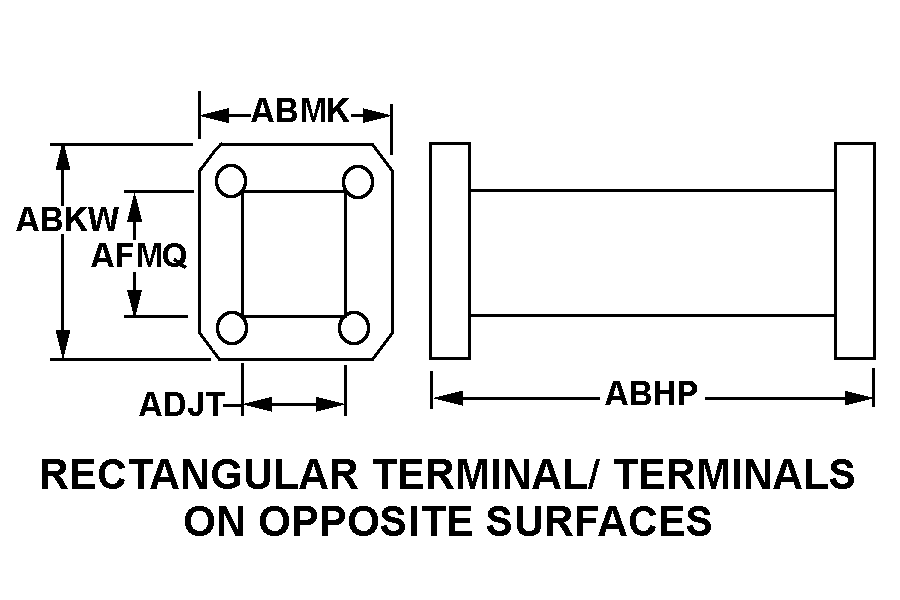

| STYLE DESIGNATOR | 32 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 11.145 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE |
| III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION | 4.40 GIGAHERTZ BLANK AND 5.00 GIGAHERTZ BLANK AND 10.00 GIGAHERTZ BLANK AND 15.00 GIGAHERTZ BLANK |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 3.0 MAXIMUM BLANK AND 3.0 MAXIMUM BLANK AND 60.0 MINIMUM BLANK AND 55.0 MINIMUM BLANK |
| III AVERAGE POWER RATING PER FUNCTION | 2.5 KILOWATTS BLANK |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE BLANK |
| III UNPACKAGED UNIT WEIGHT | 4.500 POUNDS |
| III VIBRATION RESISTANCE RANGE IN HERTZ | 10.0 TO 200.0 |
| III OPERATING TEMP RANGE | -18.0 TO 63.0 DEG CELSIUS |
| III BODY MATERIAL | ALUMINUM |
