NSN 5920-00-179-4580 H17B2, H17B223A, H17B2-23A
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-179-4580 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: H17B2, H17B223A, H17B2-23A, H17B28, H-17-B2-8, MIL-F-19207/22, MILF1920722, MIL-PRF-19207/22, MILPRF1920722, FHL33W, FHL33W11, FHL33W-11, 22W, 28739, 302-5324677 PC8, 3025324677PC8, 7000P98801441, 7000P9880144-1, 5920-00-179-4580, 00-179-4580, 5920001794580, 001794580
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 FEB 1969 | 00-179-4580 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

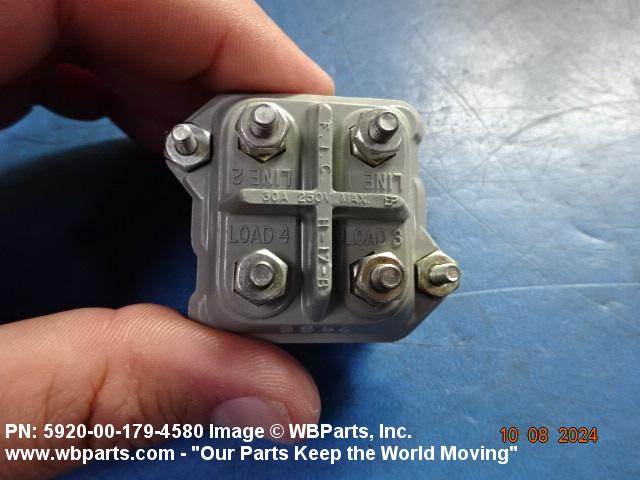

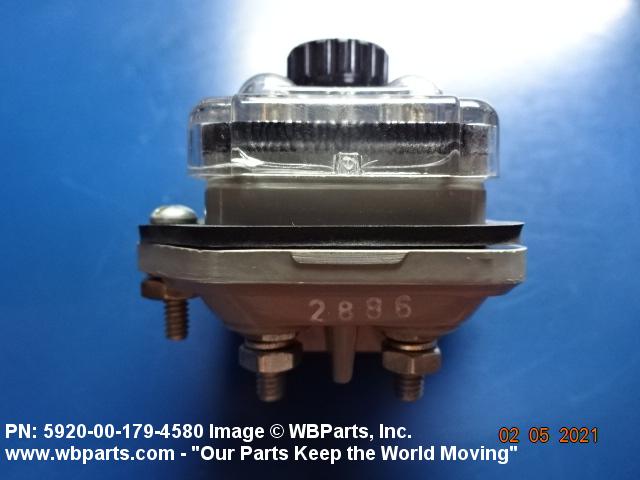

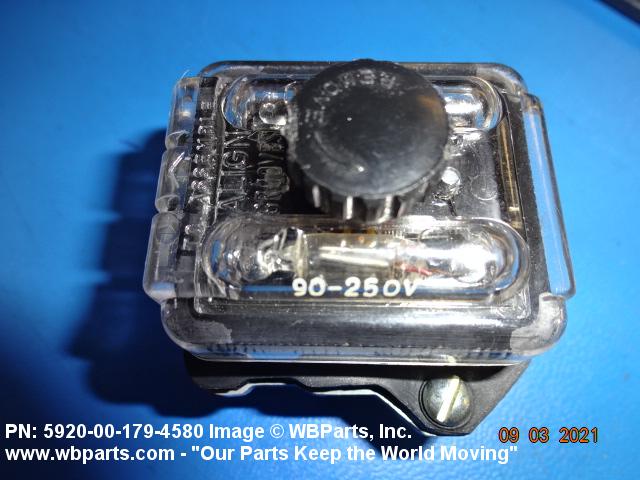

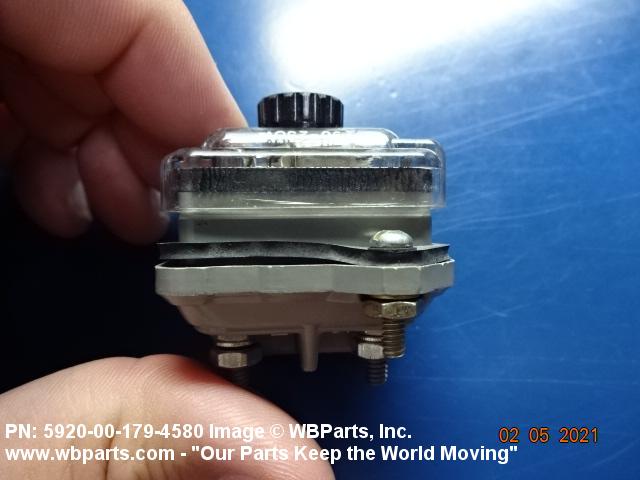

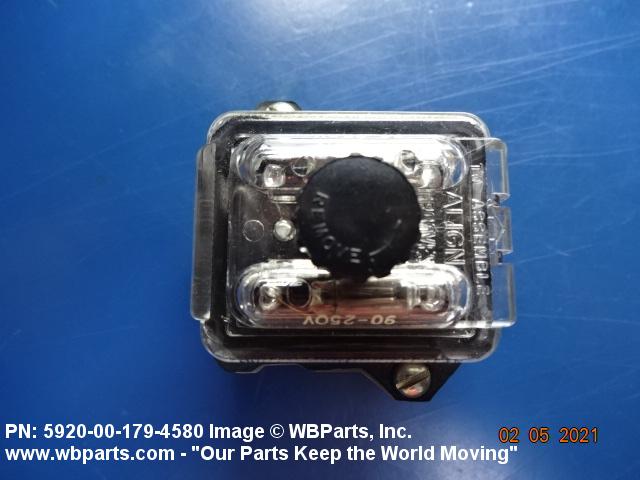

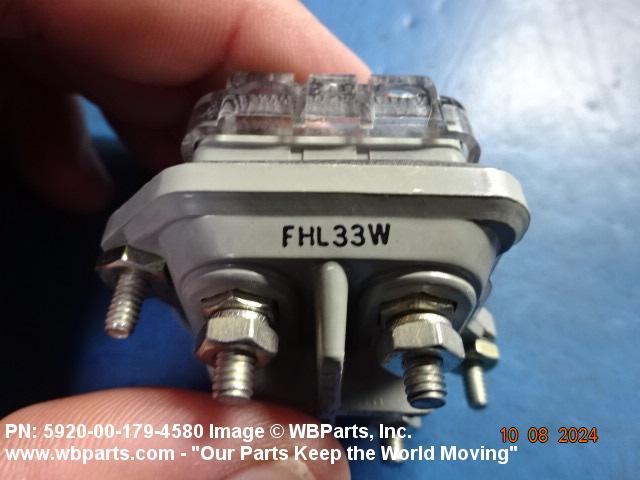

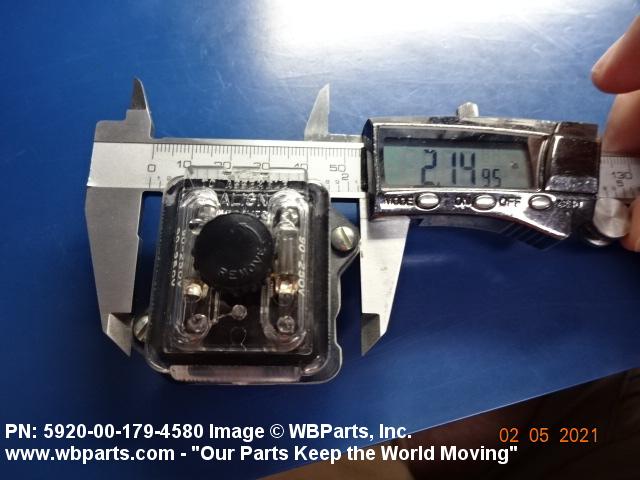

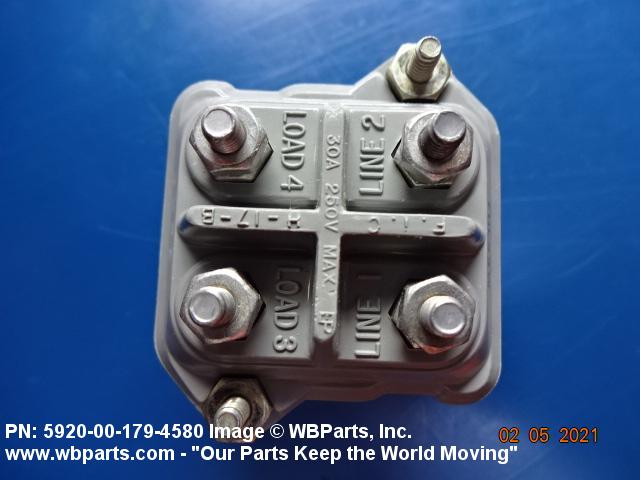

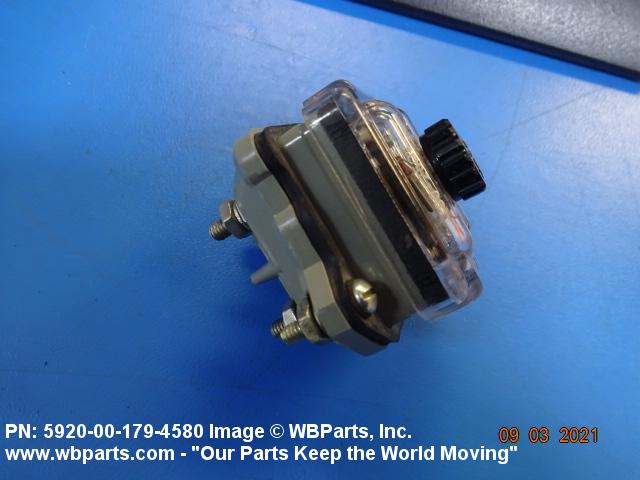

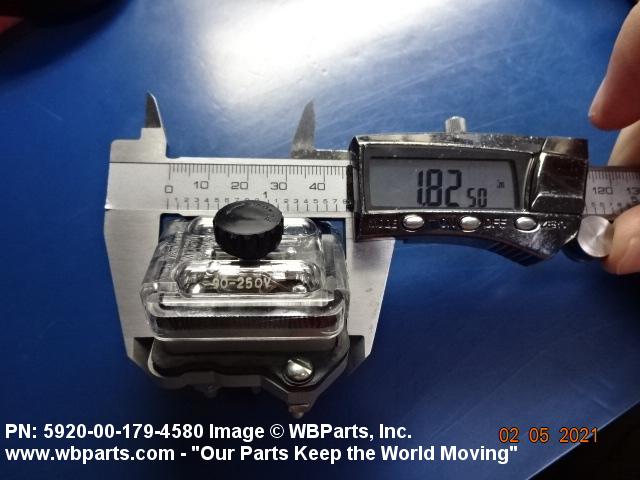

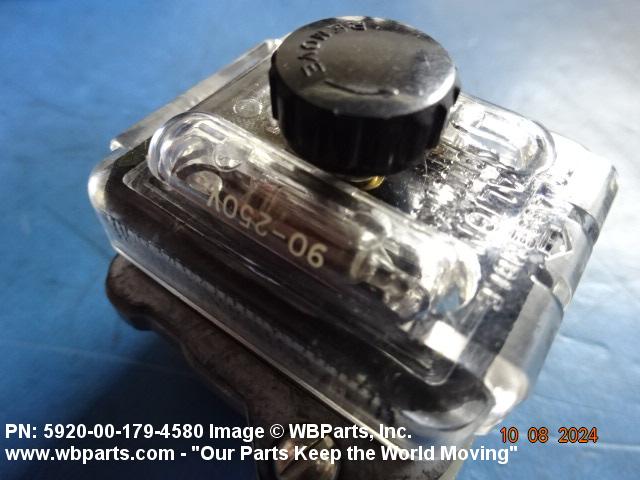

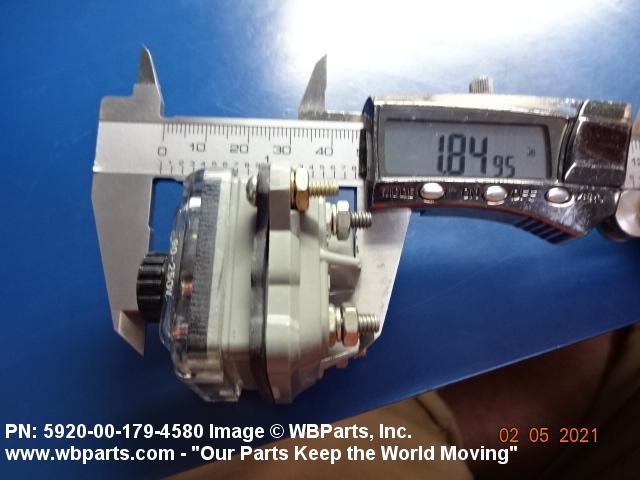

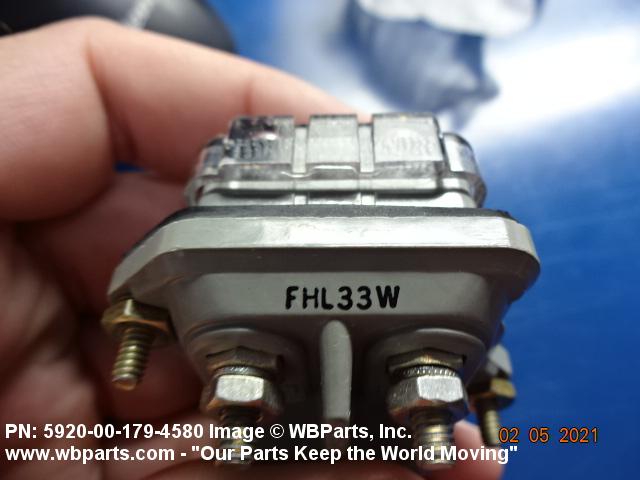

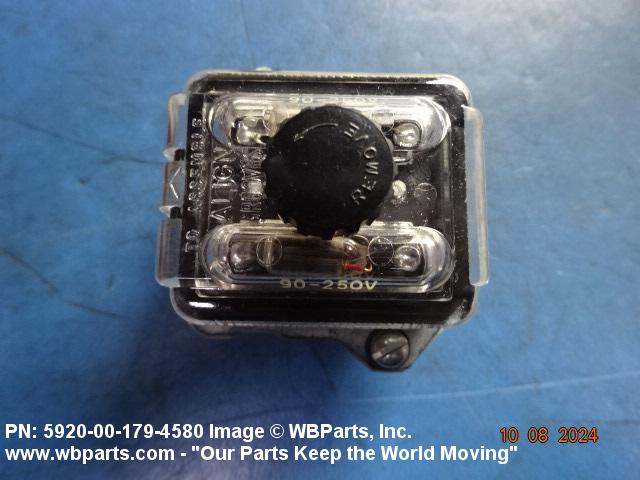

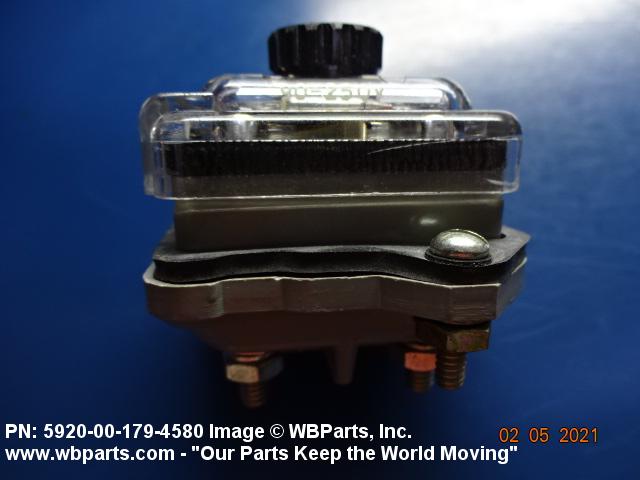

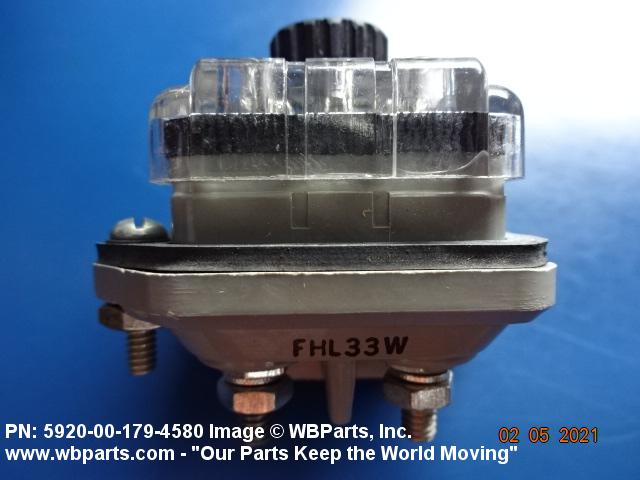

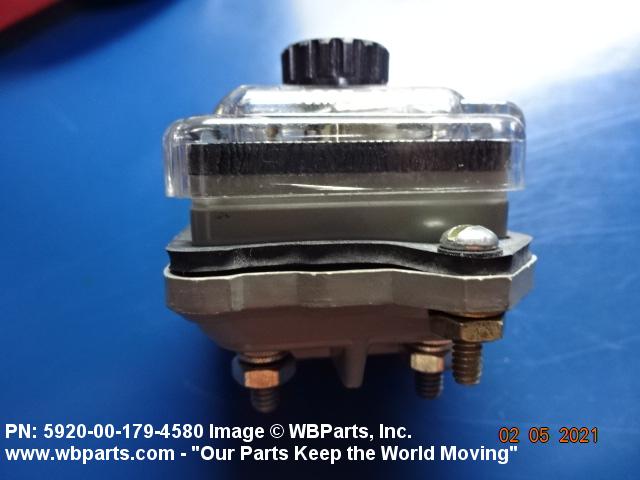

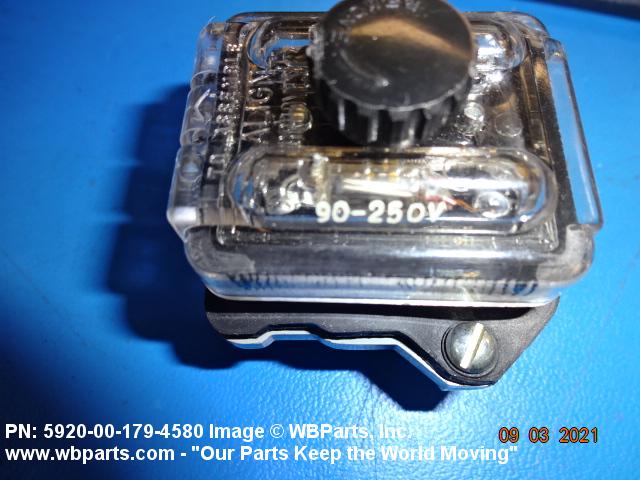

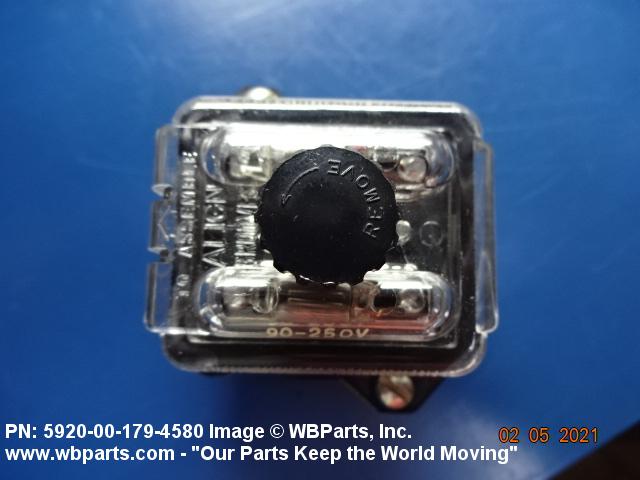

Drawings & Photos | NSN 5920-00-179-4580
Demand History | NSN 5920-00-179-4580
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-179-4580 | 2025-09-273 | 1 | us |
| 5920-00-179-4580 | 2025-05-125 | 12 | US |
| 5920-00-179-4580 | 2024-10-303 | 24 | US |
| 5920-00-179-4580 | 2024-09-274 | 10 | United States |
| 5920-00-179-4580 | 2024-03-72 | 4 | MY |
| 5920-00-179-4580 | 2023-11-333 | 2 | US |
| 5920-00-179-4580 | 2023-11-333 | 2 | CA |
| 5920-00-179-4580 | 2023-08-243 | 160 | DIBBS |
| 5920-00-179-4580 | 2023-08-240 | 194 | DIBBS |
| 5920-00-179-4580 | 2022-11-317 | 113 | DIBBS |
| 5920-00-179-4580 | 2021-01-26 | 1 | Canada |
| 5920-00-179-4580 | 2014-04-100 | 557 | DIBBS |
| 5920-00-179-4580 | 2013-07-212 | 176 | DIBBS |
| 5920-00-179-4580 | 2012-12-348 | 130 | DIBBS |
| 5920-00-179-4580 | 2007-11-334 | 92 | DIBBS |
| FHL33W | 2007-10-296 | 1 | Canada |
| 5920-00-179-4580 | 2007-07-205 | 342 | DIBBS |
| 5920-00-179-4580 | 2007-07-199 | 220 | DIBBS |
| 5920-00-179-4580 | 2007-06-162 | 40 | DIBBS |
| 5920-00-179-4580 | 2007-05-141 | 44 | DIBBS |
Cross Reference | NSN 5920-00-179-4580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 28739 | 04034 | GEMS SENSORS INC. |
| 302-5324677 PC8 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7000P9880144-1 | 23905 | L-3 COMMUNICATIONS WESTWOOD CORPORATION |
| FHL33W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHL33W-11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| H-17-B2-8 | 84613 | FIC CORPORATION |
| H17B2 | 84613 | FIC CORPORATION |
| H17B2-23A | 84613 | FIC CORPORATION |
| MIL-F-19207/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19207/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-179-4580
Related Products | NSN 5920-00-179-4580
Technical Data | NSN 5920-00-179-4580
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
| SCREW THREAD DIAMETER | 0.164 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | D2 PANEL MOUNTED TYPE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.810 INCHES NOMINAL |
| OVERALL WIDTH | 2.090 INCHES NOMINAL |
| PANEL THICKNESS | 0.187 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.873 INCHES NOMINAL |
| CAP DIAMETER | 0.625 INCHES NOMINAL |
| MOUNTING HOLE STYLE | F13 PANEL MOUNTING W/2 OR 3 HOLES |
| MOUNTING HOLE HEIGHT | 1.594 INCHES NOMINAL |
| MOUNTING HOLE WIDTH | 1.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.780 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.880 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.138 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| RESISTOR RATING | 120.0 KILOHMS |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION AND 81349-MIL-F-19207/22 SPECIFICATION |
| III BODY MATERIAL | PLASTIC, POLYESTER, MIL-M-14, TYPE MAI-60 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FHL33W-11 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19207/22 |
Restrictions/Controls & Freight Information | NSN 5920-00-179-4580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-179-4580
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
