NSN 5920-00-824-1515 M19207/3FHL12G, M19207/9F-02FHL18G, M19207/9F-02FHL18G1

Product Details | EXTRACTOR POST FUSEHOLDER

5920-00-824-1515 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).

Part Alternates: M19207/3FHL12G, M19207/9F-02FHL18G, M19207/9F-02FHL18G1, M192073FHL12G, M192079F02FHL18G, M192079F02FHL18G1, H904CPC52, SV809020 ITEM 30, SV809020ITEM30, BSFHL12U, BS-FHL12U, FHL12G, FHL12GU, FHL12J, FHL12S1, FHL12U, FHL-12U, FHL12UHGC, FHL-12U-HGC, FLH12G, FLH12U, VBE861L12U, MIL-PRF-19207/3, MILPRF192073, HGC, 02612010, 02-61-2010, 105.683-1, 1056831, 1080H95H15, 1276 19 885, 724759000200 , 7423367P001, 7498R100PC22, 875PF0022, 127619885P, 1276-19-885P, 12FH1, 12FHI, 15A10991, 15A1099-1, 16686042, 1668604-2, 2635-088-22 ITEM 1-380, 263508822ITEM1380, 2635-088-38 ITEM 1-10, 263508838ITEM110, 288A899AAP1, 352250005287, 365A3142 ITEM 16, 365A3142ITEM16, 40086327, 46353L1, 46353-L1, 46360-B3 PIECE 5, 46360B3PIECE5, 5833430, 5920-00-824-1515, 00-824-1515, 5920008241515, 127619885, 008241515

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-824-1515	28909 ( FUSEHOLDER, EXTRACTOR POST )

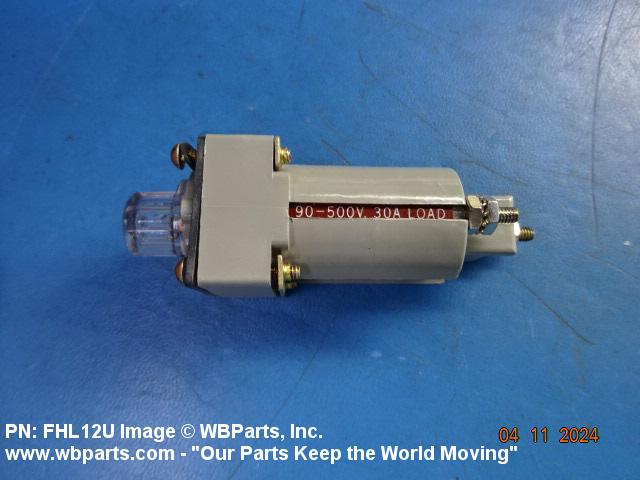

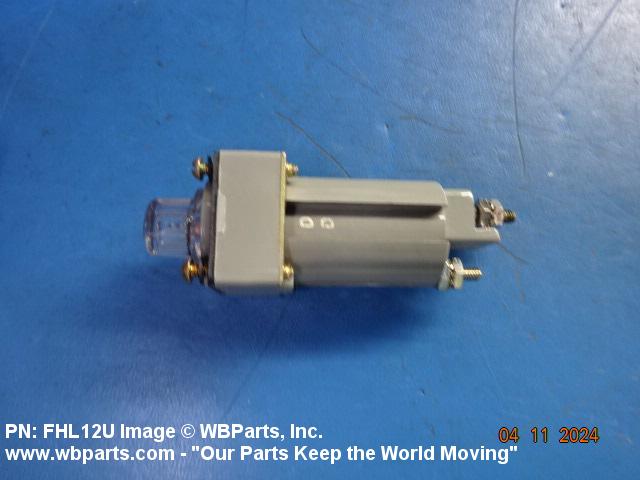

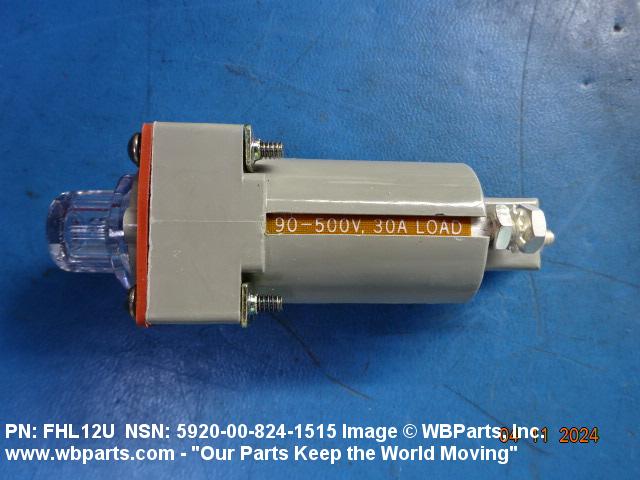

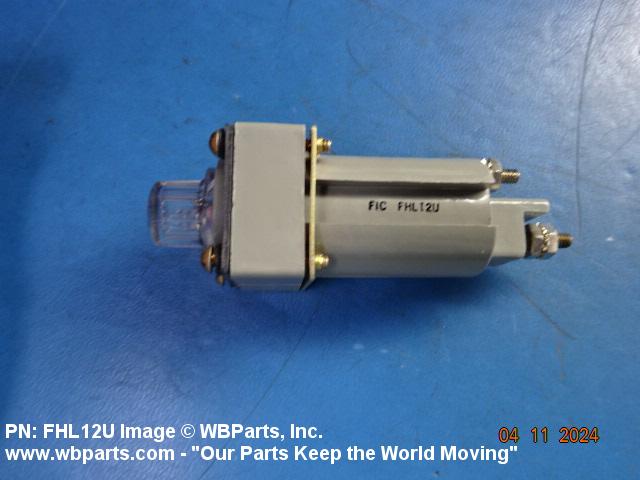

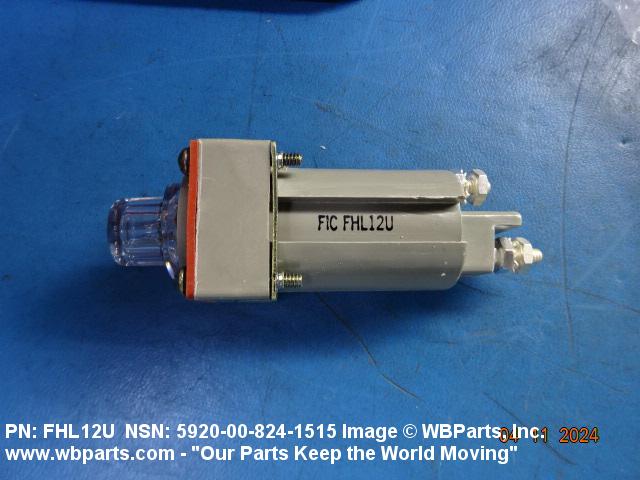

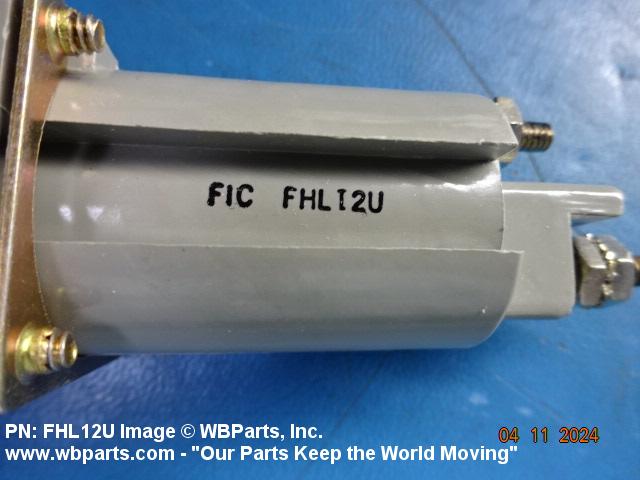

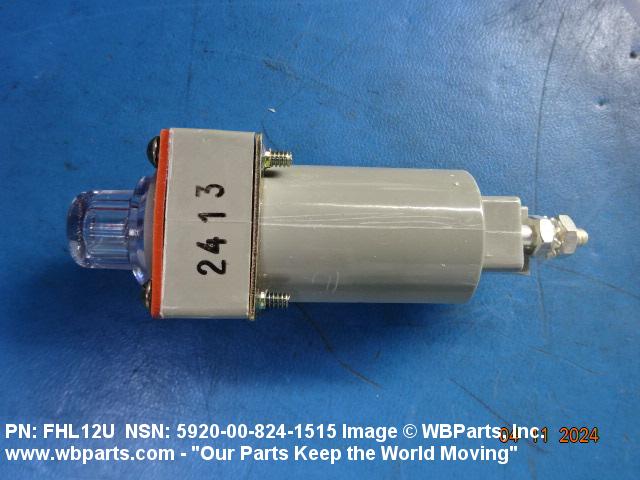

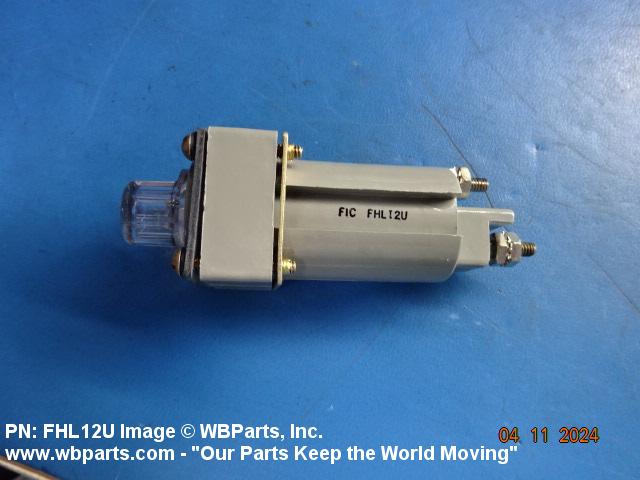

Drawings & Photos | NSN 5920-00-824-1515

Part Number	Request Date	QTY	Origin
5920-00-824-1515	2025-07-210	241	DIBBS
5920-00-824-1515	2025-07-205	4	us
5920-00-824-1515	2025-06-163	1105	DIBBS
5920-00-824-1515	2025-01-15	755	DIBBS
5920-00-824-1515	2024-01-03	6	United States
5920-00-824-1515	2023-11-310	4	United States
5920-00-824-1515	2023-09-271	1044	DIBBS
5920-00-824-1515	2022-08-224	449	DIBBS
FHL12U	2022-08-215	32	United States
5920-00-824-1515	2022-07-209	449	DIBBS
5920-00-824-1515	2022-01-27	35	US
5920-00-824-1515	2021-08-221	2183	DIBBS
5920-00-824-1515	2021-07-206	2183	DIBBS
5920-00-824-1515	2020-07-212	638	DIBBS
5920-00-824-1515	2020-06-170	846	DIBBS
5920-00-824-1515	2020-06-153	659	DIBBS
5920-00-824-1515	2019-11-317	772	DIBBS
5920-00-824-1515	2019-06-154	489	DIBBS
5920-00-824-1515	2019-05-143	489	DIBBS
5920-00-824-1515	2018-07-207	451	DIBBS
5920-00-824-1515	2017-03-82	362	DIBBS
5920-00-824-1515	2015-10-281	669	DIBBS
5920-00-824-1515	2015-10-277	850	DIBBS
5920-00-824-1515	2015-08-237	532	DIBBS
5920-00-824-1515	2014-03-80	478	DIBBS
5920-00-824-1515	2014-02-57	920	DIBBS
FHL-12U	2013-08-214	1	US
5920-00-824-1515	2012-08-237	546	DIBBS
5920-00-824-1515	2012-06-158	435	DIBBS
5920-00-824-1515	2012-05-137	207	DIBBS
5920-00-824-1515	2012-03-62	228	DIBBS
5920-00-824-1515	2011-10-299	788	DIBBS
5920-00-824-1515	2011-02-49	15	United States
FLH12U	2008-02-35	100	United States
5920-00-824-1515	2007-03-85	532	DIBBS

Cross Reference | NSN 5920-00-824-1515

Part Number	Cage Code	Manufacturer
02-61-2010	96169	ELECTRIC BOAT CORPORATION
105.683-1	63743	WARD LEONARD ELECTRIC COMPANY INC.
1080H95H15	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1276 19 885	44114	BAE SYSTEMS LAND & ARMAMENTS L.P.
1276-19-885P	A0199	OTO MELARA SPA
12FH1	63743	WARD LEONARD ELECTRIC COMPANY INC.
12FHI	63743	WARD LEONARD ELECTRIC COMPANY INC.
15A1099-1	62983	EATON AEROSPACE LLC
1668604-2	53711	NAVAL SEA SYSTEMS COMMAND
2635-088-22 ITEM 1-380	96169	ELECTRIC BOAT CORPORATION
2635-088-38 ITEM 1-10	53711	NAVAL SEA SYSTEMS COMMAND
288A899AAP1	02989	GENERAL ELECTRIC CO GE DRIVE SYSTEMS
352250005287	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
365A3142 ITEM 16	21810	CHALLENGER ELECTRICAL EQUIPMENT CORP
46353-L1	95802	AIR SYSTEM COMPONENTS, INC DBA TRION IAQ DIV
46360-B3 PIECE 5	12780	RESEARCH-COTTRELL INC
5833430	22096	GOOD-ALL ELECTRIC INC DIV OF VALMONT INDUSTRIES
724759000200	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
7423367P001	03538	LOCKHEED MARTIN CORPORATION DIV MST
7498R100PC22	95210	PEERLESS INSTRUMENT CO., INC.
875PF0022	A0199	OTO MELARA SPA
BS-FHL12U	K0577	BRITISH SAROZAL LTD
FHL-12U	38450	ENGINEERED COIL COMPANY DBA DRS MARLO COIL
FHL-12U-HGC	12867	GSE HOLDINGS INC. DBA ITW MILITARY GSE
FHL12G	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FHL12G	81439	THERM-O-DISC INCORPORATED
FHL12G	84613	FIC CORPORATION
FHL12GU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FHL12J	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FHL12S1	71400	COOPER BUSSMANN INC
FHL12U	21810	CHALLENGER ELECTRICAL EQUIPMENT CORP
FHL12U	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
FHL12U	30086	SPD ELECTRICAL SYSTEMS, INC
FHL12U	51435	EMS DEVELOPMENT CORPORATION
FHL12U	71400	COOPER BUSSMANN INC
FHL12U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FHL12U	84613	FIC CORPORATION
FLH12G	28527	EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED
FLH12U	58475	WESTWOOD CORPORATION DBA NMP DIVISION
FLH12U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
H904CPC52	92772	WHITMOR COMPANY, INC., THE
HGC	54416	CONCRETE TIE MFG CO
HGC	54426	BUSS SYSTEMS INC
HGC	71400	COOPER BUSSMANN INC
M19207/3FHL12G	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M19207/9F-02FHL18G	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M19207/9F-02FHL18G1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M19207/9F-02FHL18G1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-PRF-19207/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SV809020 ITEM 30	73030	HAMILTON SUNDSTRAND CORPORATION
SV809020 ITEM 30	81412	TREADWELL CORPORATION
VBE861L12U	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-824-1515

Compare

Related Products | NSN 5920-00-824-1515

5920-00-824-4110, 5920-00-824-4112, 5920-00-824-4128, 5920-00-824-4129, 5920-00-824-4130

Technical Data | NSN 5920-00-824-1515

Characteristic	Specifications
FUSE ACCOMMODATION QUANTITY	1
CURRENT CARRYING RATING IN AMPS	30.0
VOLTAGE IN VOLTS	500.0
FUSE TERMINAL TYPE ACCOMMODATED	FERRULE
TERMINAL TYPE AND QUANTITY	2 THREADED STUD
SCREW THREAD DIAMETER	0.164 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH	32.0
CONTACT MATERIAL	ANY ACCEPTABLE
CONTACT SURFACE TREATMENT	SILVER PLATED, QQ-S-365
BODY STYLE	D20 REAR PANEL MOUNTED TYPE

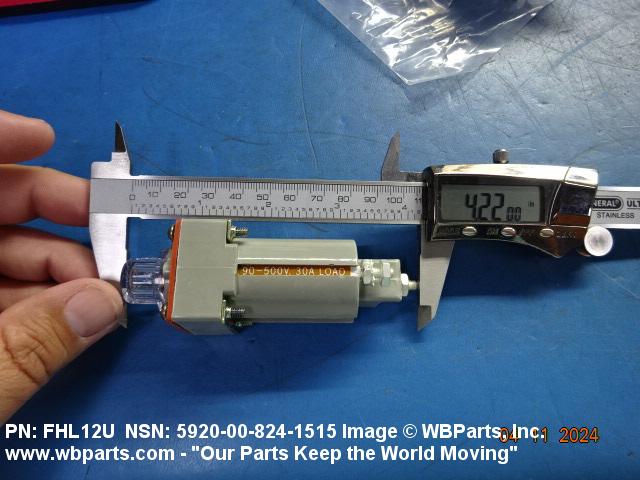

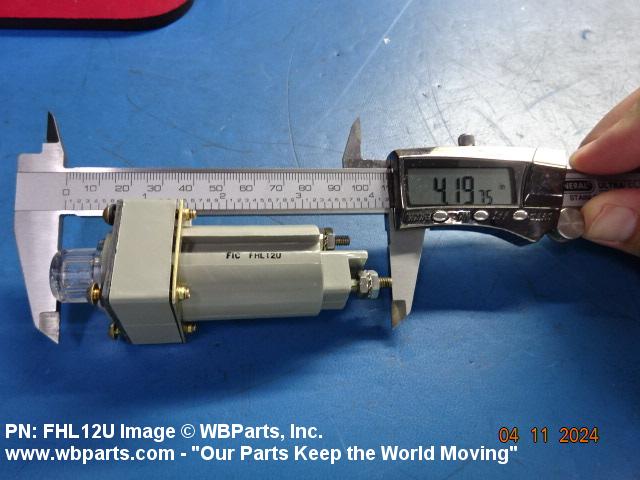

OVERALL LENGTH	4.000 INCHES MINIMUM AND 4.250 INCHES MAXIMUM

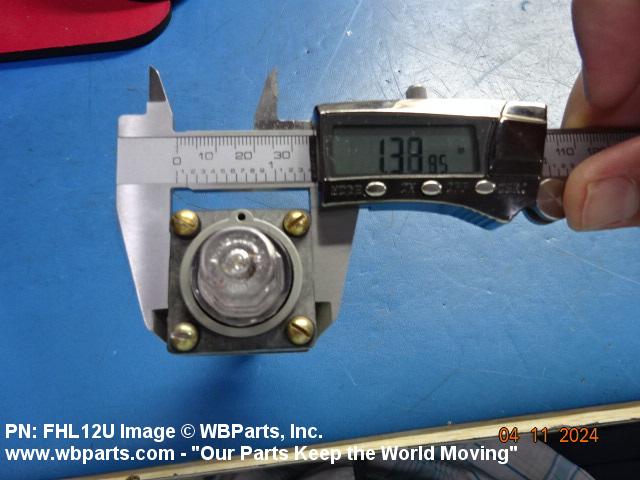

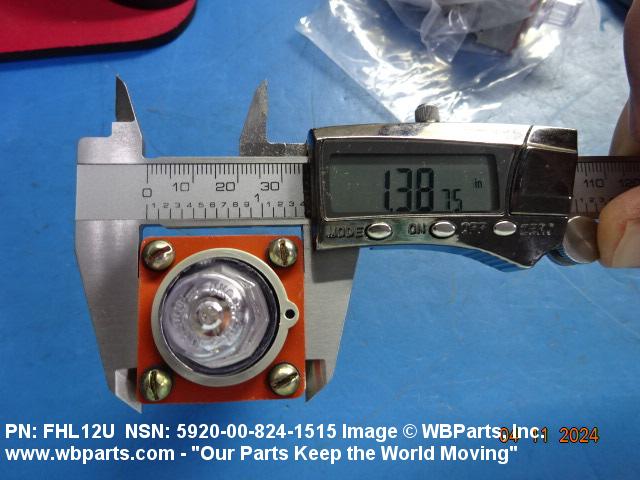

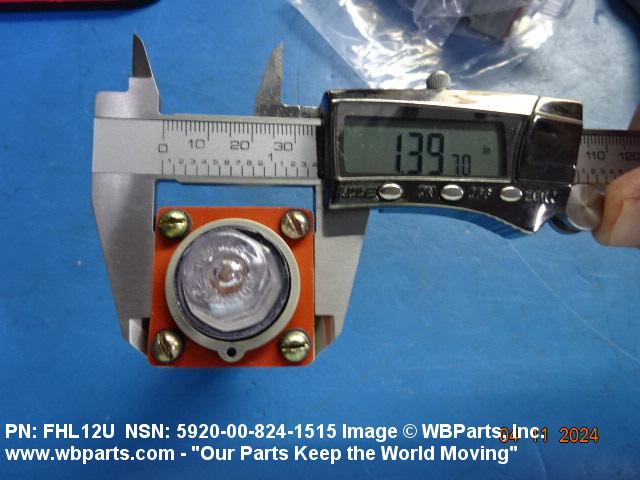

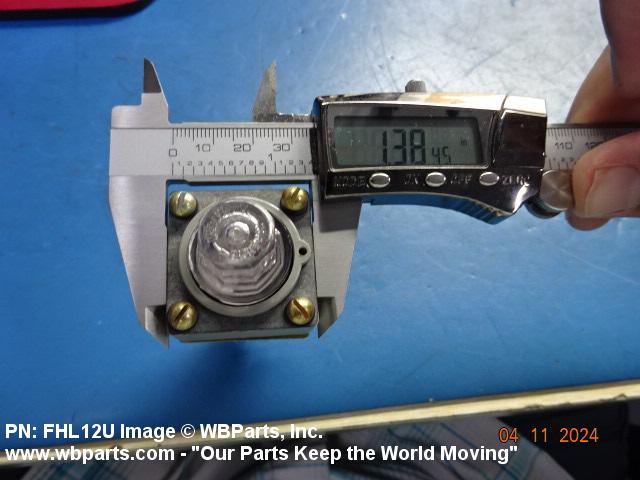

OVERALL HEIGHT	1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM
OVERALL WIDTH	1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM
LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE	0.798 INCHES MINIMUM AND 0.828 INCHES MAXIMUM

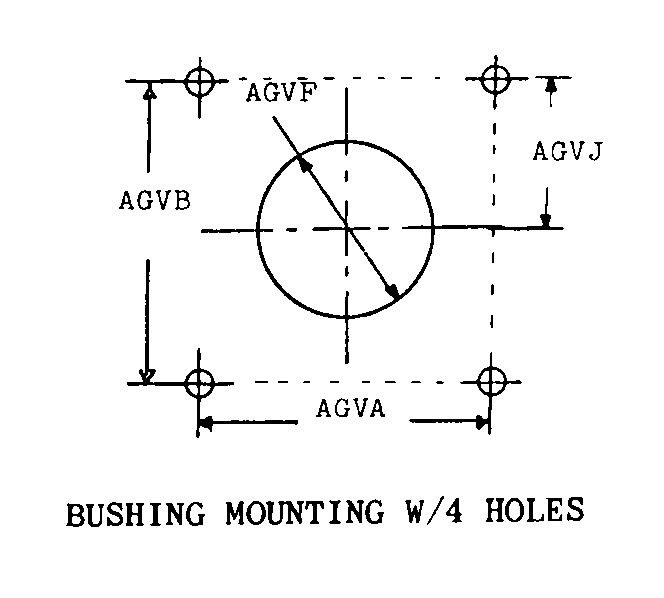

MOUNTING HOLE STYLE	F18 BUSHING MOUNTING W/4 HOLES
