NSN 5920-00-954-3079 AM63513, H19-B, H19B2
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-954-3079 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: AM63513, H19-B, H19B2, H-19-B2, MIL-F-19207/23, MILF1920723, MIL-PRF-19207/23, MILPRF1920723, FHL34G, FHL34W, H19B, 230559-001, 5920-00-954-3079, 00-954-3079, 5920009543079, 230559001, 009543079
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAY 1966 | 00-954-3079 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

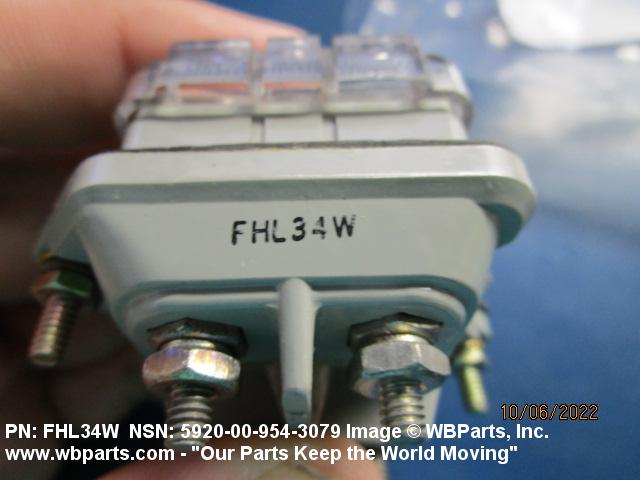

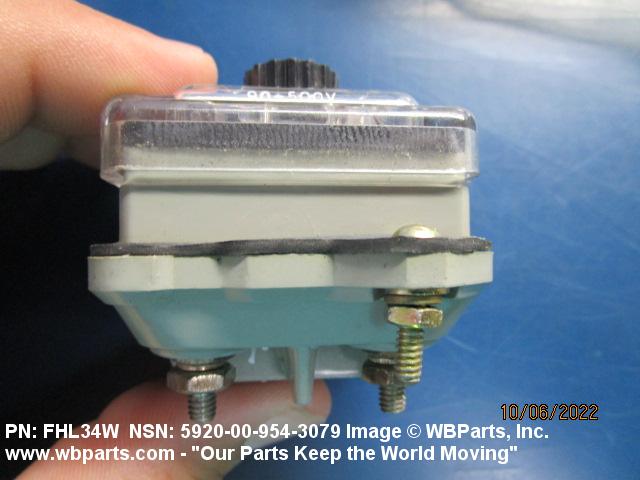

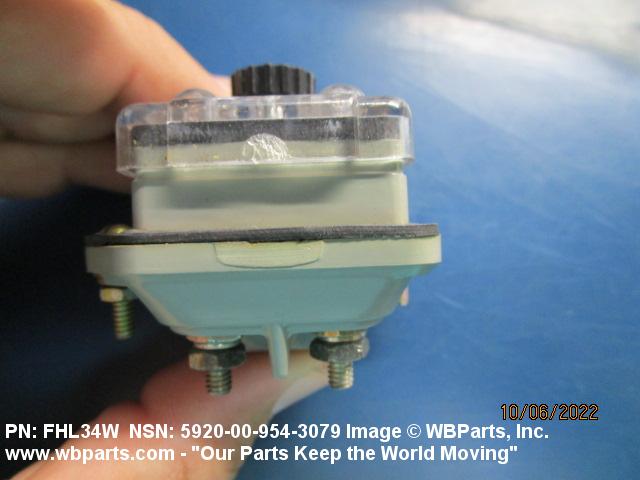

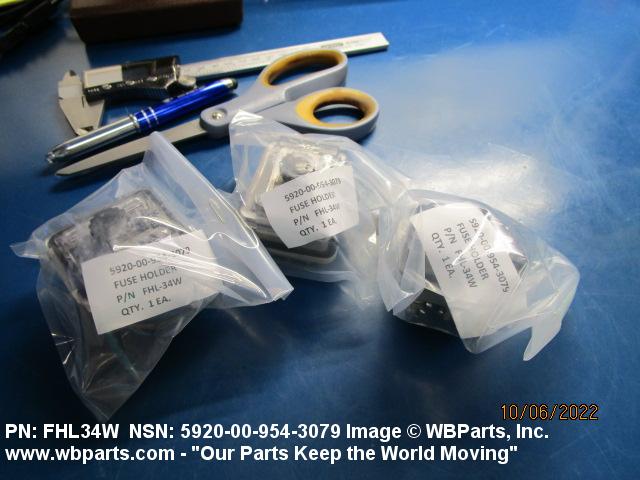

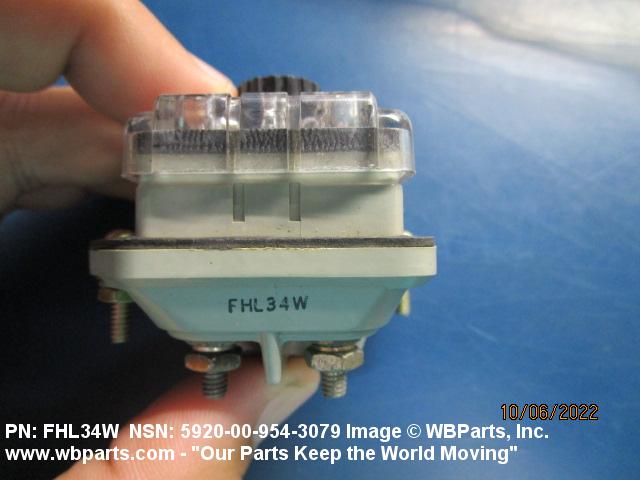

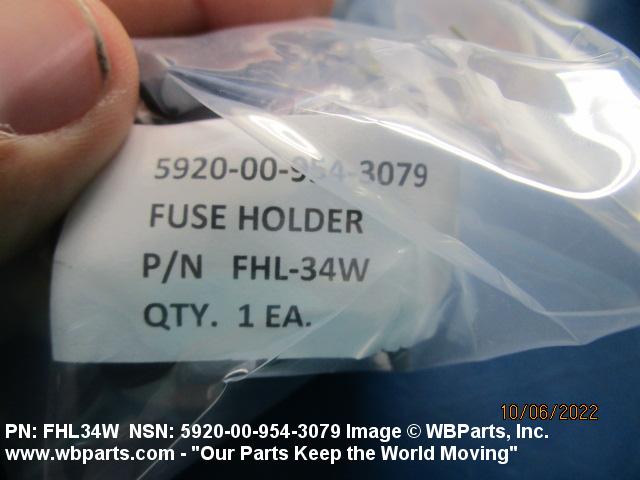

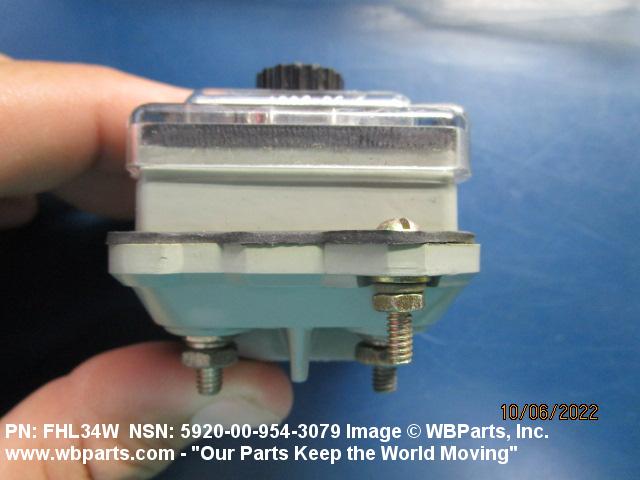

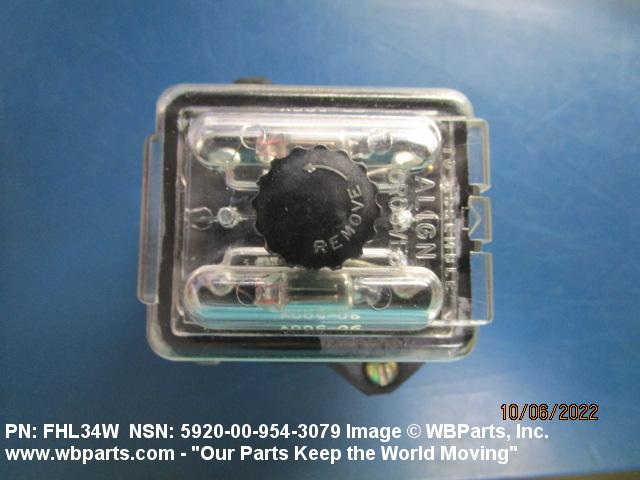

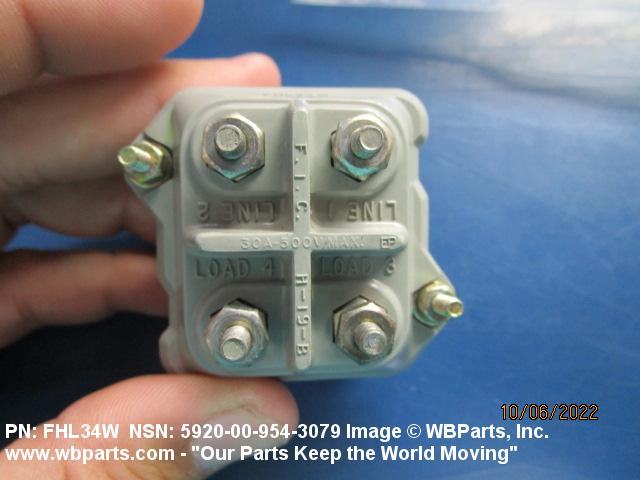

Drawings & Photos | NSN 5920-00-954-3079
Demand History | NSN 5920-00-954-3079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-954-3079 | 2023-07-191 | 1 | US |
| FHL34W | 2022-09-263 | 3 | United States |
| MILF1920723 | 2008-01-07 | 1 | US |
Cross Reference | NSN 5920-00-954-3079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 230559-001 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| AM63513 | 00159 | ACME ELECTRIC CORP |
| FHL34G | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHL34W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| H-19-B2 | 84613 | FIC CORPORATION |
| H19-B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-19207/23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19207/23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-954-3079
Related Products | NSN 5920-00-954-3079
Technical Data | NSN 5920-00-954-3079
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 500.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
| SCREW THREAD DIAMETER | 0.164 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | SILVER PLATED, QQ-S-365 |
| BODY STYLE | D2 PANEL MOUNTED TYPE |
| OVERALL LENGTH | 2.150 INCHES MINIMUM AND 2.230 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.260 INCHES MINIMUM AND 2.300 INCHES MAXIMUM |
| OVERALL WIDTH | 2.040 INCHES MINIMUM AND 2.080 INCHES MAXIMUM |
| PANEL THICKNESS | 0.187 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 1.170 INCHES MINIMUM AND 1.210 INCHES MAXIMUM |
| CAP DIAMETER | 0.600 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| MOUNTING HOLE STYLE | F13 PANEL MOUNTING W/2 OR 3 HOLES |
| MOUNTING HOLE HEIGHT | 1.820 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| MOUNTING HOLE WIDTH | 1.540 INCHES MINIMUM AND 1.580 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.950 INCHES MINIMUM AND 1.960 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.990 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 1 AND 3 |
| MOUNTING HOLE DIAMETER | 0.147 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| ACCOMMODATED FUSE LENGTH | 1.500 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.406 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| RESISTOR RATING | 330.0 KILOHMS AND 330.0 KILOHMS |
| INDICATING LAMP VOLTAGE RANGE IN VOLTS | 90.0 TO 500.0 AND 90.0 TO 500.0 |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207/23 GOVERNMENT SPECIFICATION |
| III BODY MATERIAL | PLASTIC |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FHL34W |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19207/23 |
Restrictions/Controls & Freight Information | NSN 5920-00-954-3079
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-954-3079
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
