NSN 5925-00-876-9216 AQBA10115, AQB-A101-15, H59258769216

Product Details | CIRCUIT BREAKER

5925-00-876-9216 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: AQBA10115, AQB-A101-15, H59258769216, H5925-876-9216, S458D509G11, MIL-C-17361/4, MILC173614, MIL-DTL-17361/4, MILDTL173614, ETN2750, ETN275000501, ETN-2750-00501, ETN286000S01, 107.28-3, 107283, 118020 FIND 18, 118020FIND18, 118100 IT99, 118100IT99, 1182701, 118270-1, 231B234ASG1, 321-7303507 ITEM NO 8, 3217303507ITEMNO8, 4050-725 PIECE NO.55, 4050725PIECENO55, 458D509G11, 6150638 PIECE 7, 6150638PIECE7, 641D-4050-722 PIECE 83, 641D4050722PIECE83, 6977ED35PC2, 8457991, 845799-1, 85840991, 8584099-1, 9709048, 5925-00-876-9216, 00-876-9216, 5925008769216, 008769216

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-876-9216	00136 ( CIRCUIT BREAKER )

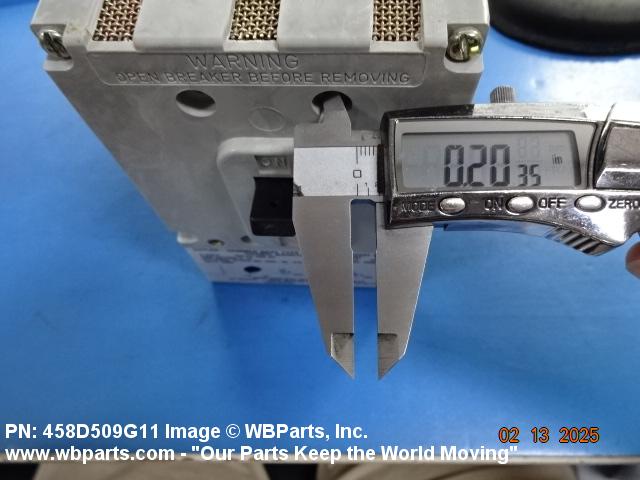

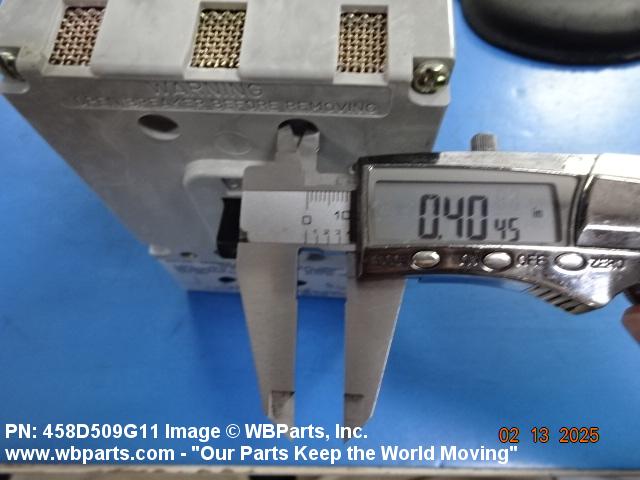

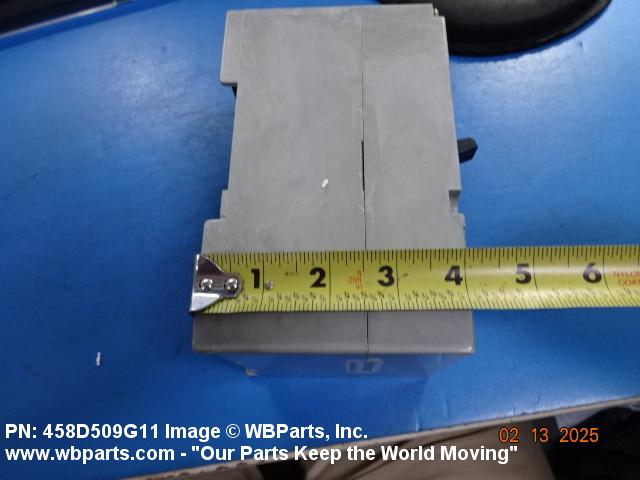

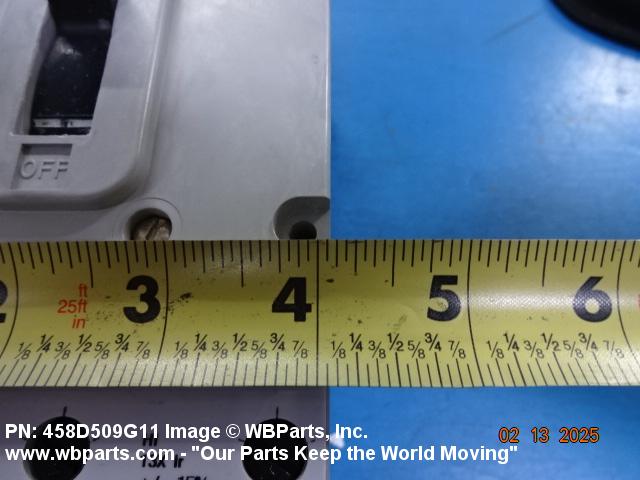

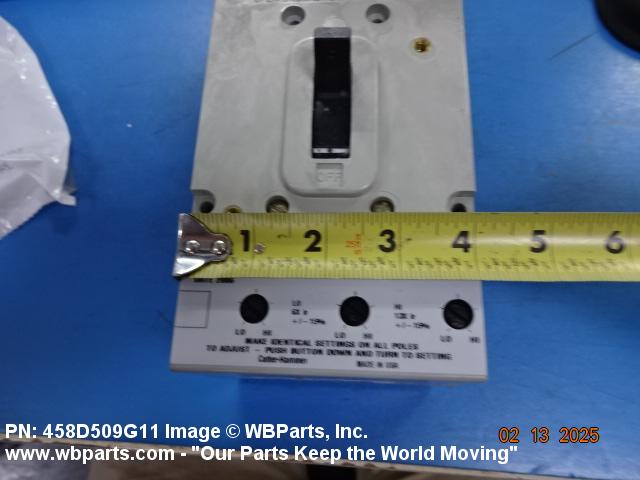

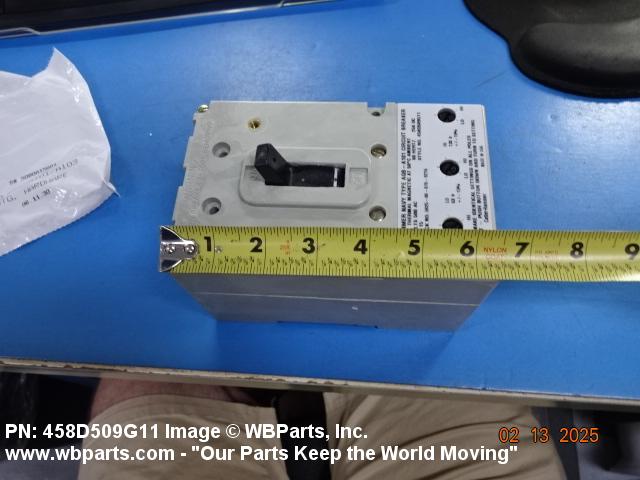

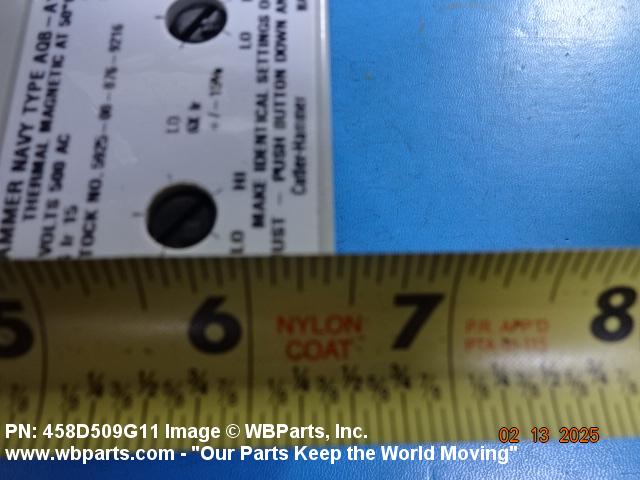

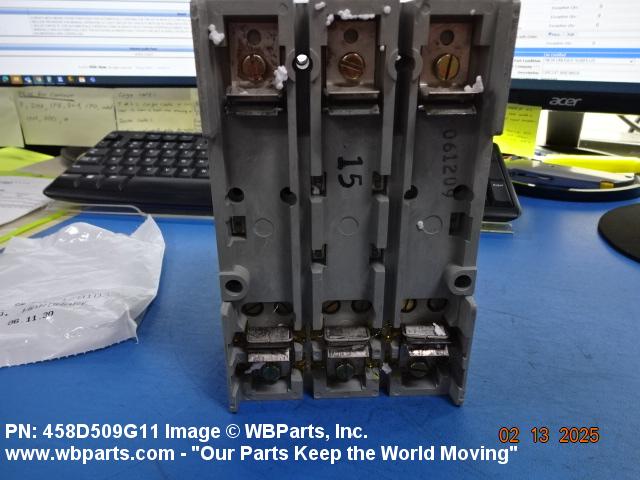

Drawings & Photos | NSN 5925-00-876-9216

Part Number	Request Date	QTY	Origin
MILDTL173614	2025-09-266	11	United States
5925-00-876-9216	2025-06-169	1	US
ETN275000501	2025-03-86	1	US
ETN275000501	2025-03-85	1	United States
ETN275000501	2025-03-65	1	United States
458D509G11	2025-02-37	2	United States
ETN275000501	2025-02-37	2	United States
ETN275000501	2025-02-36	1	Australia
5925-00-876-9216	2024-06-157	8	Saudi Arabia
5925-00-876-9216	2024-06-157	8	Saudi Arabia
5925-00-876-9216	2023-09-257	4	US
5925-00-876-9216	2023-09-256	4	Poland
MILC173614	2021-08-222	1	United States
5925-00-876-9216	2021-04-102	45	DIBBS
5925-00-876-9216	2021-04-91	45	DIBBS
5925-00-876-9216	2020-05-150	1	United States
5925-00-876-9216	2019-09-263	1	DIBBS-RFPs
5925-00-876-9216	2018-10-277	32	DIBBS
5925-00-876-9216	2018-09-249	27	DIBBS
5925-00-876-9216	2018-08-214	29	DIBBS
5925-00-876-9216	2018-05-151	25	DIBBS
5925-00-876-9216	2018-05-126	25	DIBBS
5925-00-876-9216	2018-02-43	1	United States
5925-00-876-9216	2018-01-24	24	DIBBS
5925-00-876-9216	2017-11-325	3	US
5925-00-876-9216	2017-11-306	31	DIBBS
5925-00-876-9216	2017-02-39	28	United States
5925-00-876-9216	2016-08-215	6	SA
5925-00-876-9216	2016-08-214	31	DIBBS
5925-00-876-9216	2016-07-189	27	DIBBS
5925-00-876-9216	2016-05-151	21	DIBBS
5925-00-876-9216	2015-08-243	2	US
5925-00-876-9216	2015-07-211	60	DIBBS
5925-00-876-9216	2015-05-148	41	DIBBS
5925-00-876-9216	2015-04-95	113	DIBBS
5925-00-876-9216	2015-03-68	40	DIBBS
5925-00-876-9216	2014-09-273	14	DIBBS
5925-00-876-9216	2014-07-206	38	DIBBS
5925-00-876-9216	2014-04-115	26	DIBBS
5925-00-876-9216	2013-12-364	35	DIBBS
5925-00-876-9216	2013-10-282	22	DIBBS
5925-00-876-9216	2013-09-260	3	United States
5925-00-876-9216	2013-08-213	27	DIBBS
5925-00-876-9216	2013-05-149	27	DIBBS
5925-00-876-9216	2012-11-318	34	DIBBS
5925-00-876-9216	2012-10-284	24	DIBBS
5925-00-876-9216	2012-06-157	48	DIBBS
5925-00-876-9216	2011-12-335	3	AE
5925-00-876-9216	2011-11-334	3	AE
5925-00-876-9216	2011-08-213	5	Taiwan
5925-00-876-9216	2011-08-213	5	Taiwan
ETN275000501	2010-10-298	2	US
5925-00-876-9216	2009-10-293	77	DIBBS
5925-00-876-9216	2009-02-42	79	DIBBS
5925-00-876-9216	2009-02-40	100	DIBBS
5925-00-876-9216	2009-01-29	61	DIBBS
5925-00-876-9216	2009-01-27	140	DIBBS
5925-00-876-9216	2009-01-22	7	DIBBS
5925-00-876-9216	2009-01-21	30	DIBBS
5925-00-876-9216	2009-01-15	1	DIBBS
5925-00-876-9216	2007-11-325	99	DIBBS
5925-00-876-9216	2007-10-283	160	DIBBS
5925-00-876-9216	2007-04-110	106	DIBBS
5925-00-876-9216	2007-03-68	96	DIBBS
ETN275000501	2007-02-39	115	us
ETN275000501	2007-02-38	115	us
5925-00-876-9216	2007-02-32	115	DIBBS
5925-00-876-9216	2006-06-180	115	DIBBS
5925-00-876-9216	2006-01-17	1	US

Cross Reference | NSN 5925-00-876-9216

Part Number	Cage Code	Manufacturer
107.28-3	63743	WARD LEONARD ELECTRIC COMPANY INC.
118020 FIND 18	24039	VARO LLC
118100 IT99	62793	BFM ENERGY PRODUCTS CORP
118270-1	24039	VARO LLC
231B234ASG1	02989	GENERAL ELECTRIC CO GE DRIVE SYSTEMS
321-7303507 ITEM NO 8	53711	NAVAL SEA SYSTEMS COMMAND
4050-725 PIECE NO.55	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
458D509G11	58475	WESTWOOD CORPORATION DBA NMP DIVISION
458D509G11	89946	EATON CORPORATION
6150638 PIECE 7	82126	MARE ISLAND NAVAL SHIPYARD
641D-4050-722 PIECE 83	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
6977ED35PC2	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
845799-1	49956	RAYTHEON COMPANY DBA RAYTHEON
8584099-1	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
9709048	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
AQB-A101-15	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
ETN-2750-00501	30086	SPD ELECTRICAL SYSTEMS, INC
ETN2750	30086	SPD ELECTRICAL SYSTEMS, INC
ETN2750	33097	I-T-E IMPERIAL CORP SUB OF GOULD INC
ETN286000S01	30086	SPD ELECTRICAL SYSTEMS, INC
H5925-876-9216	63319	ELECTRICAL PACKAGING CO INC
MIL-C-17361/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-17361/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S458D509G11	11660	WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-876-9216

Compare

Related Products | NSN 5925-00-876-9216

5925-00-876-9217, 5925-00-876-9218, 5925-00-876-9219, 5925-00-876-9220, 5925-00-876-9300

Technical Data | NSN 5925-00-876-9216

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	15.0 AMPERES AC AND 15.0 AMPERES DC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	500.0 AC AND 250.0 DC ALL LOCATIONS
FREQUENCY IN HERTZ	60.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	15000.0 AC AND 10000.0 DC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL-MAGNETIC ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	50.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	INSTANTANEOUS AND TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	5.000 MINIMUM AT 200 PCT AND 15.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	150.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	15B MULTIPOLE-SINGLE ACTUATOR TYPE
BODY LENGTH	6.500 INCHES NOMINAL
BODY WIDTH	4.125 INCHES NOMINAL
BODY HEIGHT	3.875 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	ANY ACCEPTABLE
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	2.750 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	ANY ACCEPTABLE
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	ANY ACCEPTABLE
BOSS HEIGHT	0.188 INCHES NOMINAL
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
NOMINAL THREAD SIZE	0.216 INCHES
THREAD QUANTITY PER INCH	24
UNTHREADED MOUNTING HOLE DIAMETER	0.281 INCHES NOMINAL
MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO
TERMINAL TYPE AND QUANTITY	6 COMPRESSION
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	SHOCK RESISTANT AND VIBRATION RESISTANT
SPECIAL FEATURES	CIRCUIT BREAKER SUPPLIED WITH TWO THREADED MOUNTING SCREWS
TEST DATA DOCUMENT	81349-MIL-C-17361 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-17361/4 GOVERNMENT SPECIFICATION
III ARC QUENCHING METHOD	AIR
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE

Restrictions/Controls & Freight Information | NSN 5925-00-876-9216

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-876-9216

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
