Product Details | SENSITIVE SWITCH
5930-00-126-2470 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 10251262470, 1025-126-2470 , 10864130, 40001, 5930-00-126-2470, 00-126-2470, 1025001262470 , 5930001262470, 001262470
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 NOV 1968 | 00-126-2470 | 00399 ( SWITCH, SENSITIVE ) |

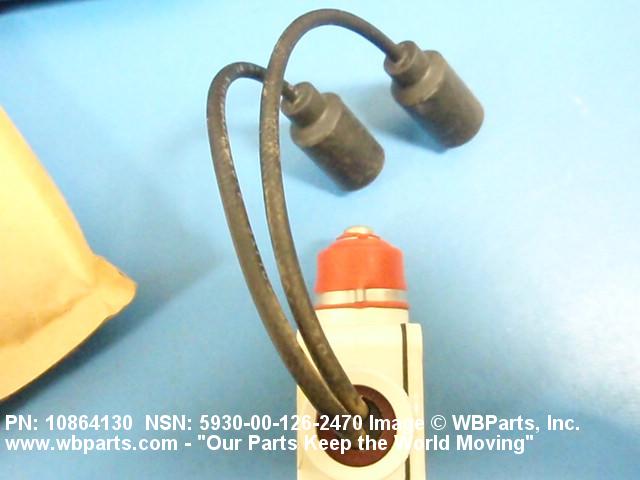

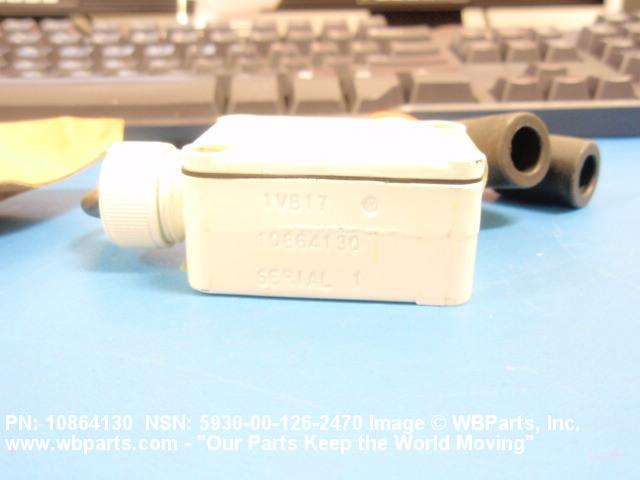

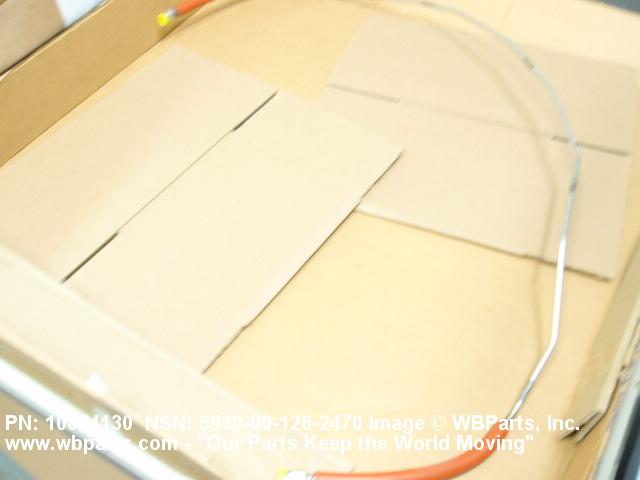

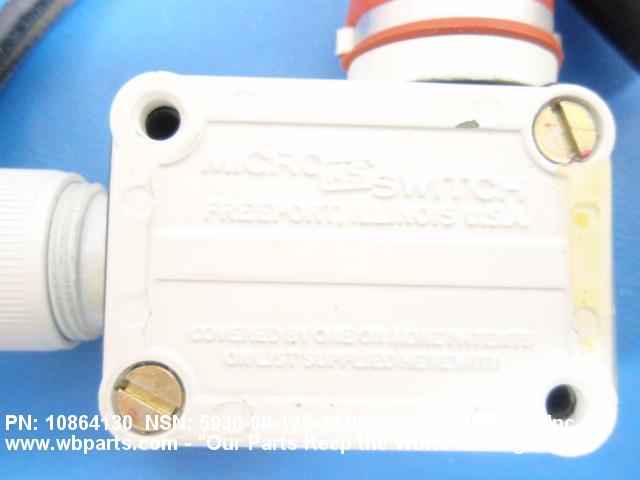

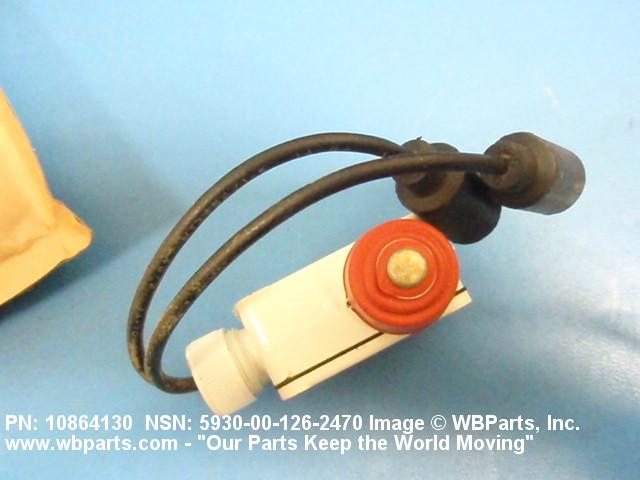

Drawings & Photos | NSN 5930-00-126-2470
Demand History | NSN 5930-00-126-2470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1025-00-126-2470 | 2020-01-24 | 2 | Thailand |
| 5930-00-126-2470 | 2019-09-18 | 2 | Thailand |
| 5930-00-126-2470 | 2019-03-27 | 350 | TR |
| 10864130 | 2016-01-22 | 50 | TR |
| 5930-00-126-2470 | 2016-01-22 | 50 | MANUAL |
| 40001 | 2014-01-13 | 100 | United States |
| 5930-00-126-2470 | 2013-04-18 | 30 | MANUAL |
| 5930-00-126-2470 | 2011-09-16 | 265 | TR |
| 5930-00-126-2470 | 2011-09-14 | 261 | TR |
| 10864130 | 2010-04-15 | 55 | US |
| 10864130 | 2010-04-15 | 60 | US |
| 5930-00-126-2470 | 2010-02-17 | 60 | United States |
Cross Reference | NSN 5930-00-126-2470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1025-126-2470 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 1025001262470 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 10864130 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 40001 | 62577 | ANK TECHNOLOGY, INC. DBA MAPEX CO |
| 5930001262470 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-126-2470
Related Products | NSN 5930-00-126-2470
5930-00-126-2615, 5930-00-126-2713, 5930-00-126-2714, 5930-00-126-2717, 5930-00-126-3132
Technical Data | NSN 5930-00-126-2470
| Characteristic | Specifications |
|---|---|

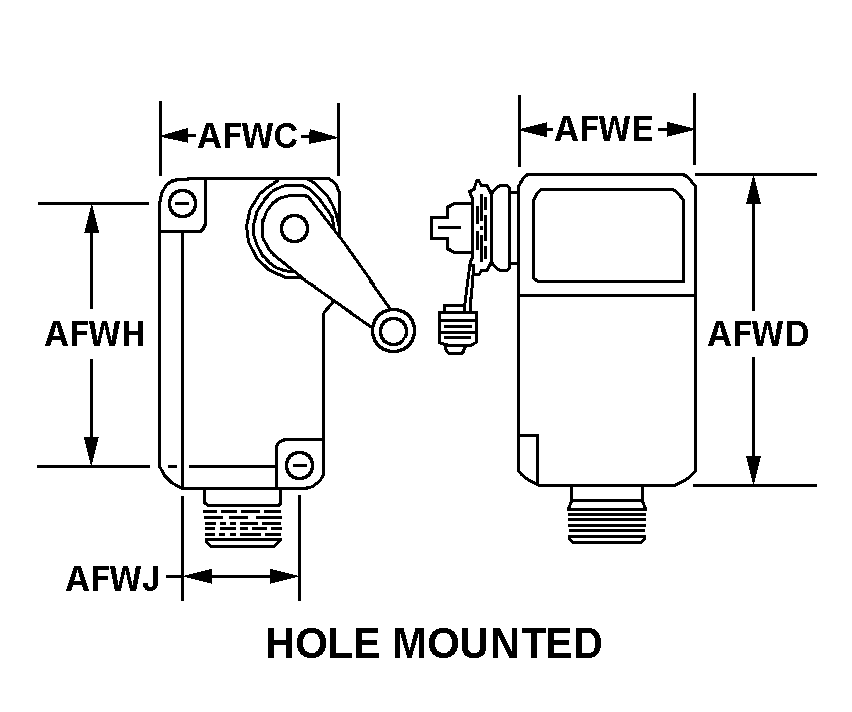

| BODY STYLE | 76M HOLE MOUNTED |

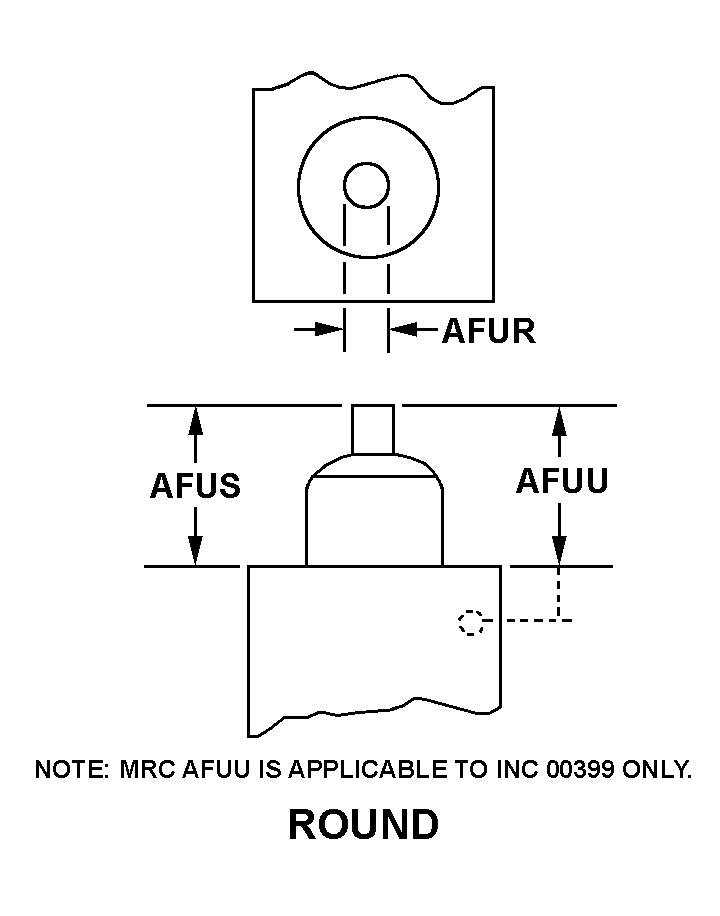

| ACTUATOR STYLE | 8 ROUND |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III CASE MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5930-00-126-2470
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-126-2470
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
