Product Details | SENSITIVE SWITCH
5930-00-396-6862 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: GS839GC1, 10AT3711210, 10AT371-12-10, 5930-00-396-6862, 00-396-6862, 5930003966862, 003966862
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 APR 1974 | 00-396-6862 | 00399 ( SWITCH, SENSITIVE ) |

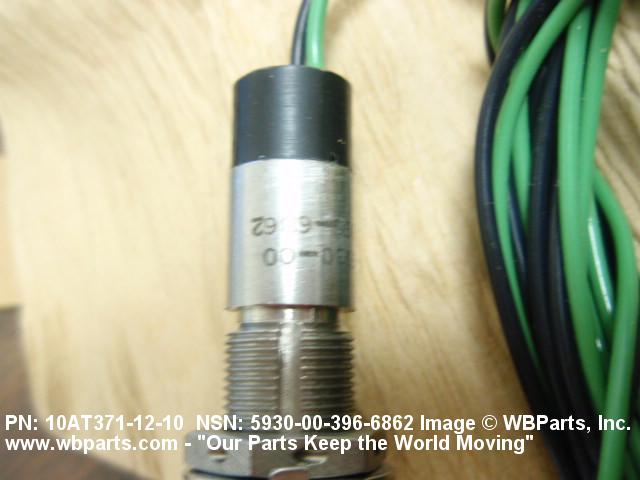

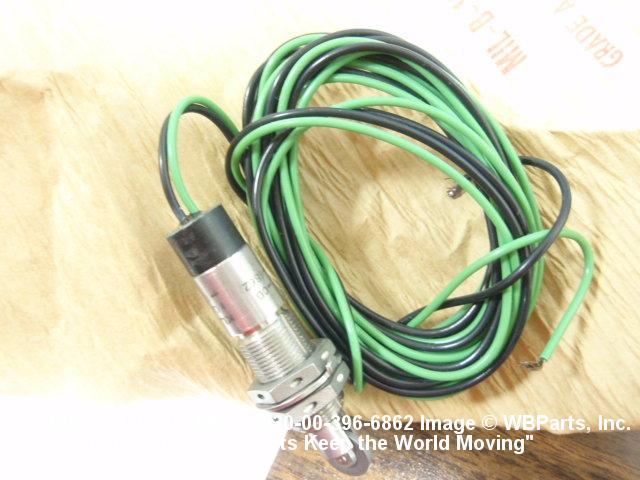

Drawings & Photos | NSN 5930-00-396-6862
Demand History | NSN 5930-00-396-6862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-396-6862 | 2021-11-08 | 1 | US |
| 10AT371-12-10 | 2019-10-07 | 3 | DIBBS |
| GS839GC1 | 2019-10-07 | 3 | DIBBS |
| 10AT371-12-10 | 2019-09-26 | 3 | DIBBS |
| GS839GC1 | 2019-09-26 | 3 | DIBBS |
| 5930-00-396-6862 | 2019-06-19 | 1 | United States |
| 5930-00-396-6862 | 2014-12-08 | 10 | DIBBS |
| 5930-00-396-6862 | 2014-11-27 | 10 | DIBBS |
| 5930-00-396-6862 | 2012-06-29 | 2 | DIBBS |
| 5930-00-396-6862 | 2012-06-18 | 1 | DIBBS |
| 5930-00-396-6862 | 2012-03-30 | 4 | DIBBS |
| 5930-00-396-6862 | 2011-01-27 | 2 | DIBBS |
| 5930-00-396-6862 | 2010-10-13 | 2 | DIBBS |
| 5930-00-396-6862 | 2010-09-16 | 2 | DIBBS |
| 5930-00-396-6862 | 2010-08-11 | 1 | US |
| 5930-00-396-6862 | 2010-08-10 | 2 | United States |
| 5930-00-396-6862 | 2008-12-05 | 4 | DIBBS |
| 5930-00-396-6862 | 2008-12-05 | 4 | DIBBS |
| 5930-00-396-6862 | 2008-08-05 | 8 | DIBBS |
| 5930-00-396-6862 | 2008-04-21 | 9 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-396-6862
Related Products | NSN 5930-00-396-6862
5930-00-396-7560, 5930-00-396-7890, 5930-00-396-7895, 5930-00-396-7903, 5930-00-396-7919
Technical Data | NSN 5930-00-396-6862
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 2.000 AMPERES LAMP DC |

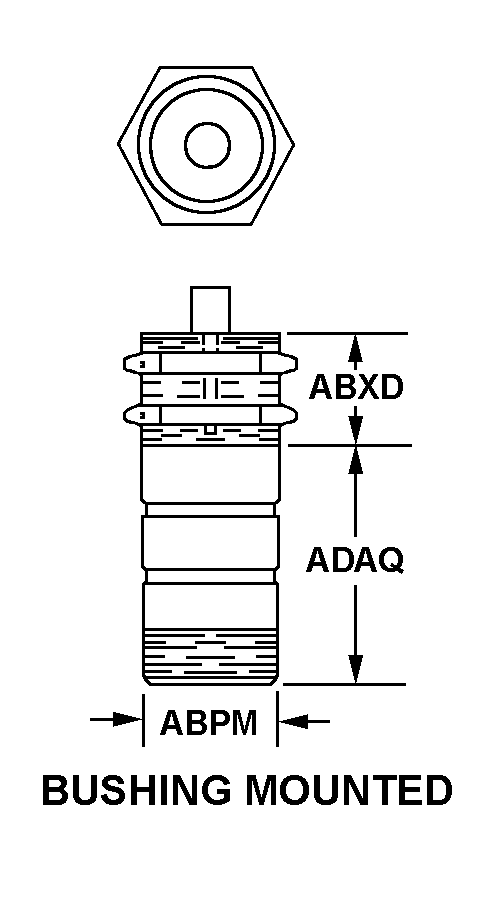

| BODY STYLE | 3M BUSHING MOUNTED |
| BODY DIAMETER | 0.469 INCHES NOMINAL |
| BUSHING LENGTH | 0.900 INCHES MAXIMUM |
| BODY LENGTH | 0.500 INCHES MAXIMUM |

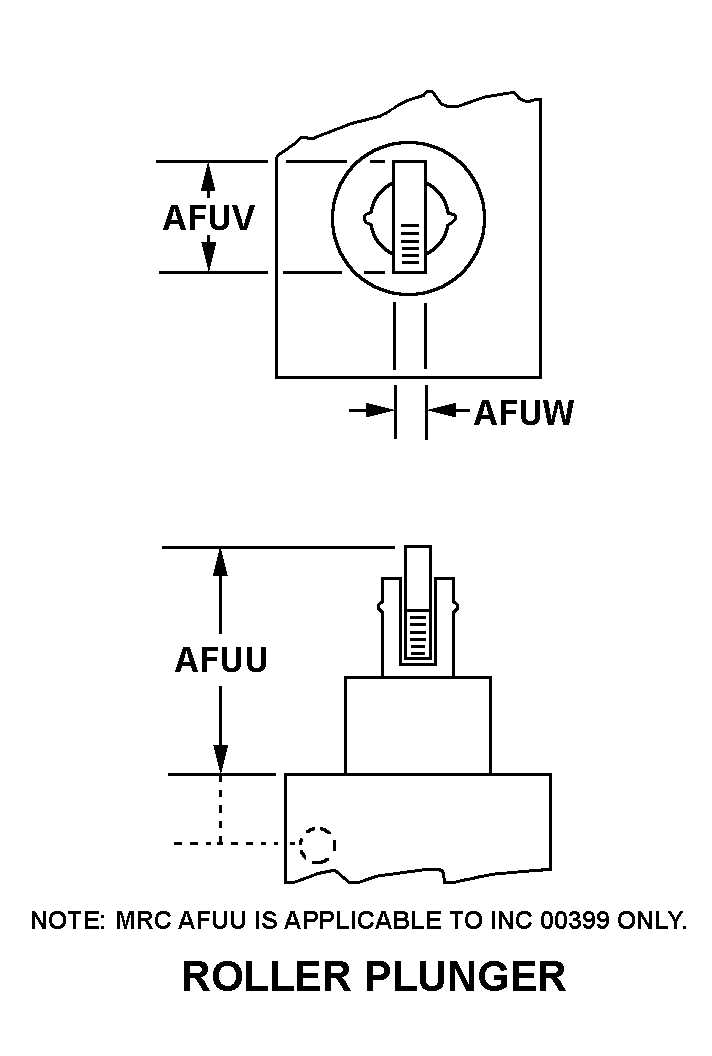

| ACTUATOR STYLE | 48 ROLLER PLUNGER |
