Product Details | ROTARY SWITCH
5930-00-236-2351 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: E62012, E6201-2, R63870D16E6201, ROT2113, ROT-2113, TIP00013, 13216E62011, 13216E6201-1, 13216E62012, 13216E6201-2, 2267A1, 2267A4, 8912K261, 5930-00-236-2351, 00-236-2351, 5930002362351 , 002362351
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 OCT 1969 | 00-236-2351 | 02134 ( SWITCH, ROTARY ) |

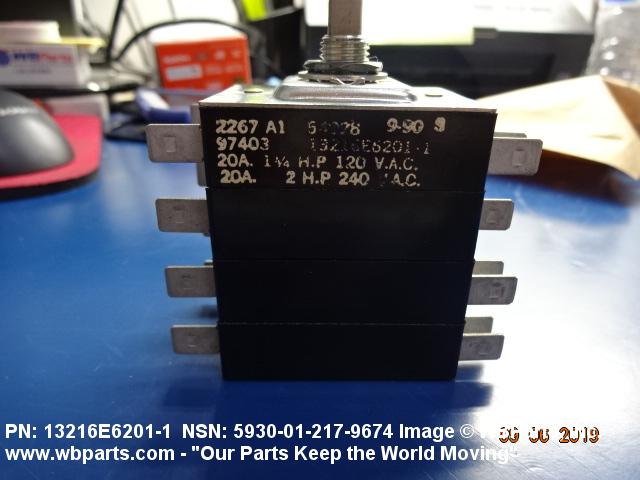

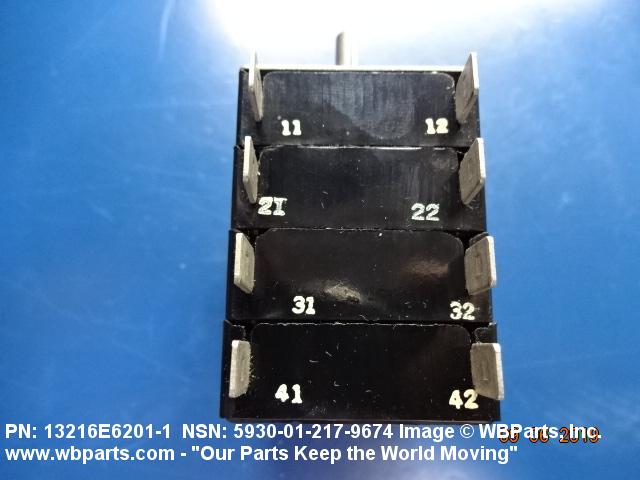

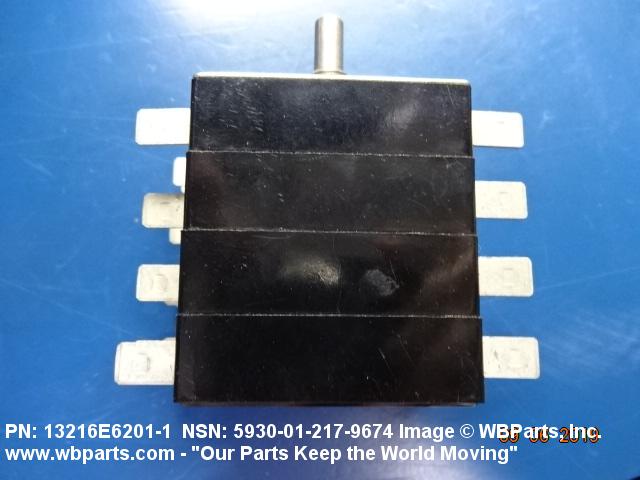

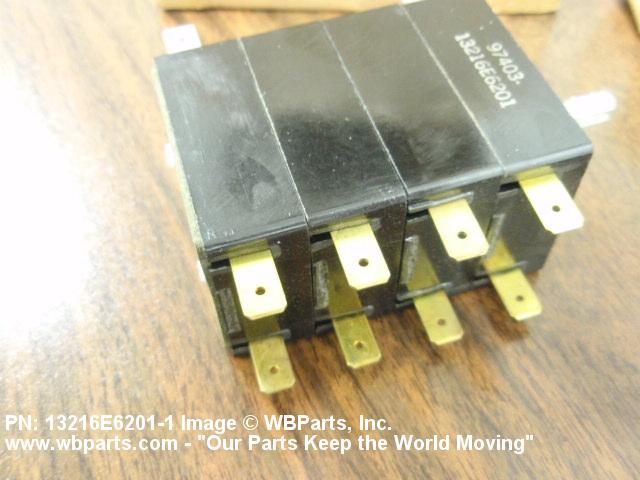

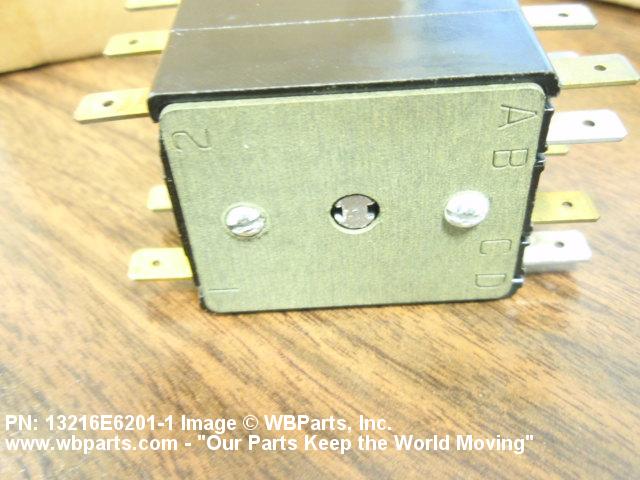

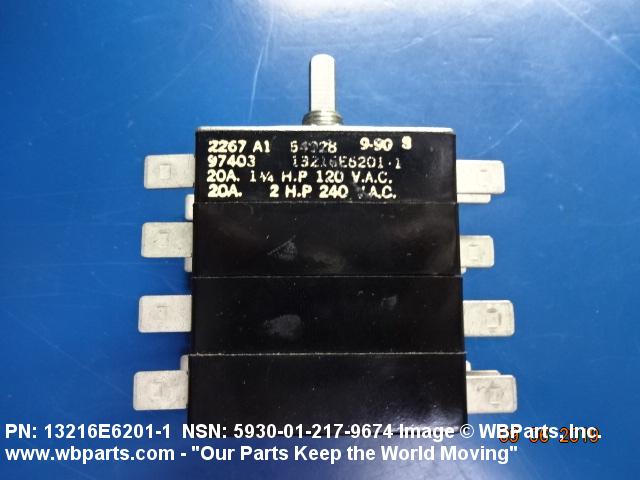

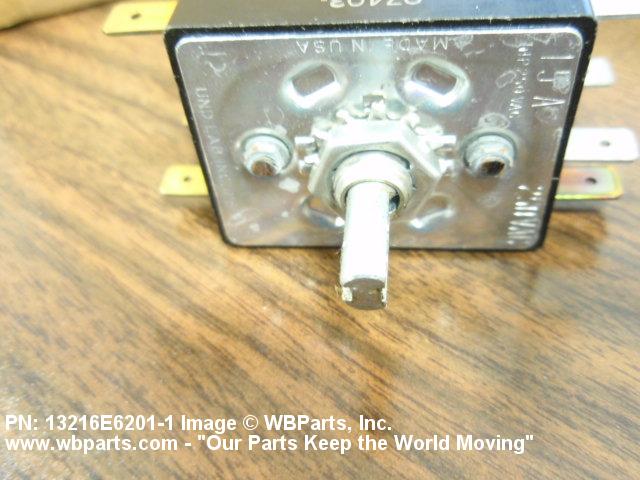

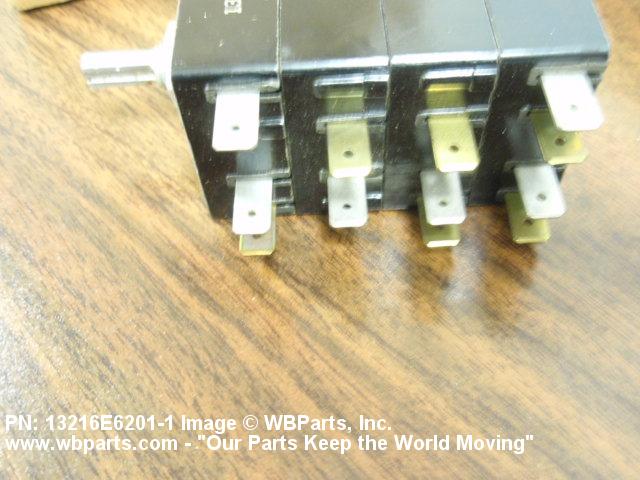

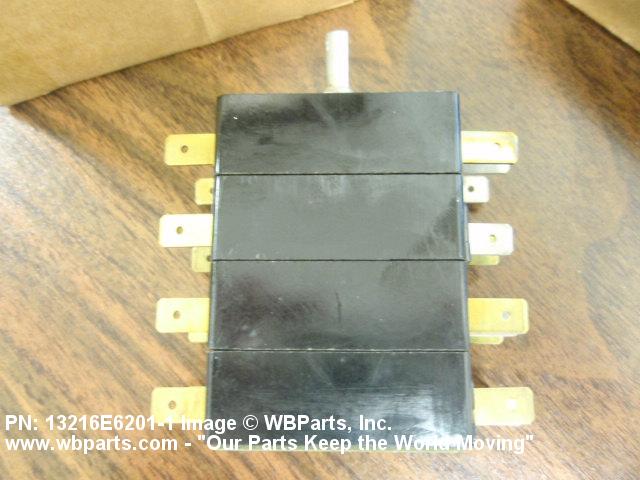

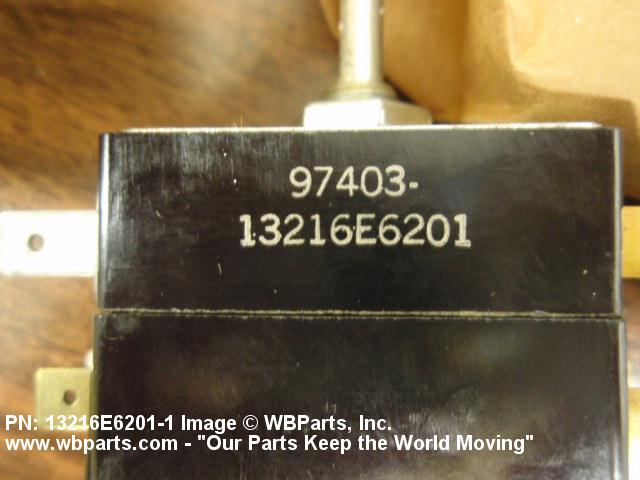

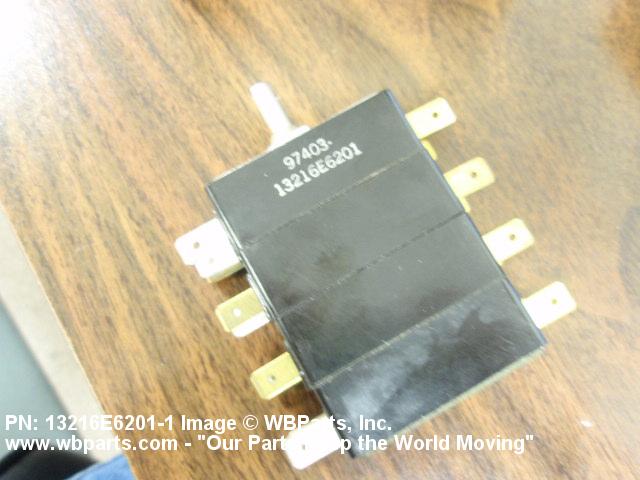

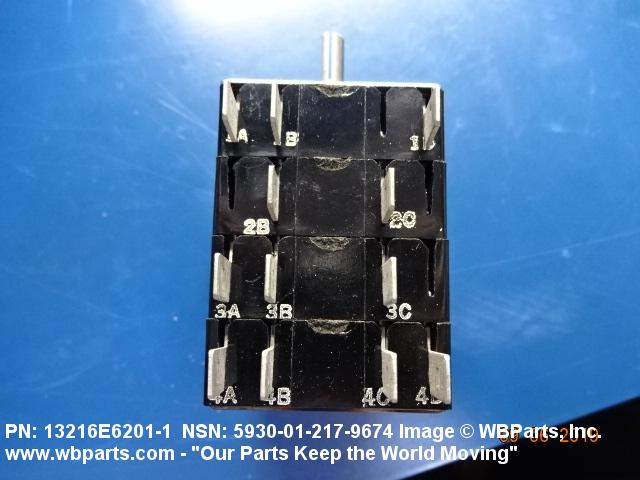

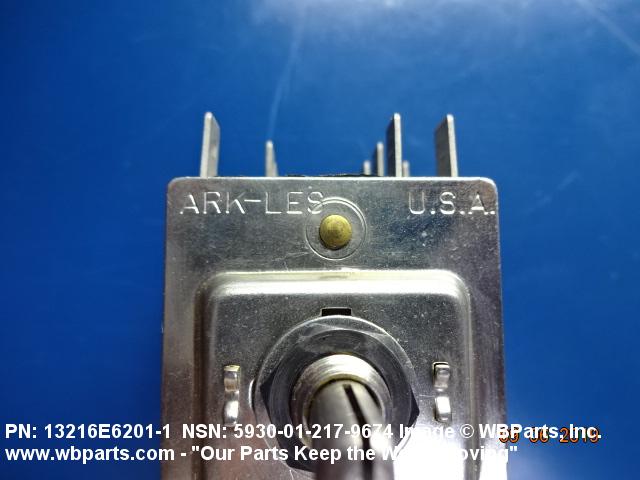

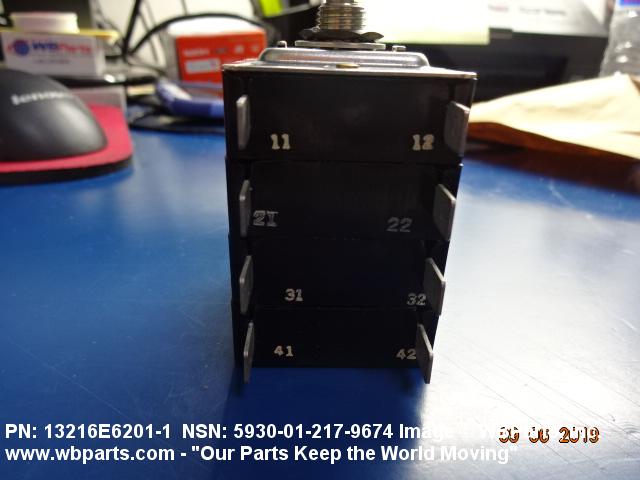

Drawings & Photos | NSN 5930-00-236-2351
Demand History | NSN 5930-00-236-2351
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-236-2351 | 2013-05-130 | 9 | US |
| 13216E62011 | 2010-09-263 | 1 | United States |
| 5930-00-236-2351 | 2010-07-188 | 115 | DIBBS |
| 5930-00-236-2351 | 2010-05-146 | 63 | DIBBS |
Cross Reference | NSN 5930-00-236-2351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13216E6201-1 | 97403 | CECOM LR CENTER |
| 13216E6201-2 | 97403 | CECOM LR CENTER |
| 2267A1 | 70611 | ARK-LES CORP |
| 2267A4 | 70611 | ARK-LES CORP |
| 8912K261 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| E6201-2 | 10391 | CLINTON ENGINES CORP |
| R63870D16E6201 | 60144 | UNIFAB INDUSTRIES INC |
| ROT-2113 | 52401 | PRECISION SWITCHING INC DBA CENTURY WHEELS RESEARCH DIV |
| TIP00013 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-236-2351
Related Products | NSN 5930-00-236-2351
Technical Data | NSN 5930-00-236-2351
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 21 SQUARE WAFER, PANEL MOUNT |

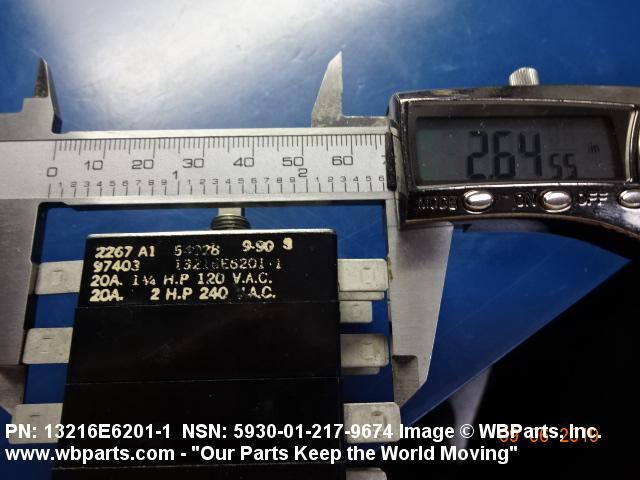

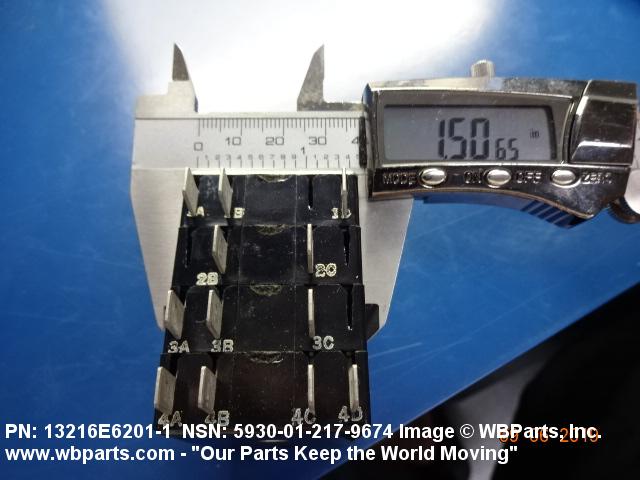

| OVERALL LENGTH | 3.146 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.635 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 4 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 EACH SECTION PERIPHERY |
| THROW QUANTITY | 2 EACH SECTION PERIPHERY |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION PERIPHERY |
| CONTACT VOLTAGE RATING IN VOLTS | 250.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL 125.0 LOWEST AC VOLTAGE RATING AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD AND 5.0 AMPERES INDUCTIVE LOAD HIGHEST AC VOLTAGE RATING AT SEA LEVEL 7.0 AMPERES INDUCTIVE LOAD LOWEST AC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.531 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | SLOTTED BUSHING AT 12:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING 1ST MOUNTING FACILITY UNTHREADED HOLE 2ND MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.200 INCHES MAXIMUM 2ND MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNF 1ST MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES 1ST MOUNTING FACILITY |
| THREAD CLASS | 2A 1ST MOUNTING FACILITY |
| THREAD LENGTH | 0.312 INCHES NOMINAL 1ST MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE 2ND MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.360 INCHES NOMINAL 2ND MOUNTING FACILITY |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
| III END ITEM IDENTIFICATION | ADVANCED AIR TRAFFIC CONTROL & LAND SYSTEM (ATCALS) 404L. B-1B, F-4 PHANTOM, T-39 AIRCRAFT. B-52 AIRCRAFT SUPPORT EQUIPMENT. AN/TPS-59 LIGHTWEIGHT 3D RADAR SET. 30 HZ 1800 BTU AIR CONDTIIONER. REFRIDGERATION SYSTEMS. 60 HZ 9000 BTU AIR |
