NSN 5930-00-258-5501 M15743/3-003, M157433003, S620274207UNIT2
Product Details | ROTARY SWITCH
5930-00-258-5501 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: M15743/3-003, M157433003, S620274207UNIT2, S6202-74207-UNIT2, SYM 829.1, SYM8291, MIL-DTL-15743/3, MILDTL157433, MIL-S-15743/3, MILS157433, 1SR2C4A2, 5930-00-258-5501, 00-258-5501, 5930002585501, 002585501
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-258-5501 | 02134 ( SWITCH, ROTARY ) |

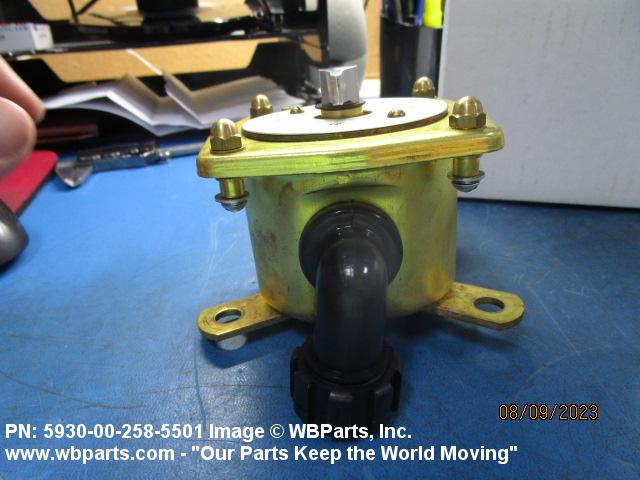

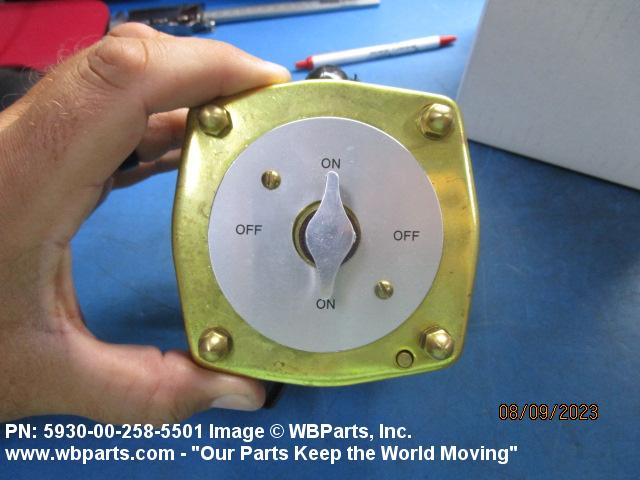

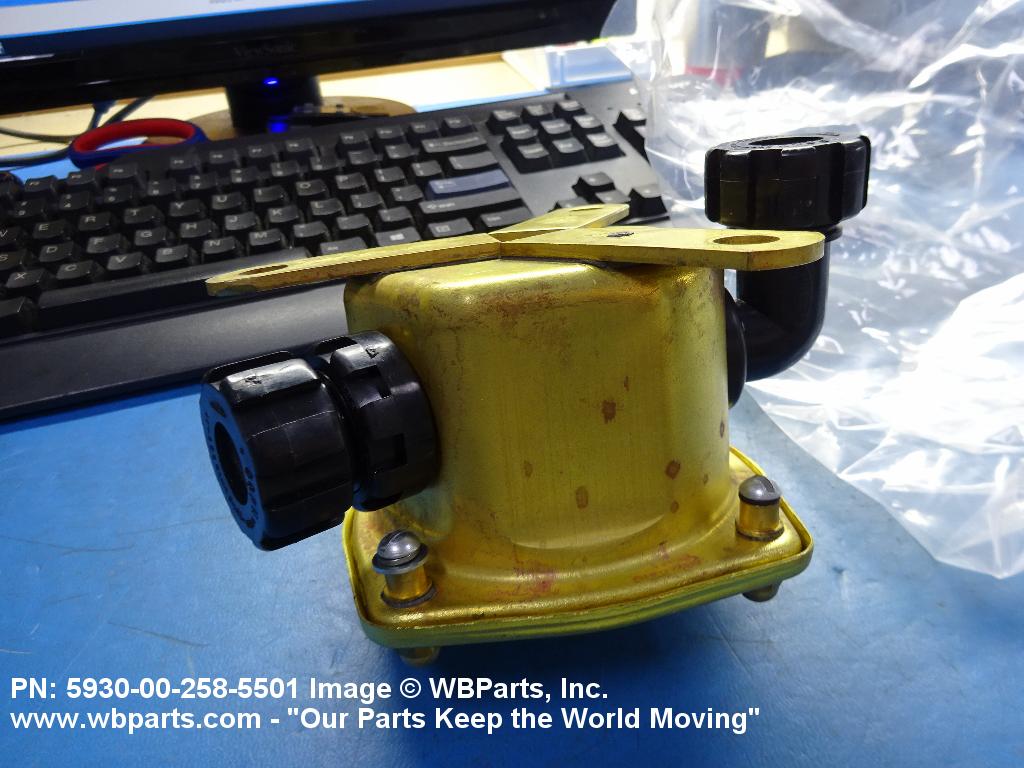

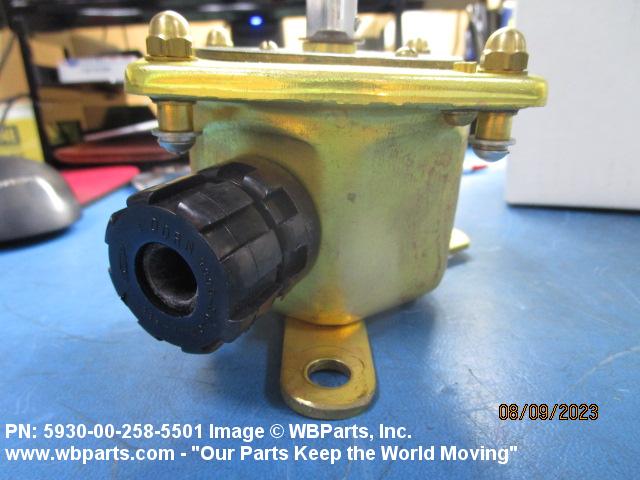

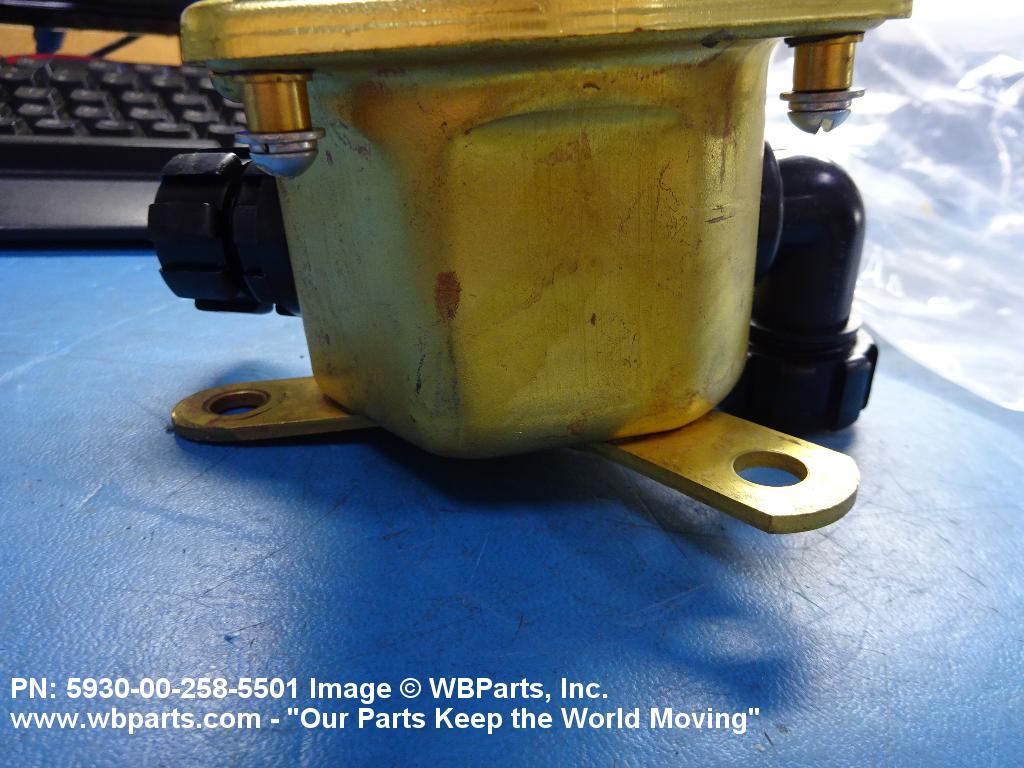

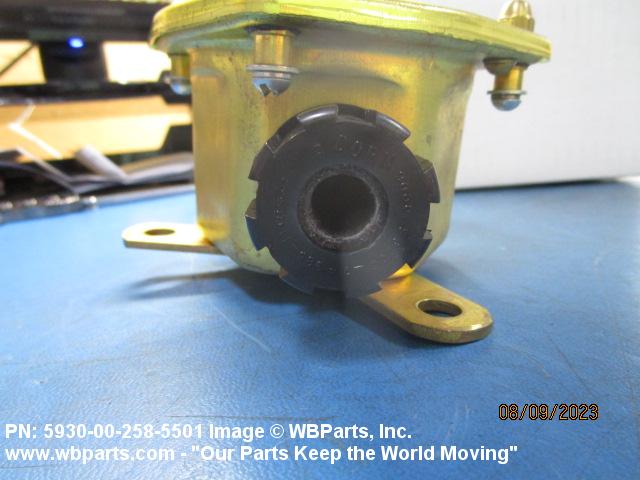

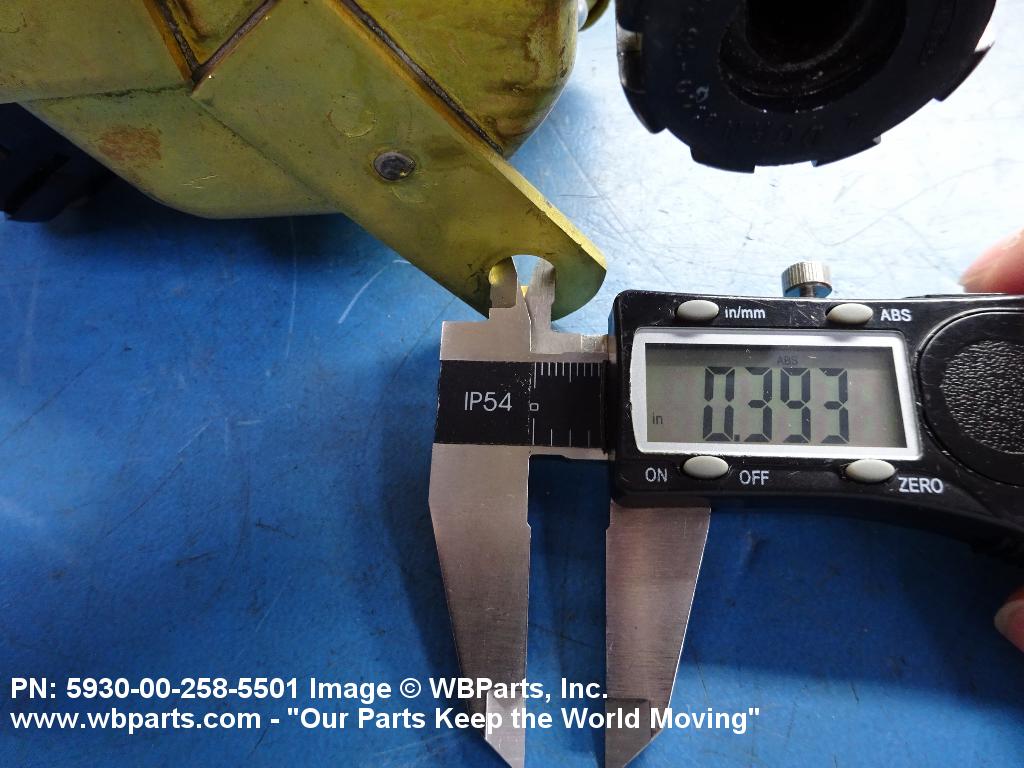

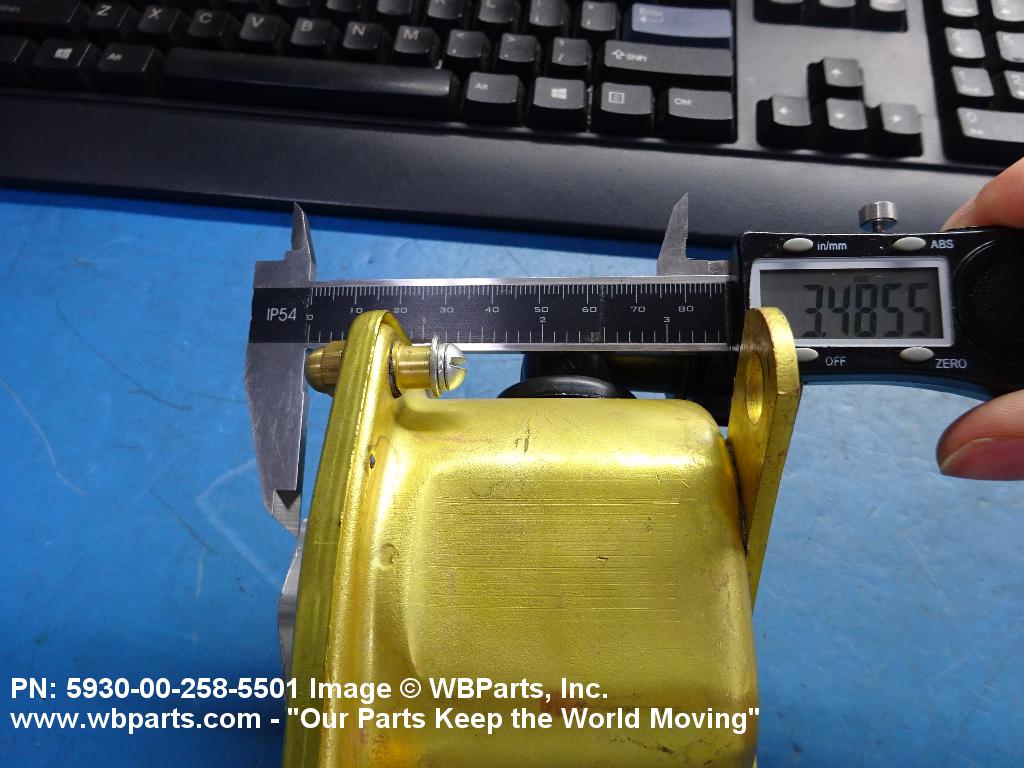

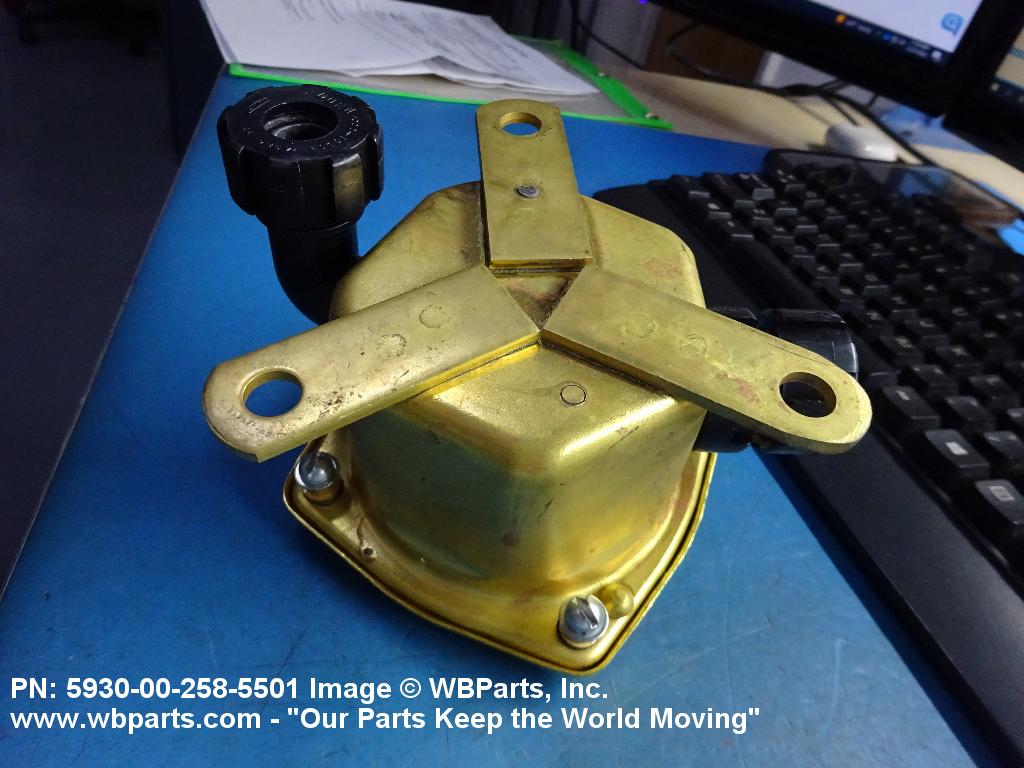

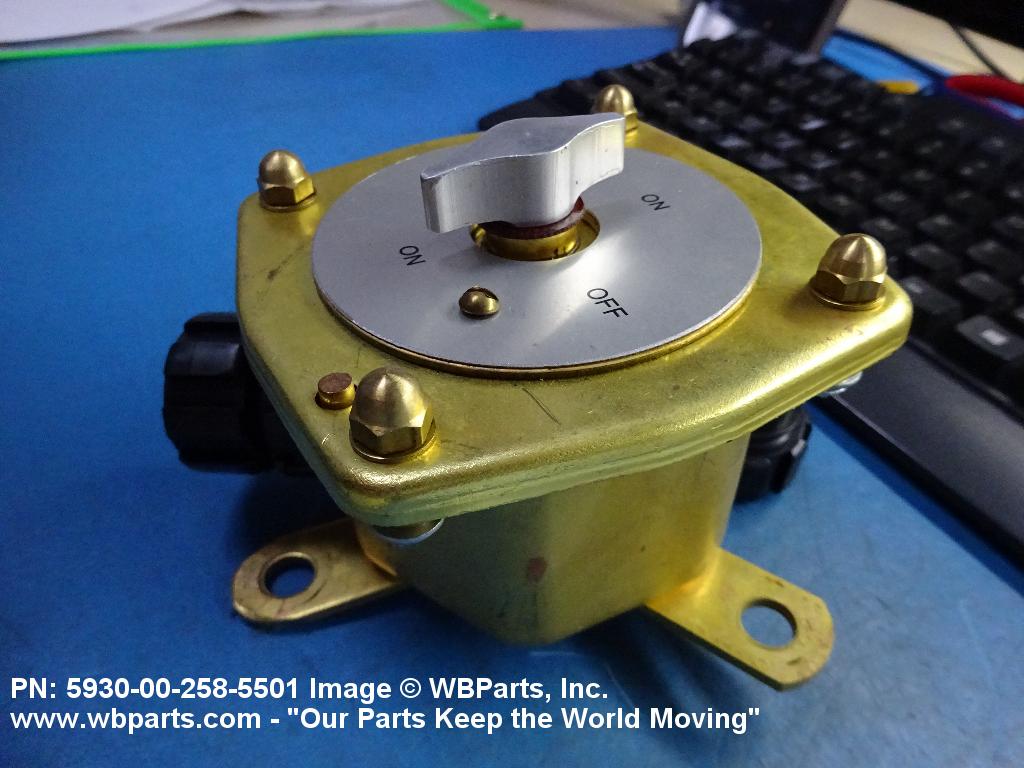

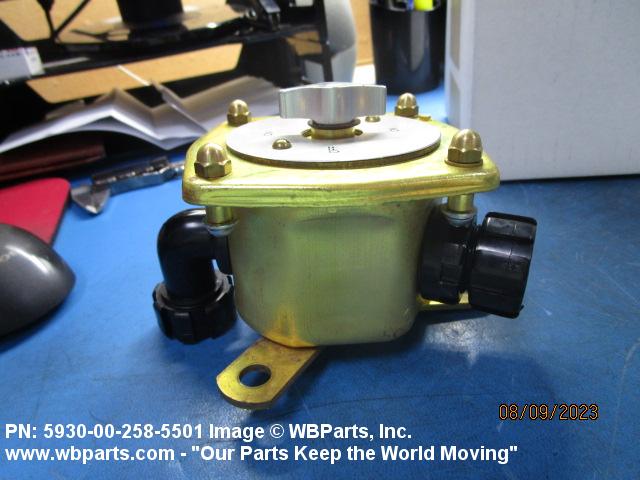

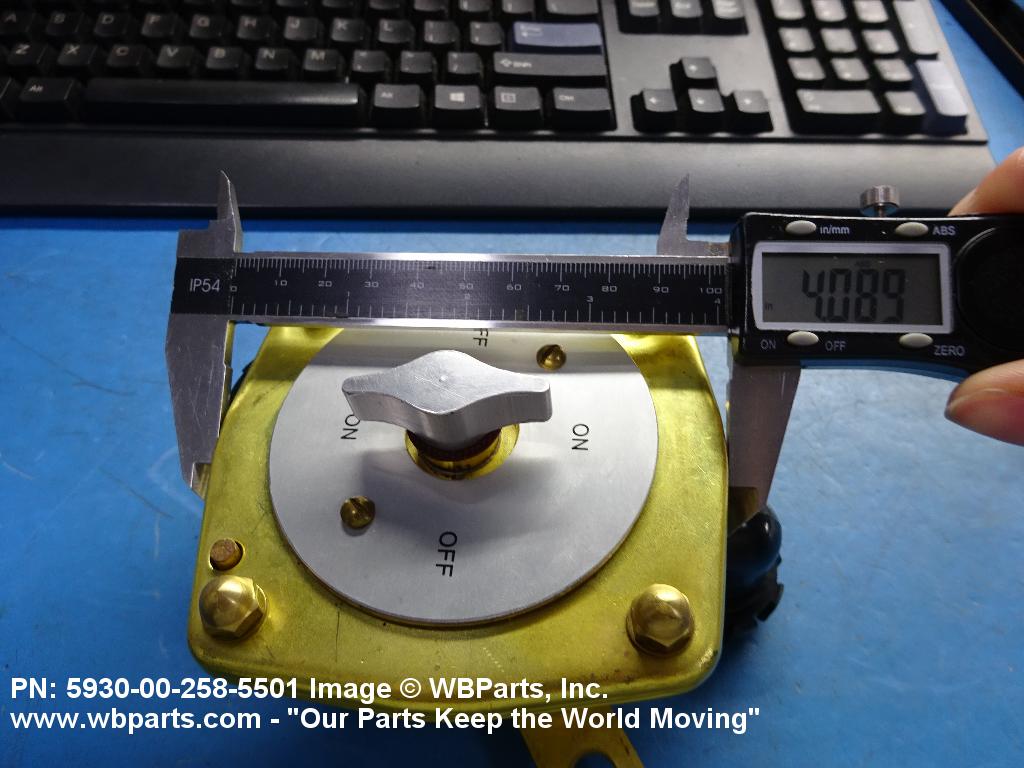

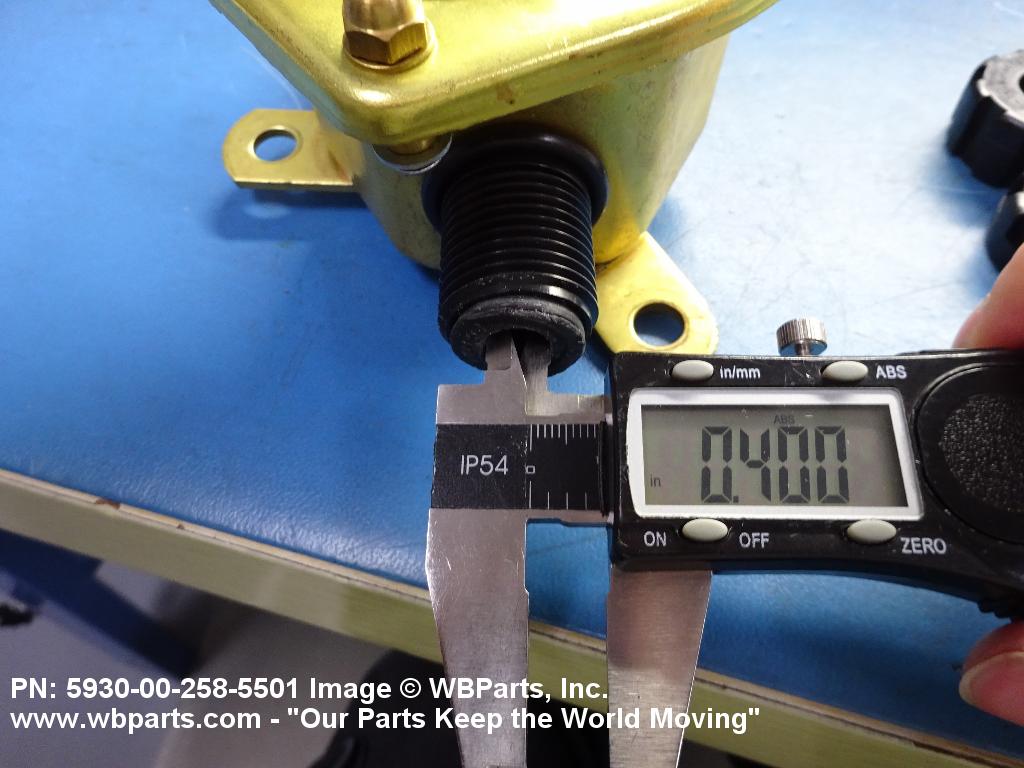

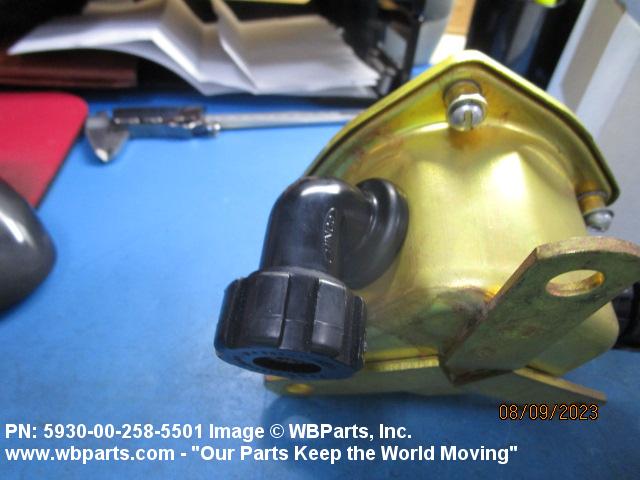

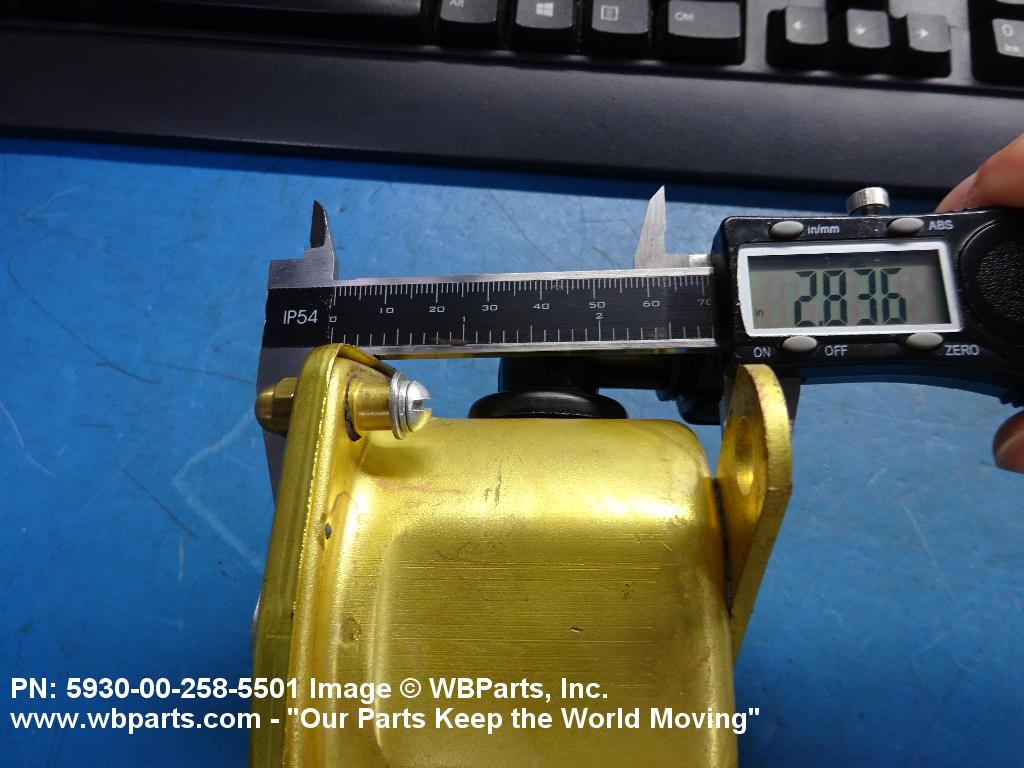

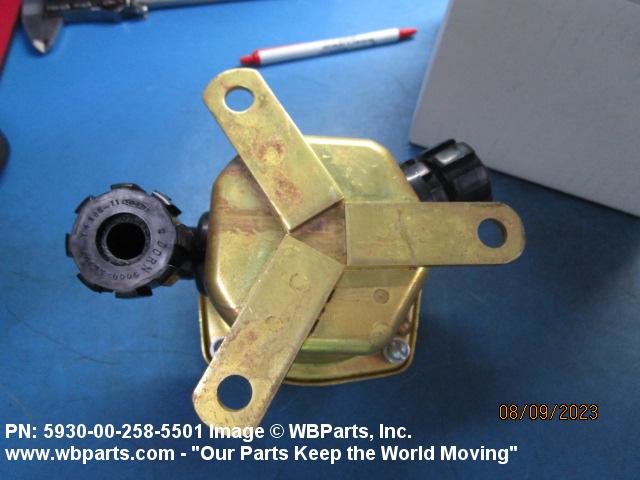

Drawings & Photos | NSN 5930-00-258-5501
