NSN 5930-00-259-3366 IC/N31A2, ICN31A2, MILS16032
Product Details | THERMOSTATIC SWITCH
5930-00-259-3366 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: IC/N31A2, ICN31A2, MILS16032, MIL-S-16032, 22232NH1222346, 222-32NH1-222346, 9000S6504F73935, 5930-00-259-3366, 00-259-3366, 5930002593366, 002593366
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-3366 | 00451 ( SWITCH, THERMOSTATIC ) |

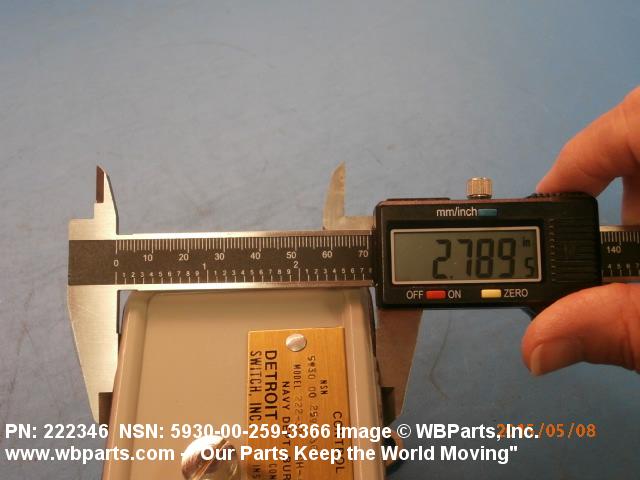

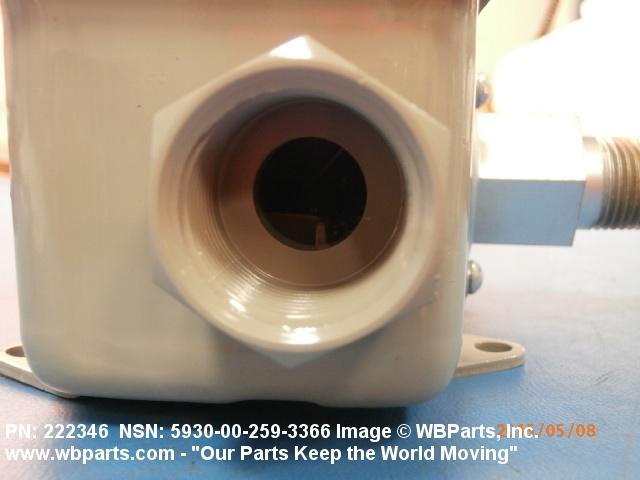

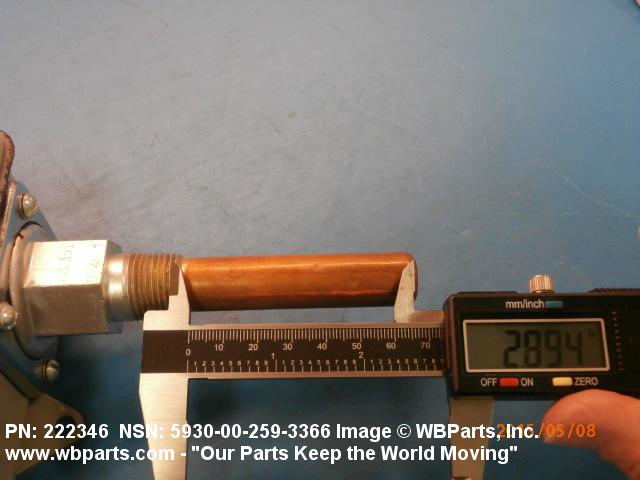

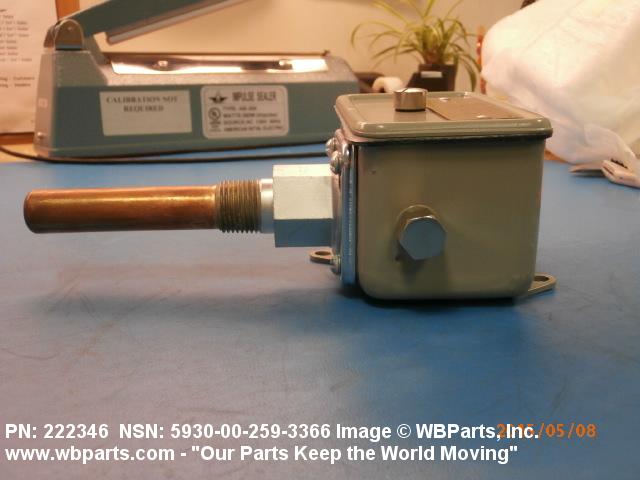

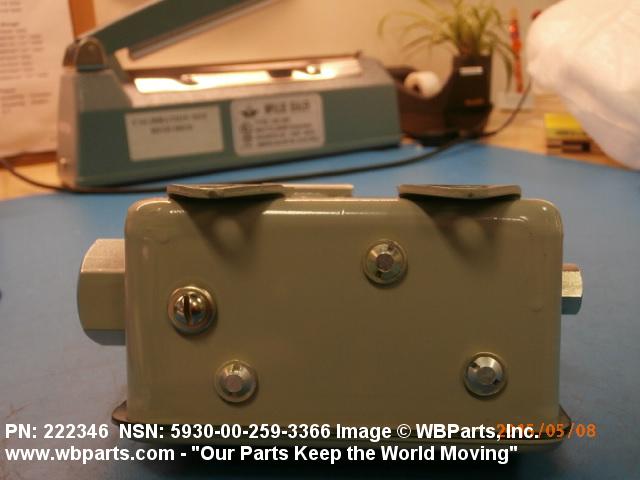

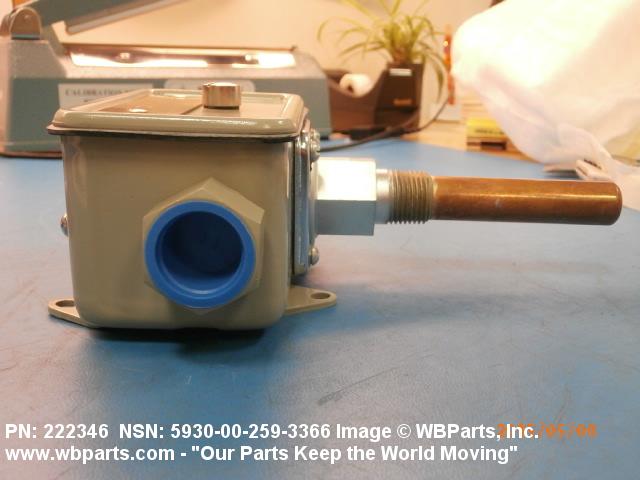

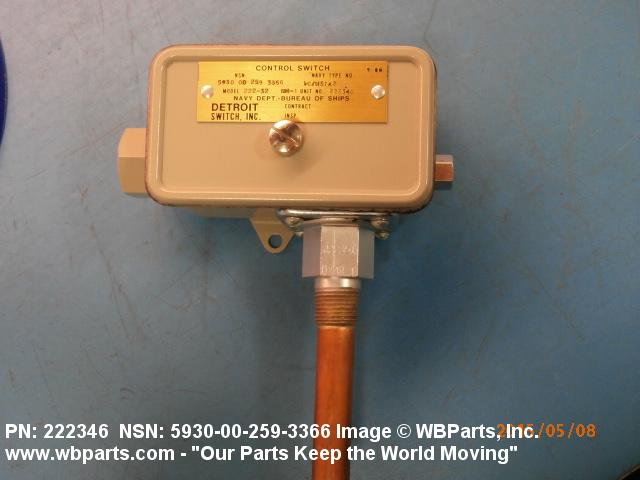

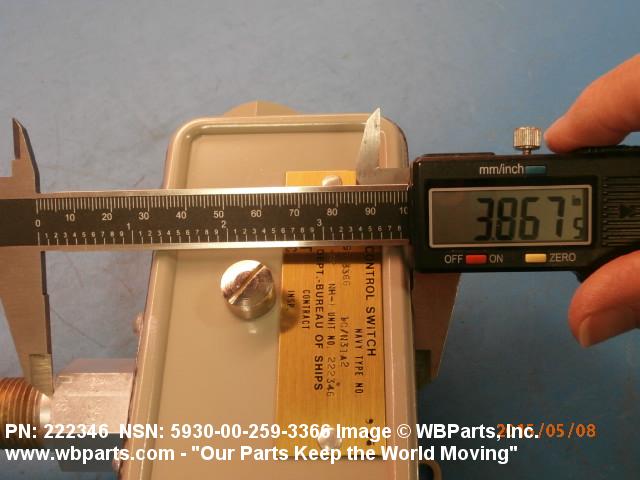

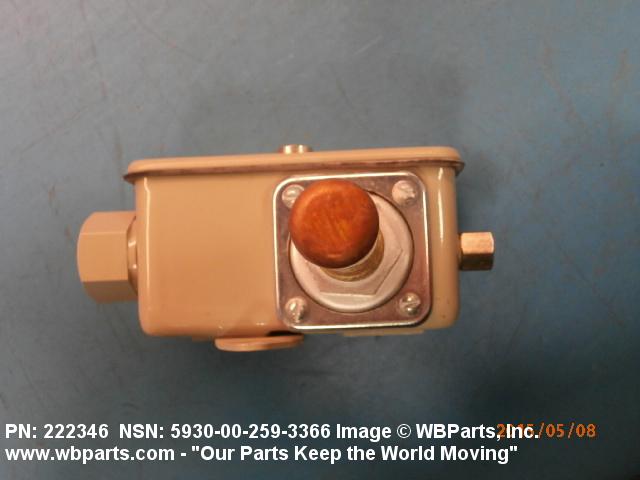

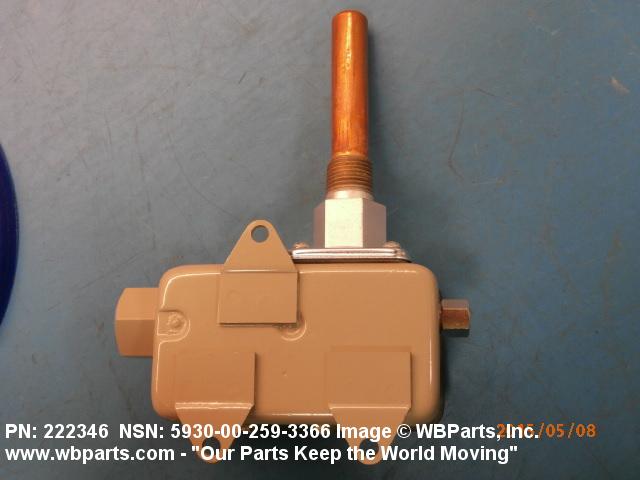

Drawings & Photos | NSN 5930-00-259-3366
Demand History | NSN 5930-00-259-3366
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-259-3366 | 2015-07-211 | 15 | DIBBS |
| 5930-00-259-3366 | 2015-04-103 | 1 | United States |
| 5930-00-259-3366 | 2014-12-344 | 8 | DIBBS |
| 5930-00-259-3366 | 2009-12-344 | 6 | DIBBS |
| MILS16032 | 2009-10-299 | 8 | US |
| 5930-00-259-3366 | 2009-02-49 | 11 | DIBBS |
| 5930-00-259-3366 | 2008-11-318 | 21 | DIBBS |
| 5930-00-259-3366 | 2008-10-281 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-259-3366
Related Products | NSN 5930-00-259-3366
Technical Data | NSN 5930-00-259-3366
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 73 RECTANGULAR |

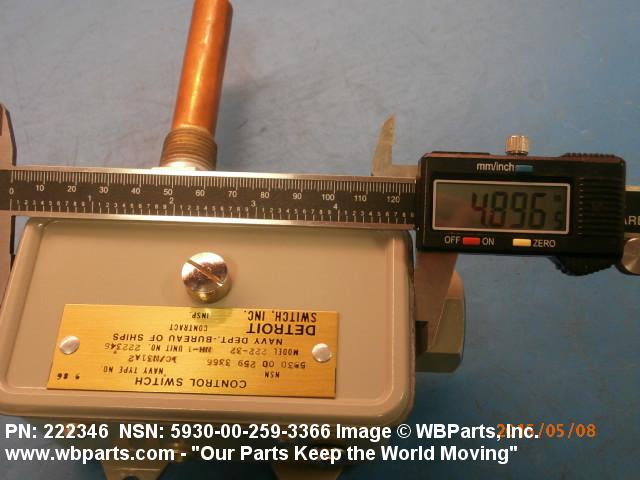

| OVERALL LENGTH | 4.938 INCHES NOMINAL |
| OVERALL HEIGHT | 4.031 INCHES NOMINAL |
| OVERALL WIDTH | 2.875 INCHES NOMINAL |

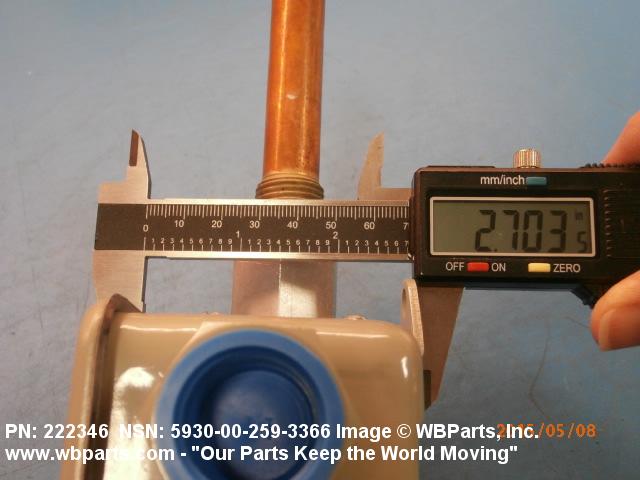

| BODY HEIGHT | 2.750 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 150.00 TO 225.00 ACTUATION POINT DEGREES FAHRENHEIT AND 150.00 TO 225.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 115.0 DC AT SEA LEVEL SECOND VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 AND 400.0 FIRST VOLTAGE |
| CONTACT LOAD CURRENT RATING | 4.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 3.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -273.1 DEG CELSIUS MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| TEMP SENSING ELEMENT TYPE | BULB |
| BULB LENGTH | 3.000 INCHES NOMINAL |

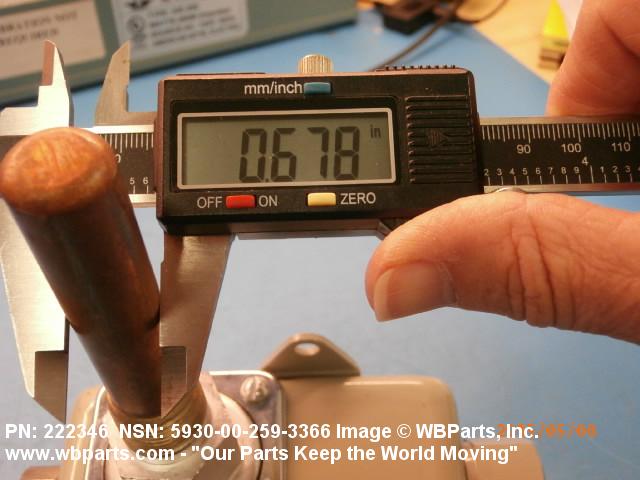

| BULB DIAMETER | 0.688 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | NPT SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.500 INCHES SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 14 SINGLE THREADED BUSHING |
| TEST DATA DOCUMENT | 81349-MIL-S-16032 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-16032 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |

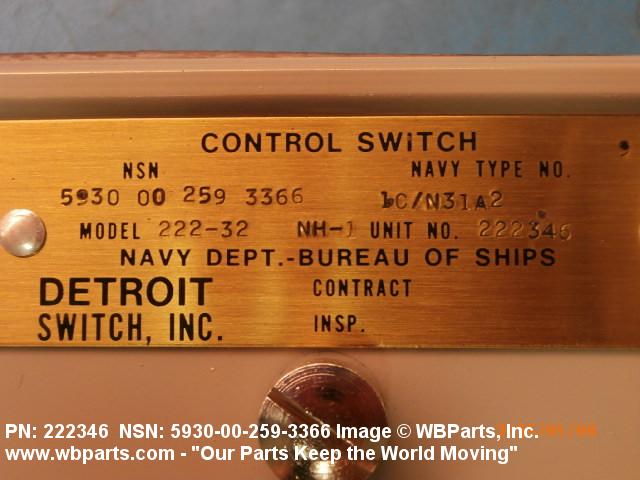

| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IC/N31A2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-16032 |
Restrictions/Controls & Freight Information | NSN 5930-00-259-3366
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-259-3366
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
