NSN 5930-00-259-4646 MS250022, MS25002-2, A46362
Product Details | ROTARY SWITCH
5930-00-259-4646 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: MS250022, MS25002-2, A46362, JHP11170, JHP111-70, MILDTL6807, MIL-DTL-6807, MILS6807, 6690035, 669-0035, 7262K12, 7262K14, 903553, 90-3553, 01090095, 0109-0095, 13211E4818, 239B041H01, 308P194, 400235, 4146671, 414667-1, 5380832, 538083-2, 5930-00-259-4646, 00-259-4646, 5930002594646 , 002594646
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-4646 | 02134 ( SWITCH, ROTARY ) |

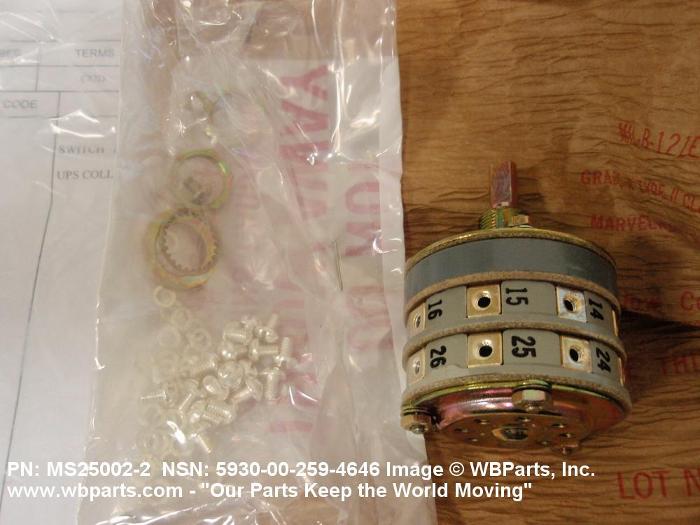

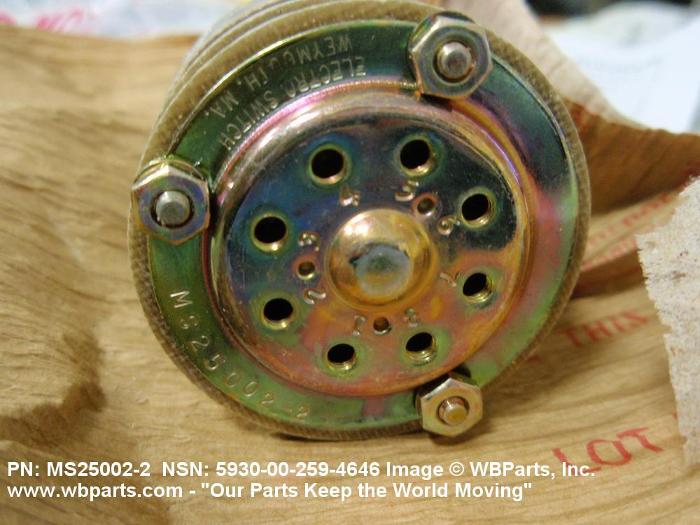

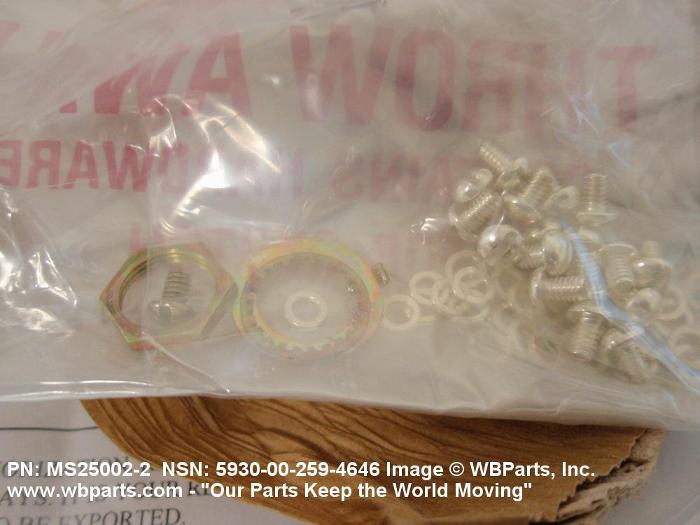

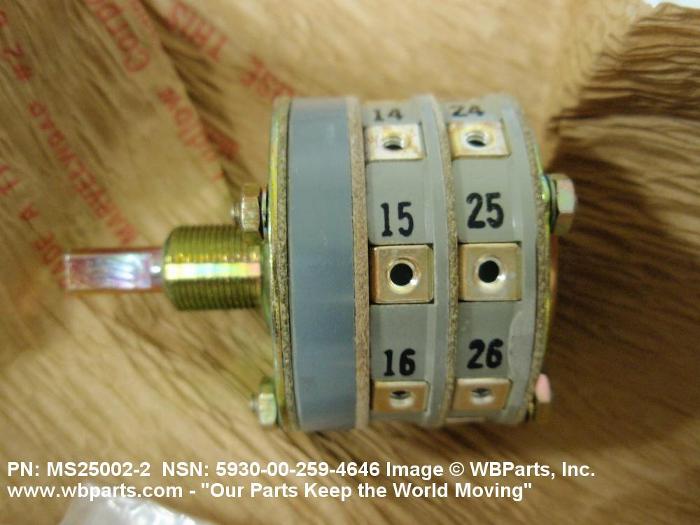

Drawings & Photos | NSN 5930-00-259-4646
Demand History | NSN 5930-00-259-4646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-259-4646 | 2025-06-169 | 4 | US |
| MS250022 | 2019-04-98 | 20 | US |
| 5930-00-259-4646 | 2017-12-340 | 2 | US |
| 5930-00-259-4646 | 2013-11-308 | 100 | US |
| MS25002-2 | 2012-11-310 | 9 | |
| MS250022 | 2012-08-227 | 4 | US |
| 5930-00-259-4646 | 2012-04-97 | 2 | US |
| 5930-00-259-4646 | 2011-11-313 | 1 | US |
| 5930-00-259-4646 | 2011-07-211 | 73 | DIBBS |
| 5930-00-259-4646 | 2011-05-129 | 1 | US |
| 7262K12 | 2011-05-129 | 8 | Italy |
| 7262K14 | 2011-05-129 | 8 | Italy |
| MS250022 | 2011-05-129 | 8 | Italy |
| 7262K12 | 2011-03-70 | 8 | IT |
| 7262K14 | 2011-03-70 | 8 | IT |
| 5930-00-259-4646 | 2010-04-95 | 107 | DIBBS |
| MS250022 | 2010-02-49 | 20 | Italy |
| 5930-00-259-4646 | 2010-02-44 | 50 | Canada |
| 5930-00-259-4646 | 2009-10-302 | 70 | DIBBS |
| MS250022 | 2009-03-65 | 185 | US |
| 5930-00-259-4646 | 2008-07-185 | 173 | DIBBS |
| 5930-00-259-4646 | 2008-04-116 | 2 | United States |
| 5930-00-259-4646 | 2007-02-47 | 200 | DIBBS |
Cross Reference | NSN 5930-00-259-4646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0109-0095 | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| 13211E4818 | 97403 | CECOM LR CENTER |
| 239B041H01 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 239B041H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 308P194 | 44940 | CUMMINS POWER GENERATION INC. |
| 400235 | 25743 | EPAC MFG CORP |
| 414667-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 538083-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5930002594646 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 669-0035 | 02032 | HOLLINGSWORTH JOHN R CO |
| 7262K12 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 7262K14 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 7262K14 | 88026 | EATON CORP CUSTOM DISTRIBUTION AND CONTROL DIV |
| 90-3553 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 90-3553 | 55588 | EATON ELECTRICAL INC. DBA CUTTLER HMMER CMRCL CNTRLS DIV |
| A46362 | 07860 | BOGUE ELECTRIC MANUFACTURING CO |
| JHP111-70 | 02032 | HOLLINGSWORTH JOHN R CO |
| MIL-DTL-6807 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS6807 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25002-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-259-4646
Related Products | NSN 5930-00-259-4646
Technical Data | NSN 5930-00-259-4646
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 CIRCULAR WAFER, BUSHING MOUNT |
| OVERALL LENGTH | 1.570 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.950 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 2 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION FRONT |
| THROW QUANTITY | 7 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL 28.0 HIGHEST DC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.156 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.188 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.247 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 1.000 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNS SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.469 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.469 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF AND EXPLOSION PROOF |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS6807 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25002-2 |
Restrictions/Controls & Freight Information | NSN 5930-00-259-4646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-259-4646
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
