NSN 5930-00-259-8888 JR304, 17C33399740, 17C333997-40
Product Details | ROTARY SWITCH
5930-00-259-8888 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: JR304, 17C33399740, 17C333997-40, 23203LM, 7302419PC9, 7302-419PC9, 8600, 9000S620273193, 9000S6202-73193, 9000S620273193REVFTYPEJR304, 9000S6202-73193REVFTYPEJR304, 5930-00-259-8888, 00-259-8888, 5930002598888, 002598888
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-8888 | 02134 ( SWITCH, ROTARY ) |

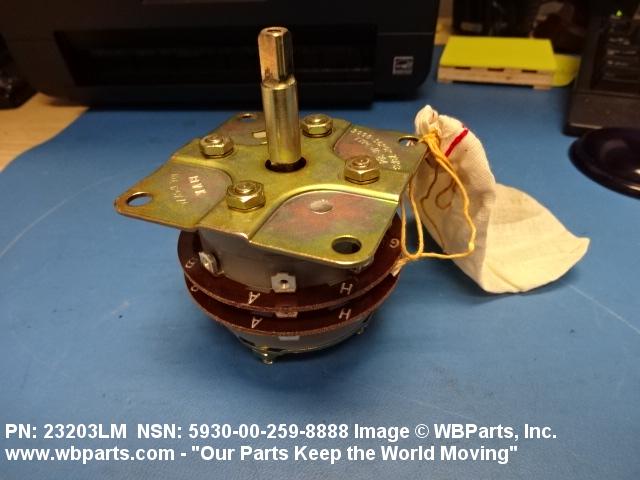

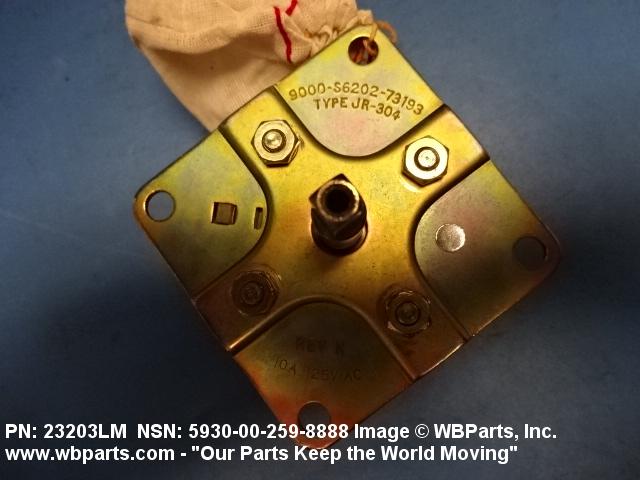

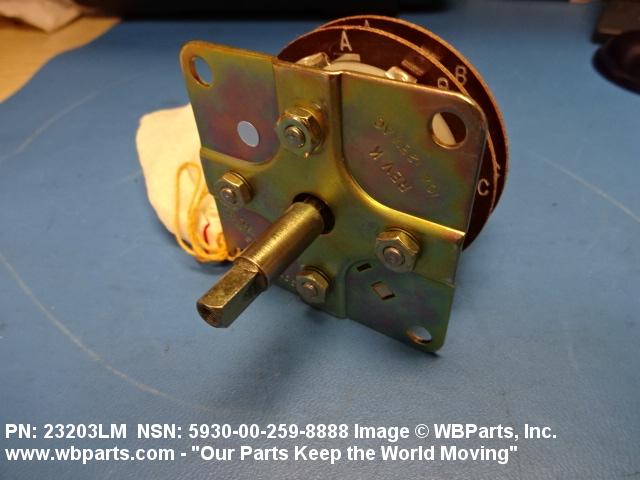

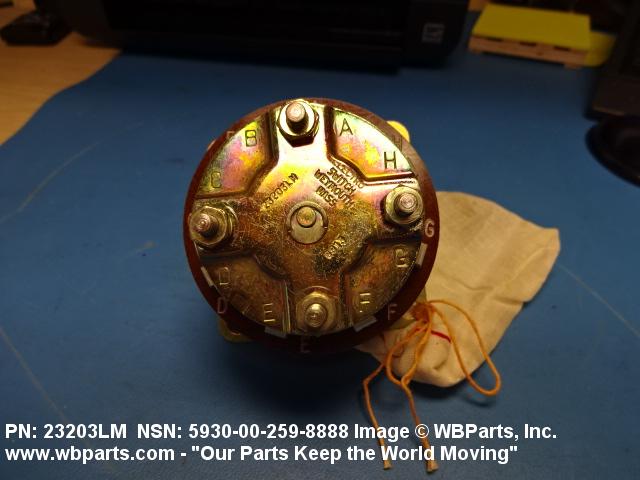

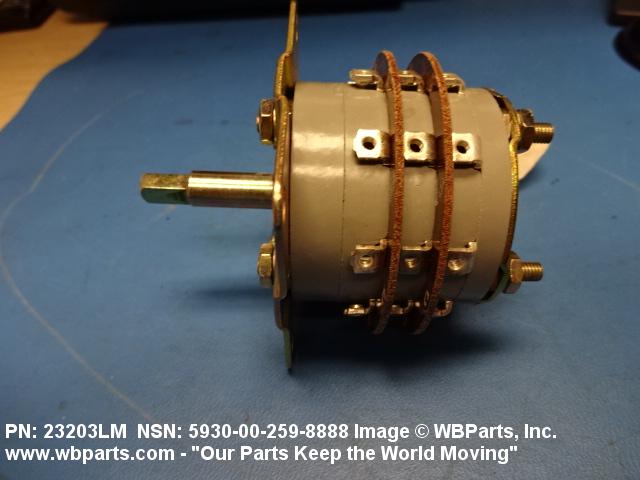

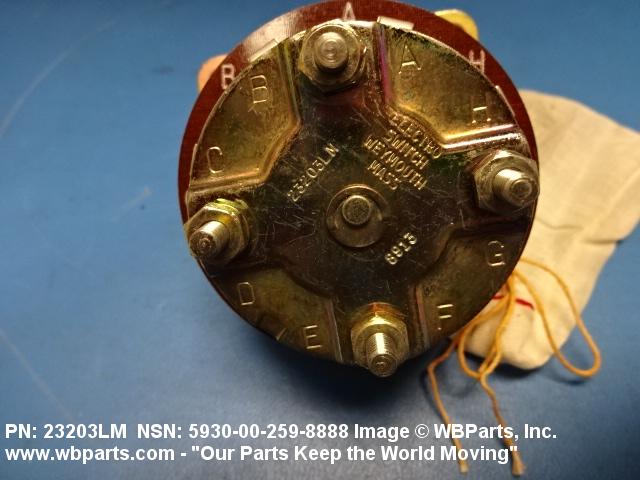

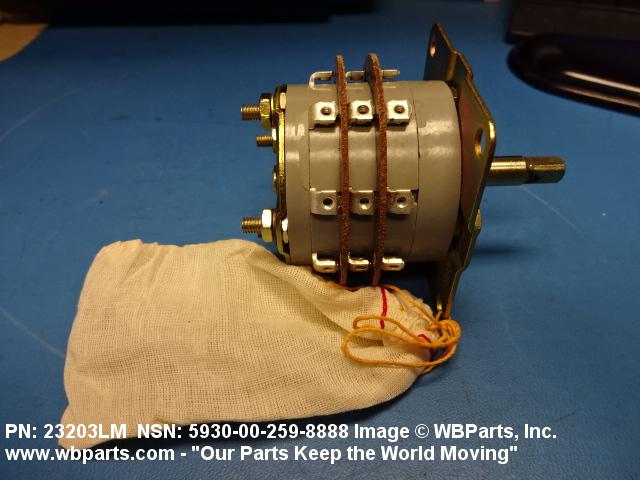

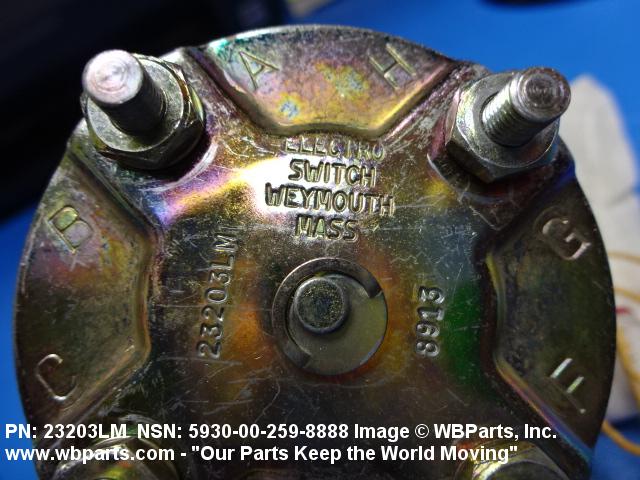

Drawings & Photos | NSN 5930-00-259-8888
Demand History | NSN 5930-00-259-8888
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23203LM | 2022-03-90 | 32 | DIBBS |
| 8600 | 2022-03-90 | 32 | DIBBS |
| 23203LM | 2020-10-303 | 26 | DIBBS |
| 8600 | 2020-10-303 | 26 | DIBBS |
| 5930-00-259-8888 | 2018-08-214 | 36 | DIBBS |
| 5930-00-259-8888 | 2017-02-33 | 35 | DIBBS |
| 5930-00-259-8888 | 2016-08-229 | 26 | United States |
| 5930-00-259-8888 | 2016-03-77 | 26 | DIBBS |
| 5930-00-259-8888 | 2016-03-66 | 26 | DIBBS |
| 5930-00-259-8888 | 2014-03-82 | 18 | DIBBS |
| 5930-00-259-8888 | 2012-06-181 | 14 | DIBBS |
| 5930-00-259-8888 | 2012-04-97 | 3 | DIBBS |
| 5930-00-259-8888 | 2012-03-75 | 3 | DIBBS |
| 5930-00-259-8888 | 2012-02-54 | 1 | DIBBS |
| 5930-00-259-8888 | 2012-02-54 | 2 | DIBBS |
| 5930-00-259-8888 | 2012-02-52 | 1 | DIBBS |
| 5930-00-259-8888 | 2012-02-46 | 1 | DIBBS |
| 5930-00-259-8888 | 2012-02-40 | 2 | DIBBS |
| 8600 | 2012-01-30 | 90 | United States |
| 5930-00-259-8888 | 2012-01-03 | 1 | DIBBS |
| 5930-00-259-8888 | 2011-04-101 | 2 | DIBBS |
| 5930-00-259-8888 | 2011-04-91 | 2 | DIBBS |
| 5930-00-259-8888 | 2007-06-176 | 11 | DIBBS |
| 5930-00-259-8888 | 2007-06-163 | 7 | DIBBS |
| 5930-00-259-8888 | 2007-06-158 | 8 | DIBBS |
Cross Reference | NSN 5930-00-259-8888
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17C333997-40 | 94135 | NAVAL ORDNANCE STANDARDS |
| 23203LM | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 7302-419PC9 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 8600 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 9000S6202-73193 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 9000S6202-73193 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9000S6202-73193REVFTYPEJR304 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| JR304 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-259-8888
Related Products | NSN 5930-00-259-8888
Technical Data | NSN 5930-00-259-8888
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 2.812 INCHES NOMINAL |
| OVERALL WIDTH | 2.812 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 EACH SECTION FRONT |
| THROW QUANTITY | 2 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| SWITCH ACTUATOR MOMENTARY POSITION | CLOCKWISE AND COUNTERCLOCKWISE SINGLE ACTUATOR |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SHAFT TYPE | RECTANGULAR/SQUARE, THREADED HOLE SINGLE ACTUATOR |
| SHAFT LENGTH | 1.500 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.312 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.312 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| NONDEFINITIVE SPEC/STD DATA | JR304 TYPE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
Restrictions/Controls & Freight Information | NSN 5930-00-259-8888
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-259-8888
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
