NSN 5930-00-259-8895 S4JR25, LM44222SH95PC2, LM44223SH53PC2
Product Details | ROTARY SWITCH
5930-00-259-8895 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: S4JR25, LM44222SH95PC2, LM44223SH53PC2, MILDTL21604, MIL-DTL-21604, 23425G, 40441PC51, 404-41PC51, 70029304PC3, 700293-04PC3, 700985101PC3, 700985-101PC3, 701076PC5, 70115001PC3, 701150-01PC3, 705284 ITEM 133, 705284ITEM133, 5930-00-259-8895, 00-259-8895, 5930002598895, 002598895
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-8895 | 02134 ( SWITCH, ROTARY ) |

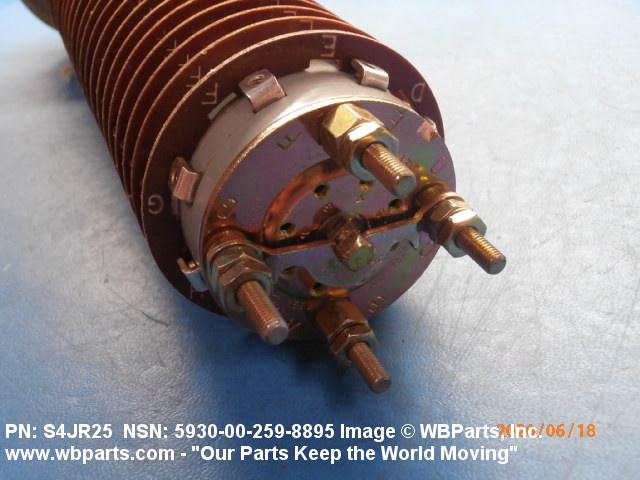

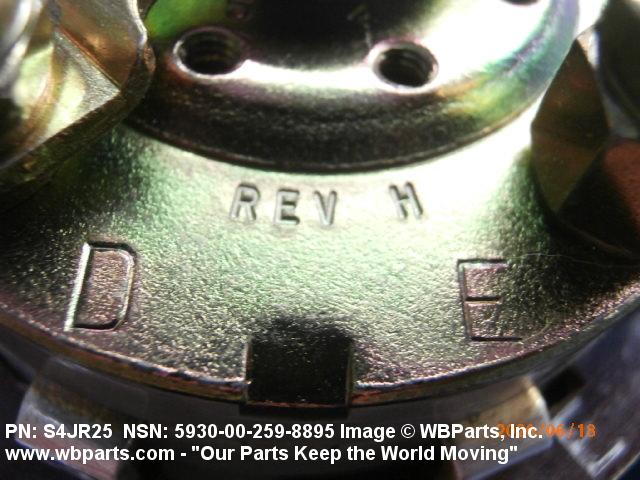

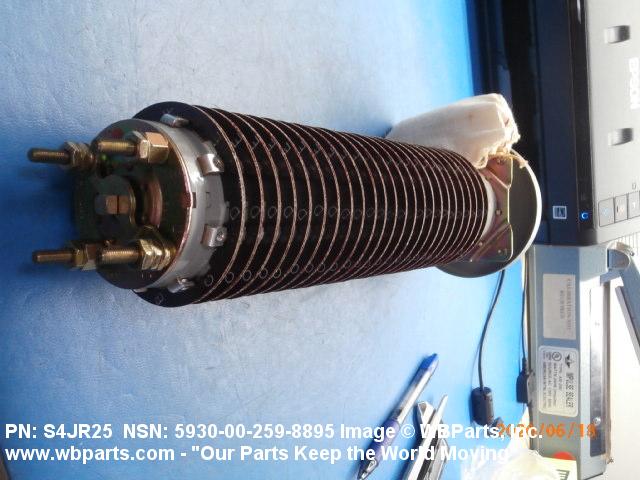

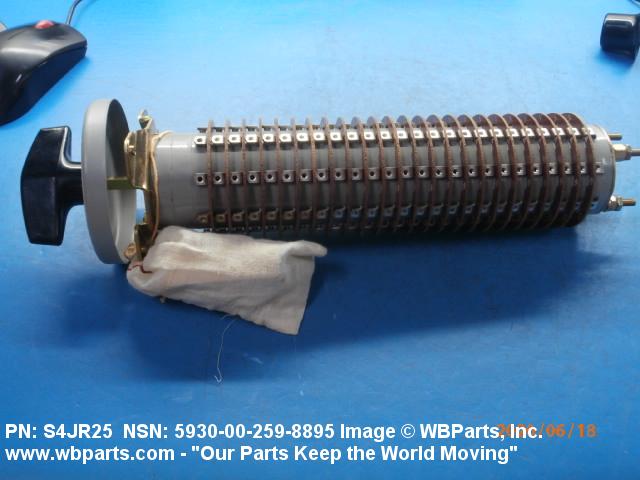

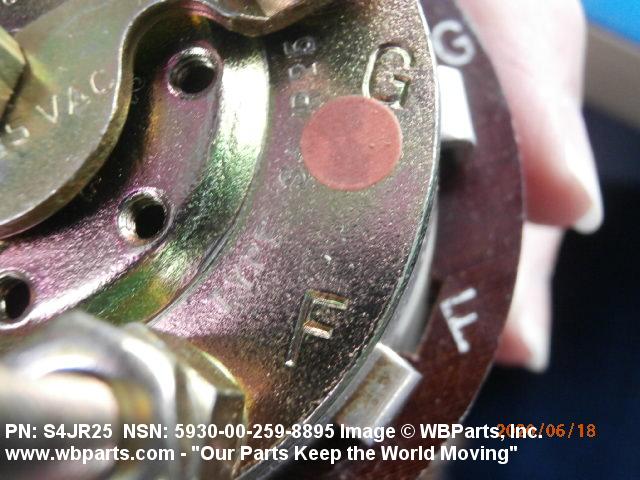

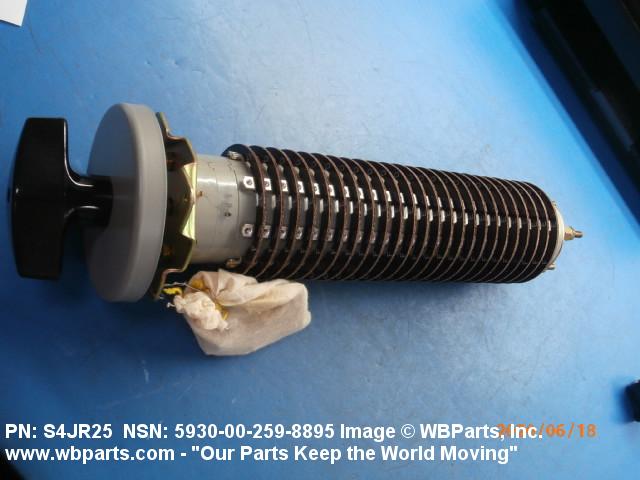

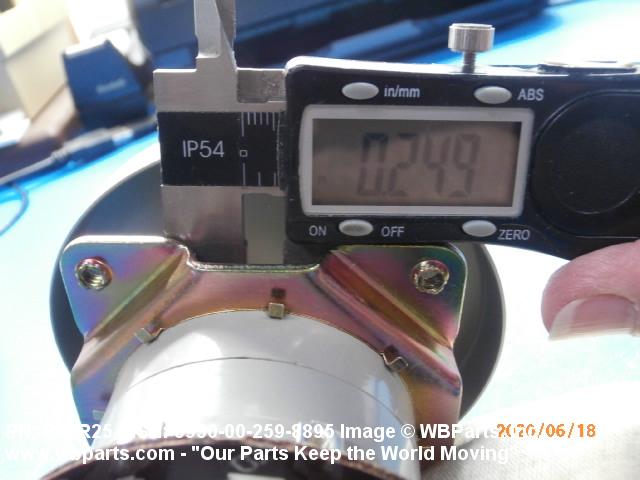

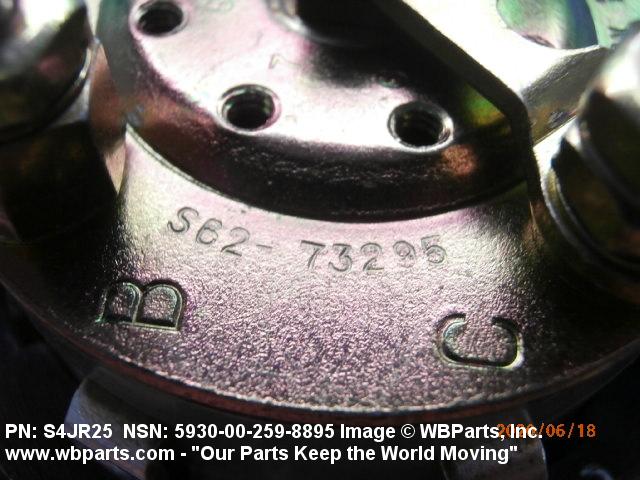

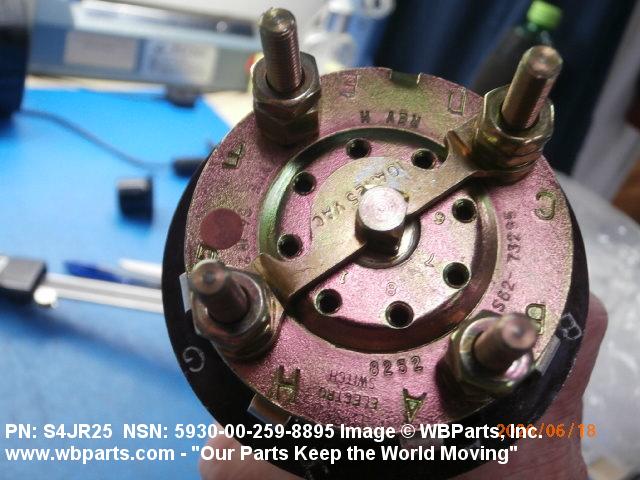

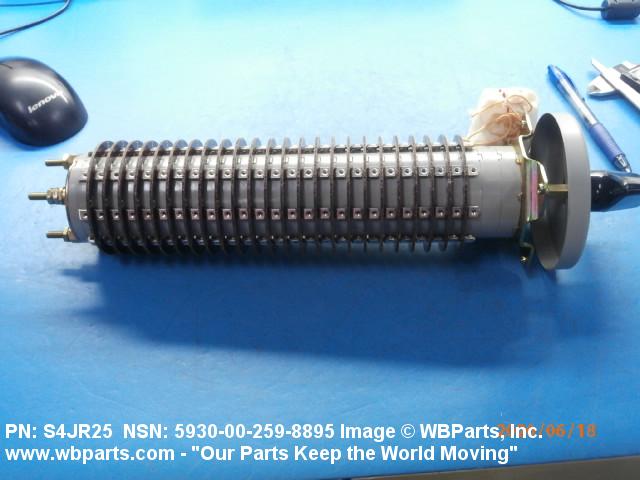

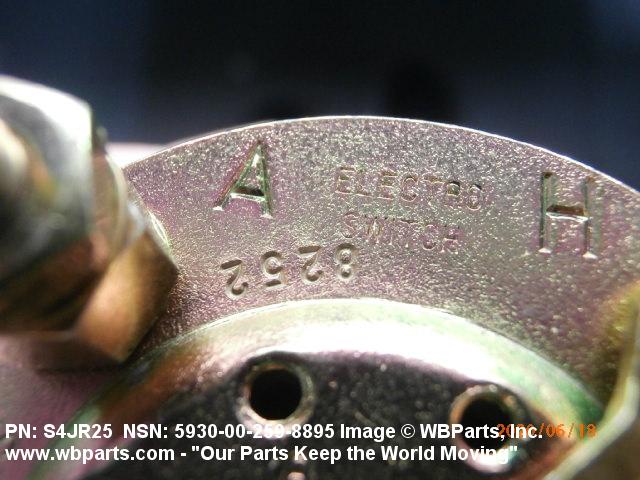

Drawings & Photos | NSN 5930-00-259-8895
Demand History | NSN 5930-00-259-8895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-259-8895 | 2020-04-119 | 5 | United States |
| 5930-00-259-8895 | 2019-02-42 | 6 | DIBBS |
| 5930-00-259-8895 | 2019-01-31 | 6 | DIBBS |
| 5930-00-259-8895 | 2007-07-197 | 10 | DIBBS |
| 5930-00-259-8895 | 2007-07-190 | 4 | DIBBS |
| 5930-00-259-8895 | 2006-03-68 | 1 | DIBBS |
| 5930-00-259-8895 | 2006-03-68 | 1 | DIBBS |
| 5930-00-259-8895 | 2006-03-65 | 12 | DIBBS |
Cross Reference | NSN 5930-00-259-8895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23425G | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 404-41PC51 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 700293-04PC3 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 700985-101PC3 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 701076PC5 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 701150-01PC3 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 705284 ITEM 133 | 19623 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| LM44222SH95PC2 | 98853 | HAMILTON STANDARD ELECTRONICS SYSTEMS INC |
| LM44223SH53PC2 | 98853 | HAMILTON STANDARD ELECTRONICS SYSTEMS INC |
| MIL-DTL-21604 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S4JR25 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S4JR25 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-259-8895
Related Products | NSN 5930-00-259-8895
Technical Data | NSN 5930-00-259-8895
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 11 TAP, SQUARE FRAME |

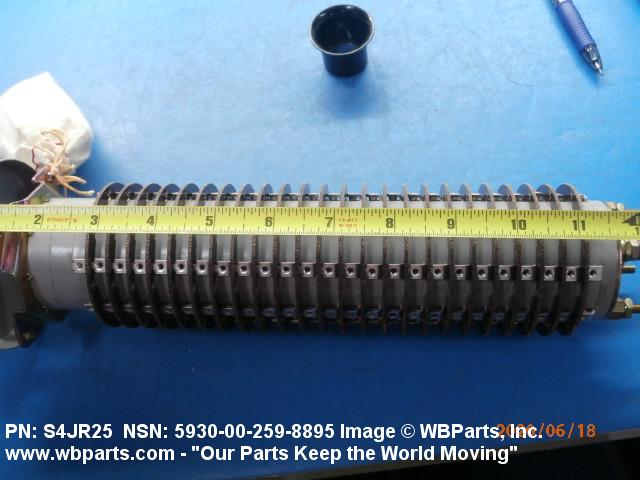

| OVERALL LENGTH | 11.782 INCHES NOMINAL |

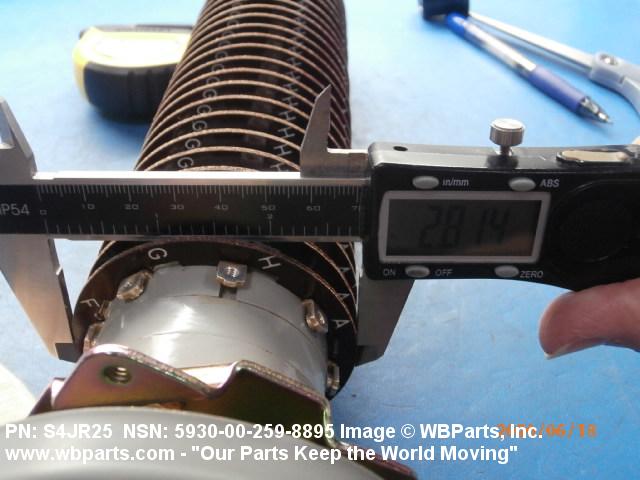

| OVERALL HEIGHT | 2.812 INCHES NOMINAL |

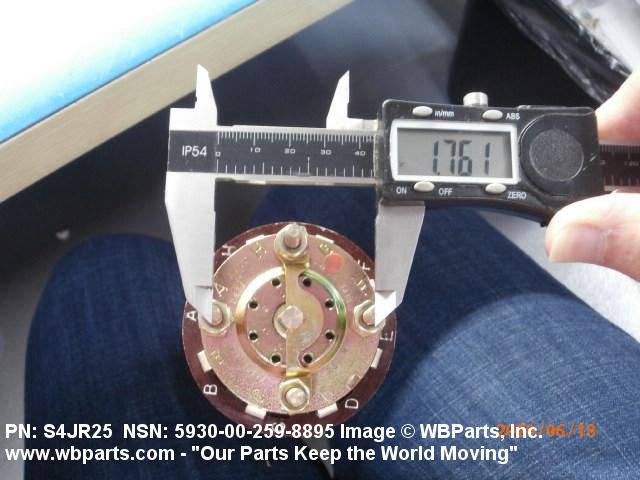

| OVERALL WIDTH | 2.812 INCHES NOMINAL |

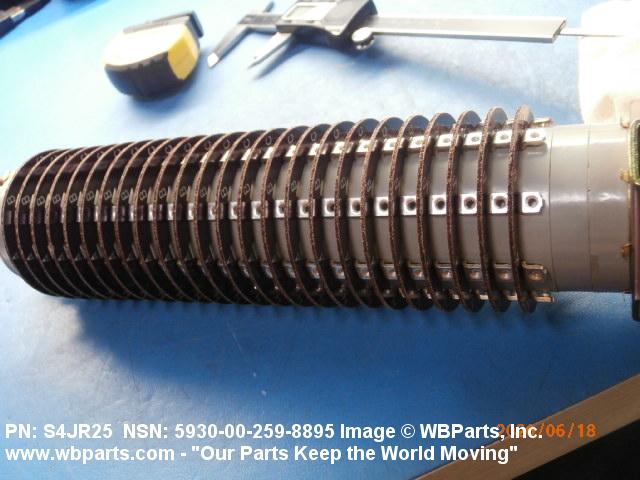

| INDIVIDUAL SECTION QUANTITY | 25 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 EACH SECTION FRONT |
| THROW QUANTITY | 8 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |

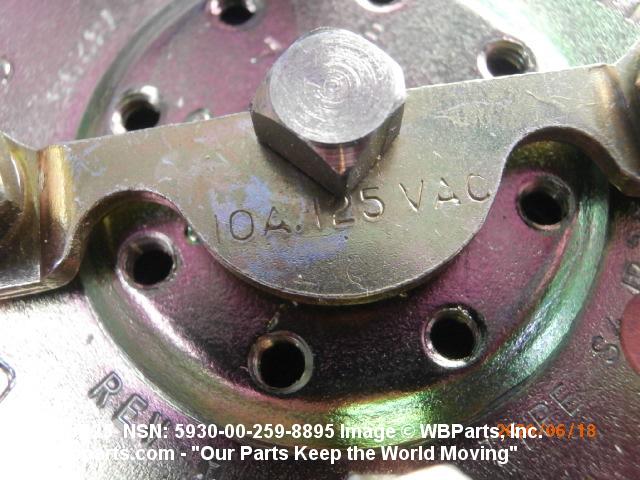

| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |

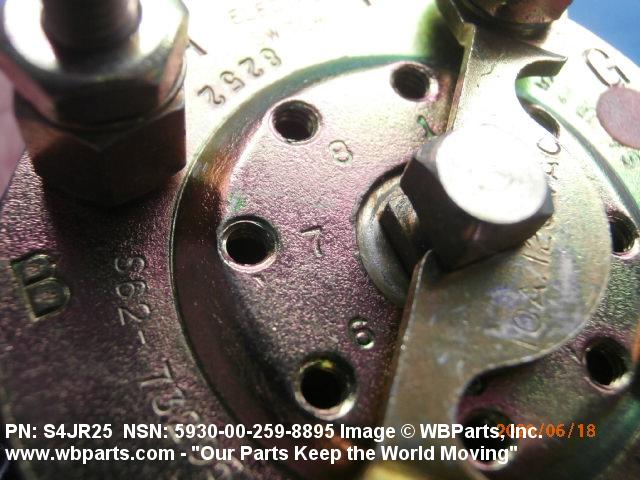

| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | RECTANGULAR/SQUARE, THREADED HOLE SINGLE ACTUATOR |
| SHAFT LENGTH | 1.344 INCHES NOMINAL SINGLE ACTUATOR |
| SQUARE SHAFT SIZE | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION CIRCULAR SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY CIRCLE RADIUS | 1.625 INCHES NOMINAL SINGLE MOUNTING FACILITY |

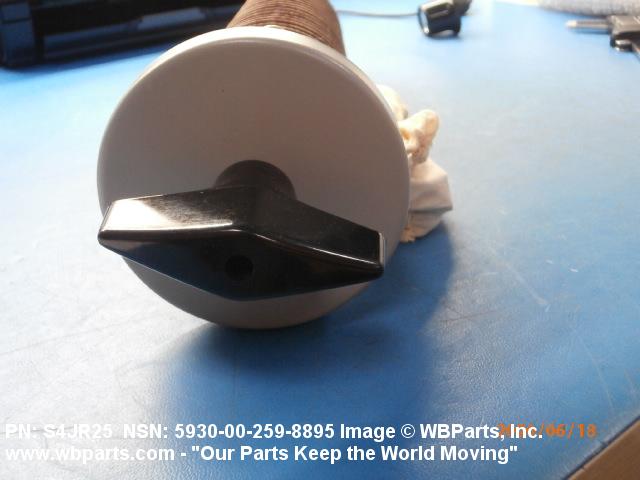

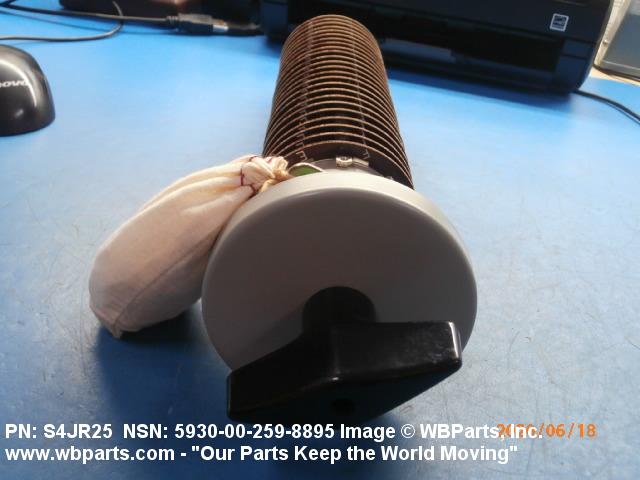

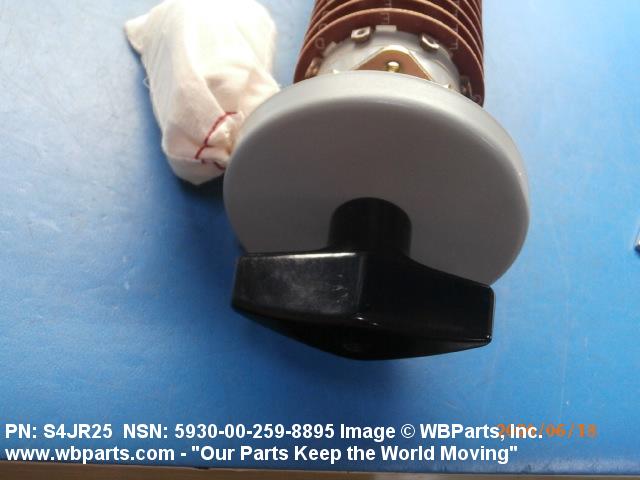

| FEATURES PROVIDED | ACTUATOR KNOB |
| TEST DATA DOCUMENT | 81349-MIL-S-21604 SPECIFICATION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III KNOB MANUFACTURER CODE | 80064 |
| III KNOB MANUFACTURER PART NUMBER | 9000-S6202-73075-1 |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 22.5 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-21604 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | S4JR25 |
Restrictions/Controls & Freight Information | NSN 5930-00-259-8895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-259-8895
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
