NSN 5930-00-296-6318 MS390611, MS39061-1, D42006

Product Details | TOGGLE SWITCH

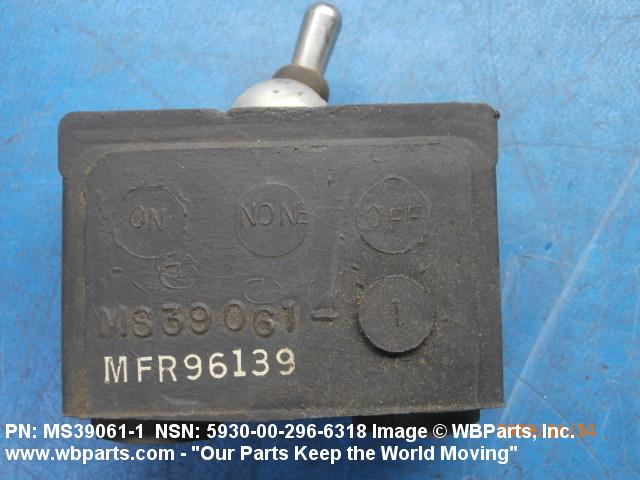

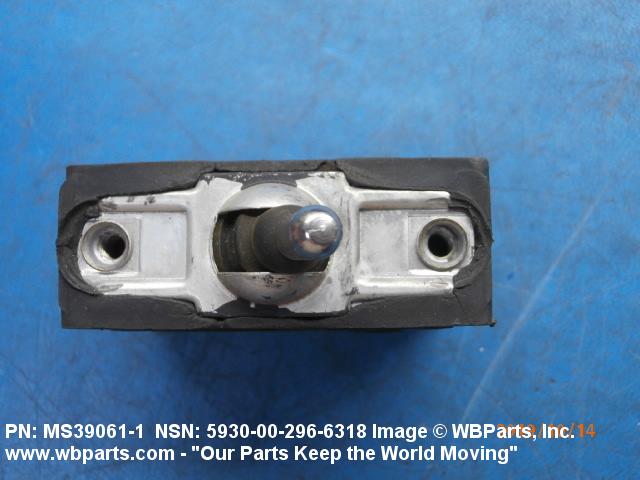

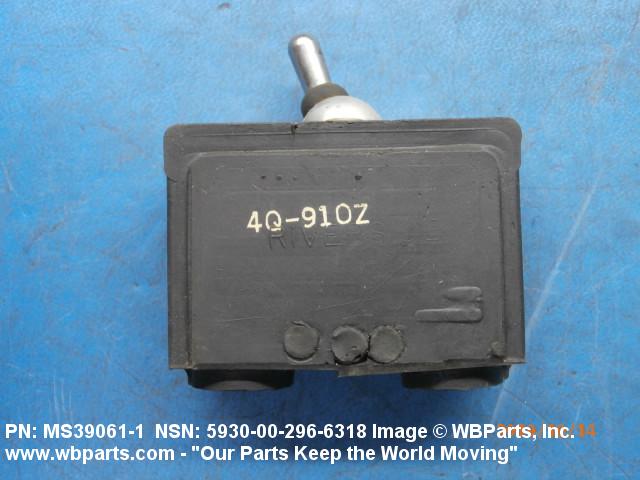

5930-00-296-6318 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS390611, MS39061-1, D42006, MILS13735, 0624A0400, 29WP511ACM, 29WP51-1ACM, 3M5998, 484493, 59302966318, 5930-296-6318 , 60093, 8376806, 954282, 5930-00-296-6318, 00-296-6318, 5930002966318 , 002966318

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1961 00-296-6318

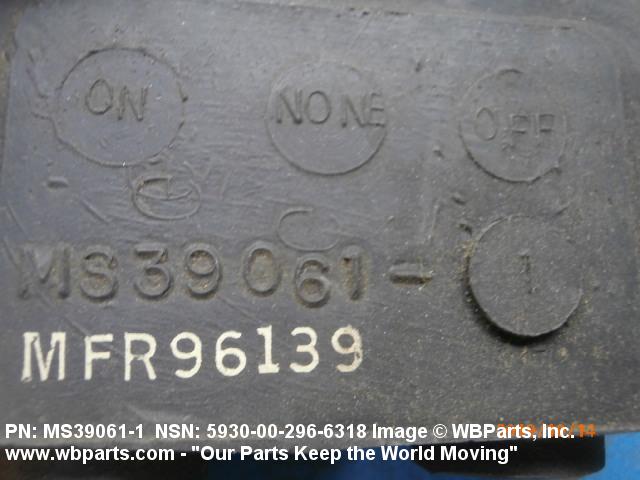

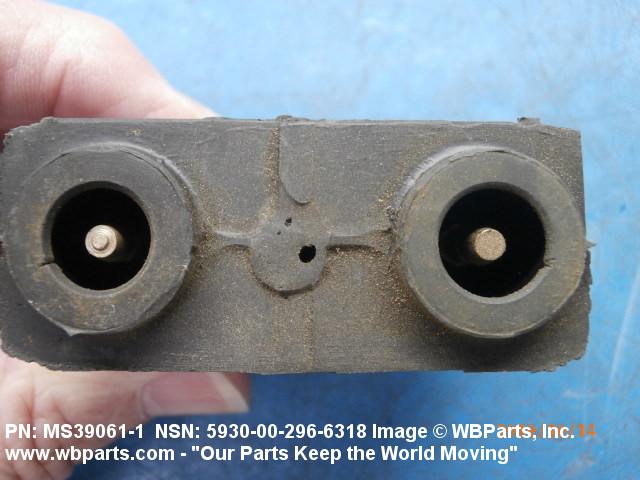

Drawings & Photos | NSN 5930-00-296-6318



Demand History | NSN 5930-00-296-6318


Part Number Request Date QTY Origin
5930-00-296-6318 2024-04-10 11 United States
MS390611 2023-04-28 3 United States
5930-00-296-6318 2023-03-20 5 AU
5930-00-296-6318 2023-01-12 571 DIBBS
5930-00-296-6318 2022-09-06 617 US
5930-00-296-6318 2022-09-05 617 DIBBS
5930-00-296-6318 2021-09-09 428 DIBBS
5930-00-296-6318 2020-11-09 5 Brazil
5930-00-296-6318 2020-10-08 678 DIBBS
5930-00-296-6318 2020-09-30 297 DIBBS
5930-00-296-6318 2020-09-23 48 DIBBS
5930-00-296-6318 2020-07-02 8 Brazil
MS390611 2020-04-16 300 United States
MS390611 2019-12-17 24 United States
5930-00-296-6318 2019-11-07 1 Brazil
5930-00-296-6318 2019-11-04 1 Brazil
5930-00-296-6318 2019-10-30 2 Brazil
5930-00-296-6318 2019-10-01 1 Malaysia
5930-00-296-6318 2019-08-06 4 United States
5930-00-296-6318 2019-01-10 17 MANUAL
MS39061-1 2019-01-10 17 Thailand
5930-00-296-6318 2018-12-20 1 DIBBS-KIT
MS39061-1 2018-12-19 1
5930002966318 2018-11-02 12 Thailand
5930-00-296-6318 2018-10-19 2 MANUAL
MS39061-1 2018-10-19 2 Thailand
5930-00-296-6318 2018-10-04 767 DIBBS
5930-00-296-6318 2018-08-22 38 United States
5930-00-296-6318 2018-06-27 1000 us
MS390611 2018-05-04 15 United States
5930-00-296-6318 2017-11-26 43 South Korea
5930-00-296-6318 2017-11-16 603 DIBBS
5930-00-296-6318 2017-07-11 268 MANUAL
MS39061-1 2017-07-11 268 PK
MS390611 2017-06-09 29 US
MS390611 2017-06-08 29 US
5930-00-296-6318 2017-05-25 55 US
5930-00-296-6318 2017-03-05 516 DIBBS
5930-00-296-6318 2017-02-01 271 MANUAL
MS39061-1 2017-02-01 271 United States
5930-00-296-6318 2016-12-29 355 DIBBS
5930-00-296-6318 2016-04-15 309 DIBBS
5930-00-296-6318 2016-04-04 309 DIBBS
5930-00-296-6318 2015-10-22 604 DIBBS
5930-00-296-6318 2015-06-11 493 DIBBS
5930-00-296-6318 2015-01-13 436 DIBBS
5930-00-296-6318 2014-10-01 3 Pakistan
5930-00-296-6318 2013-06-24 313 DIBBS
5930-00-296-6318 2013-04-18 200 MANUAL
5930-00-296-6318 2013-02-27 342 DIBBS
MS390611 2011-06-28 191 US
5930-00-296-6318 2010-12-07 250 Turkey
MS390611 2010-05-10 20 Taiwan
MS390611 2010-05-07 21 Taiwan
5930-00-296-6318 2009-11-04 10 Germany
5930-00-296-6318 2009-10-30 2027 DIBBS
5930-00-296-6318 2009-08-07 71 DIBBS
5930-00-296-6318 2008-02-12 15 Thailand

Cross Reference | NSN 5930-00-296-6318


Part Number Cage Code Manufacturer
0624A0400 55207 ARROW-MASTER, INCORPORATED

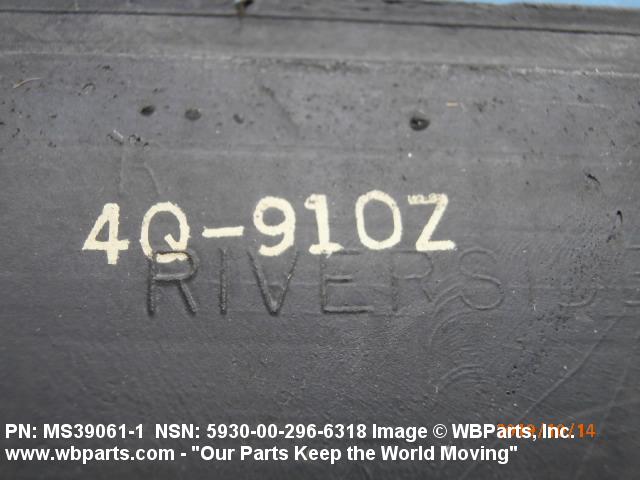

29WP51-1ACM 96139 RIVERSIDE MFG. INC.
3M5998 11083 CATERPILLAR INC. DBA CATERPILLAR
484493 02280 AMERICAN HOIST AND DERRICK CO
5930-296-6318 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5930002966318 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
60093 16004 DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
8376806 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
954282 38018 MANITOWOC ENGINEERING CO DIVISION OF THE MANITOWOC CO INC
D42006 10988 CNH INDUSTRIAL AMERICA LLC
MILS13735 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39061-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5930-00-296-6318


Technical Data | NSN 5930-00-296-6318


Characteristic Specifications
NONPILE-UP CONTACT ARRANGEMENT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS 24.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 6.000 AMPERES LAMP DC
BODY STYLE 12P HOLE MOUNT

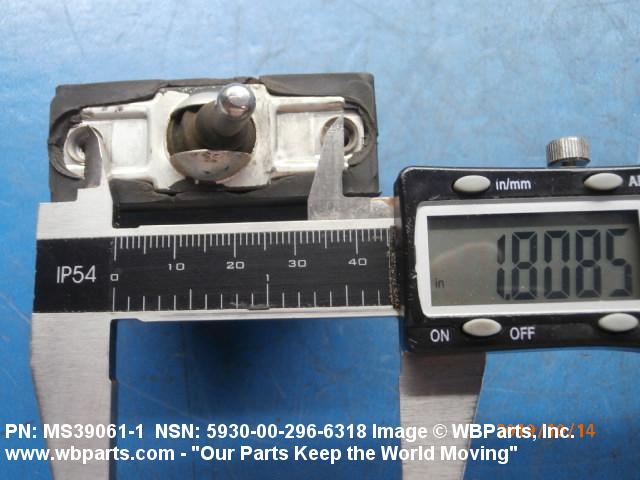

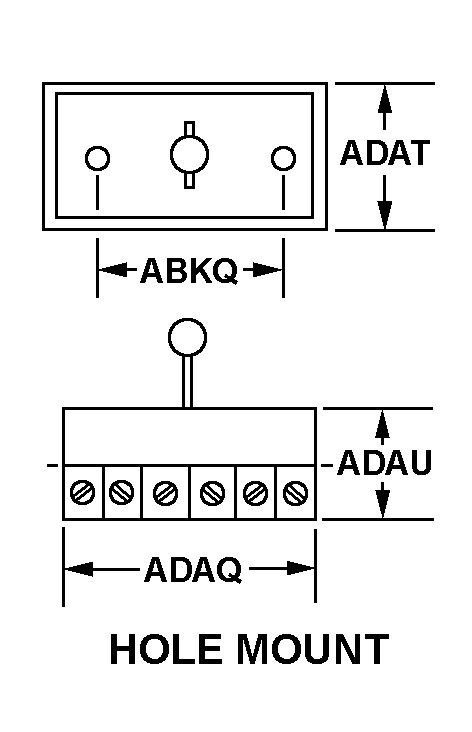

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 1.796 INCHES MINIMUM AND 1.828 INCHES MAXIMUM

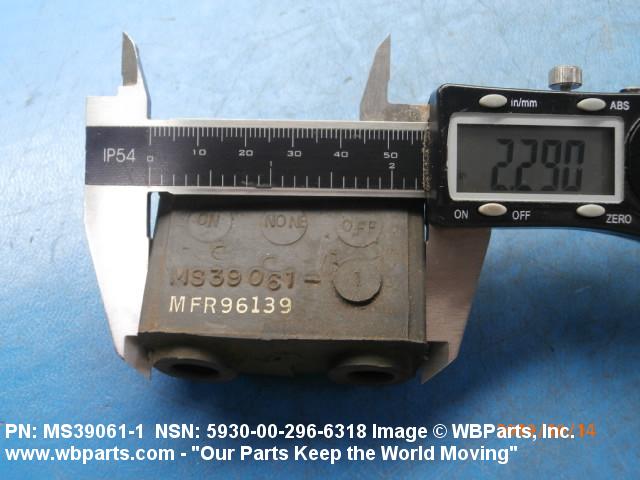

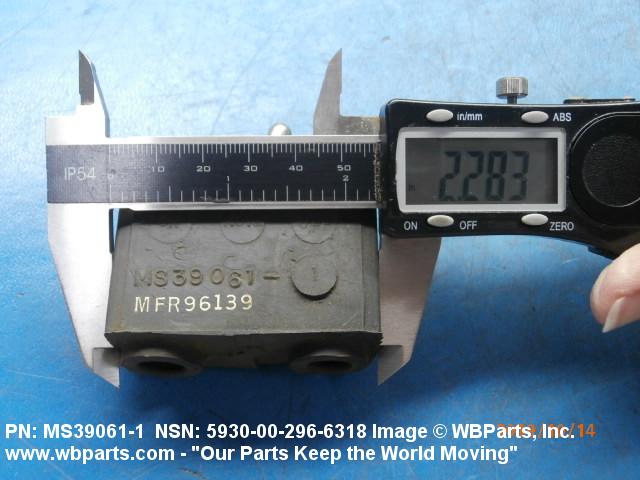

BODY LENGTH 2.219 INCHES MINIMUM AND 2.281 INCHES MAXIMUM

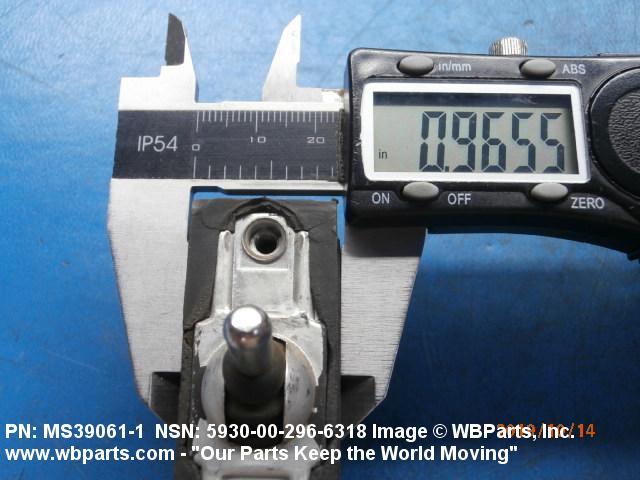

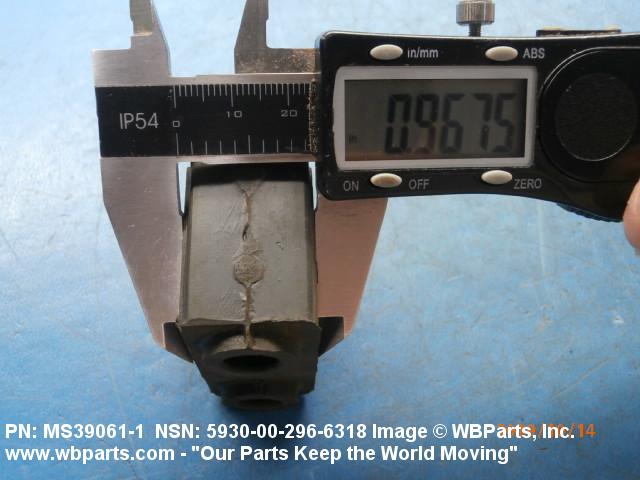

BODY WIDTH 0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM

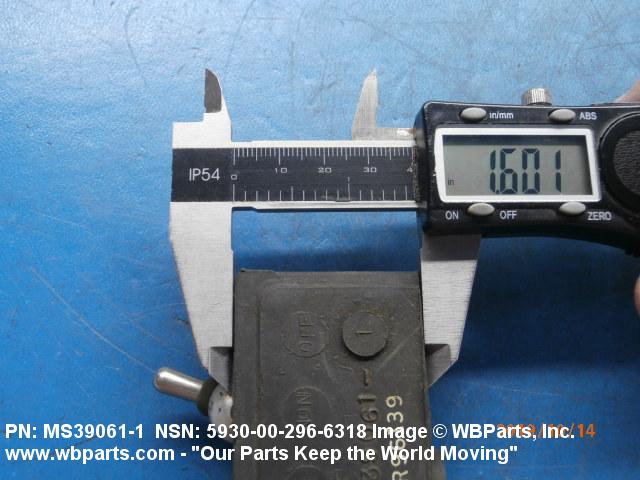

BODY HEIGHT 1.594 INCHES MINIMUM AND 1.656 INCHES MAXIMUM

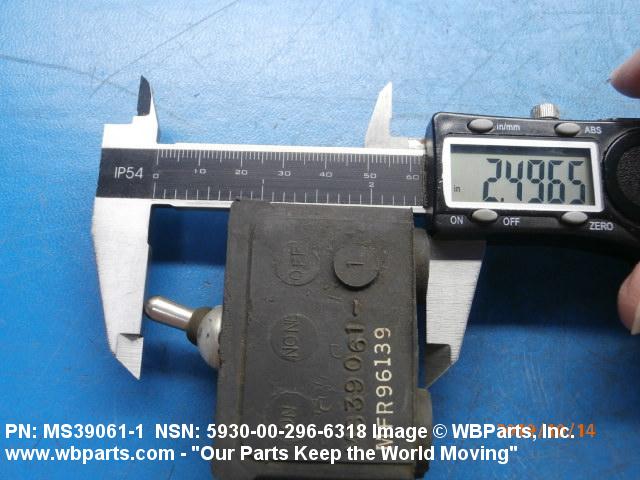

OVERALL LENGTH 2.250 INCHES NOMINAL

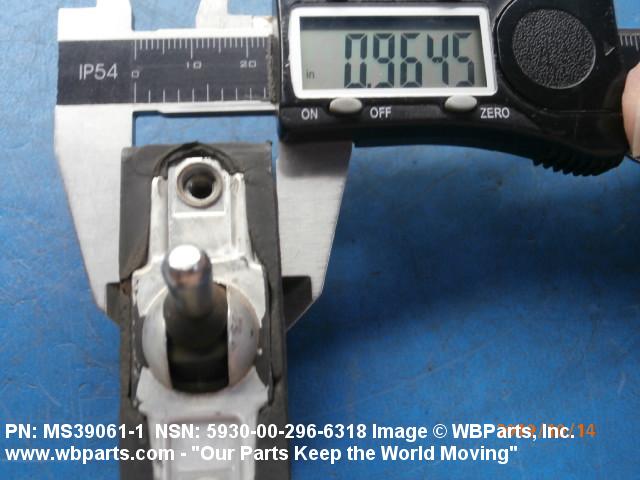

OVERALL WIDTH 0.969 INCHES NOMINAL
OVERALL HEIGHT 2.563 INCHES NOMINAL

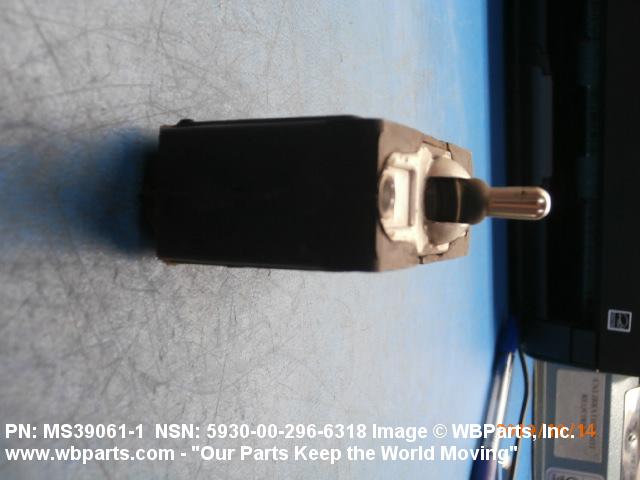

ACTUATOR STYLE 25 ROUND

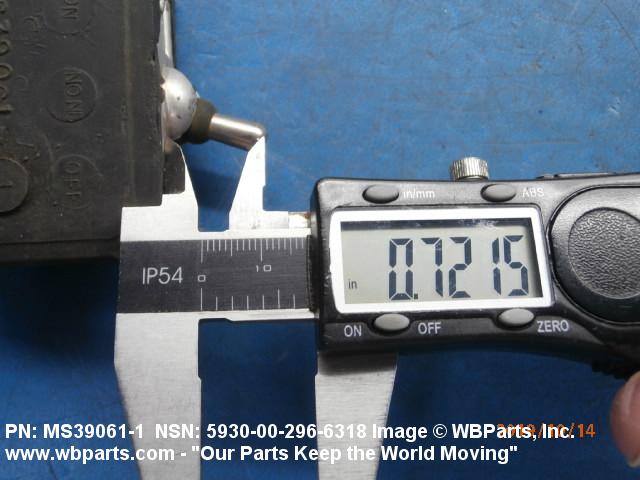

ACTUATOR HEIGHT 0.719 INCHES MINIMUM AND 0.781 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY 2 CONNECTOR, RECEPTACLE
INCLOSURE TYPE FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION WATERTIGHT
MOUNTING METHOD UNTHREADED HOLE
THREAD SERIES DESIGNATOR UNC

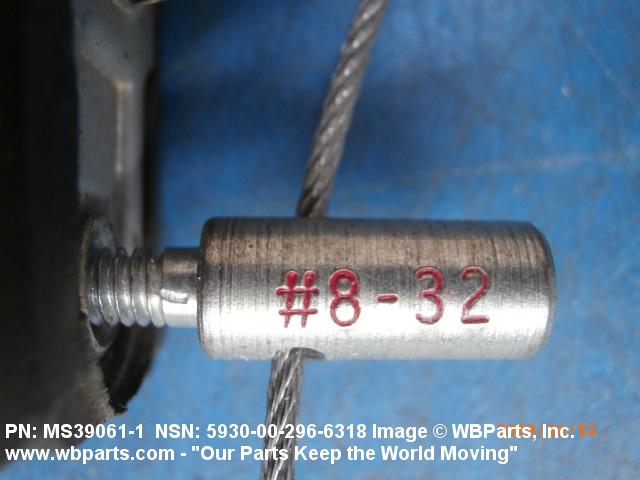

NOMINAL THREAD SIZE 0.164 INCHES
