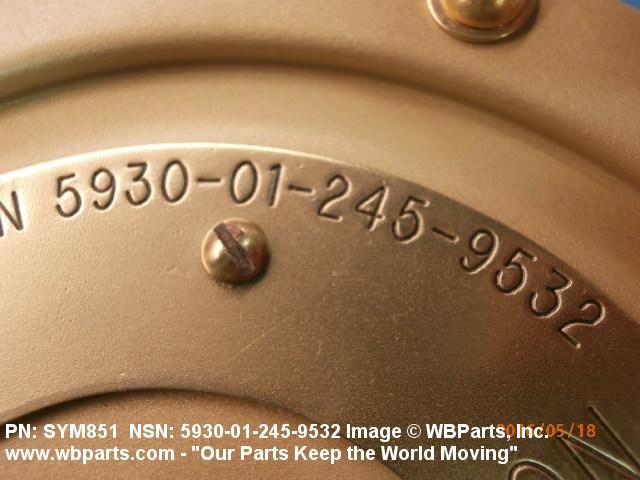

NSN 5930-00-296-7318 SYM851, SYM851.0, SYM8510
Product Details | ROTARY SWITCH
5930-00-296-7318 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SYM851, SYM851.0, SYM8510, G6001709, G600-1709, G6001725, G600-1725, 9000S620274276TYPE3SR3A42, 9000-S6202-74276TYPE3SR3A4-2, 5930-00-296-7318, 00-296-7318, 5930002967318, 002967318
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-7318 | 02134 ( SWITCH, ROTARY ) |

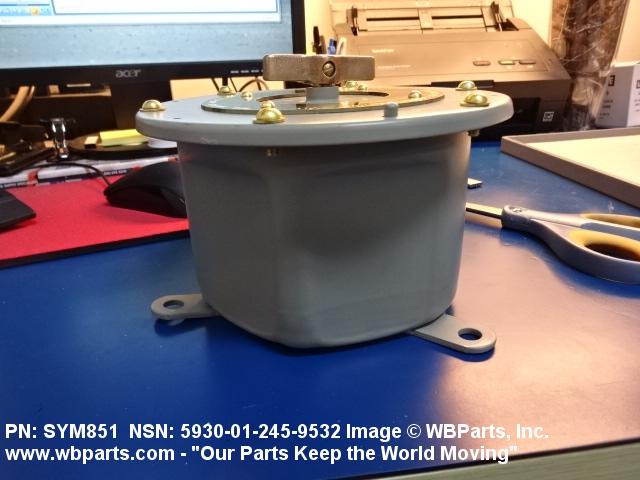

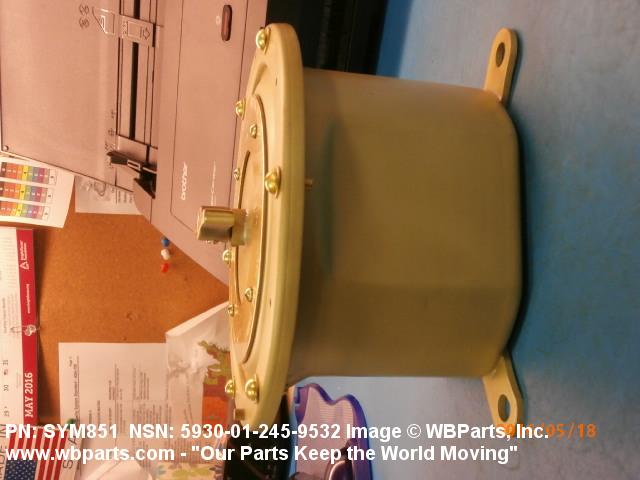

Drawings & Photos | NSN 5930-00-296-7318
Demand History | NSN 5930-00-296-7318
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SYM851 | 2026-02-33 | 18 | United States |
| SYM851 | 2026-01-27 | 10 | US |
| SYM851 | 2025-09-266 | 2 | United States |
| SYM851 | 2024-06-157 | 4 | US |
| 5930-00-296-7318 | 2023-03-66 | 2 | United States |
| SYM851 | 2022-10-290 | 9 | United States |
| 5930-00-296-7318 | 2018-01-26 | 1 | US |
| SYM851 | 2016-08-223 | 1 | US |
| SYM851 | 2016-05-123 | 1 | us |
| SYM851 | 2016-03-88 | 1 | us |
| 5930-00-296-7318 | 2008-08-238 | 4 | us |
Cross Reference | NSN 5930-00-296-7318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000-S6202-74276TYPE3SR3A4-2 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 9000-S6202-74276TYPE3SR3A4-2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| G600-1709 | 01425 | LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND |
| G600-1725 | 01425 | LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND |
| SYM851 | 86796 | ROFLAN ASSOCIATES INC |
| SYM851.0 | 28003 | WINCHESTER INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-296-7318
Related Products | NSN 5930-00-296-7318
Technical Data | NSN 5930-00-296-7318
| Characteristic | Specifications |
|---|---|

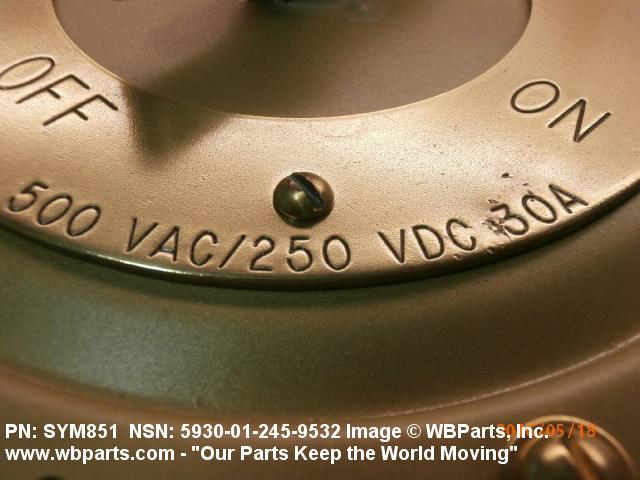

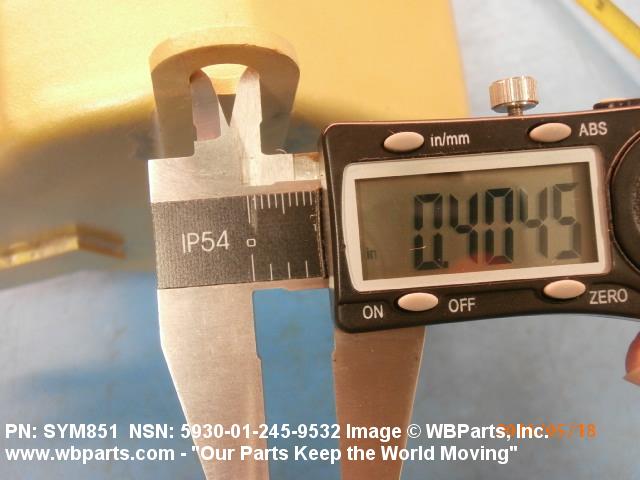

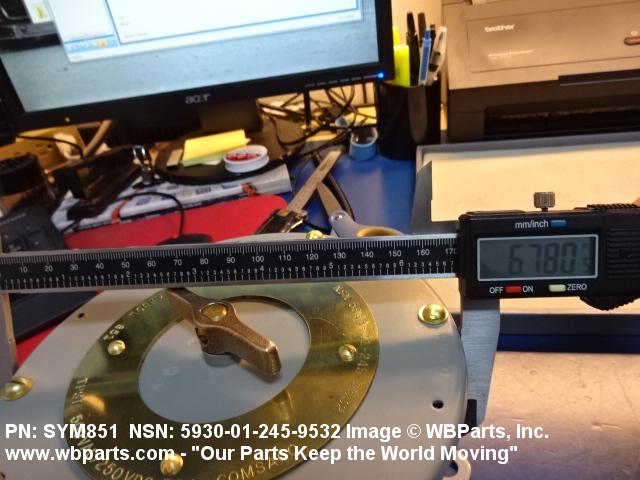

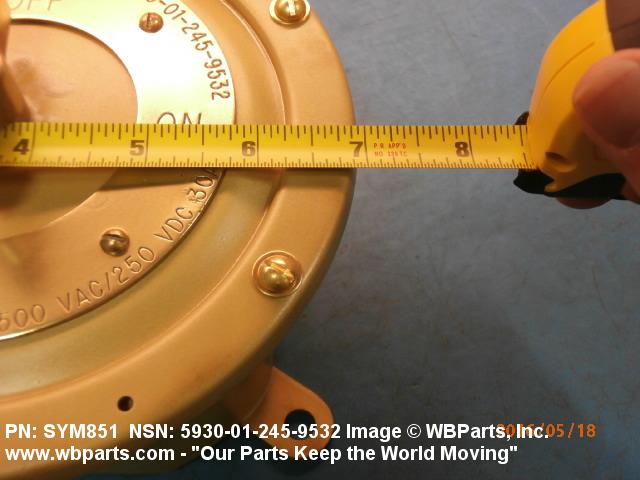

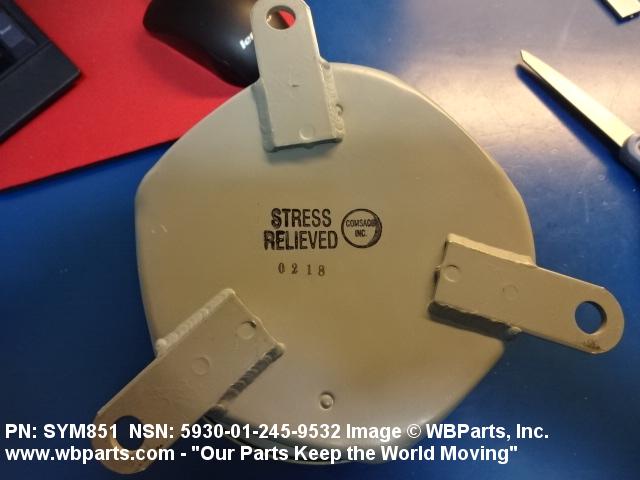

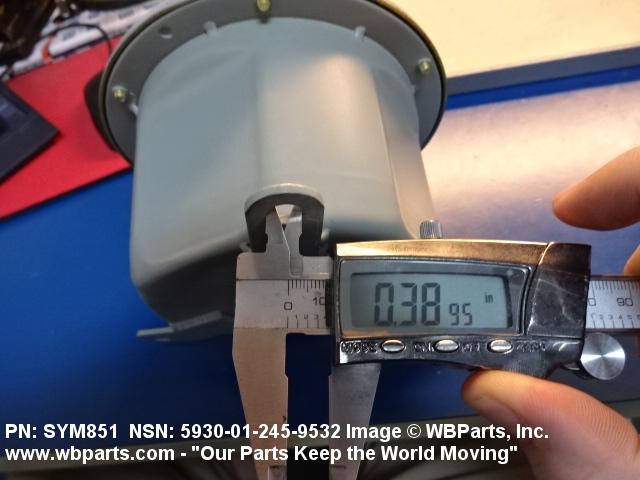

| OVERALL DIAMETER | 7.500 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION FRONT |
| THROW QUANTITY | 1 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 450.0 AC AT SEA LEVEL 250.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 30.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 30.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR MOMENTARY POSITION | CLOCKWISE AND COUNTERCLOCKWISE SINGLE ACTUATOR |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 4 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 90.0 DEGREES SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.311 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.375 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.500 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY CIRCLE RADIUS | 3.312 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB AND METALLIC INCLOSURE |
| TEST DATA DOCUMENT | 80064-9000S6202-74276 DRAWING |
| NONDEFINITIVE SPEC/STD DATA | 3SR3A4-2 TYPE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III KNOB MANUFACTURER CODE | 80064 |
| III KNOB MANUFACTURER PART NUMBER | 9000S6202-74089-193 |
Restrictions/Controls & Freight Information | NSN 5930-00-296-7318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-296-7318
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
