Product Details | PRESSURE SWITCH
5930-00-503-4192 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 33400111, 33400-111, 5930-00-503-4192, 00-503-4192, 5930005034192, 005034192
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-503-4192 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-503-4192
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-503-4192
Technical Data | NSN 5930-00-503-4192
| Characteristic | Specifications |
|---|---|

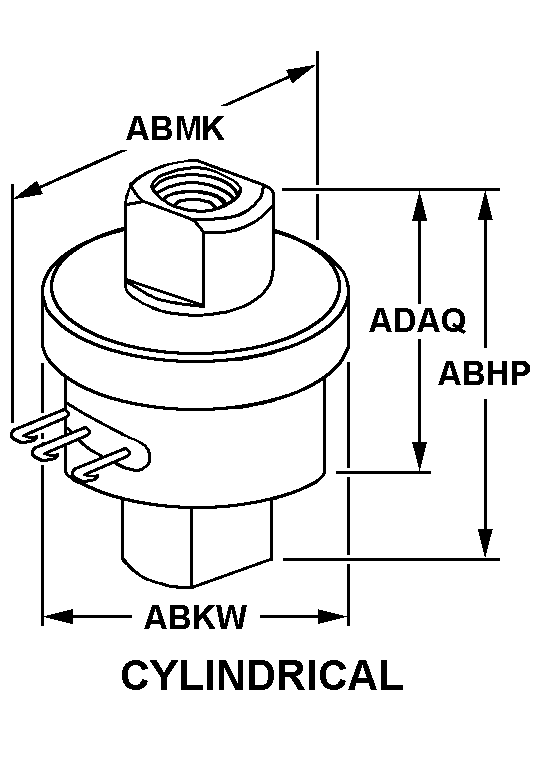

| STYLE DESIGNATOR | 43 CYLINDRICAL |
| OVERALL LENGTH | 3.540 INCHES NOMINAL |
| OVERALL HEIGHT | 3.850 INCHES NOMINAL |
| OVERALL WIDTH | 3.187 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 2.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL ALL CONNECTIONS |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF ALL PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.4375 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 20 ALL PRESSURE CONNECTION |
| MANUFACTURERS CODE | 98505 |
| DESIGN CONTROL REFERENCE | 33400-111 |
