NSN 5930-00-642-9691 SCC83873, SCC838731, SC-C-83873-1
Product Details | ROTARY SWITCH
5930-00-642-9691 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SCC83873, SCC838731, SC-C-83873-1, GA50467, 5930-00-642-9691, 00-642-9691, 5930006429691, 006429691
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-642-9691 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-00-642-9691
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-642-9691
Technical Data | NSN 5930-00-642-9691
| Characteristic | Specifications |
|---|---|

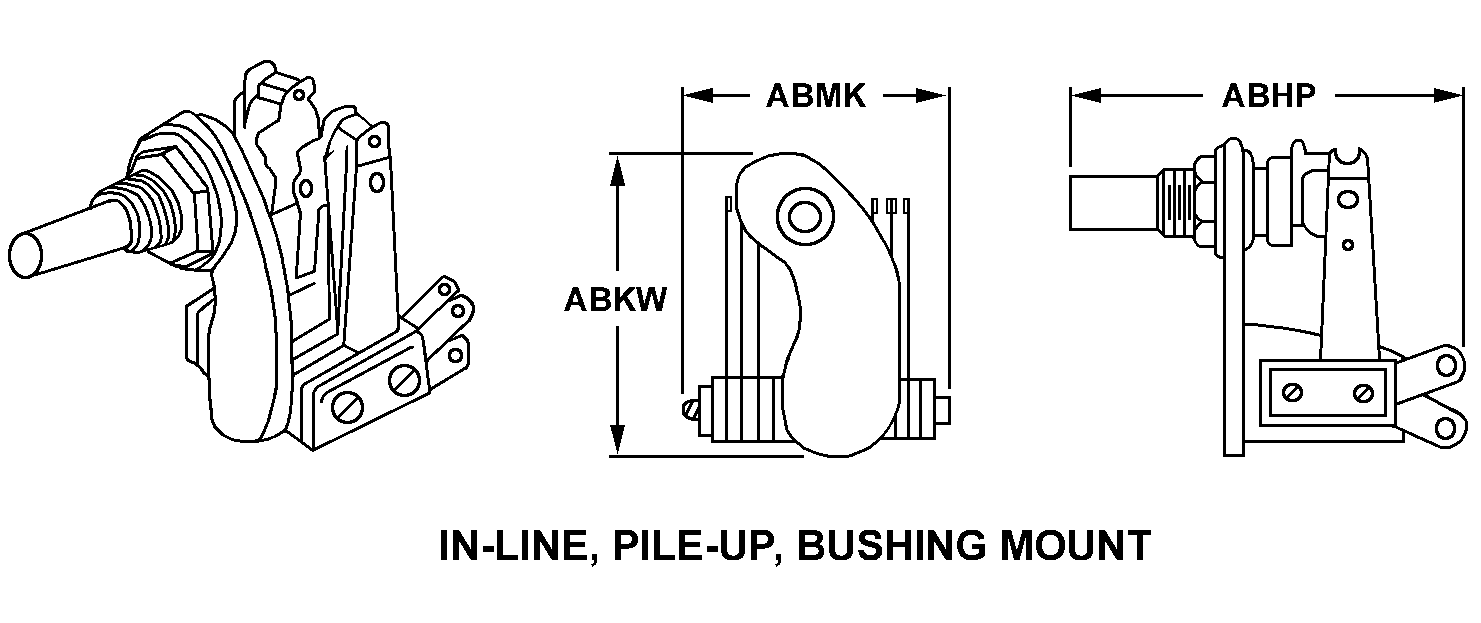

| STYLE DESIGNATOR | 14 IN-LINE, PILE-UP, BUSHING MOUNT |
| OVERALL LENGTH | 1.812 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.000 INCHES MAXIMUM |
| OVERALL WIDTH | 1.156 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | PILE-UP |
| PILE-UP CONTACT FORM ARRANGEMENT | 1B1C SINGLE SWITCH EACH SECTION IN-LINE |
| CONTACT VOLTAGE RATING IN VOLTS | 50.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 52.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.099 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.750 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.344 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| SPECIAL FEATURES | ITEM DOES NOT ACCOMMODATE THREADED BUSHING |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
