NSN 5930-00-699-9438 MS39060, MS390602, MS39060-2

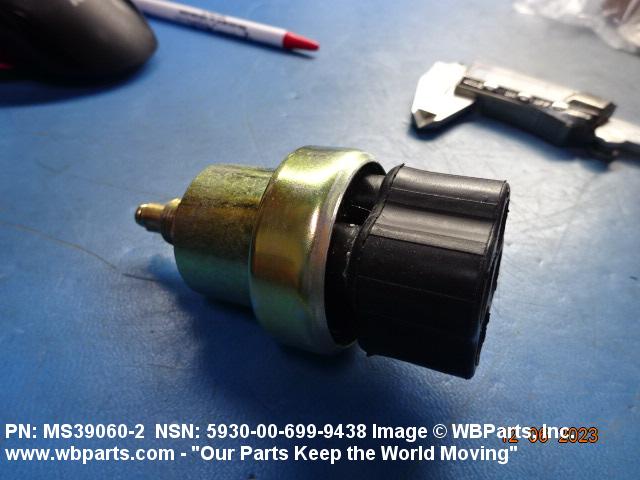

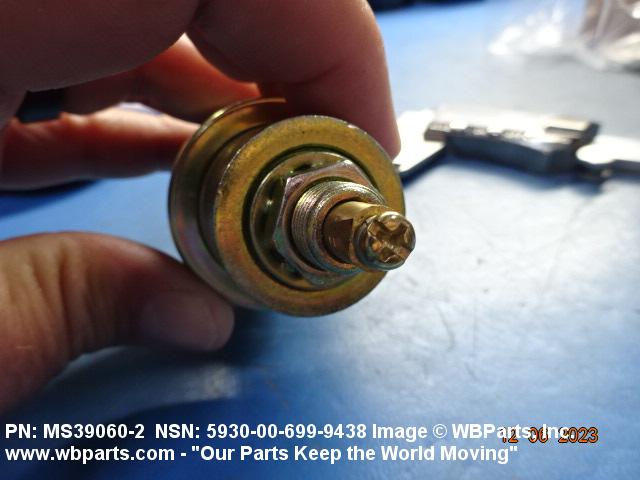

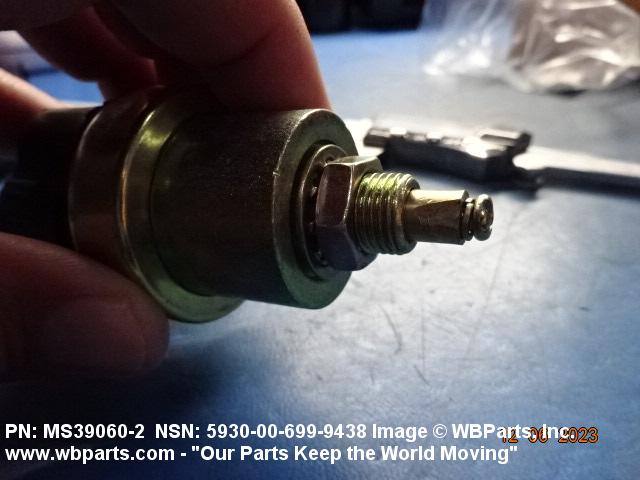

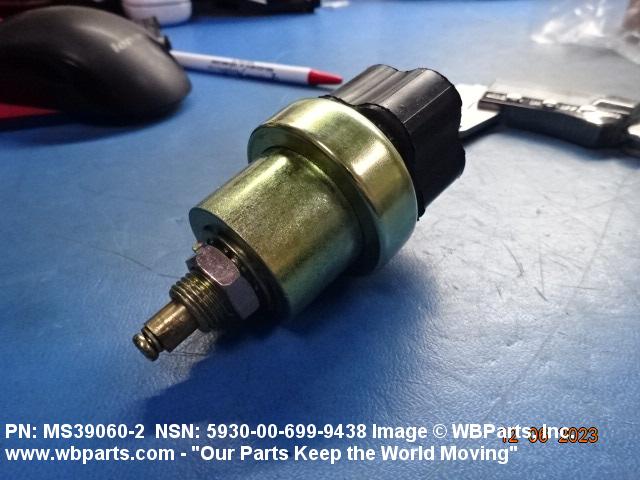

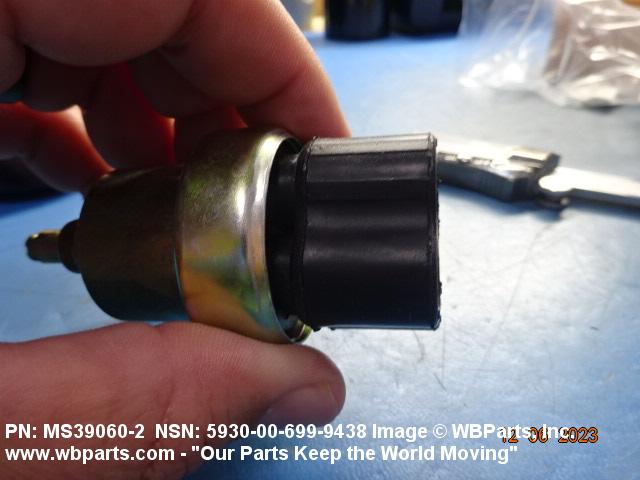

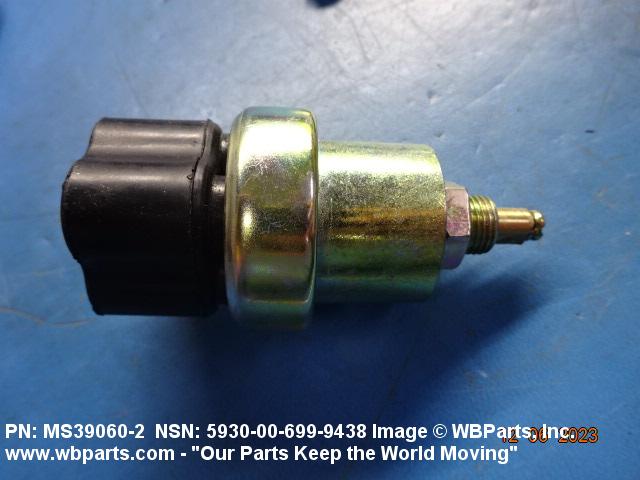

Product Details | ROTARY SWITCH

5930-00-699-9438 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).

Part Alternates: MS39060, MS390602, MS39060-2, B7829, HCF12497, SAW6999438, SAW-6999438, SE575E, TC151444, TC15-1444, X55210, MILS13623, MIL-S-13623, MIL-S-13623/1-2, MILS1362312, R25231, 0624A0399, 177MAM1, 189095, 1998009, 1998078, 3029296, 30292965, 3029296-5, 4202629, 4776B, 5T1517, 60089, 73029296, 79Z1522, 8002810, 816047, 8380699, 929134, 5930-00-699-9438, 00-699-9438, 5930006999438 , 006999438

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-699-9438	02134 ( SWITCH, ROTARY )

Drawings & Photos | NSN 5930-00-699-9438

Part Number	Request Date	QTY	Origin
5930-00-699-9438	2024-08-240	17	United States
5930-00-699-9438	2024-08-240	90	United States
5930-00-699-9438	2024-05-149	25	United States
5930-00-699-9438	2024-05-149	50	United States
5930-00-699-9438	2023-10-303	10	United States
8002810	2022-10-277	4	US
5930-00-699-9438	2021-10-293	50	United States
5930-00-699-9438	2018-03-74	100	US
5930-00-699-9438	2017-08-230	90	US
5930-00-699-9438	2011-03-68	671	MANUAL
5930-00-699-9438	2008-12-350	9	DIBBS
5930-00-699-9438	2008-12-350	43	DIBBS
5930-00-699-9438	2008-03-67	1417	DIBBS
5930-00-699-9438	2007-09-249	2098	DIBBS
5930-00-699-9438	2007-02-51	2531	DIBBS

Cross Reference | NSN 5930-00-699-9438

Part Number	Cage Code	Manufacturer
0624A0399	55207	ARROW-MASTER, INCORPORATED
177MAM1	05415	LINDE LIFT TRUCK CORP.
189095	29510	KOMATSU AMERICAN INTL CO
1998009	16764	GENERAL MOTORS CORP DELCO REMY DIV
1998009	24617	GENERAL MOTORS CORP
1998078	16764	GENERAL MOTORS CORP DELCO REMY DIV
1998078	24617	GENERAL MOTORS CORP
3029296	0AHU0	KALMAR AC INC
3029296-5	89926	NEW HOLLAND CONSTRUCTION
4202629	34161	KOEHRING CO
4202629	8E499	KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO
4776B	0ZSM8	UCOM, INC.
5930006999438	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5T1517	99832	SCOTT HUBER ESSICK A CO OF FIGGIE INTERNATIONAL INC
60089	16004	DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
73029296	6N299	AGCO CORP PARTS OPN
79Z1522	27315	MORRIS MATERIAL HANDLING, INC.
8002810	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
816047	02280	AMERICAN HOIST AND DERRICK CO
8380699	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
929134	38018	MANITOWOC ENGINEERING CO DIVISION OF THE MANITOWOC CO INC
B7829	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
B7829	46717	PETTIBONE LLC
HCF12497	40152	VME AMERICAS INC SUB OF VME GROUP N V
MIL-S-13623	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-13623/1-2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39060	36024	LIBBY POWER SYSTEMS LLC
MS39060-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R25231	10988	CNH INDUSTRIAL AMERICA LLC
SAW-6999438	1Y875	SOUTHERN AUTOMOTIVE WHOLESALERS, INC.
SE575E	03677	ANTHONY YORK CO
TC15-1444	03677	ANTHONY YORK CO
X55210	66717	WURLITZER CO THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-699-9438

Compare

Related Products | NSN 5930-00-699-9438

5930-00-699-9439, 5930-00-699-9586, 5930-00-700-0887, 5930-00-700-0890, 5930-00-700-0916

Technical Data | NSN 5930-00-699-9438

Characteristic	Specifications
STYLE DESIGNATOR	12 SNAP OR LINE

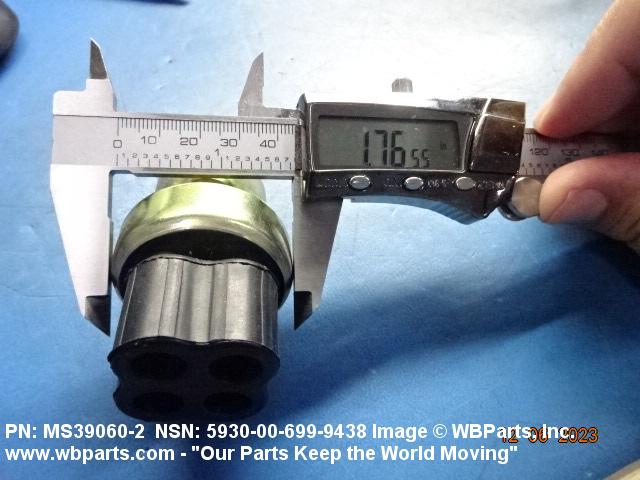

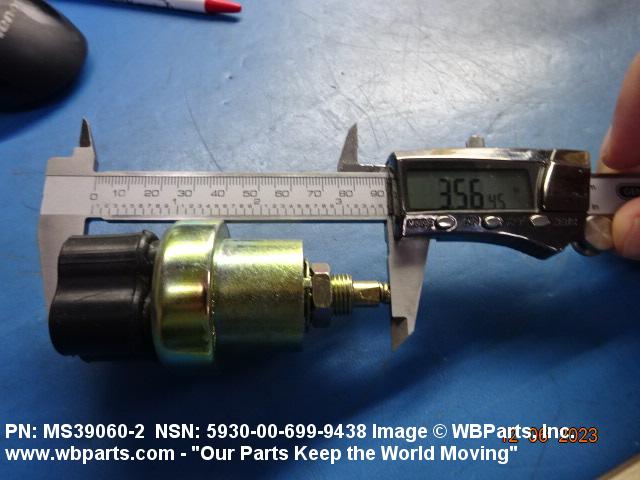

OVERALL LENGTH	3.520 INCHES NOMINAL
