NSN 5930-00-752-2813 S2JL5, JL125A8, KD182B
Product Details | ROTARY SWITCH
5930-00-752-2813 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: S2JL5, JL125A8, KD182B, 141PB28PC97, 2JL5, 2JL5M0D, 33205A, 4047-564 PIECE 12, 4047564PIECE12, 597F353H11, 597F359H05, 635J664H32, 9000S6202744222JL5M0D, 9000S6202-74422-2JL5M0D, 9000S620274422UNIT5, 9000S6202-74422UNIT5, 9828117PC9, 9828-117PC9, 5930-00-752-2813, 00-752-2813, 5930007522813, 007522813
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-752-2813 | 02134 ( SWITCH, ROTARY ) |

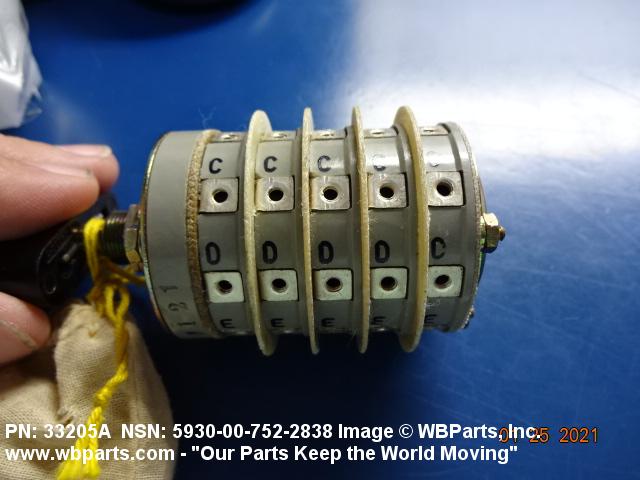

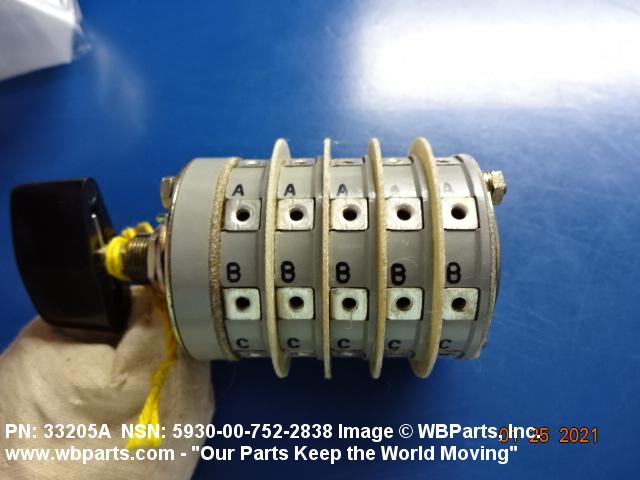

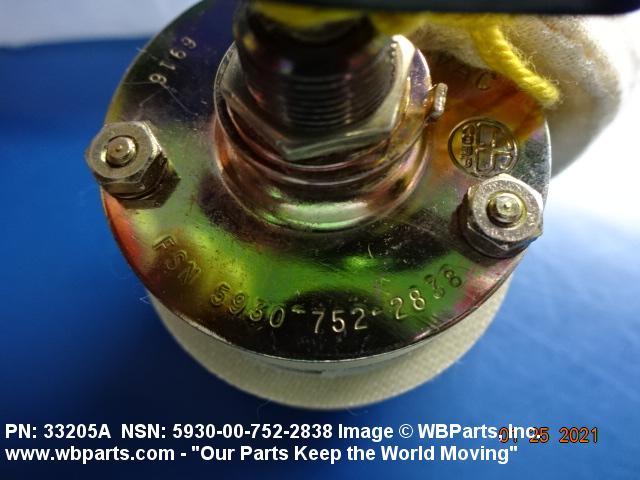

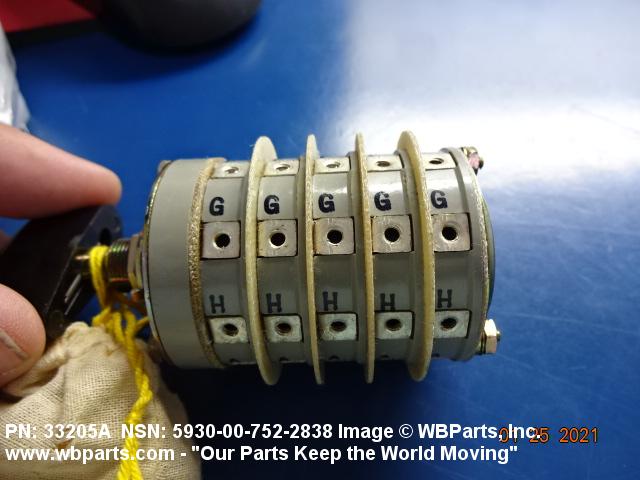

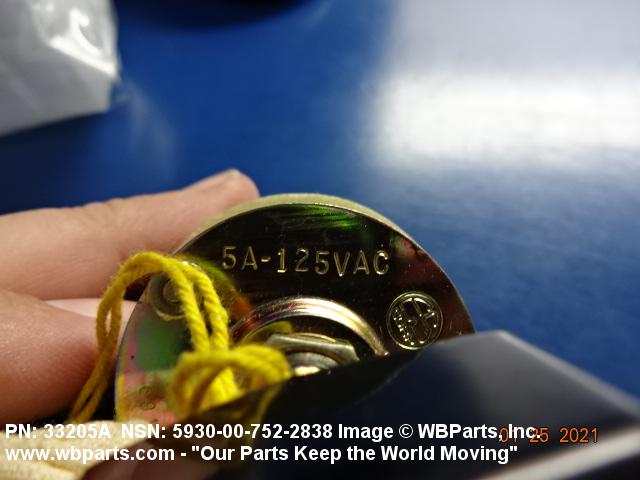

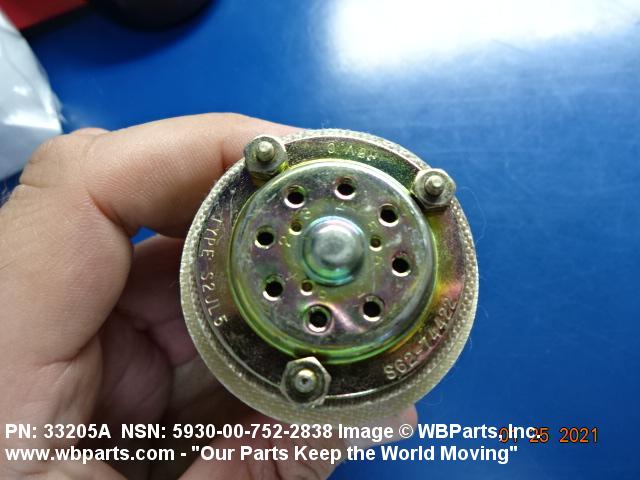

Drawings & Photos | NSN 5930-00-752-2813
Demand History | NSN 5930-00-752-2813
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33205A | 2021-01-07 | 1 | United States |
Cross Reference | NSN 5930-00-752-2813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 141PB28PC97 | 02750 | EATON AEROSPACE LLC DIV ELECTRICAL SENSING & CONTROLS |
| 2JL5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2JL5 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 2JL5M0D | 96169 | ELECTRIC BOAT CORPORATION |
| 33205A | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 4047-564 PIECE 12 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 597F353H11 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 597F359H05 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 635J664H32 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 9000S6202-74422-2JL5M0D | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9000S6202-74422UNIT5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9828-117PC9 | 96169 | ELECTRIC BOAT CORPORATION |
| JL125A8 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| KD182B | 02750 | EATON AEROSPACE LLC DIV ELECTRICAL SENSING & CONTROLS |
| S2JL5 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-752-2813
Related Products | NSN 5930-00-752-2813
Technical Data | NSN 5930-00-752-2813
| Characteristic | Specifications |
|---|---|

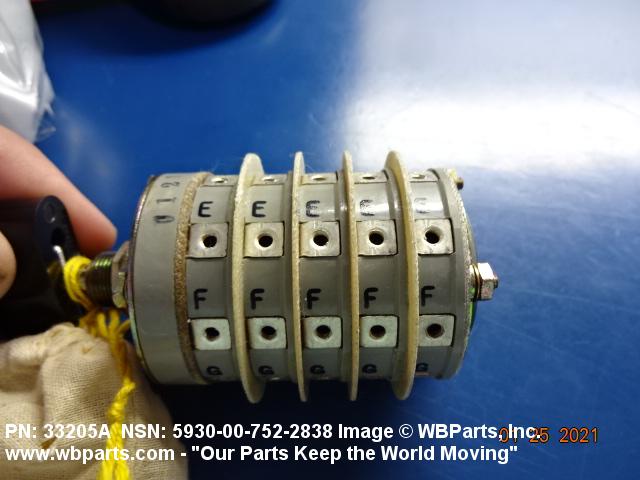

| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |

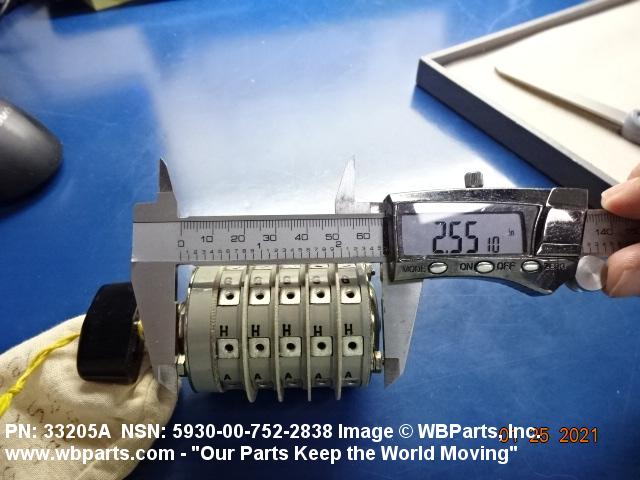

| OVERALL LENGTH | 4.094 INCHES NOMINAL |

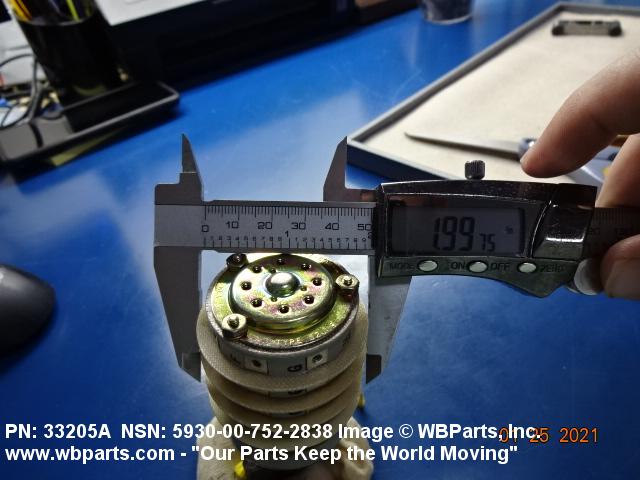

| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 5 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 EACH SECTION FRONT |
| THROW QUANTITY | 8 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED, THREADED HOLE SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.438 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.188 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.875 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNS SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.469 INCHES SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.469 INCHES NOMINAL SINGLE MOUNTING FACILITY |

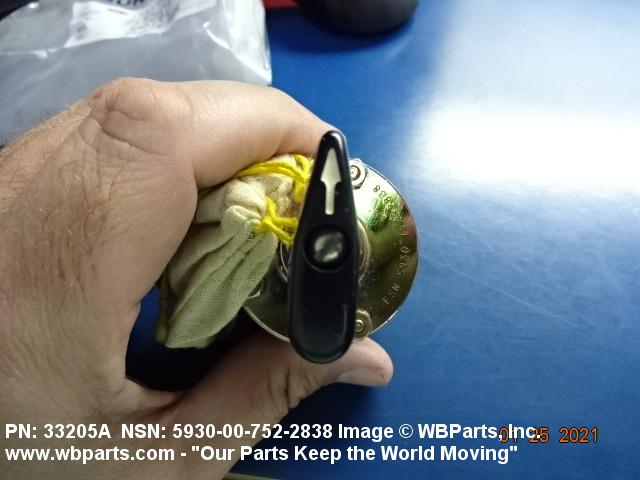

| FEATURES PROVIDED | ACTUATOR KNOB |
