NSN 5930-00-913-2983 MS0090311231, MS0090311-231, MS90311231

Product Details | TOGGLE SWITCH

5930-00-913-2983 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS0090311231, MS0090311-231, MS90311231, MS90311-231, SMC5374681, SMC537468-1, B97561, BSLB97561, BSL-B97561, CC0288200200G, CC028-8-200-200G, MILDTL8834, MIL-DTL-8834, MILS8834, W41262K6200B4, Q 314 855 011, Q314855011, 945228-231, 15087, 2686317-00, 312990112122, 312-990112-122, 352250013934, 418396-231, 48342 28011, 4834228011, 600-003-021, 8869K4 , 5930-00-913-2983, 00-913-2983, 5930009132983, 600003021, 945228231, 009132983, 268631700, 418396231

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-913-2983	00184 ( SWITCH, TOGGLE )

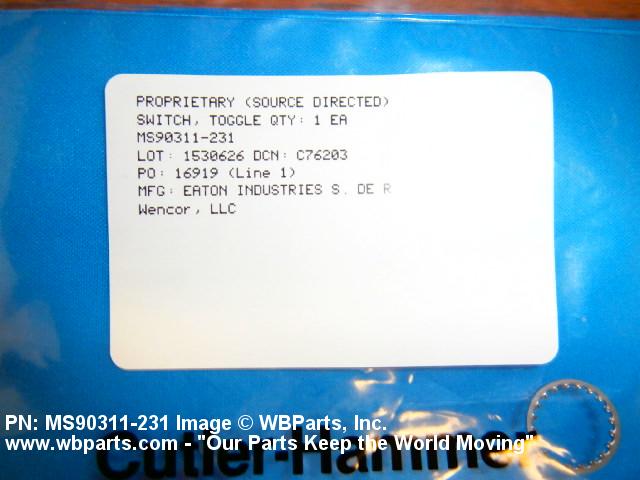

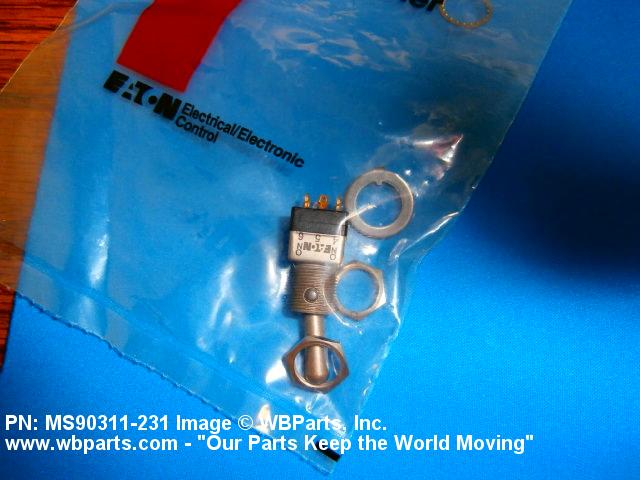

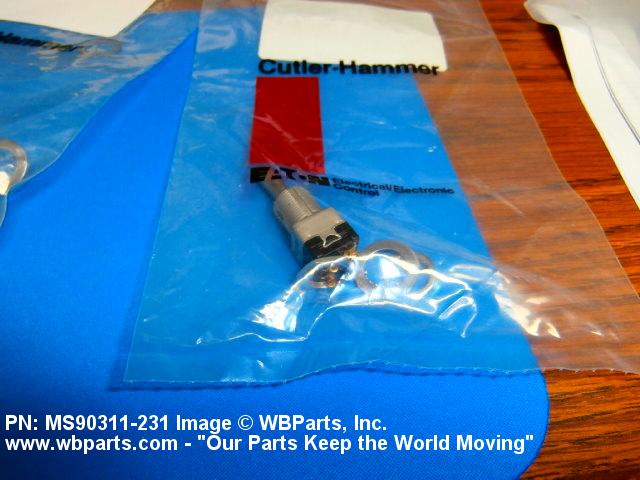

Drawings & Photos | NSN 5930-00-913-2983

Part Number	Request Date	QTY	Origin
MS90311231	2021-03-83	1	Indonesia
5930-00-913-2983	2019-09-266	30	United States
5930-00-913-2983	2017-06-164	714	DIBBS
MILDTL8834	2017-03-81	3	United States
MS90311-231	2017-01-11	18	United Arab Emirates
5930-00-913-2983	2016-05-145	733	DIBBS
MS90311231	2015-12-362	90	TR
MS90311231	2014-09-272	57	Hong Kong
5930-00-913-2983	2013-11-318	393	DIBBS
5930-00-913-2983	2013-06-153	350	DIBBS
5930-00-913-2983	2013-05-123	350	DIBBS
5930-00-913-2983	2013-01-07	207	DIBBS
5930-00-913-2983	2012-11-334	215	DIBBS
8869K4	2012-09-257	6	Hong Kong
5930-00-913-2983	2012-08-227	1	us
MILS8834	2012-07-192	10	Australia
8869K4	2012-06-156	4	Hong Kong
5930-00-913-2983	2012-06-156	112	DIBBS
MS90311231	2012-04-104	1	Spain
MS90311231	2012-04-104	5	Spain
MS90311231	2012-04-104	10	Spain
MS90311231	2011-03-68	90	US
MS90311231	2011-03-63	5	Singapore
MS90311231	2011-02-54	10	India
5930-00-913-2983	2011-01-20	410	DIBBS
MS90311231	2010-08-217	48	KR
8869K4	2010-07-201	30	Hong Kong
5930-00-913-2983	2010-06-170	20	Turkey
5930-00-913-2983	2010-04-111	66	Taiwan
5930-00-913-2983	2007-09-248	1175	DIBBS

Cross Reference | NSN 5930-00-913-2983

Part Number	Cage Code	Manufacturer
15087	58880	MEGGITT (NEW HAMPSHIRE), INC
2686317-00	53711	NAVAL SEA SYSTEMS COMMAND
312-990112-122	38753	CMC ELECTRONICS INC
352250013934	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
418396-231	96214	RAYTHEON COMPANY DBA RAYTHEON
48342 28011	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
5930009132983	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
600-003-021	A1997	ELETTRONICA SPA
600-003-021	C3141	ELETTRONICA GMBH
8869K4	81640	EATON CORPORATION DBA FLUID POWER DIV
945228-231	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
B97561	K0967	MBDA UK LTD
BSL-B97561	K0577	BRITISH SAROZAL LTD
CC028-8-200-200G	K0268	RAYTHEON SYSTEMS LTD
MIL-DTL-8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS0090311-231	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90311-231	05624	GE AVIATION SYSTEMS LLC DBA GE AVIATION
MS90311-231	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Q 314 855 011	S3092	RHEINMETALL AIR DEFENCE AG
SMC537468-1	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
TE-11231	21649	OTTO ENGINEERING, INC. DBA OTTO CONTROLS
W41262K6200B4	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-913-2983

Compare

Related Products | NSN 5930-00-913-2983

5930-00-913-2985, 5930-00-913-3470, 5930-00-913-3641, 5930-00-913-3645, 5930-00-913-3646

Technical Data | NSN 5930-00-913-2983

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 50.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	1.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC AND 1.000 AMPERES INDUCTIVE AC
BODY STYLE	4P BUSHING MOUNT
BUSHING LENGTH	0.468 INCHES NOMINAL
BODY LENGTH	0.562 INCHES MAXIMUM
BODY WIDTH	0.546 INCHES NOMINAL
BODY HEIGHT	0.572 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.706 INCHES MAXIMUM
ACTUATOR STYLE	25 ROUND
ACTUATOR DIAMETER	0.234 INCHES NOMINAL
ACTUATOR HEIGHT	0.687 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	6 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	32
TEST DATA DOCUMENT	81349-MILS8834 SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-8834
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS90311-231

Restrictions/Controls & Freight Information | NSN 5930-00-913-2983

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-913-2983

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	B4	Support of pre-provisioning items for which NAVICP PHIL acts as POE
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
